Fiber Optic Fusion Splicer Machine JW4108M
Product Description
The machine adopts high-speed image processing technology and special precision positioning technology, which can make the whole process of fiber fusion automatically complete within 9 seconds. The large screen LCD display makes the various stages of fiber fusion clear. It is small in shape, light in weight, suitable for field work, and it is simple in operation, fast in melting, and small in melting loss. It is particularly suitable for optical fiber cable engineering and maintenance in the fields of telecommunications, radio and television, railways, petrochemicals, electricity, forces, and public security, as well as the teaching and research of scientific research institutes.
Core to core alignment by PAS technology
(PAS: Profile Alignment System)
Fiber core can be display clearly
Single X or Y view and X & Y view simultaneously
Auto check & display quality of cleaved end face
3.5inch color LCD monitor

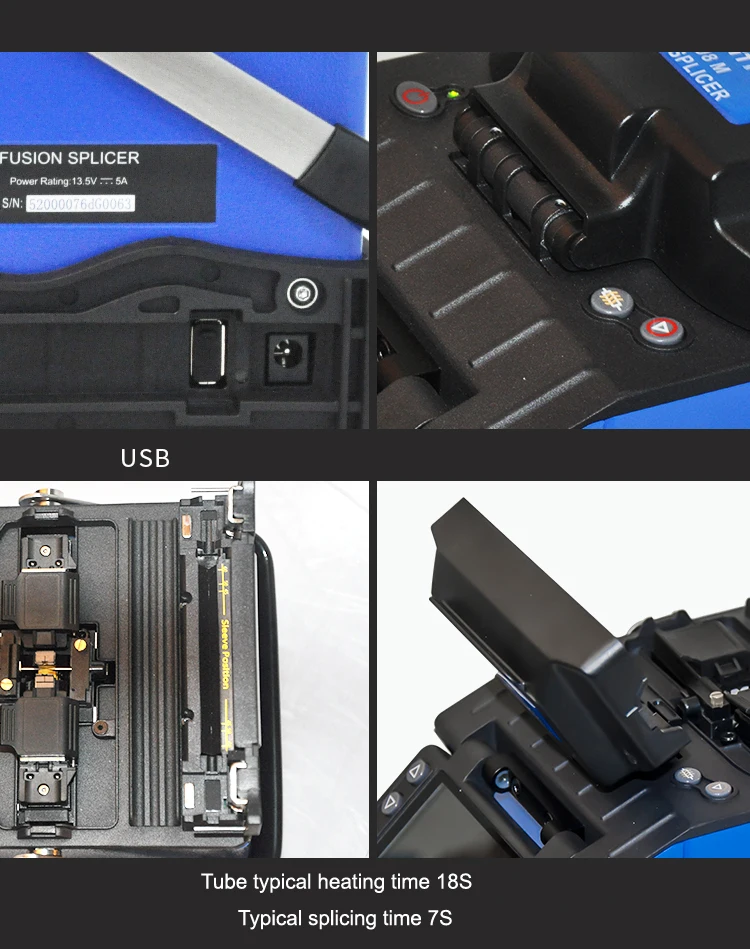

USB interface
Software upgrade via US interface

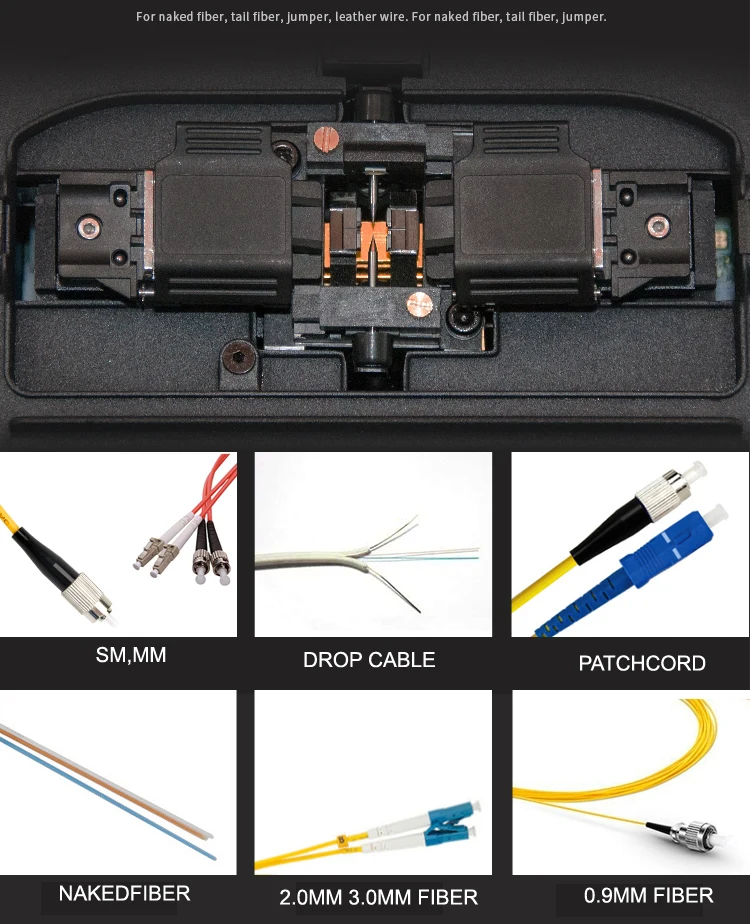

Applicable fibers | SM MM DS NZDS |
Fiber diameter | Cladding diameter:80-150μm; Coating diameter:100-1000μm |
Fiber count | Single |
Fiber cleaved length | 8-16mm (Coating diameter:250μm) |
Actual average splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
Typical splicing time | Typical 9 sec (standard SM fiber) |
Return loss | >60dB |
Splicing mode | Auto Calibrate Normal Special |
Fiber aligning method | Meticulous,Core,Clad,Manual |
Splicing program | 53 (factory mode), 100(user mode) |
Tube heating program | 9 (factory mode), 40(user mode) |
Tube typical heating time | Typical 16~25 sec |
Protection sleeve length | 60mm, 40mm |
Storage of splice result | 10000 results, 24parameter per result , 100 set of images |
Fiber image magnification | 120X (X or Y view),60X (X and Y view) |
Battery capacity | Typical 300 cycles (splice/tube heat with inner Li-battery ) |
Monitor | 3.5 inch color LCD monitor |
Tension test | 2N |
Electrode life | 2500 |
Terminal | USB |
Power supply | AC 100-240V with AC adapter DC13.5V Inner Li-battery (5200mAH) |
Operating condition | 0-5000m above sea level, -10-50℃ Max wind velocity of 15m/s |
Dimension | 122mm(L)×148mm(W)×130mm(H) |
Weight | 1.4Kg excluding battery 1.7Kg including battery |

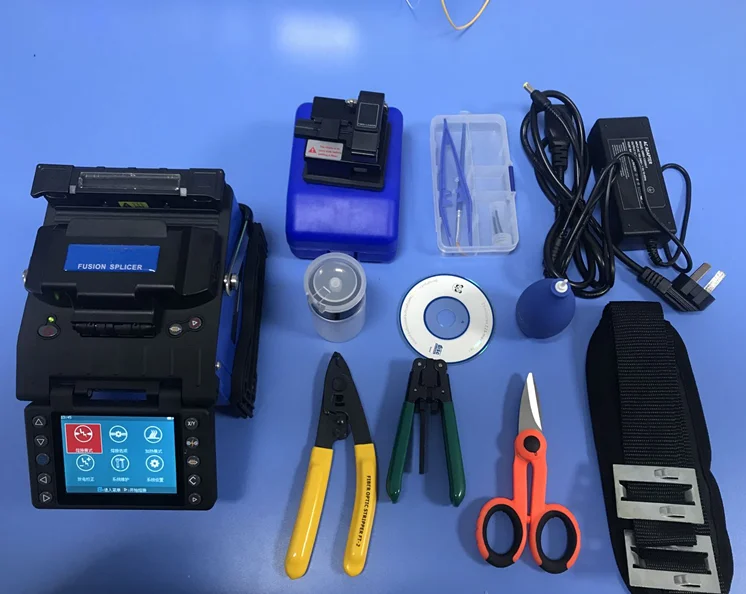

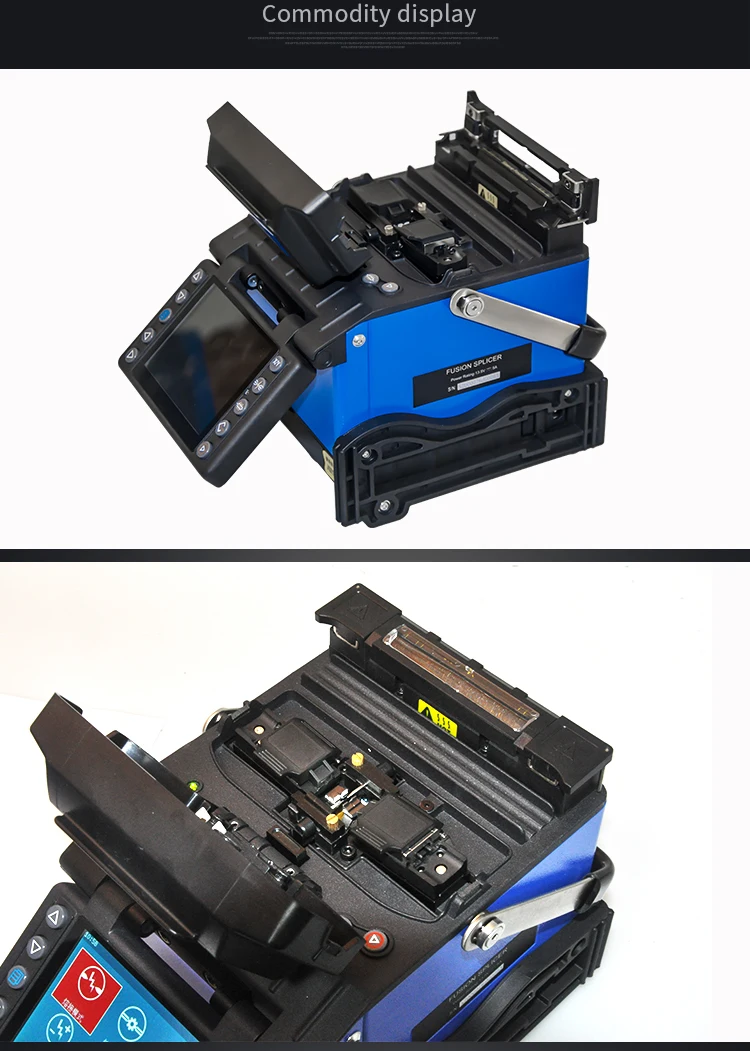

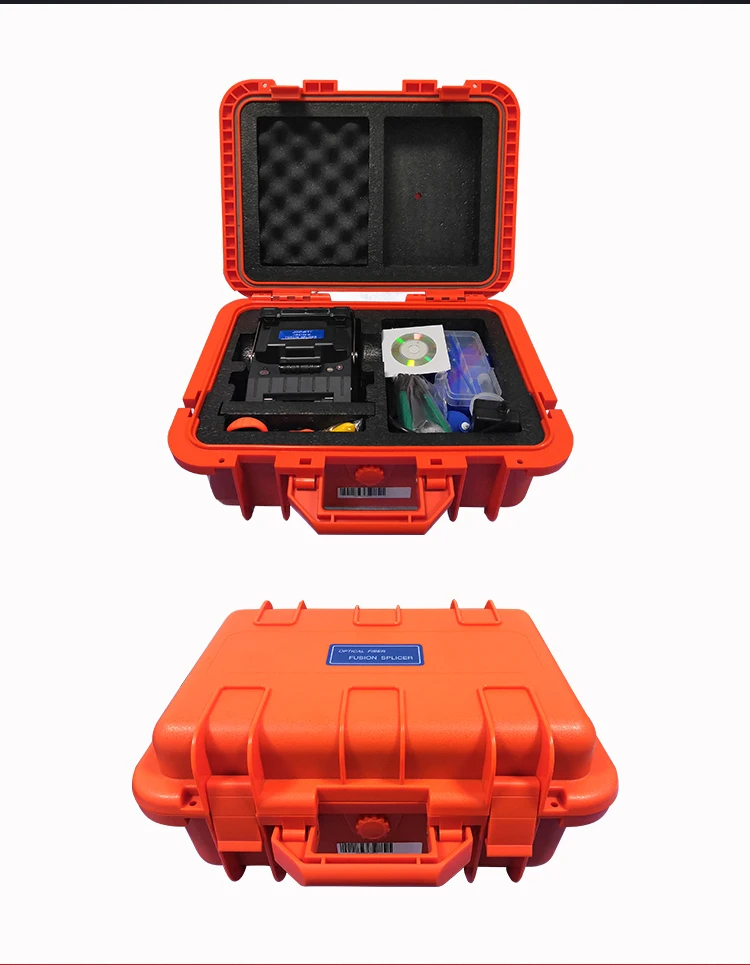

Detailed Images
Related Products
Company Information
Certifications

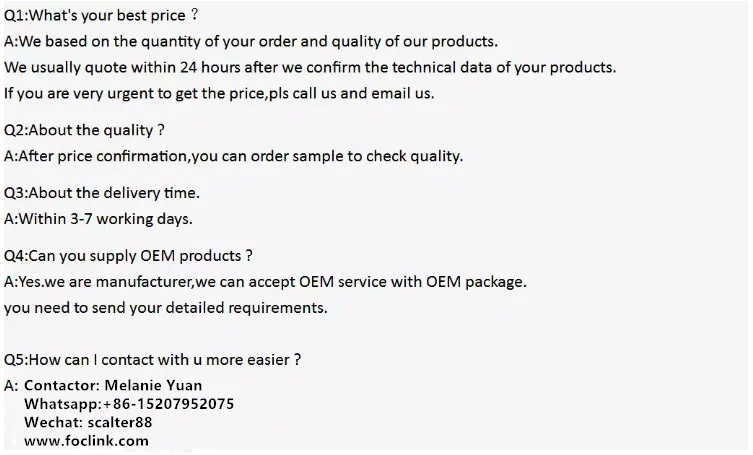

FAQ
