.Milti-functional Road Sprinkler can be used in many fields. Such as :road cleaning .plants watering. dust suppression .drug spraying.aseptic sprayer.transport drink water .agriculture planting. Besides that,it can spray alcohol disinfectant and 84 disinfectant to disinfect public areas
2.Optional chassis: NORTH BENZ,FAW,FOTON,SHANAXI,JAC,JMC,ISUZU,SINOTTUK, DONGFENG
3.We are directly manufacture of Disinfection spray spreader truck/Disinfectant Truck/Sterilize Truck for 2020 Sterilization disinfection Truck mounted water mist cannon fogging gun sprayer machine
Product details
Specifications
Item
Specifications
Item
Specifications
Truck
Name
12CBM Water Mist Spray Dust Suppression Truck
Model
CLW5181TDYKL6
Gross Weight
18000kg
Overall dimensions
9580*2530*3730
Curb Weight
10300kg
Wheelbase
4500mm
Approach angle
19°
Front Track
1862mm
Departure Angle
13°
Rear Track
1806mm
Front Overhang
1260mm
Number of axles
2
Rear Overhang
2560mm
Max speed
105km/h
Number of Tyres
6
Traction system
4*2
Tyre
10.00R20
Transmission
manual
Allowable Cab Passengers
3
Chassis
Brand
Dongfeng
Drive type
RDH or LDH
Model
EQ1185LJ9CDE
Leaf Spring
8/10+7
Upper
Volume of tank
12 CBM
Tank Material
Carbon steel
Thickness
4-5mm
Loading
Water
Tank
Anti-rust coating inside tank
Color
Customerized
Engine (Motor)
Brand
Commins
Type
Diesel
Model
B6.2NS6B210
Displacement
6200ML
Horse power
210hp
Emission standard
Euro 5
Structure
Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,fog cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.
Equipment
Gearbox
5 forwards & 1 reverse
Steering Gear
Hydraulic steering
Clutch
Reinforced diaphragm clutch
Brakes
Dual circuit compressed air brake
Water Pump
Suction height >6m
High-pressure spray pump
>100m
Sprinkler width
>14m
Others equipment
fire valve,water valve, and filter gauze
Remark
Dust suppressing vehicle is a special vehicle that can suppress dust pollution by spraying spraying liquid such as dust suppressing and curing agent. It mainly serves railway, road and other places with high incidence of dust. Dust suppressant truck is widely used in railway coal transport to prevent coal dust pollution, and also widely used in other bulk materials transport process to prevent dust pollution, slag yard, coal storage yard, construction site, automobile coal dust, sand fixation, steel building materials, cement, enterprises all kinds of open field ecological slope protection. When transporting coal by train, dust suppressants can solidify the coal on each train, forming a protective film and reducing pollution. The dust suppression vehicle also has the function of sprinkler, which can realize a 360-degree rotation during the spraying operation. The rear platform anti-aircraft gun can be rotated simultaneously, and can be operated by electronic remote control.

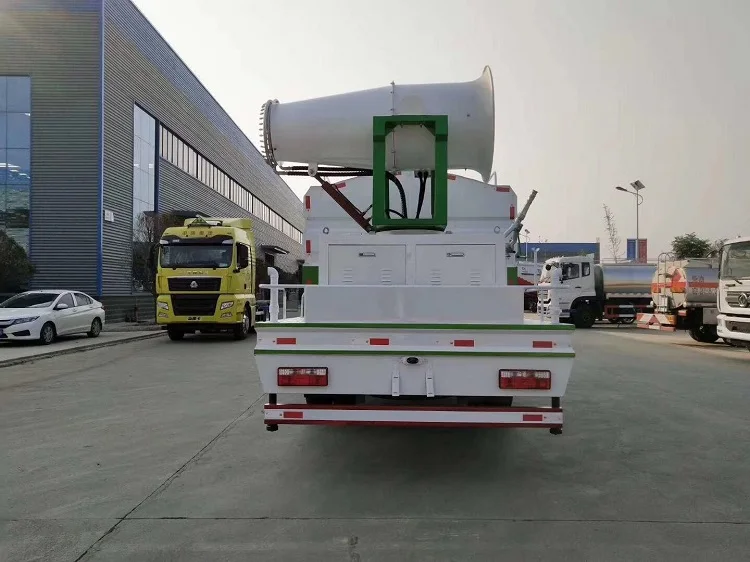

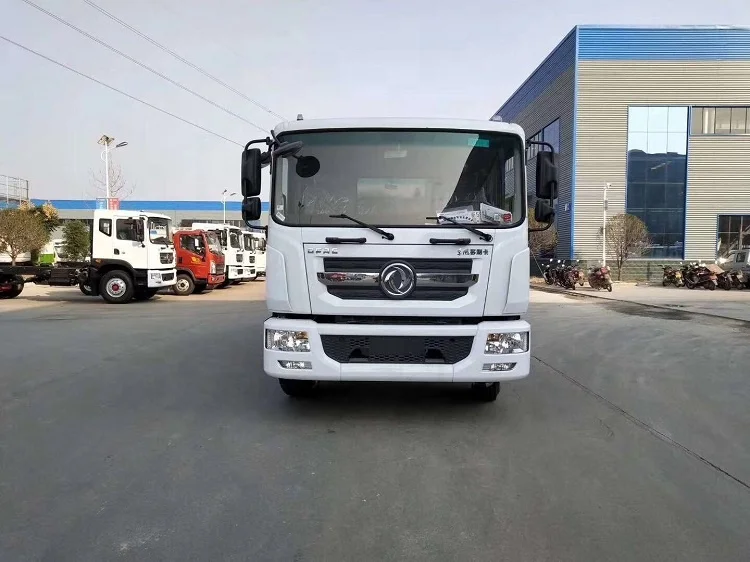

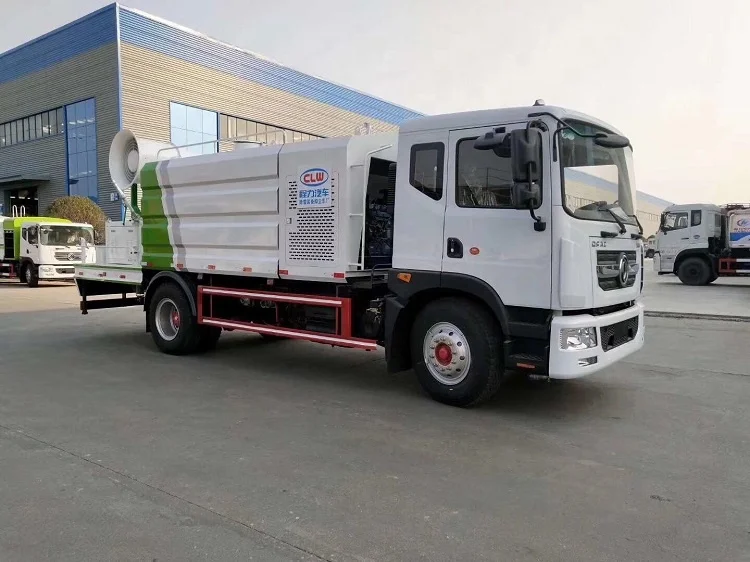

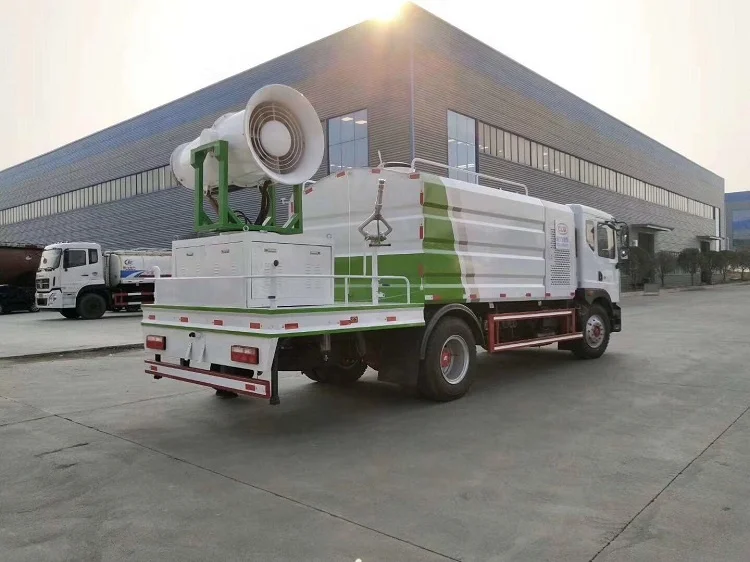

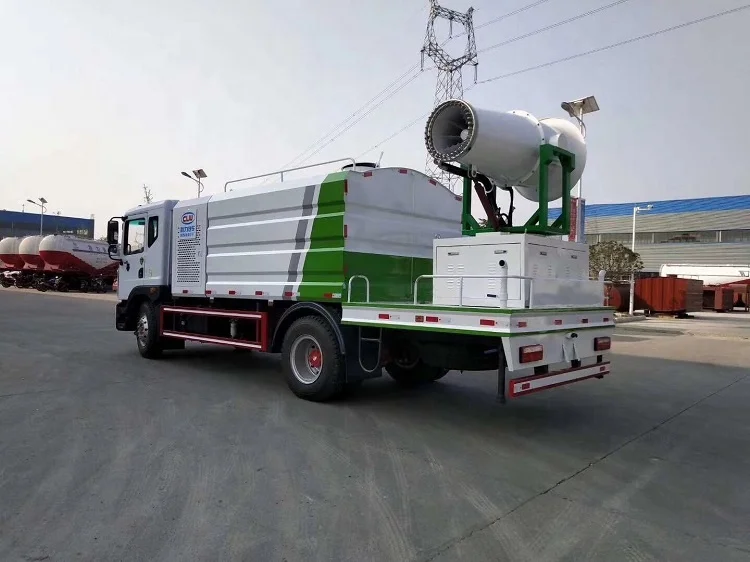

Product image
