2kg smoke afterburner coffee roaster smoke filter esp electrostatic precipetator
- Category: Gas Disposal Machinery >>>
- Supplier: Nanning Juwei Machinery And Electricity Technology Co. Ltd.
Share on (62466274286):
Product Overview
Description
Our advantages
Product description
What is the electrostatic precipitator (esp)?
Juwei electrostatic air cleaner is a filtration device that removes fine particles such as oil, fume, lampblack, dust and smoke, which caused by cooking&grilling&lasering&hot-heating...ect. Using the force of high voltage electric field, charged the particles to positive and negative potemtial, then they will be collected by the negative/positive collectors, turn dirty air into clean air. After tested, our machine can take away up to 98% of particles.

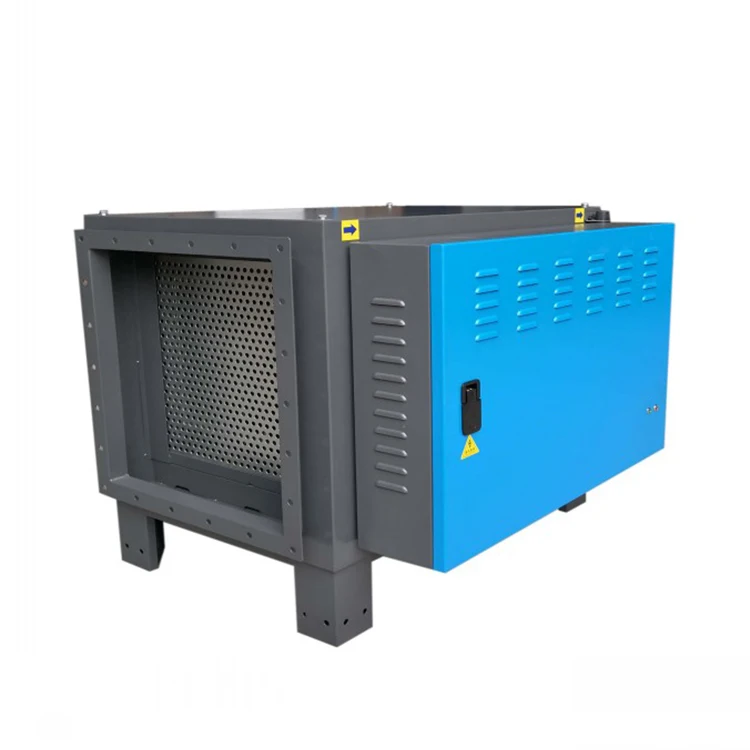

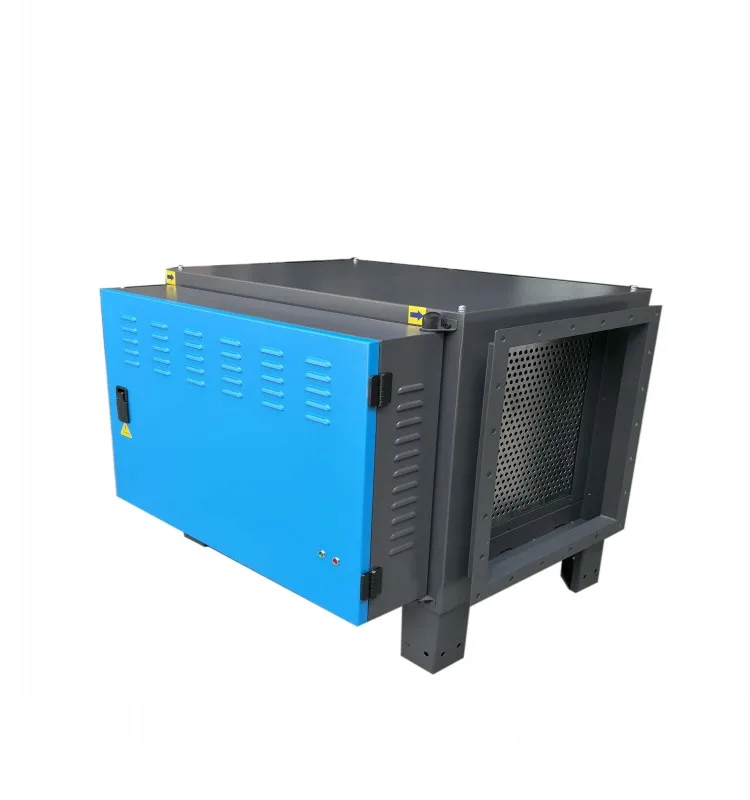

Model | JW60 |
Air volume | 6000 m³/h |
Dimension(L*W*H) | 823*664*702mm |
Flange Size(A*B) | 392*463mm |
Electric filed | 2pcs |
Input voltage | 220V/50Hz |
Power | 300W |
Efficiency | 96% |
Cabinet material | carbon steel with powder coated finish |
Electric filed material | Anti-corrosion aviation aluminum alloy sheet |
UV Ozone Series
The dual-band UV photolysis matrix can effectively degrade the passing odor gas, remove the odor, and the structure of the patch type is convenient for maintenance and cleaning
Contaminated air is drawn by the fan through a washable metal mesh pre-filter which traps large dust particles. The remaining particles, some as small as 0.01 microns, pass into a strong electrical field (ionizing section) where the particles receives an electrical charge. The charged particles then pass into a collector plate section made up of a series of equally spaced parallel plates. Each alternative plate is charged with the same polarity as the particles, which repel, while the interleaving plates are grounded, which attract and collect the contaminants. The contaminants are held in these plates until they are washed away. JUWEI electrostatic air cleaners are able to trap both wet and dry particles.
Size information
Model No. | Air volume (m3/h) | Filtration efficiency | Power rate(W) | Size(mm) | Flange size(mm) |
JW40 | 4000 | 96% | 200 | 543*856*732 | 584*463 |
JW60 | 6000 | 96% | 300 | 823*664*732 | 392*463 |
JW80 | 8000 | 96% | 300 | 823*856*732 | 584*463 |
JW120 | 2000 | 96% | 600 | 986*1173*732 | 901*463 |
JW160 (horizontal) | 16000 | 96% | 600 | 986*1558*732 | 1285*463 |
JW160 (vertical) | 16000 | 96% | 600 | 986*856*1302 | 584*1033 |
JW200 | 20000 | 96% | 1200 | 986*1077*1302 | 805*1033 |
JW240 | 24000 | 96% | 1200 | 986*1174*1302 | 901*1033 |
JW280 | 28000 | 96% | 1200 | 986*1366*1302 | 1093*1033 |
JW320 | 32000 | 96% | 1200 | 986*1558*1302 | 1285*1033 |
JW480 | 48000 | 96% | 576 | 1550*996*1844 | 1276*1584 |
How to select the right model for your ventilation system?
Details Images
Adopt 1.5mm thickness carbon steel with powder coated finish, no rust, corrosion resistance.
High-voltage
Voltage is an important element, it should be as high as possible. To ensure the maximum particle ionisation and capture
efficiency, both of our ioniser and collector cell use very high voltage.
efficiency, both of our ioniser and collector cell use very high voltage.

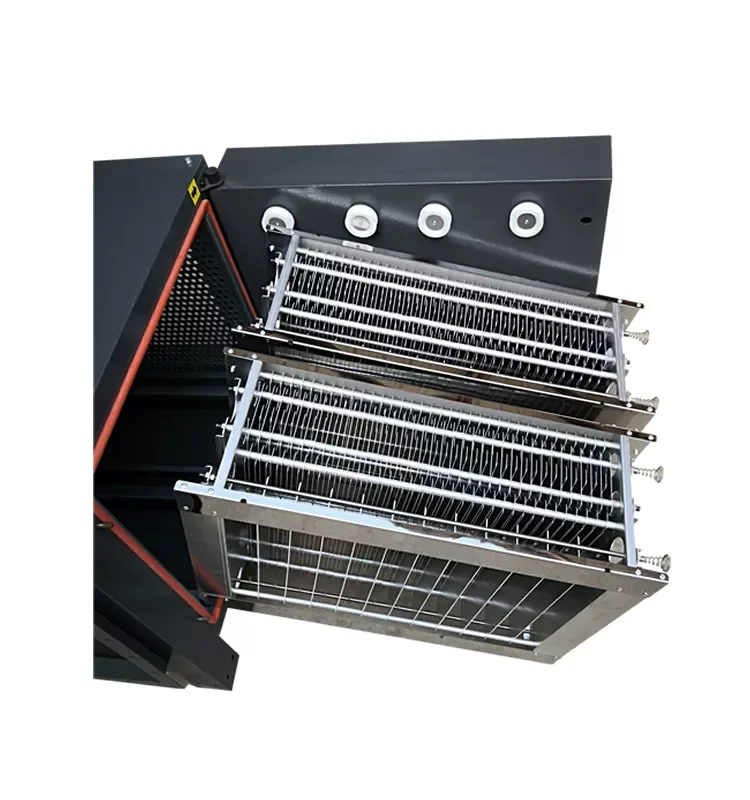

High-efficiency electric field
Maximum ionised grease and smoke particles as they travel over ionising electrodes, so they can be trapped when travel through the
parallel plates of the collector cell.
parallel plates of the collector cell.
There's a cooling fan below the control box, which to cool down temperature, avoid breakdown.
The inlet and outlet are covered with honeycomb mesh to prevent foreign bodies from entering, and the purification effect is more obvious.
Compare
Plate structure purifier
1. The collection section consists of many parallel plates, resistant to dirt and easy to clean
2.small size,save cost
3.low power consumption,power saving
3.low power consumption,power saving
Honeycomb structure purifier
1. Easy to accumulate oil, high maintenance costs
2. large in size, Additional logistics costs, freight charges and so on
3. more power consumption
3. more power consumption
Company Profile
Company Introduction
We are professionally specialized in manufacturing and exporting many kinds of electrostatic precipitator (ESP), air blowers and exhaust hoods for kitchen, restaurant, hotel, CBD, factory, industrial cutting machine plant, coffee bean roasting machine plant, CNC processing factory and so on.
With professional R&D and high-end machine equipment, we can offer customers with high quality, high efficiency and durability products, and committed to provide customers with reasonable and efficient purification program, accept OEM & ODM. Up to now, our products have been exported to over 35 countries and won customers' praise.

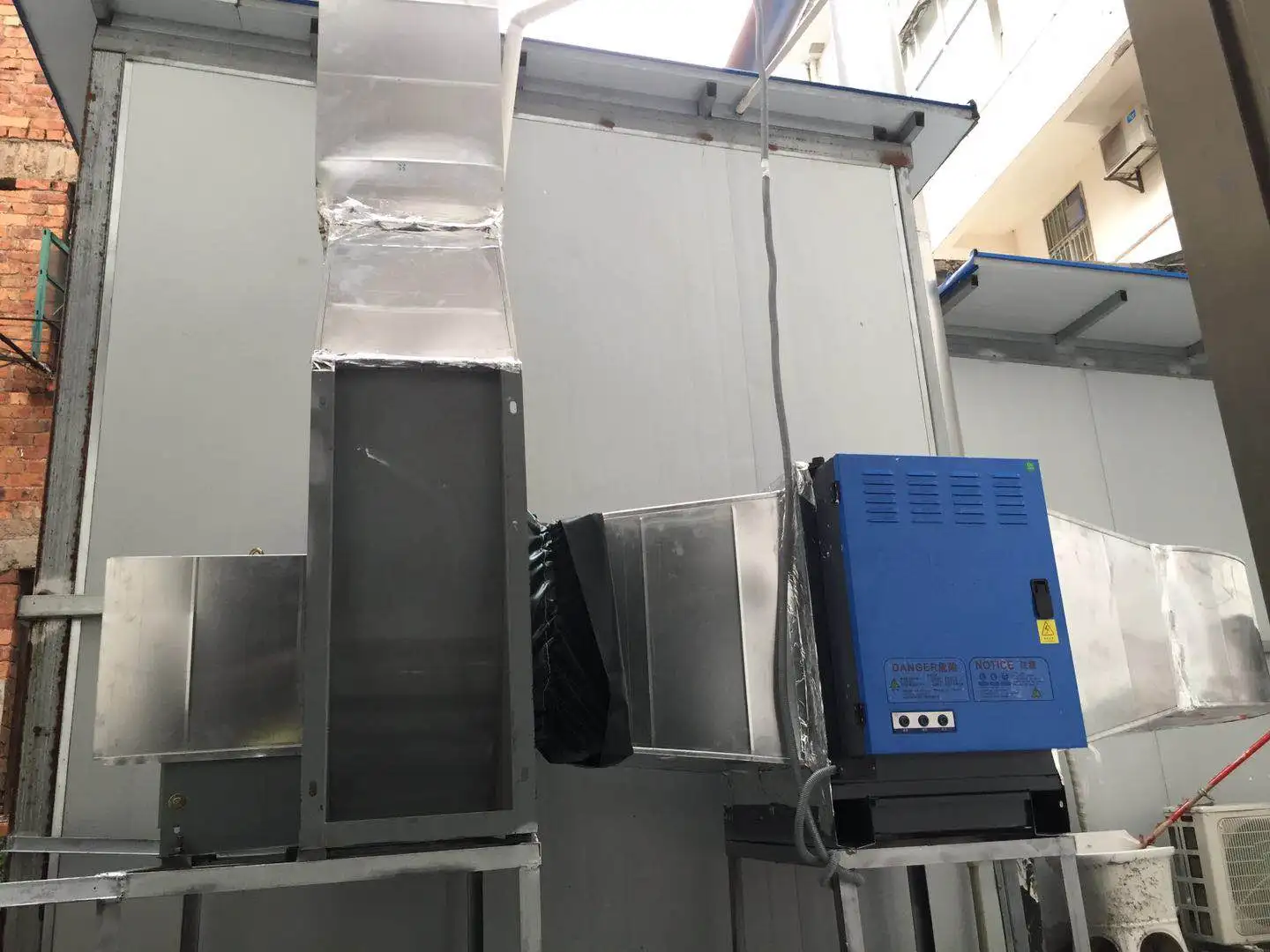

Application &Installation

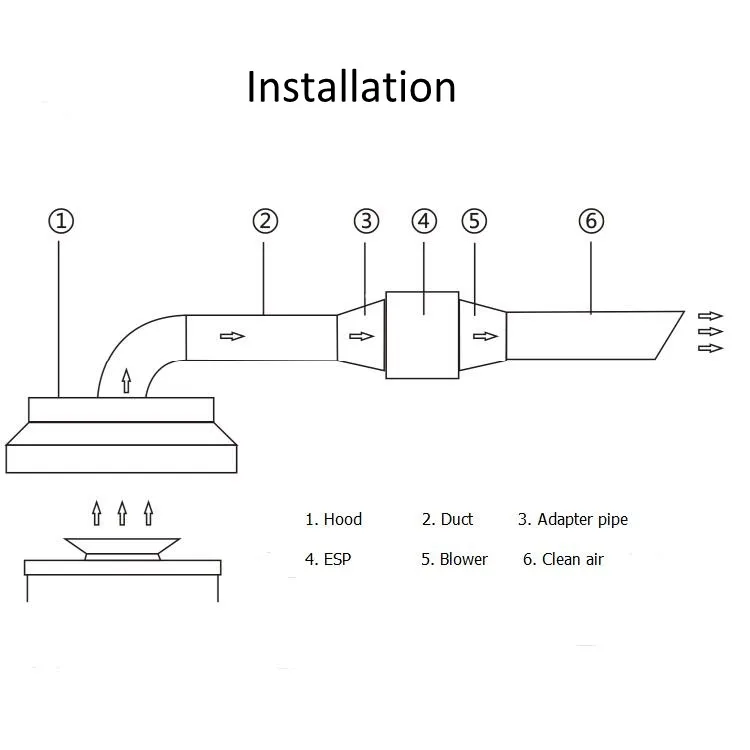

How to install the electrostatic precipitator (esp)?
Sample drawing diagram in kitchen installation, the ESP air cleaner should be installed before exhaust fan.

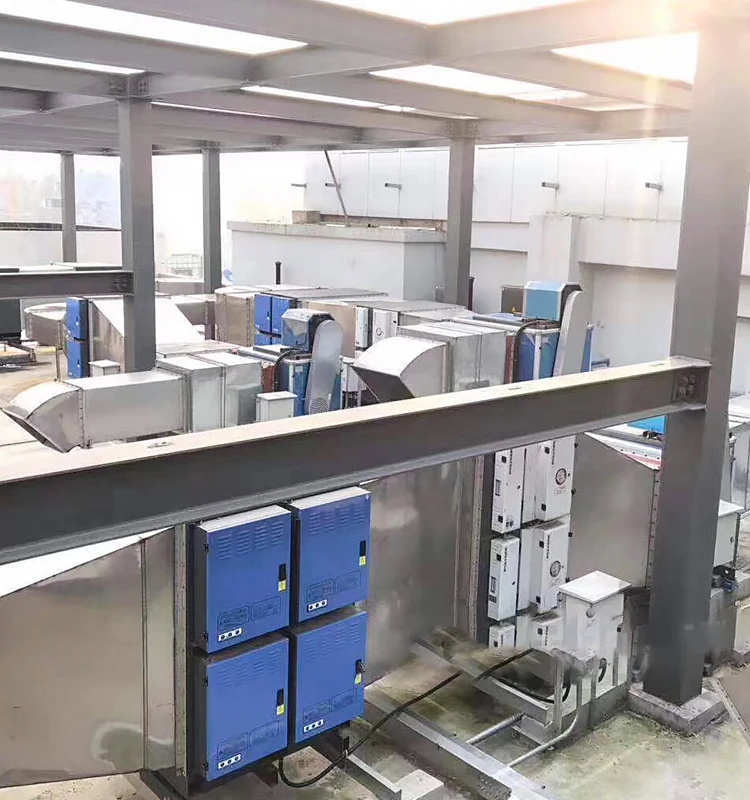

Our machine is typically application include commercial kitchen exhausts, supermarkets, hotels, schools, Air Handling Units (AHUs), factories, workshops, CNC machine shops and many other premises.
Related Products
Q: Are you the factory or trading company?
A: We are professional manufacturer, specialized in electrostatic(ESP) air cleaners, Air blowers, Exhaust fans and so on.
Q: Can we visit your factory?
A: Sure.We located in Guangxi province, China. Come by plane or by high-speed rail are both ok, and then we will pick you up.
Q: How long is the quality guarantee of your products?
A: We can offer 1 year quality guarantee and life-long maintenance.
Q: How often shoule we clean the electrostatic air cleaner?
A: Normally 1-2 months, depends on the oil fume volume which attached on the surface.
How to maintain the electrostatic precipitator (esp)?
A: Please follow the manual strictly, manual will be provided for checking.
Q: What is your minimum order quantity?
A: Normally, there’s no MOQ, but as the shipping cost of one piece is very high, so we would suggest more than 5 pcs.
Q: Can you do the OEM and make our own brand?
A: Yes, we can provide OEM&ODM service and also make your own brand on the products.
Q: Can we visit your factory?
A: Sure.We located in Guangxi province, China. Come by plane or by high-speed rail are both ok, and then we will pick you up.
Q: How long is the quality guarantee of your products?
A: We can offer 1 year quality guarantee and life-long maintenance.
Q: How often shoule we clean the electrostatic air cleaner?
A: Normally 1-2 months, depends on the oil fume volume which attached on the surface.
How to maintain the electrostatic precipitator (esp)?
A: Please follow the manual strictly, manual will be provided for checking.
Q: What is your minimum order quantity?
A: Normally, there’s no MOQ, but as the shipping cost of one piece is very high, so we would suggest more than 5 pcs.
Q: Can you do the OEM and make our own brand?
A: Yes, we can provide OEM&ODM service and also make your own brand on the products.
