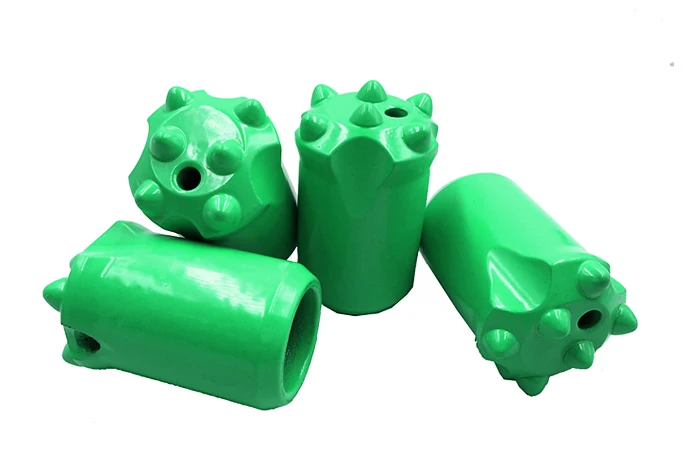

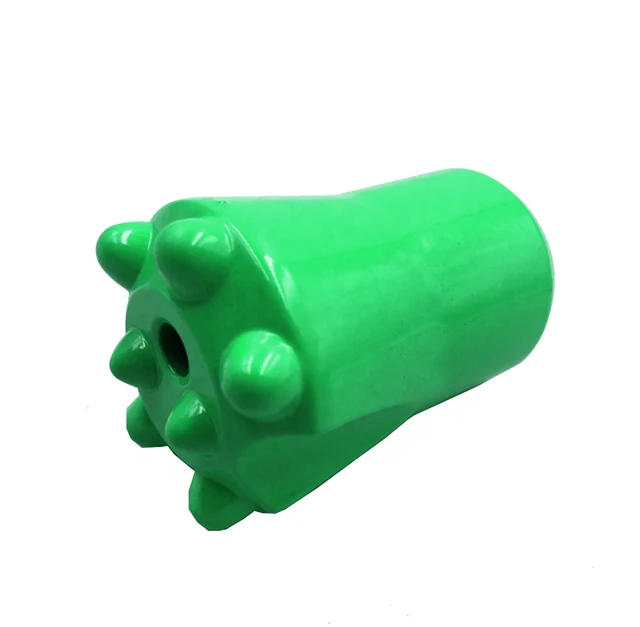

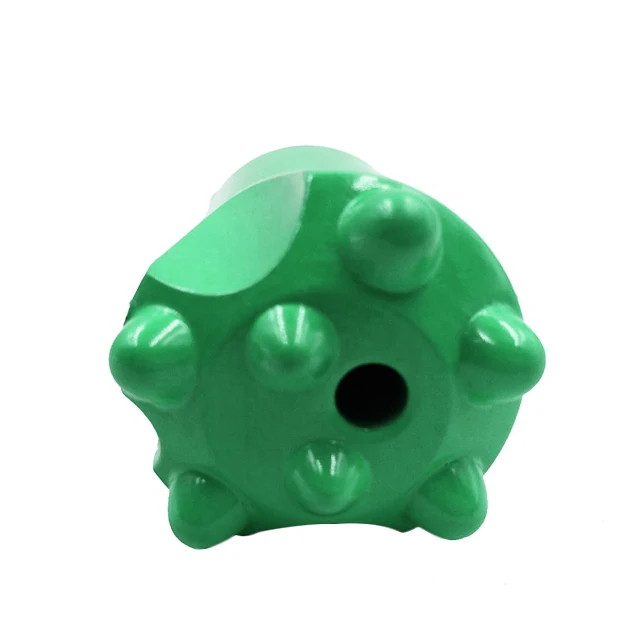

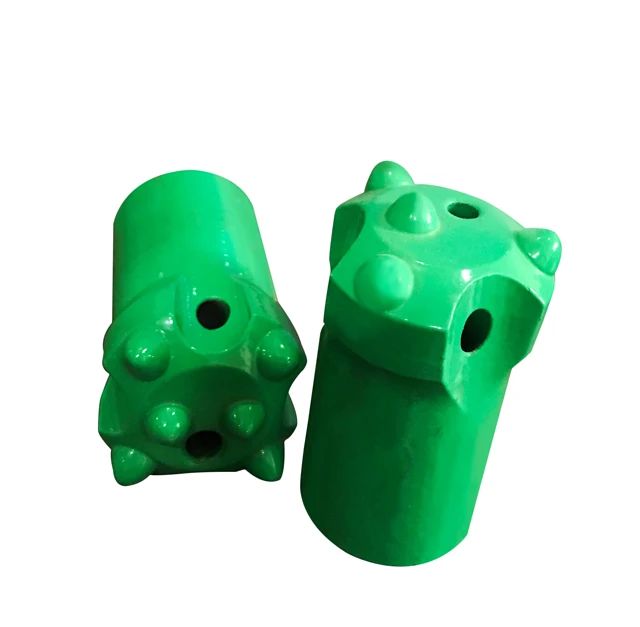

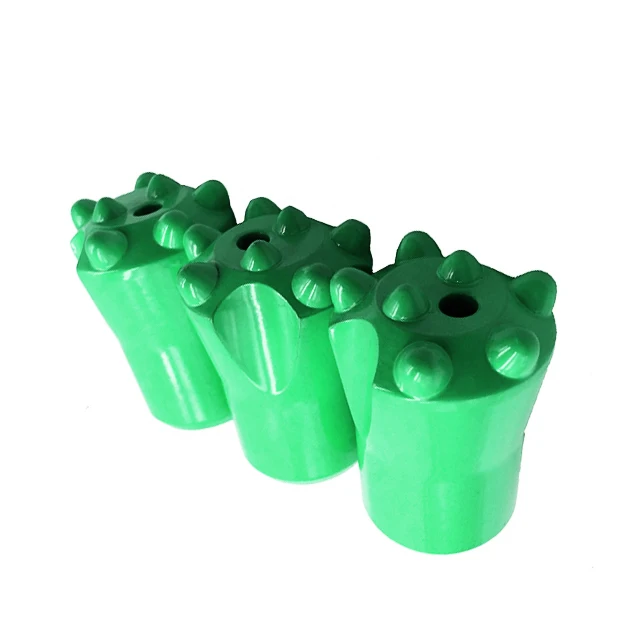

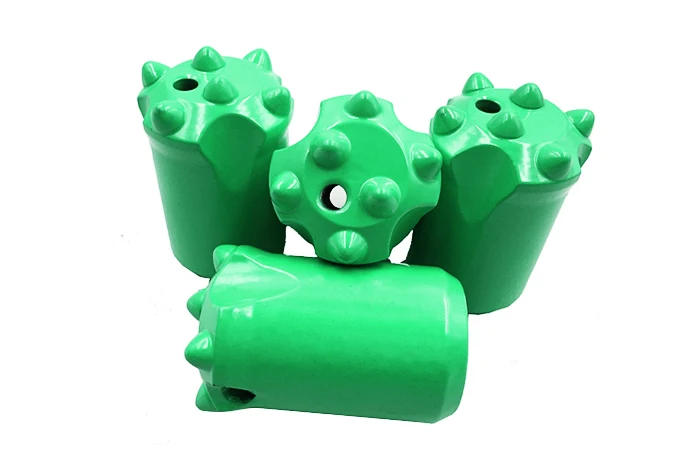

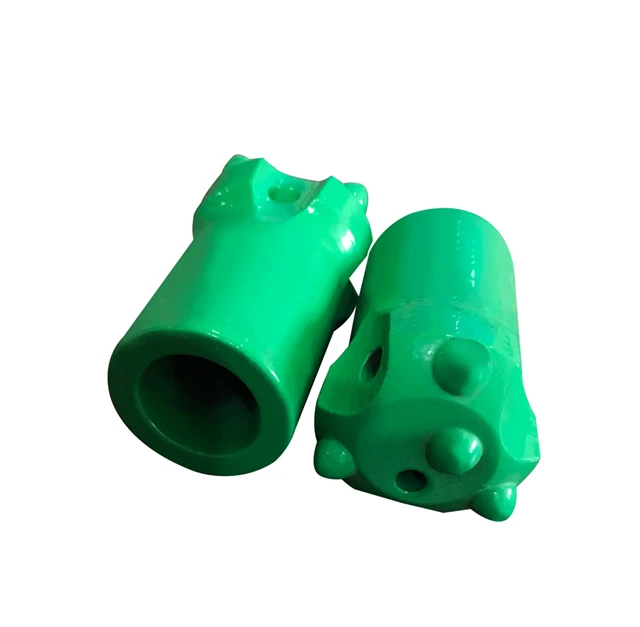

11 Degree 34mm 7 Degree Hard Rock Button Taper Drill Bit 32mm 36 Mining Rock Bits Tapered Button Drill Bit
- Category: >>>
- Supplier: Ksq Technologies (beijing) Co. Ltd.
Share on (62467536638):
Product Overview
Description
Products Description
MirocTapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers
choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it
comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
Color: Green,Blue or Based on Customer requirements
choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it
comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
Color: Green,Blue or Based on Customer requirements
Small HoleDrilling Tools | Taper Degree | The NumberOf Button | Bit Dia.(mm) | Skirt | Weight(kg) |
Tapered | 4 | 32-42 | Short Skirt | 0.24-0.43 | |
6 | 34 | Short Skirt | 0.29 | ||
7° | 7 | 32-42 | Short Skirt | 0.26-0.43 | |
7 | 32-41 | Long Skirt | 0.30-0.42 | ||
4 | 32-40 | Short Skirt | 0.24-0.40 | ||
11° | 5 | 38-40 | Short Skirt | 0.39-0.40 | |
6 | 33-36 | Short Skirt | 0.25-0.36 | ||
7 | 32-41 | Short Skirt | 0.24-0.41 | ||
7 | 32-41 | Long Skirt | 0.30-0.42 | ||
8 | 33-35 | Long Skirt | 0.31-0.35 | ||
12° | 4 | 28-30 | Short Skirt | 0.20-0.22 | |
5 | 28-30 | Short Skirt | 0.20-0.22 | ||
6 | 30-38 | Short Skirt | 0.22-0.40 | ||
7 | 32-38 | Short Skirt | 0.24-0.40 | ||
7 | 32-41 | Long Skirt | 0.30-0.42 | ||
8 | 33-35 | Long Skirt | 0.31-0.35 |
Spherical Button Characteristics:
• Universal button
• Good wear resistance
• Best suited for hard ground
• 27000-48000PSI(180 to 320Mpa)
• Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
• Fast Penetration
• Best suited for soft rock
• 10000-20000PSI(70 to 140Mpa)
• Suited for non-abrasive drilling conditions
Why you choose Miroc button bit?
1.Tapered button bits connect with tapered drill rod perfectly for drilling holes
2.Stable and mature welding technology ensure high quality of bits
3.Accurate dimension of taper degree perfectly matches the rods
4.work reliable and very cost-effective
5.High grade tungsten carbide inserts
6 Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Applications
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
Our service
• Competitive factory price
• Delivery on time
• Excellent after service
• Universal button
• Good wear resistance
• Best suited for hard ground
• 27000-48000PSI(180 to 320Mpa)
• Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
• Fast Penetration
• Best suited for soft rock
• 10000-20000PSI(70 to 140Mpa)
• Suited for non-abrasive drilling conditions
Why you choose Miroc button bit?
1.Tapered button bits connect with tapered drill rod perfectly for drilling holes
2.Stable and mature welding technology ensure high quality of bits
3.Accurate dimension of taper degree perfectly matches the rods
4.work reliable and very cost-effective
5.High grade tungsten carbide inserts
6 Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Applications
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
Our service
• Competitive factory price
• Delivery on time
• Excellent after service
