oil well drilling swab equipment rubber steel core swab cup
Product Description
Oilfield rubber swab cup

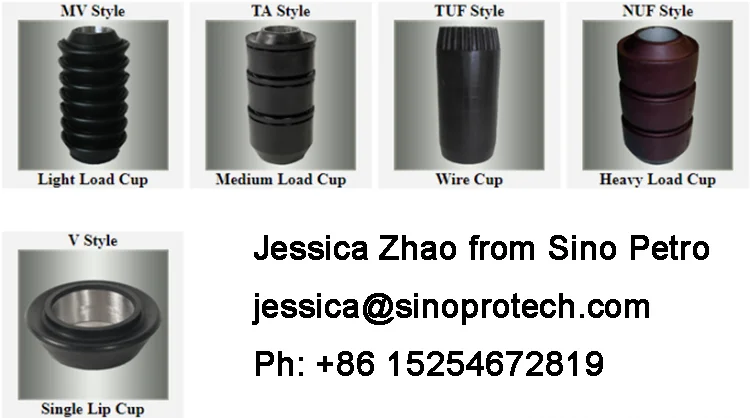

- The TA swab cup is a medium-duty, all-rubber variable lip cup that offers greater flexibility under lighter loads.
- The MV swab cup is a light-duty, all-rubber cup especially effective in fluid with a high ratio of suspended sand. It has multiple flexible, upturned lips that easily.

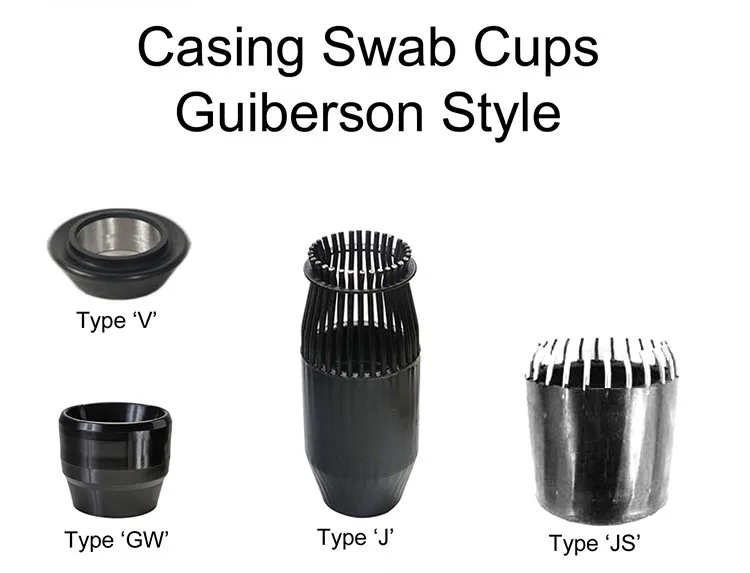

- The V swab cup is a ring-type, single-lip, flexible, all-rubber cup molded on a steel bushing. It is ideal for lifting sand-laden fluids and for light-load swabbing. It is a single version of the MV swab cup.
- The TUF swab cup is a flexible, synthetic rubber cup with spring steel reinforcing wires for heavy loads but is flexible enough for light or medium loads.
- The UF swab cup is an all-purpose, synthetic rubber cup containing strong, flexible spring steel reinforcing wires.
- The J swab cup is a durable, heavy-duty cup with a long, flexible lip and strong steel reinforcing wires which provide a good upstroke seal for lifting heavy loads.
- The GW swab cup is a heavy, flexible, single-lip cup reinforced by spring steel wire. The oversized lip creates a good upstroke seal.
Specifications
oil well drilling swab equipment rubber steel core swab cup
| Casing | Casing Weight Range | Wiper Fin O.D | Working | Working | Burst | Hardness | ||
| Size(in) | mm | in | mm | in | Temperature | Pressure | Pressure | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 | -30℃ to | ≥15MP | 1MP-2MP | 75-95 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 | 150℃ | |||
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 | ||||
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 | ||||
| 7 5/8" | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 | ||||
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 | ||||
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.11 | -30℃ to | ≥10MP | ||
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 | 150℃ | |||
Detailed Images
oil well drilling swab equipment rubber steel core swab cup
oil well drilling swab equipment rubber steel core swab cup
oil well drilling swab equipment rubber steel core swab cup
oil well drilling swab equipment rubber steel core swab cup
oil well drilling swab equipment rubber steel core swab cup
