5k 3280 1% MF58 3350 диодное стекло ntc терморезистор для датчика температуры
- Category: Resistors old >>>
- Supplier: Zhaoqing Jinlongbao Electronic Co. Ltd.
Share on (62469300094):
Product Overview
Description
Product Description

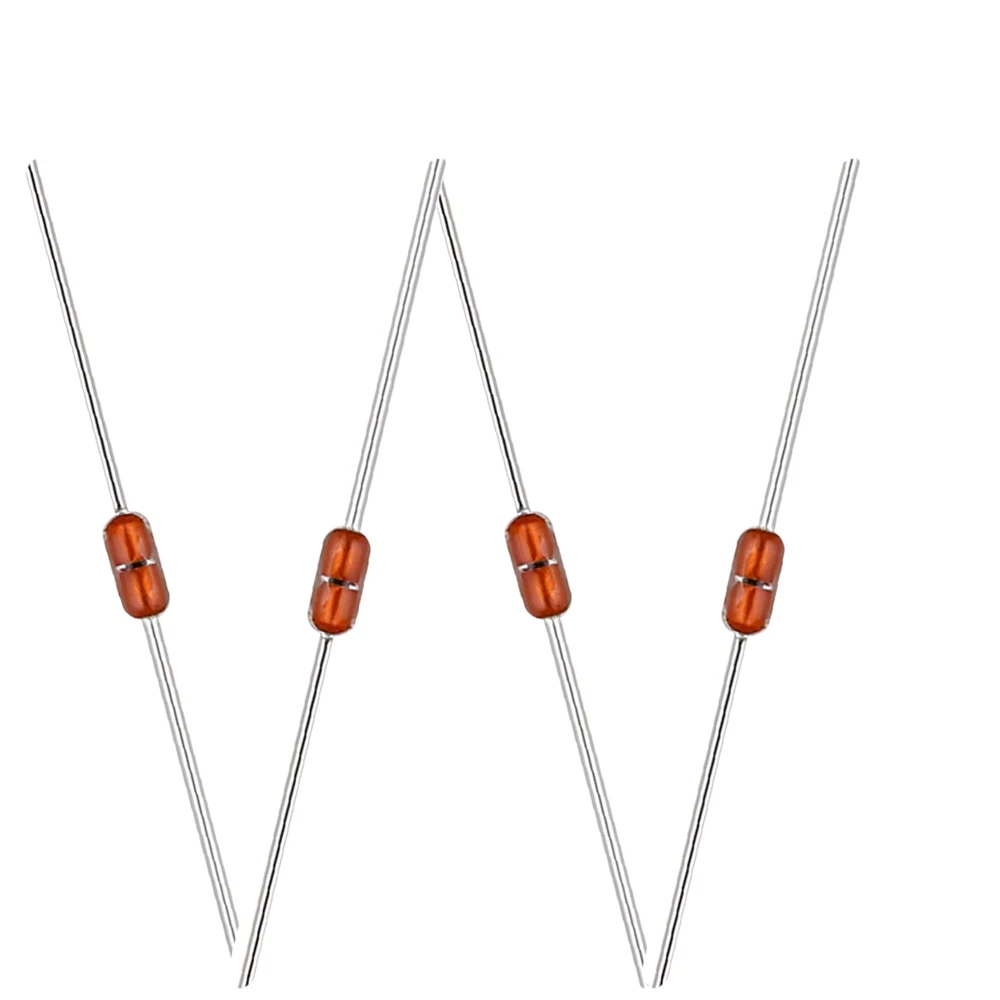

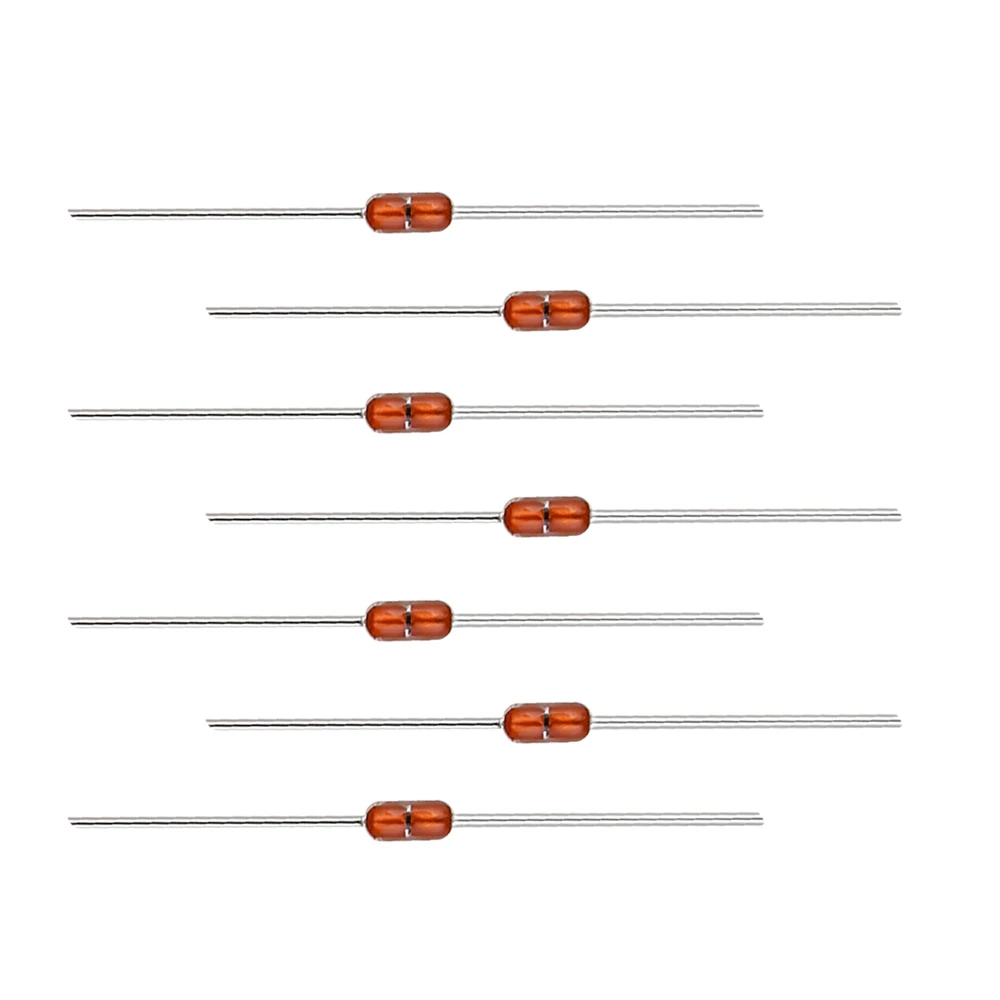

5k 3280 1% MF58 3350 diode glass ntc thermal resistor for temperature sensor
Main Techno-Parameters | ||||||
Specific Drawings & dimensions & specifications & parameters can be custom-made; feel free to contact us! | ||||||
Rated Zero Power Resistance(R25℃) | 0.1k ohm ~ 3780k ohm | |||||
Allowable tolerance of R25℃ | ±1%, ±2%, ±3%, ±5%, ±10% | |||||
Range of Beta Value (B25/50℃) | 3100 ~ 4500 k | |||||
Thermal time constant | ≤ 20 s (in still air ) | |||||
Rated Power | ≤ 50 mW | |||||
Operating Temperature | -55℃ ~ +250℃ | |||||
Specification | |
Type | MF58 |
Resistance | 5000 ohm |
R-Tolerance | E：±1%, G：±2%, H：±3% |
B-Value | 3650 |
B-Tolerance | E:±0.5%， F：±1% |
Characteristics | ||||||
Fast response and good sensation | High precision of resistance | |||||
Good stability and reliablity | Wide range of resistance | |||||
Easy for auto-installation | Small size, Strong frame, light weight | |||||
Products Application
Applications: | ||
1. Heater, Warmer, Automobile air conditioners, Refrigerators, Freezers, | ||
2. Water heaters, Gas boiler, Electric kettles, Wall-hung gas boiler, Water dispensers, | ||
3. Toaster, Microwave oven, Air dryer, Roasting pan, Induction cooker, Electric hot plate, | ||
4. Iron, Garment steamer, Hair straighten, Coffee maker, Coffee pot, | ||
5. Rice cooker, Incubator temperature control, Egg boiler, etc. | ||
Customized Service
Material Specifications | ||||||
Shell/Case | Aluminum, Brass, Ceramic, Nickel plated copper, Stainless steel | |||||
Connector Type | TJC1255, ZH, PH, SAN, EH, SMR, SMP, XHB, JC25, TJC8, JST-XAP-02V | |||||
Wire / Cable | PVC, XL-PE, PTEF, Silicone, Silicone rubber (Single, Doubling) | |||||
Related Products
Company Profile
Our services
1. Good quality is assured by advanced manufacturing technique.
2. All products will be checked by our quality-control department.
3. Customized design. OEM & ODM is accepted.
Advantages
1. Small quantity is accepted.
2. Well and strict quality control.
3. We have series ex-factory tests before shipment, such as pulling test, high & low temperature test, drop test, temperature cycling experiment etc.
FAQ
1.\tAre you a trading company or manufacturer?
We are a manufacturing factory which have more than 15-years production experience.
2.\t Can you provide free samples, how about the freight?
Yes, we can offer 1-5pc free samples if we have it in stock. But not including the freight cost.
3.\tWhat is your terms of payment?
Depends on transaction amount, 100% T/T in advance in most cases. Otherwise, negotiable.
4.\tCan you have customised the products?
Yes, we accept ODM&OEM. Products can be customised upon customer's requirements.
5.\tHow long is your lead time?
Generally, 2-3 weeks for regular products, while customised products take 3-4 weeks depending on quantity and order season.
