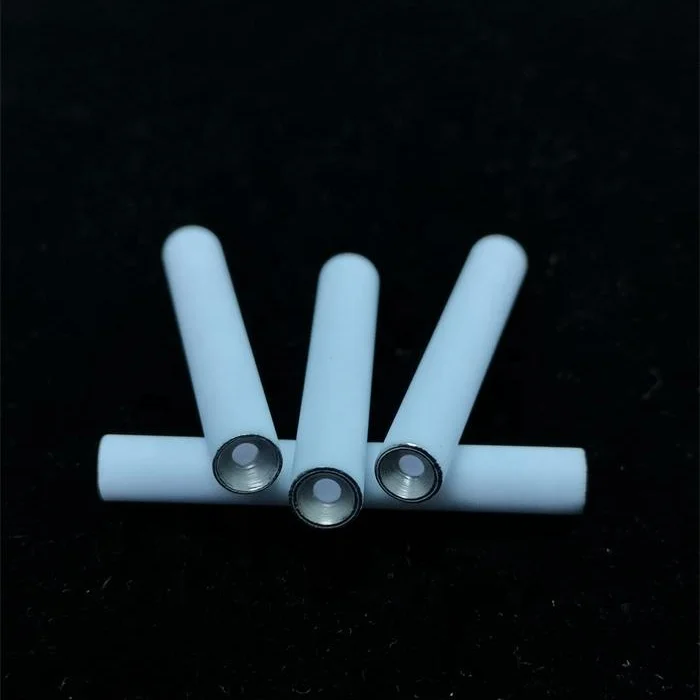

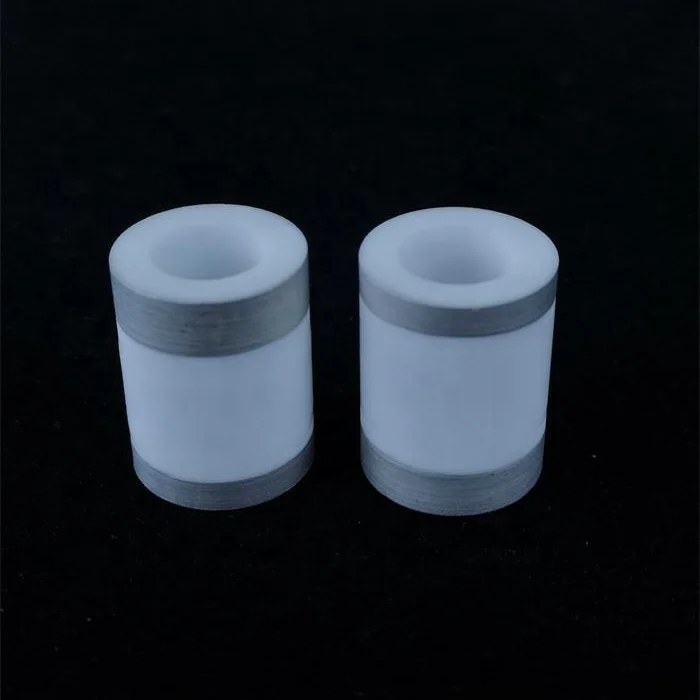

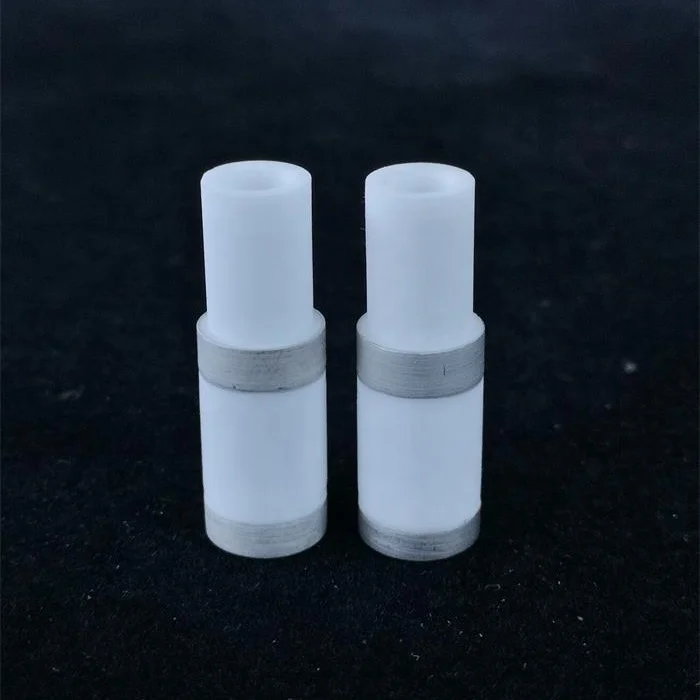

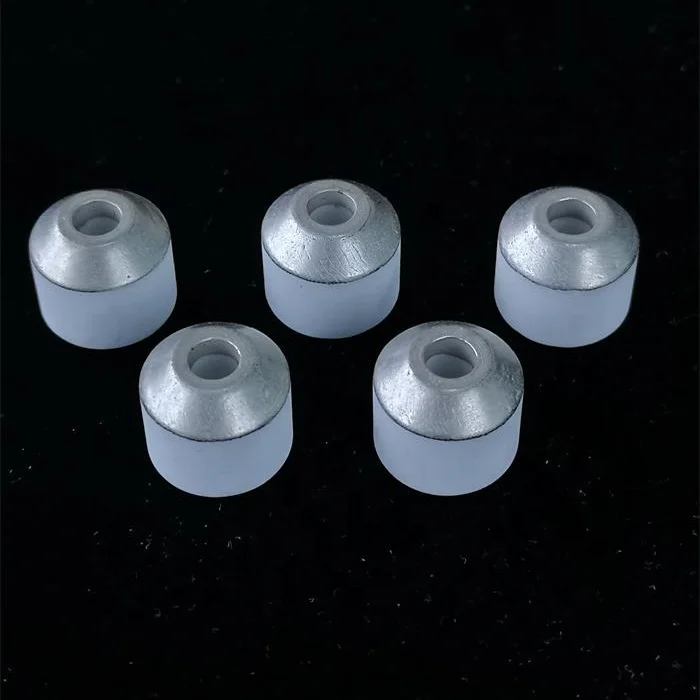

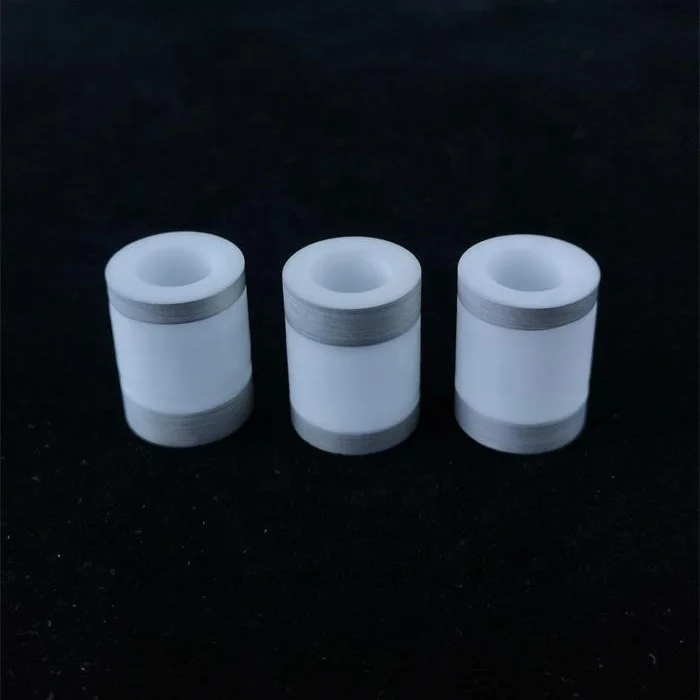

Customized OEM Metallized Ceramic Insulators for Vacuum Brazing

Material : 96.0% alumina or 99.5% high purity alumina with Mo-Mn Metallization and Nickel plating


- Either CIP or dry press formed bodies with secondary fine-machining
- High precision and good appearance after metalization

- Similiar C.T.E with kovar alloy and high bonding strength after brazing

- Partial glazing is optional for out door use

- Good hermetic sealing result after brazing
- Good insulation, anti-magnetic, static electricity-free character for feedthrough use
- Excellent thermal shock resistance and good thermal stability after brazing
- Anti corrosion & abrasion resistance in harsh working environments

- Complying with ROHS and REACH regulations
- Reliable quality, Non-toxic, healthy material, Eco friendly
- Professional ceramic R&D team is available for your requests of various metalized ceramic insulators


Product Name
Customized OEM Metallized Ceramic Insulators for Vacuum Sealing
Compositions
96.0% alumina or 99.5%  high purity alumina (Al2O3)
Metalization
Sintered with Molybdenum & Manganese (Mo+Mn), then Nickel plating
Mo+Mn Layer
25 +/-10μm in thickness
Nickel Layer
2 -10μm in thickness
Material Density
3.90 g/cm3
Tolerance
+/- 0.005mm
Finishing
Ra 0.2
Leaking Rate
≤ 1 x 10-11Pa.m3/s
Metalization Tensile Strength
≥150Mpa
Max. Using Temperature
1650 oC
Using Fields
Feedthrough, Thermocouplers, Connectors, Fuel cell, PVD or CVD machines, Semi-conductors,  Vacuum Electronics,  Traveling Wave Tubes, X-Ray Tubes


Metalized Ceramic








Belows are the Various Standard Alumina Performance Characters Data Sheets

& Various Zirconia Performance Comparison sheets with other ceramic materials















Production Equipment


Press Machines

We can provied extrusion, dry press and CIP press forming for ceramics green bodies.

Sinter Furnaces

We have many electric sintering furance with different size available for green body sintering use.

Quality Control

Passed the ISO9001:2008 quality system authentication and ROHS authentication.



Our Company


Factory Birdview

Our factory for metallized ceramic insulators production

Workshops View

Our workshops for metallized ceramic insulators production





Packing & Delivery


Packing Details: Individual bubble bag for each metallized ceramic insulator, seaworthy package

Delivery Details: 30 days after purchase order of metallized ceramic insulators was issued



1. Shockproof bubble bags for each metalized ceramic insulator separately in carton
2. All cartons are loaded in ply-wood standard pallets with plastic films wraped
3. All shipping methods are available for your choice


FAQ


Q: Are you trading company or manufacturer?

A: We are a professional ceramic factory with exporting office in Shanghai.



Q: How long is your delivery time for metalized ceramic insulators?

A: Generally it is 30 days for our metalized ceramic insulators after your purchase order was issued to us



Q: Do you provide samples of metalized ceramic insulators? is it free or charged?

A: Yes, we could offer the sample of our own metalized ceramic insulators for free, but don't afford freight.



Q: What is your terms of payment for metalized ceramic insulators?

A: Payment<=1000USD, 100% in advance before shipping.

     Payment>=1000USD, 30% T/T in advance ,balance before shippment.


If you have any other question for our ceramic products, pls feel free to contact us as below:
