RFS200 is a High Performance and long range PA/LNA versions of ZigBee module with the connection of external antenna and onboard chip antenna which features the SOC + PA solution from TI
User can integrate the module into any device without the need for RF experience and expertise, and complex software engineering.It’s very easy to add powerful Wireless networking capability to your products and quickly bring them to market.
Product use effect
RF4CE remote control systems
Home/Building automation
Lighting systems
Industrial control and monitoring
Low-Power wireless sensor networks
Automatic meter-reading system
M2M Industrial Controls
Wireless Alarms and Security

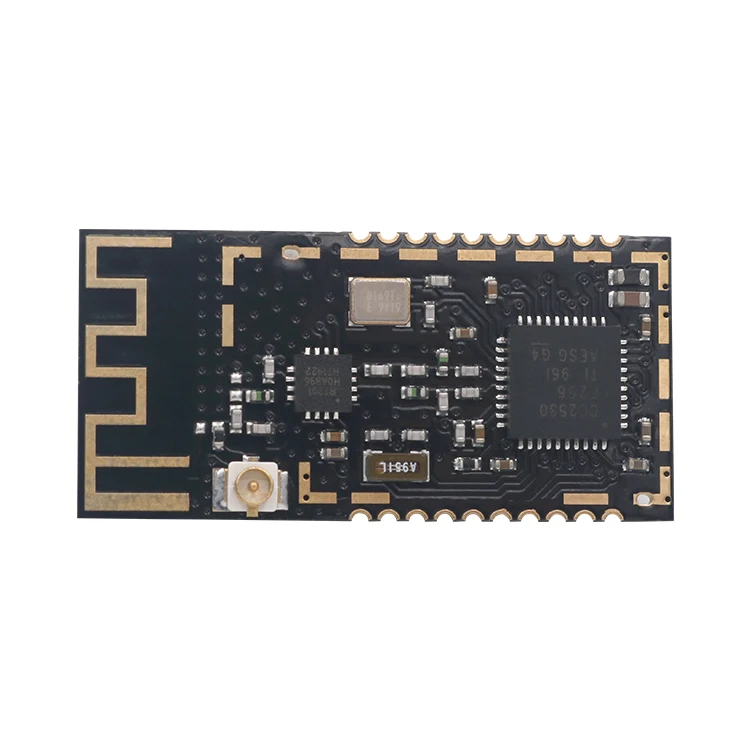

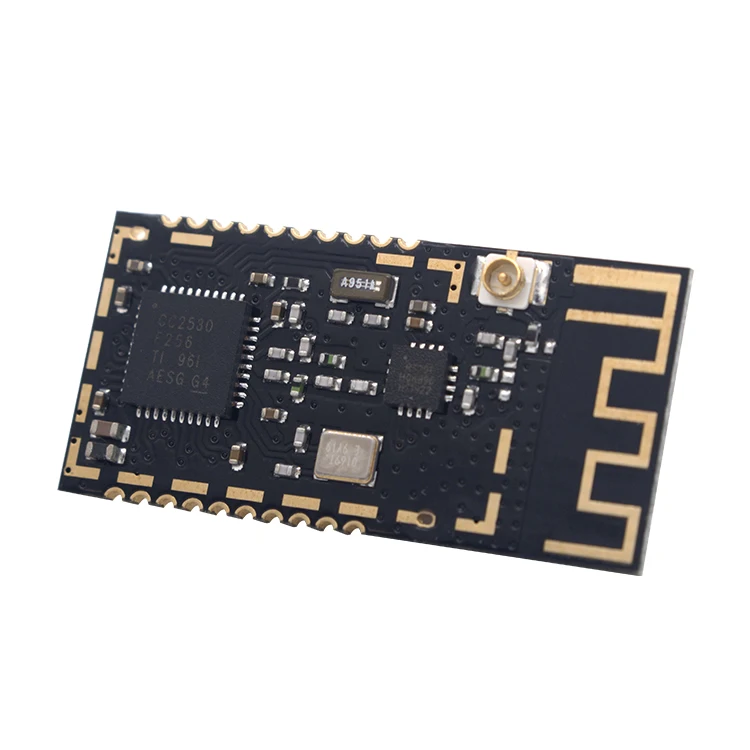

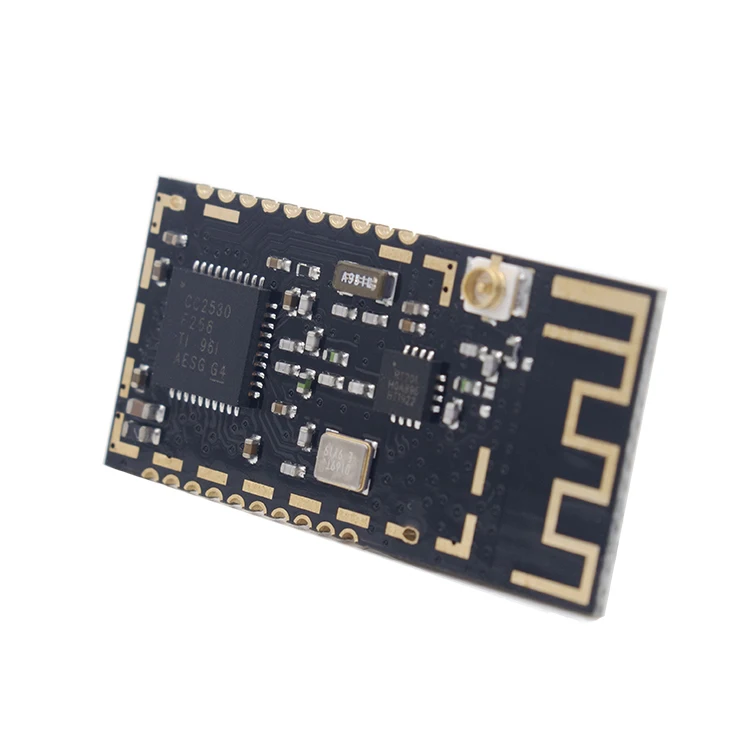

Detailed Images
Radio Feature
Based on the TI CC2530 single chip ZigBee®/IEEE802.15.4 solution 2.4GHz ISM Band
250kbit/s over the air data rate – NB: actual usable data throughput with ZigBee is about 20kbps 16 channels (802.15.4 Channel 11 to 26) Output power: up to 20 dBm (with power amplifier)
Communication range: Up to 1000 meters with external antenna
Module Feature
Small Size, SMT module 32 x 15 x 2 mm
Available with an on board antenna or an external antenna 256 KB internal Flash and 8 KB RAM 16 general -purpose I/O lines Hardware supported encryption (AES-128) Operating temperature range: -40°C to 80°C Current consumption below 1µA in deep sleep mode
Pinout information
1) Male UFL connector for external antenna 2) Chip antenna 3) RF shield
Each panel has a protective film and is wrapped in kraft paper in the appropriate amount and then in an appropriate quantity in a carton with a standard exit wooden box.
Customized packing are also accepted.
