Анализатор литий ионных элементов 18650, разрядник, батарея тестеры, лабораторное оборудование внутреннего сопротивления, тестер емкости аккумулятора
- Category: Battery Testers >>>
- Supplier: Shenzhen Shengchengfeng Technology Co. Ltd.
Share on (62474525143):
Product Overview
Description

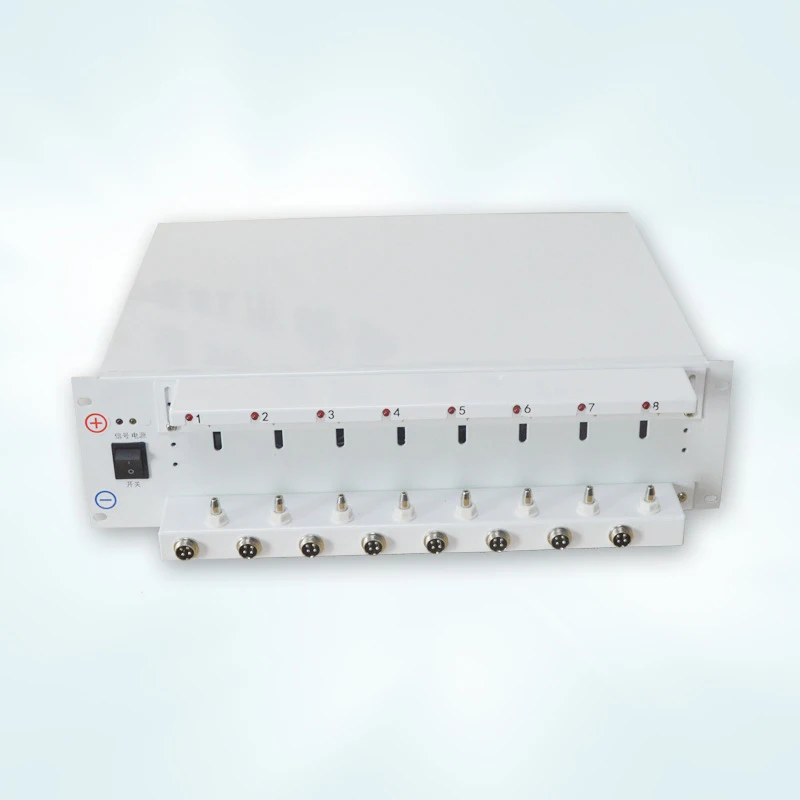

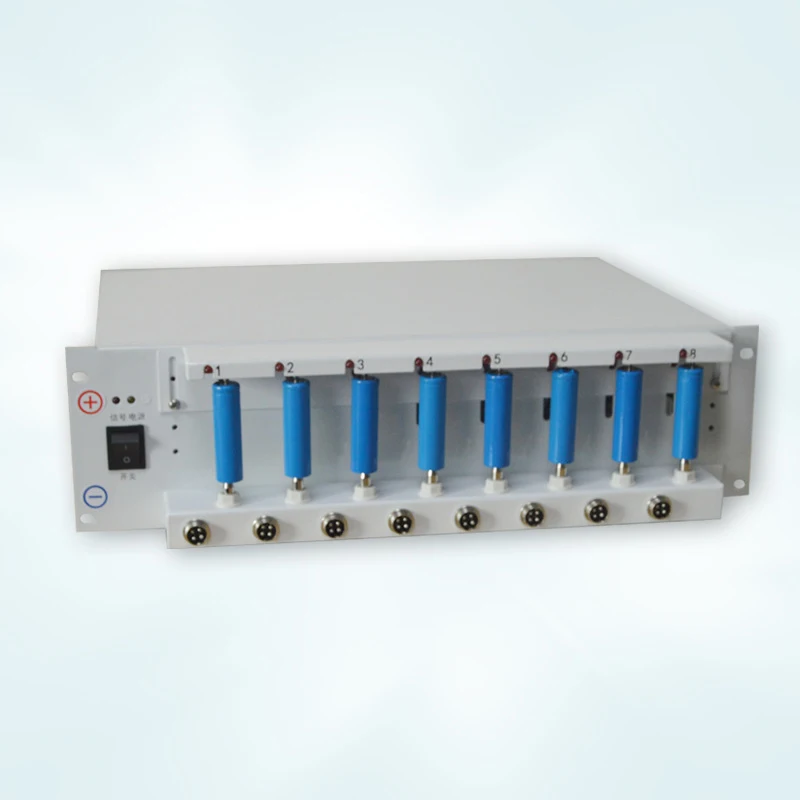

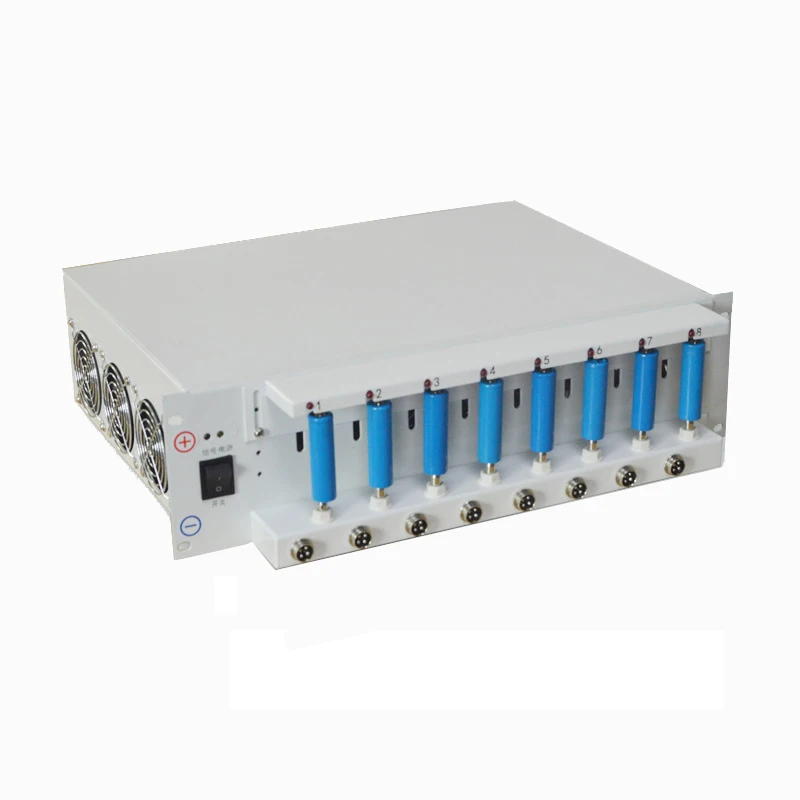

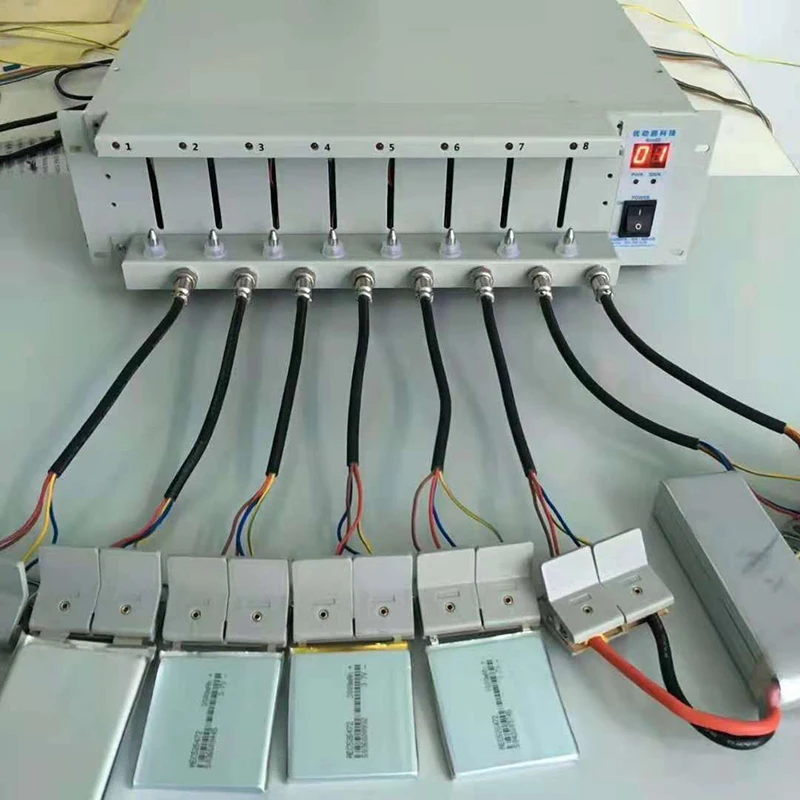

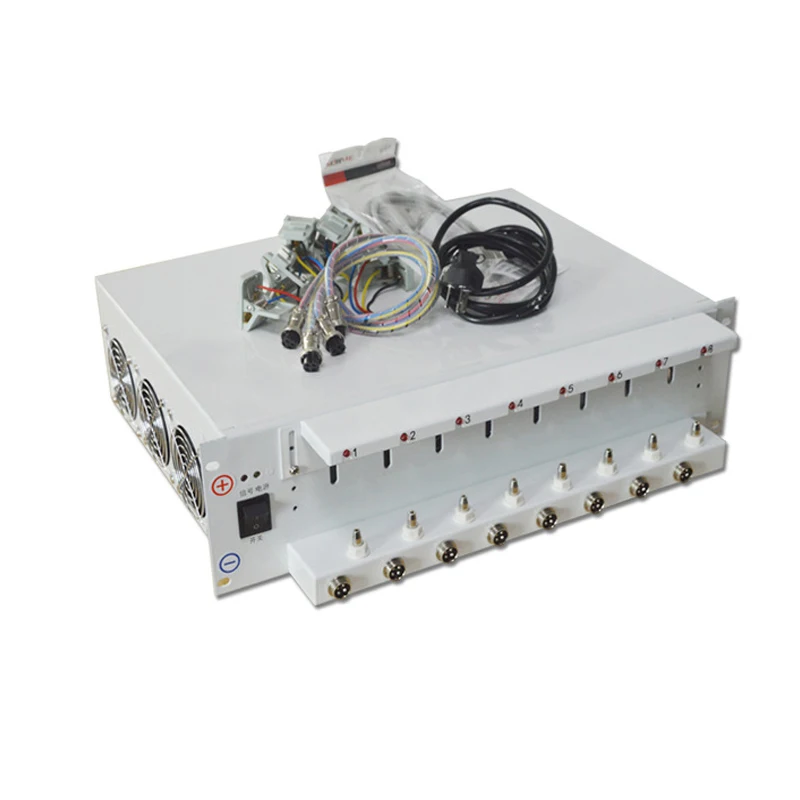

Lithium 18650 LiIon Cell Analyzer Discharger & Battery+Testers Internal Resistance Lab Equipment Battery Capacity Tester

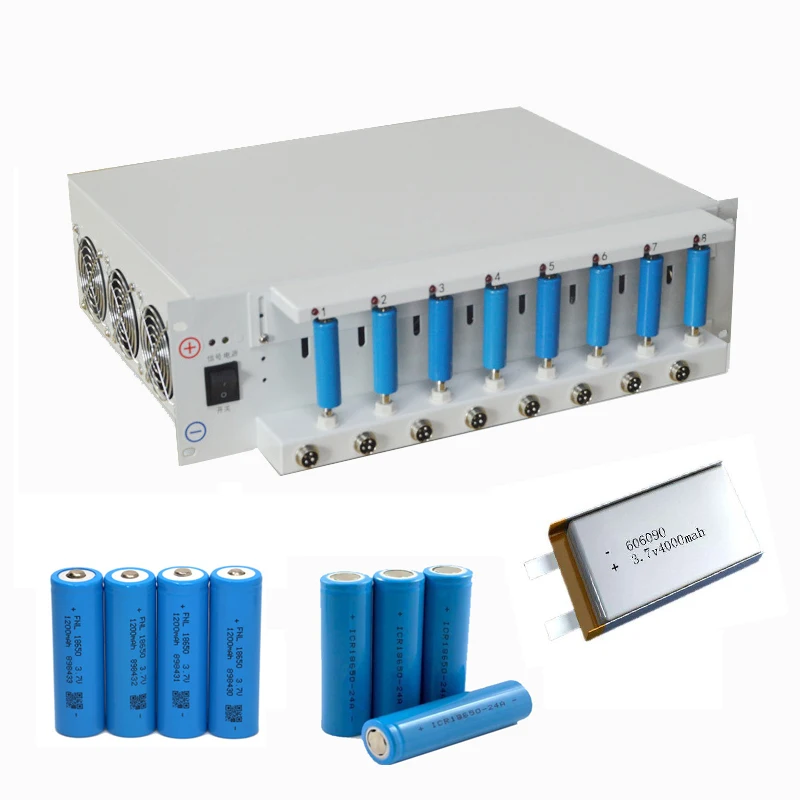

polymer battery analyzer Lifepo4 Batteries Capacity Internal tester
| 5V3A High Accuracy Battery Impedance Tester Internal Resistance Tester for Lithium Battery Testing | Index | |||||
| Channel number | 8 channel / stage | |||||
| Communication mode | RS232/RS485 | |||||
| Input power supply | AC220V±10%,50Hz | |||||
| Input power | 15W/ channel | |||||
| Current measurement range | 0-3000mA | |||||
| Current control range | 30mA-3000mA | |||||
| Current measurement and control accuracy | ±(0.1%FS+1%RD) | |||||
| Voltage measurement range | 0mV-5000mV | |||||
| Voltage control range | 500mV-4300mV | |||||
| Voltage measurement and control accuracy | ±(0.1%FS+1%RD) | |||||
| Measuring range of internal resistance | 10mΩ-399mΩ | |||||
| Time setting range | 1-720min | |||||
| Time measurement resolution | 1S | |||||
| Continuous cycle range | The 1-999 time | |||||
| Data recording conditions | T,V,I | |||||
| Working Temperature | 15 -35 C | |||||
