ABS ER400 Injection Molding Grade Plastic Raw Material with High Heat Resistance for Automotives Interior Parts
- Category: ABS >>>
- Supplier: Suzhou Mingyu Trade Co. Limited
Share on (62474570936):
Product Overview
Description

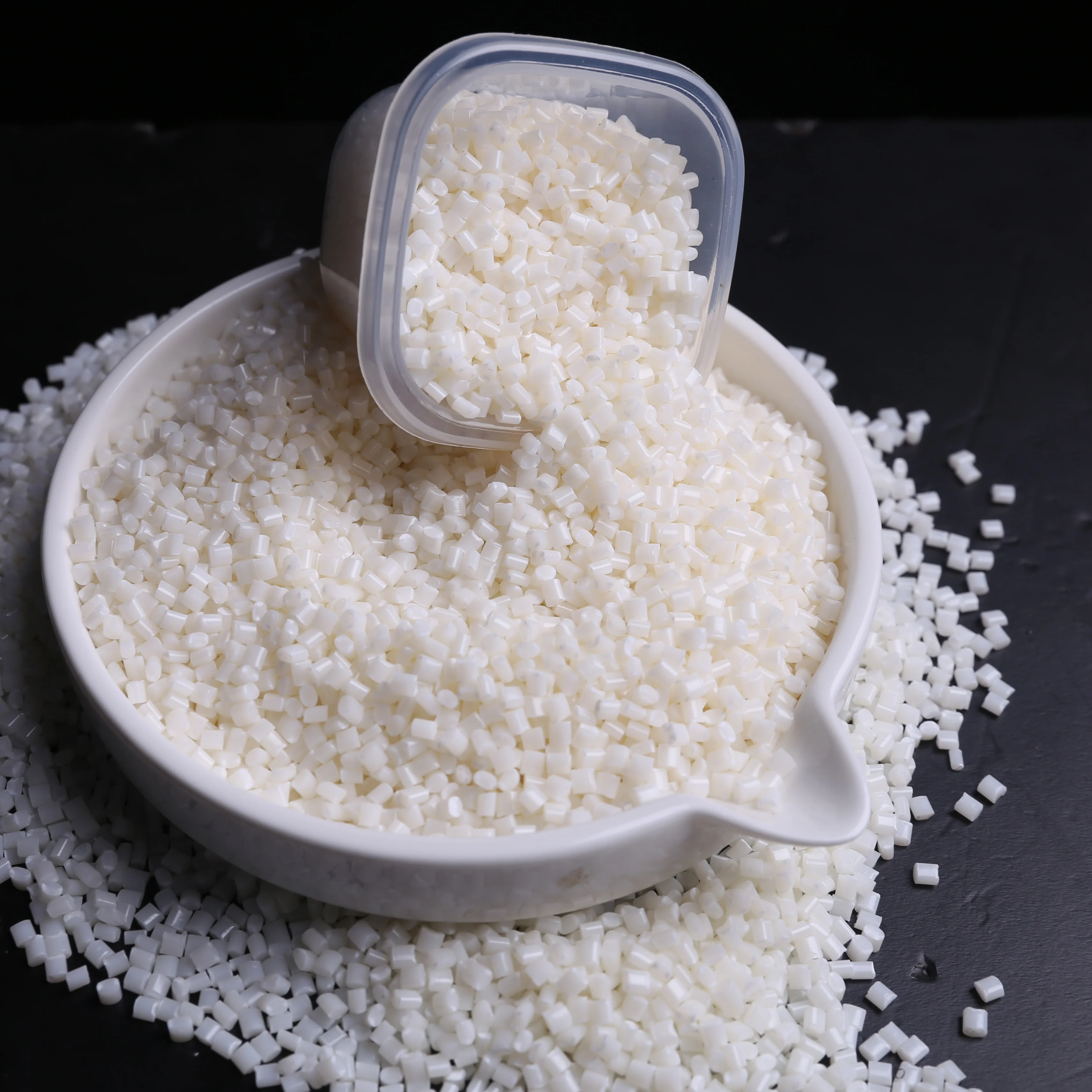

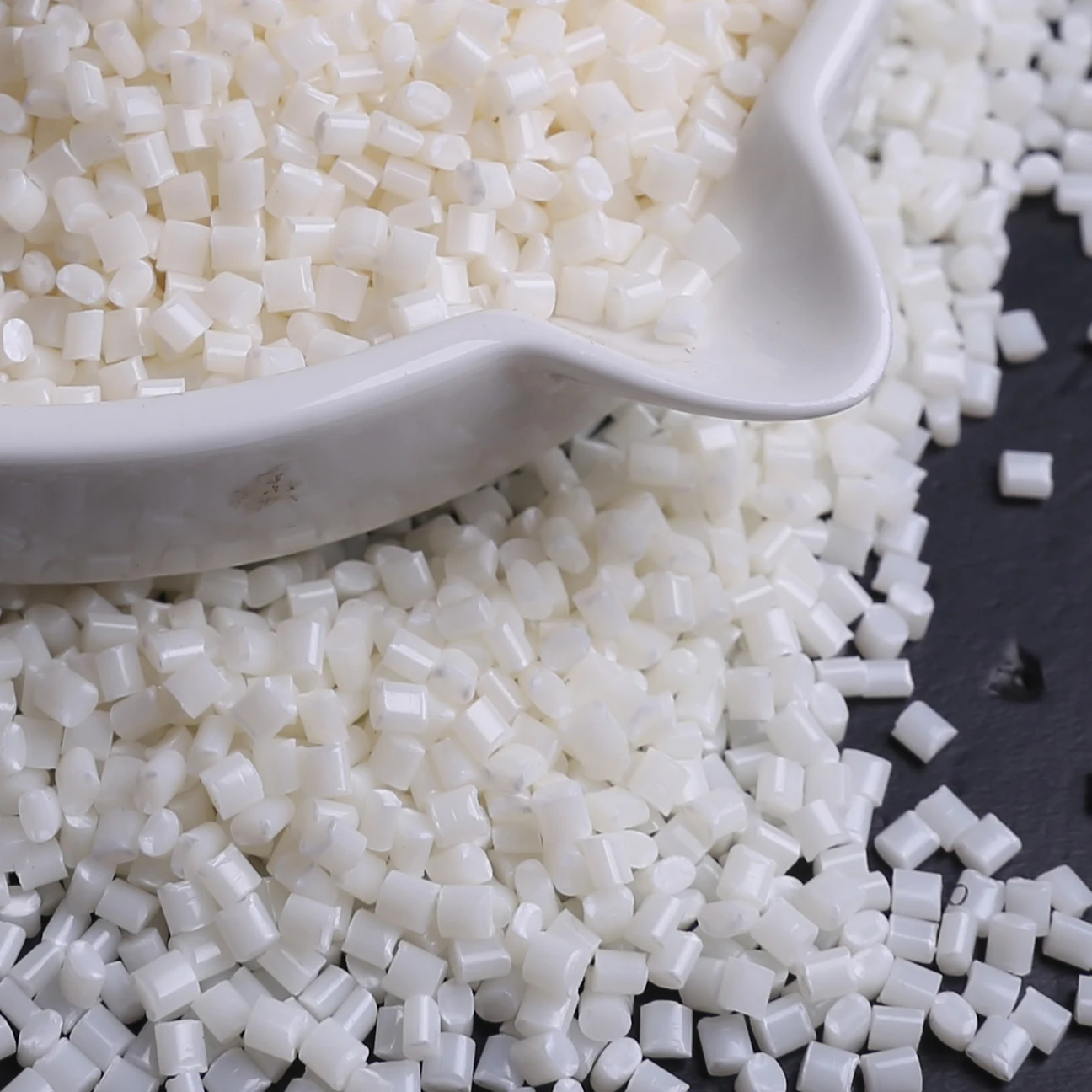

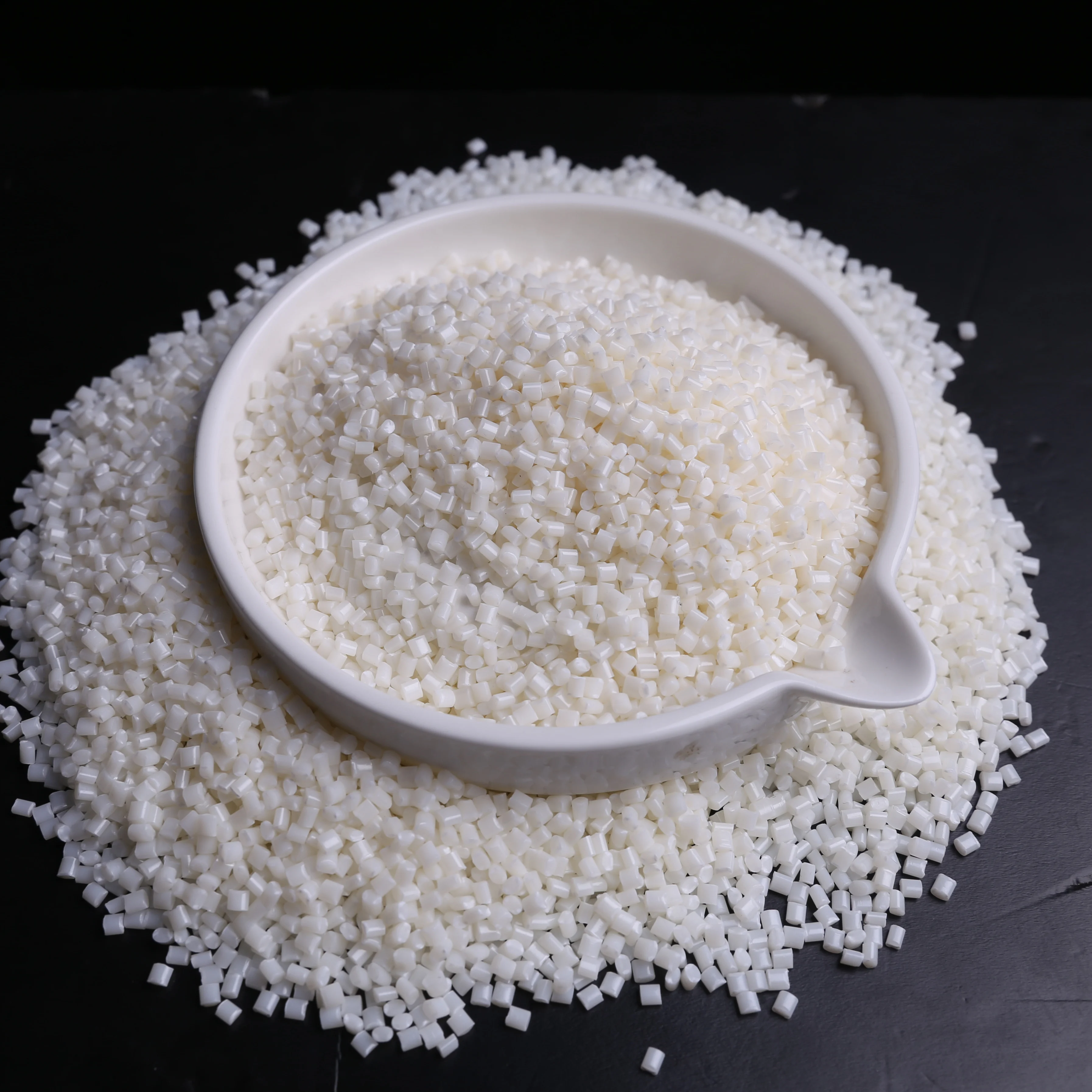

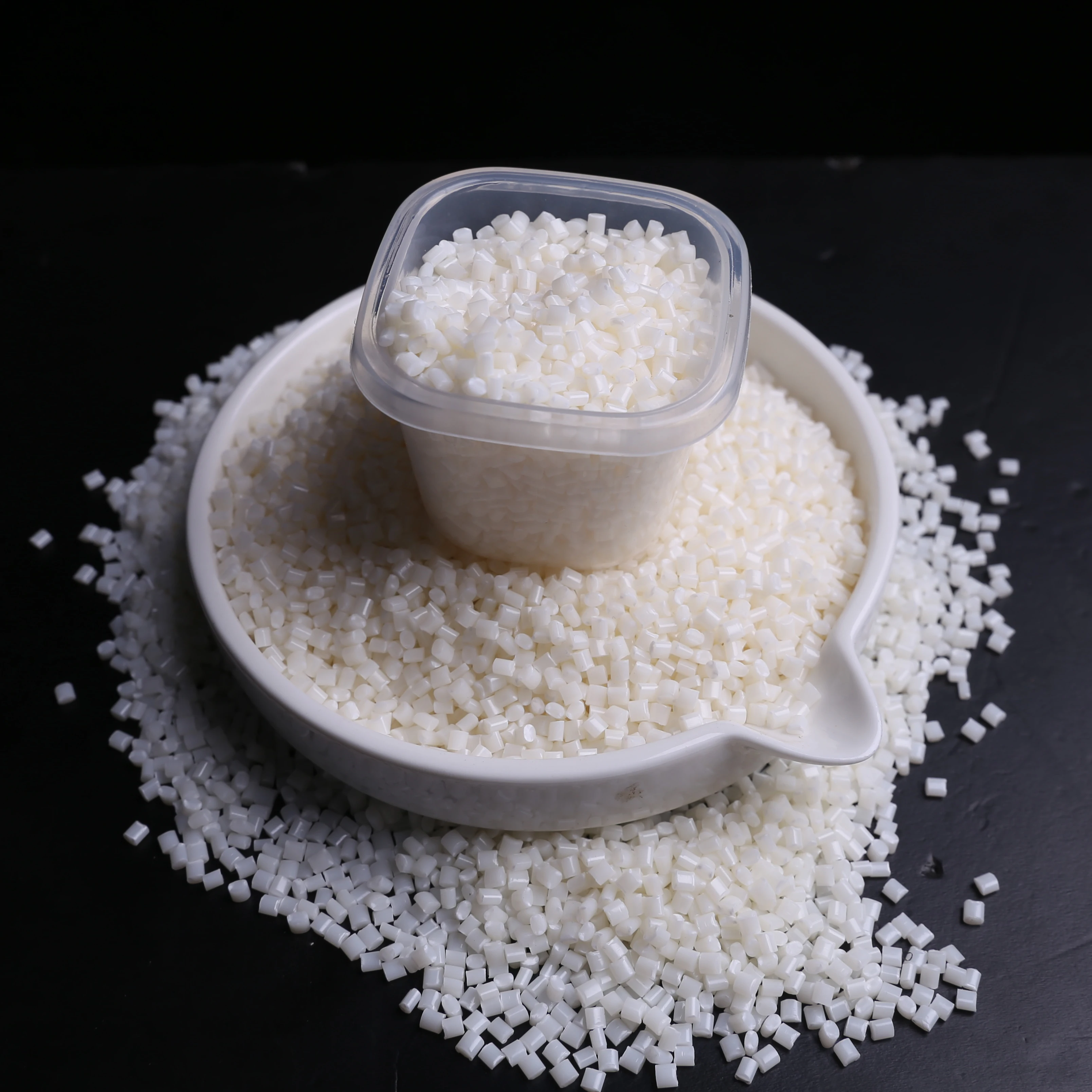

Details Images
Description:
2. High Heat Resistance: This material reached 85℃ HDT in which it is able to meet most of Automotive OEMs' requirements for interior parts.
3. High Impact Strength
4. This ABS Grade is widely used for Auto parts.
1. Injection molding ABS grade
2. High Heat Resistance: This material reached 85℃ HDT in which it is able to meet most of Automotive OEMs' requirements for interior parts.
3. High Impact Strength
4. This ABS Grade is widely used for Auto parts.
Application:
Automotives Interior Parts
Product Details
Properties | Test Condition | Test Method | Unit | Typical Value |
Physical | ||||
Density | ISO 1183 | g/cm3 | 1.04 | |
Molding Shrinkage (Flow), 3.2mm | ISO 294-4 | % | 0.4 ~0.8 | |
Melt Flow Rate | 220℃/10kg | ISO 1133 | g/10min | 8.0 |
Mechanical | ||||
Tensile Strength | ISO 527 | |||
@ Yield | 50mm/min | MPa | 52 | |
Tensile Modulus | 1mm/min | ISO 527 | MPa | 2,440 |
Flexural Strength | 2mm/min | ISO 178 | MPa | 79 |
Flexural Modulus | 2mm/min | ISO 178 | MPa | 2,400 |
IZOD Impact Strength, 80*10*4mm | ISO 180/1A | |||
(Notched) | 23℃ | kJ/m2 | 21.0 | |
-30℃ | kJ/m2 | 8.0 | ||
Charpy Impact Strength, 80*10*4mm | ISO179/1eA | |||
(Notched) | 23℃ | kJ/m2 | 21.0 | |
-30℃ | kJ/m2 | 9.0 | ||
Rockwell Hardness | ISO 2039 | - | 112 | |
Thermal | ||||
Heat Deflection Temp. 120*10*4mm | ||||
(unannealed) | 1.8MPa | ISO 75/Be | ℃ | 85 |
0.45MPa | ISO 75/Ae | ℃ | ||
Vicat Softening Temperature | ISO 306 | |||
50N, 50℃/h | ℃ | 101 | ||
CLTE, 23℃ to 60℃ | ISO 11359-2 | |||
Flow | 10-5 m/m℃ | |||
Cross-flow | 10-5 m/m℃ | |||
Flammability | UL94 | HB | ||
Relative Temperature Index | UL 746B | |||
Electrical | ℃ | |||
Mechanical with Impact | ℃ | |||
Mechanical without Impact | ℃ | |||
Electrical | ||||
Comparative Tracking Index(CTI) | Solution A | IEC 60112 | Volts | |
Surface Resistivity | IEC 60093 | Ohm | ||
Volume Resistivity | 23℃ | IEC 60093 | Ohm·m | |
Electric Strength, 1mm | 23℃ | IEC 60243-1 | kV/mm |

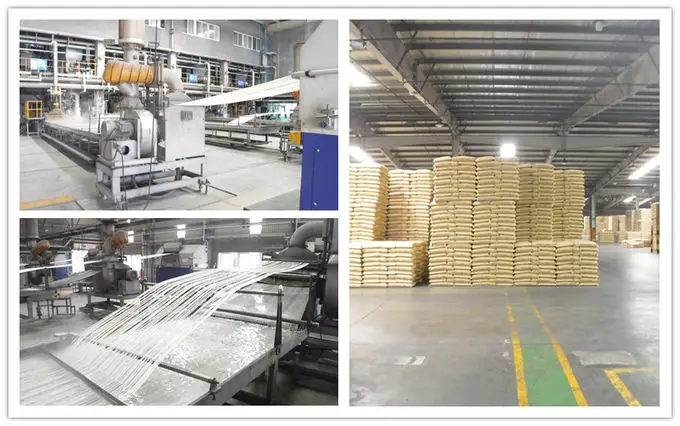

Our Company
