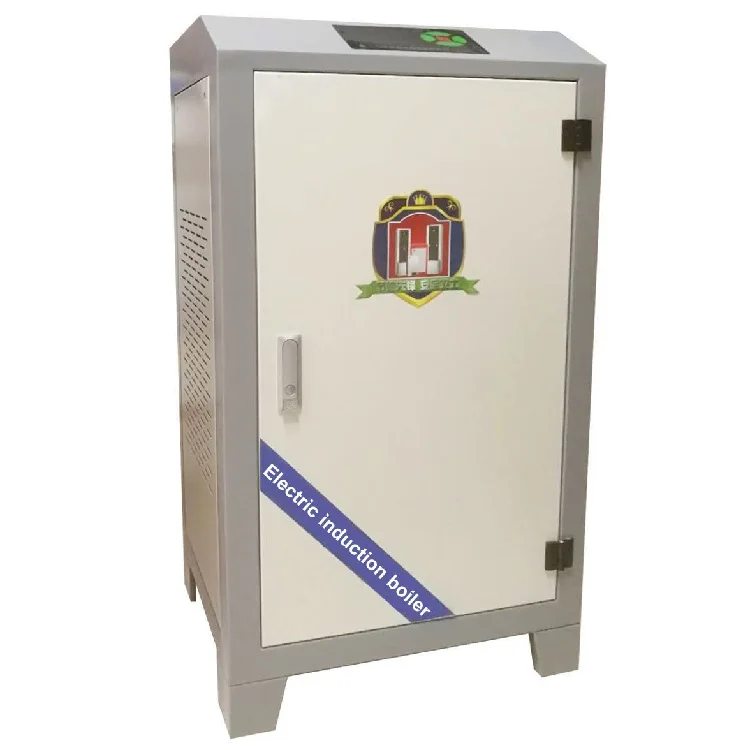

120kw electromagnetic induction heating & warming furnace
- Category: Heating Equipment >>>
- Supplier: Zhangjiakou Diamond Boiler Co. Ltd.
Share on (62475544834):
Product Overview
Description
Energy saving electromagnetic boiler China manufacture
Product Description
Type(KW) Item | Unit | 380V-20 | 380V-30 | 380V-40 | 380V-50 | 380V-60 | 380V-80 | 380V-100 | 380V-150 | 380V-200 | 380V-250 | 380V-300 |
Heating Area | m2 | 250 | 350 | 450 | 550 | 700 | 900 | 1200 | 1800 | 2500 | 3000 | 4000 |
Thermal power
| KW | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | 200 | 250 | 300 |
Rated voltage /Frequency
voltage/frequency | V/ Hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
Sectional area of copper power cord | mm² | ≥16 | ≥25 | ≥30 | ≥35 | ≥50 | ≥70 | ≥ | ≥ | ≥ | ≥ | ≥ |
Boiler thermal efficiency | % | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 |
Max pressure | Mpa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Max temperature of heating water | ℃ | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
Min temperature of heating water | ℃ | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
Hot water Production rate 45℃
45℃ | L/Min | 21 | 24 | 27 | 33 | 35 | 45 | 50 | 55 | 60 | 65 | 70 |
Control system water temperature control | ℃ | 25-85 | 25-85 | 25-85 | 25-85 | 25-85 | 25-85 | 25-85 | 25-85 | 25-85 | 25-85 | 25-85 |
Max Dimension | mm | 700x 360x 1000 | 700x 360x 1000 | 700x 360x 1000 | 700x 360x 1000 | 700x 360x 1000 | 700x 360x 1000 | 1200x 900x 1400 | 1200x 900x 1400 | 2010x 1000x 1650 | 2400x 1000x 1400 | 2400x 900x 1400 |
Specfications:
- coil adaptive, large inductance range
- leading PWM phase shift algorithm
- 32-bit digital control system
- open hardware architecture
- rich peripheral interface
- perfect reliability design
- up to 30 kinds of protection functions
- world famous brand Infineon IGBT frequency conversion technology
- single-phase 3.5KW-8KW, three-phase 5KW-100KW full range
- comes with two temperature measurement: 0-150 ℃
- powerful six-segment programmable timing function
- power loss does not lose data, do not lose the clock
- the operation panel can be customized
- standard modbus RTU communication protocol
- support mobile phone remote control development
- can be customized for their own personal or business interface.

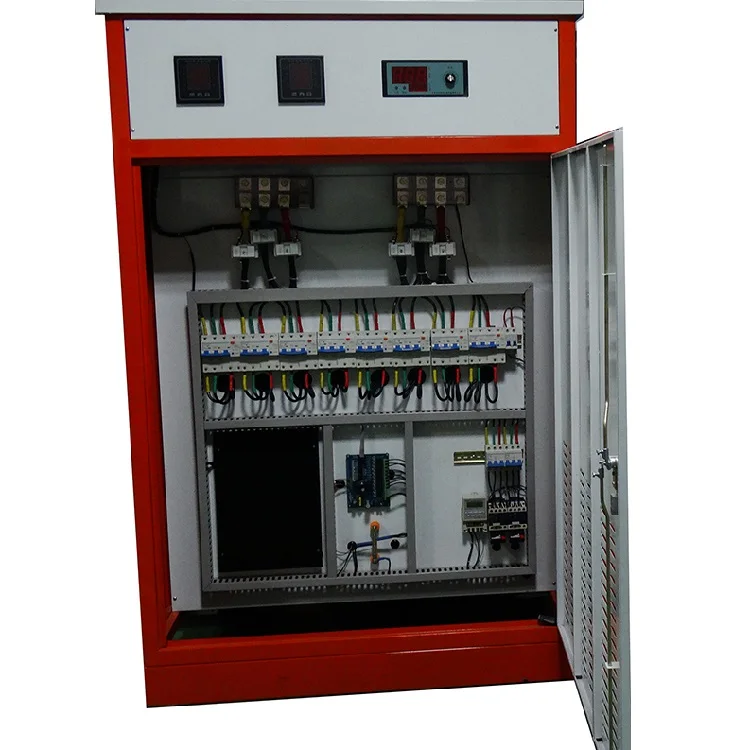

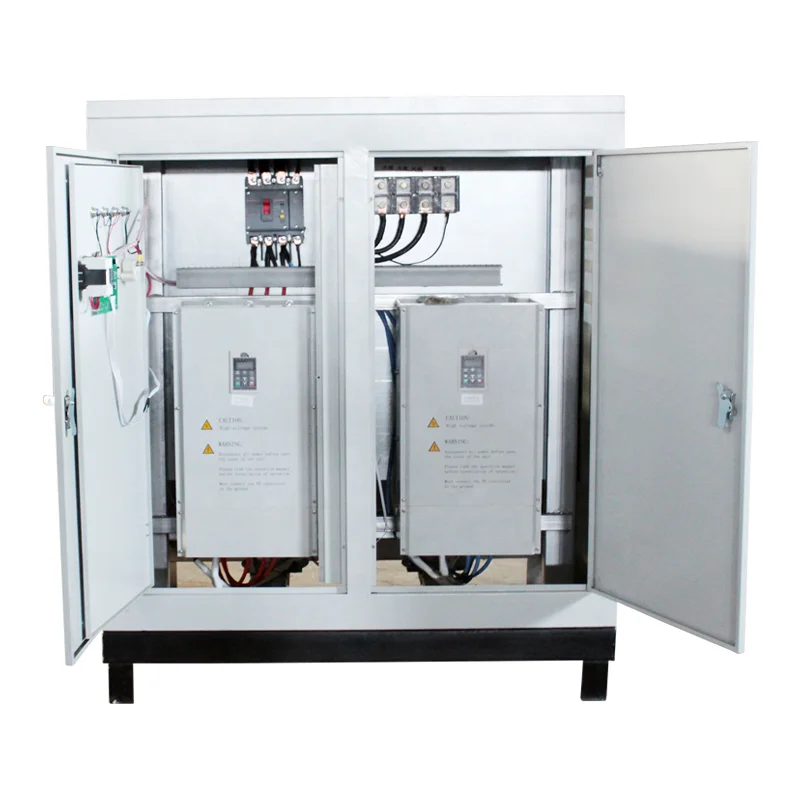

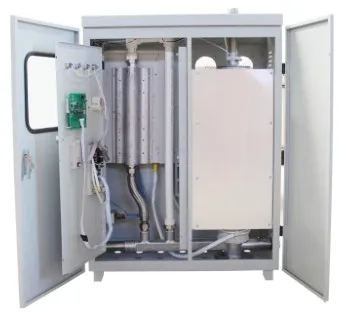

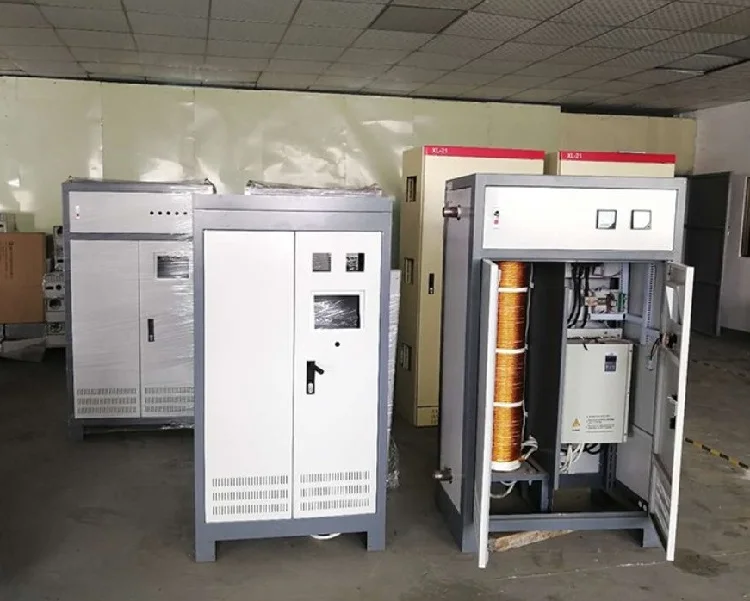

Product Display

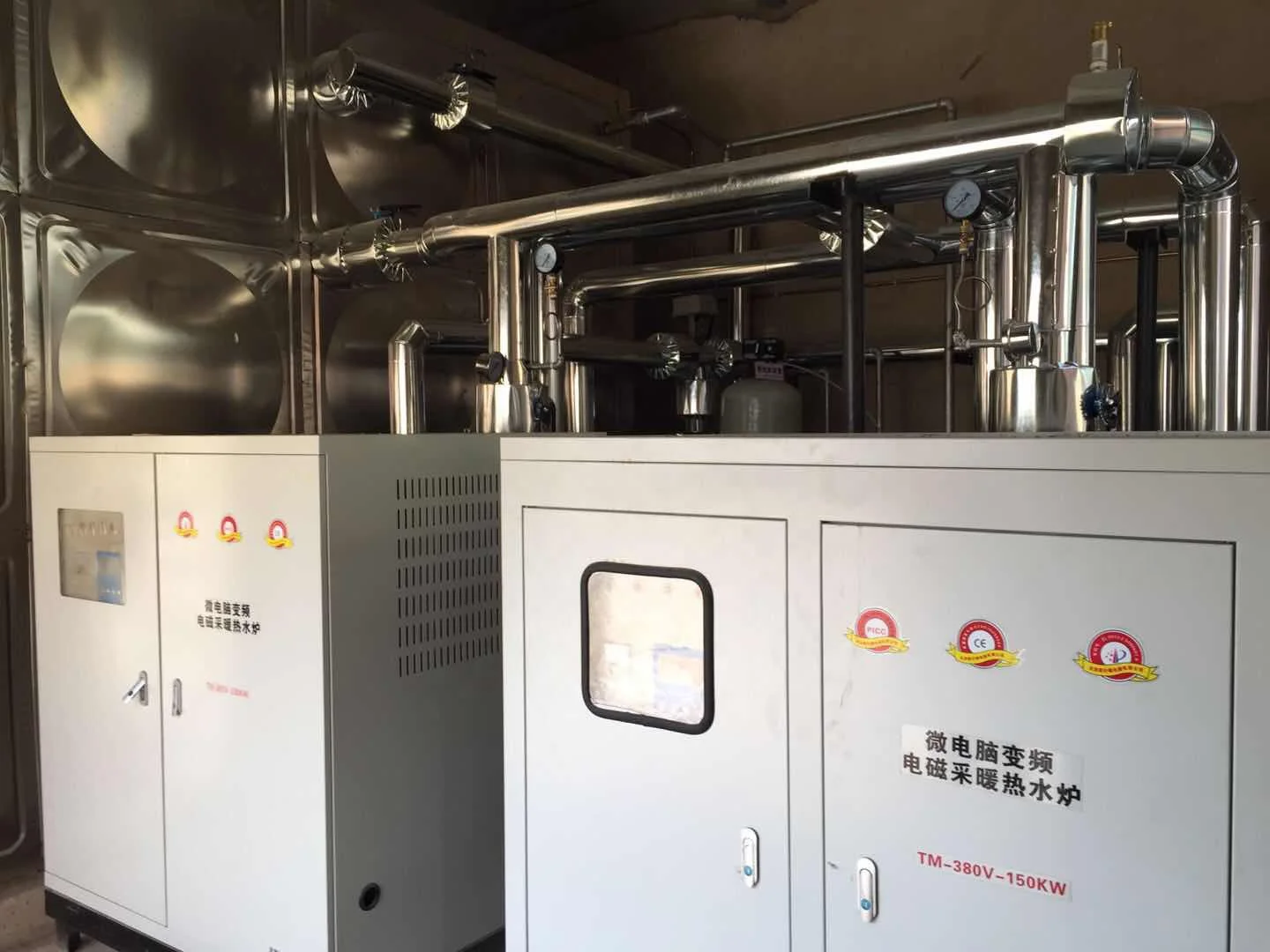

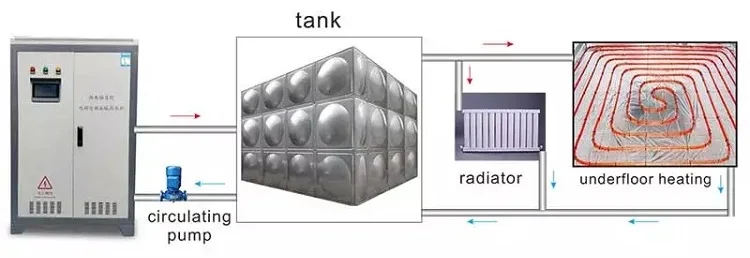

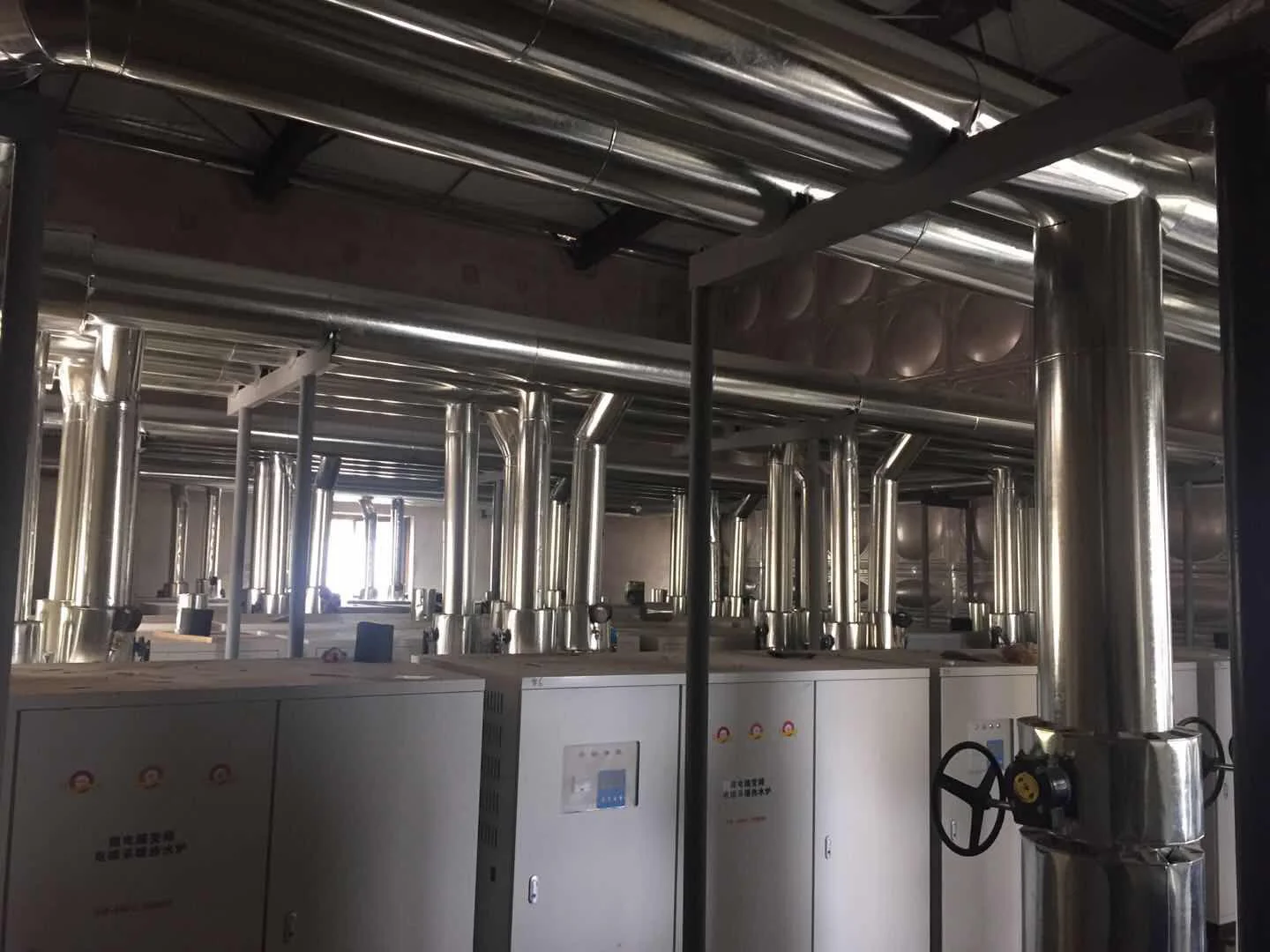

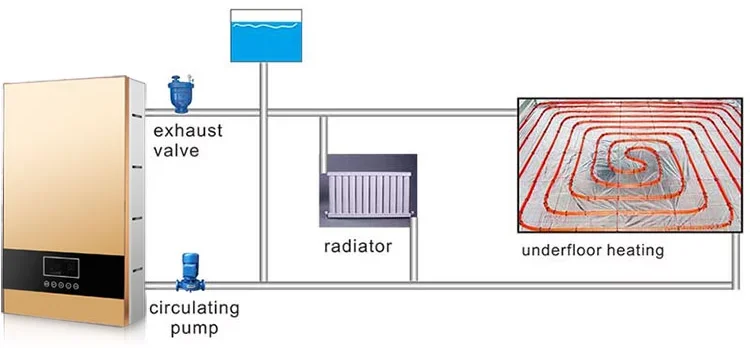

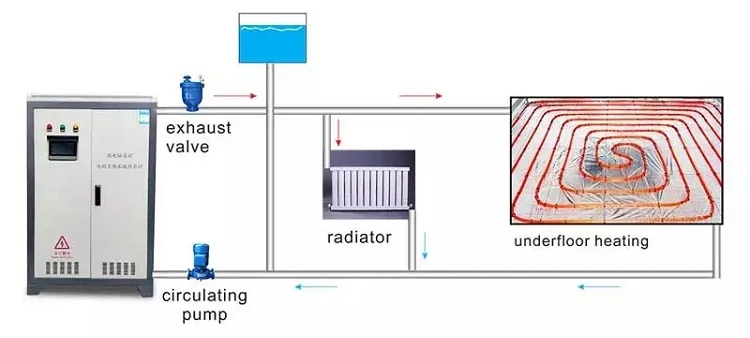

Application
High frequency electromagnetic induction electric hot water heater with coil for heating
* Home central heating
* Under floor water pipe heating
* Radiator heating
* Hotel, shop, commercial place etc

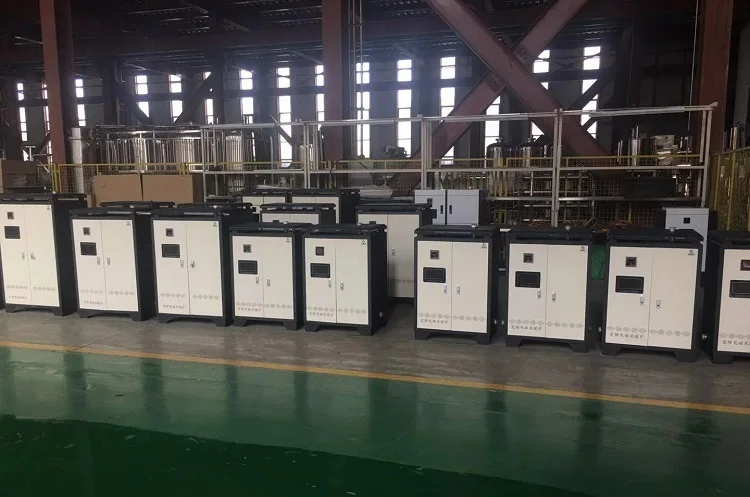

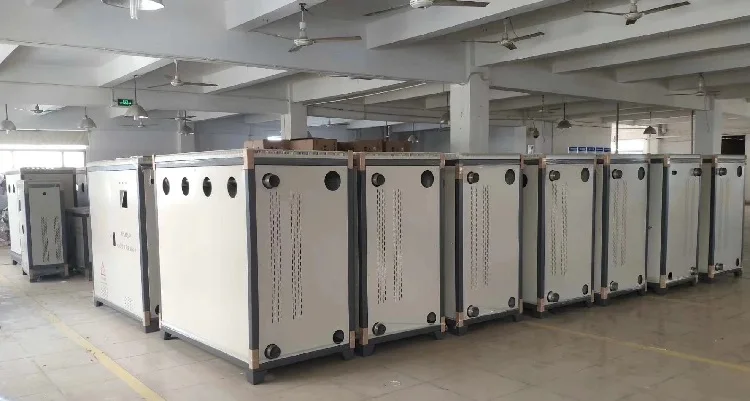

Company Information
Packaging & Shipping
FAQ
Q: Is your company a trading company, dealer or a manufacturer?
A: We are a manufacturer. We have made all machines in our own factory since 2007. Warmly welcome to visiting our factory anytime freely.
Q: Which countries your machines have been exported to?
A: Our induction heating machines are sold to all over the world and with related certifications.
Q: How is the warranty of your machine? And other services offered?
A: We provide one year warranty and life long time technical support and other assistance. During the warranty time, we offer your spare parts free of charges for replacement.
Q: How to install your machine?
A: We offer paper installation drawings, instructions and videos as needed. We will teach you till you’ve learned how to install it.
Q: How do you transport the machine to us?
A: by sea or by air way. For small machines we will recommend our customers transported via air way or express company like DHL, FedEx, TNT, UPS, etc.
Q: Which exporting port you’re using?
A: Any port in China as you choice, normally we will use Shenzhen, Guangzhou, and Hong Kong port.
Q: How about the payment terms?
A: Payment terms:
- For small machines: 100% T/T/ Western Union/Cash in advance.
- For big machines and big amount: 30% deposit 70% before shipment. (We will shoot total delivering process for customer's confirmation) and the related papers. You and pay by T/T, L/C, Western Union or other ways.
Q: Production time need?
A: 5-7 days for small machine, 15days for big machine. We will delivery goods on time.
Q: Do you have any certificate?
A: Yes, all our goods have ISO and other certificates. All machines are high quality goods.
