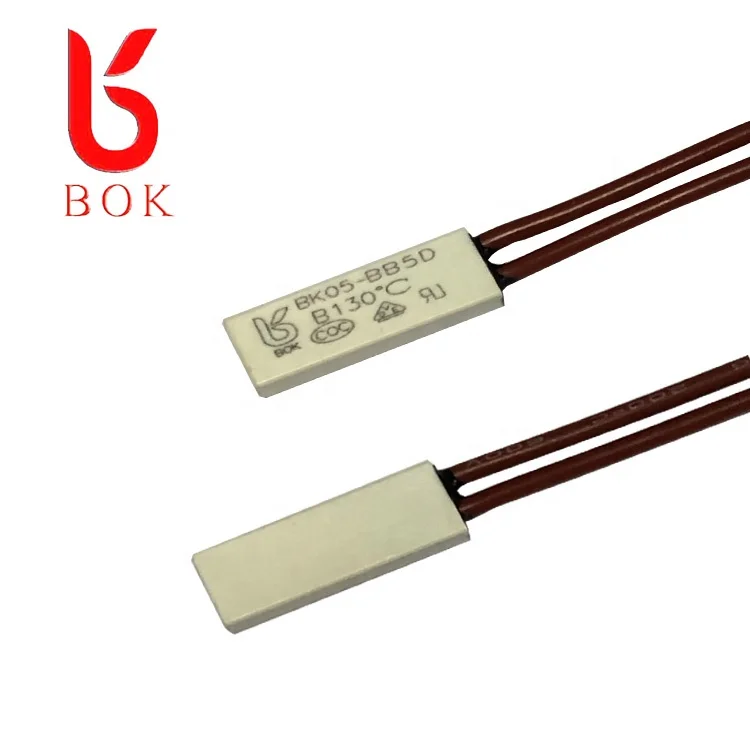

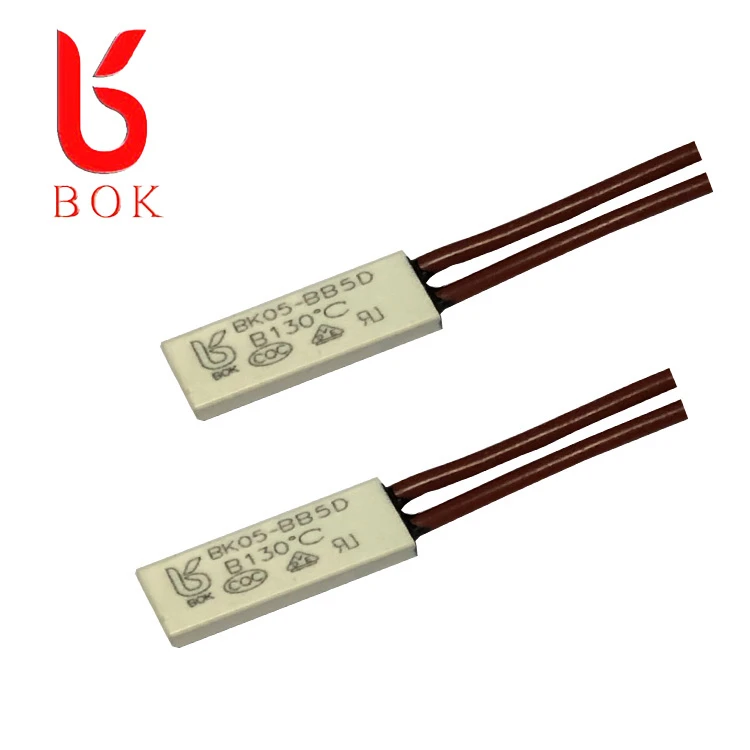

New product KSD9700 bimetal thermostat BK05 normally closed 130c 8A 10A thermal switch

Share on (62475559974):


Price:$0.20 - $0.23

Quantity:


Product Overview

Description



Product Description


New product 2020 normally closed 130 degree thermal protector





Feature:

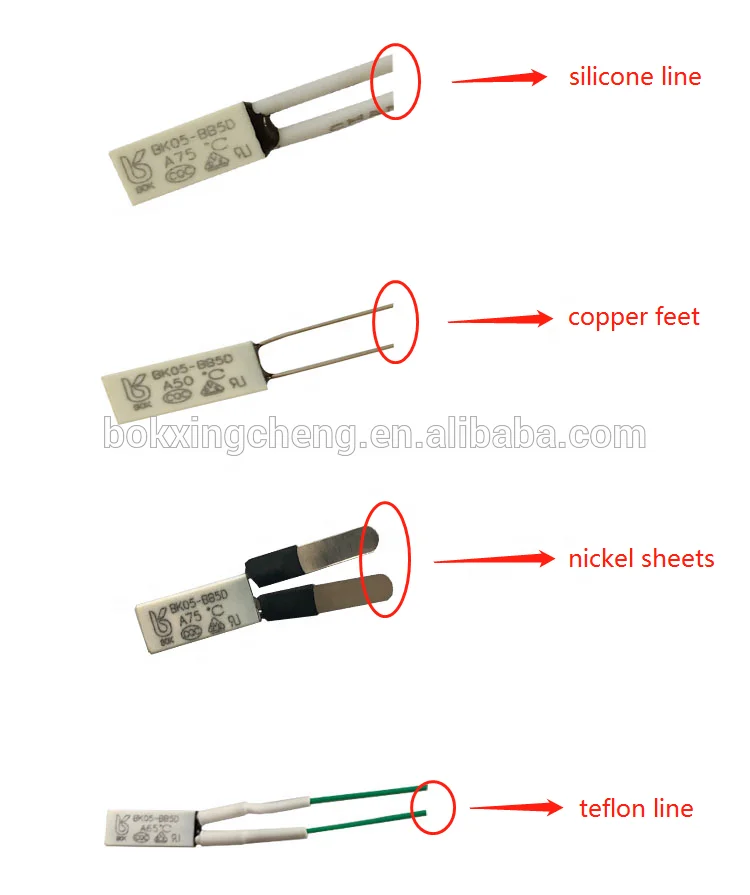

Low internal resistance, less than 25mΩ (25 milliohms, the smaller the resistance, the better the quality, think about why?), Small size, easy to install fast-moving bimetal, fast response, life up to more than 100,000 times, anti-vacuum immersion paint Process, current and temperature double protection, leads can be customized according to requirements














































Rated voltage



250V



Over current



8A 10A



Rated current



DC12V/4A,DC24V/3A,AC125V/3A,AC250V/2A



Standard sizes



20mm*8mm*4mm



Normal contact resistance



<50mΩ



Insulation resistance



>100mΩ



Responding speed



≤1/min



Life times



>10000



Action temperature error



±3/5℃



Reset temperature error



±15
