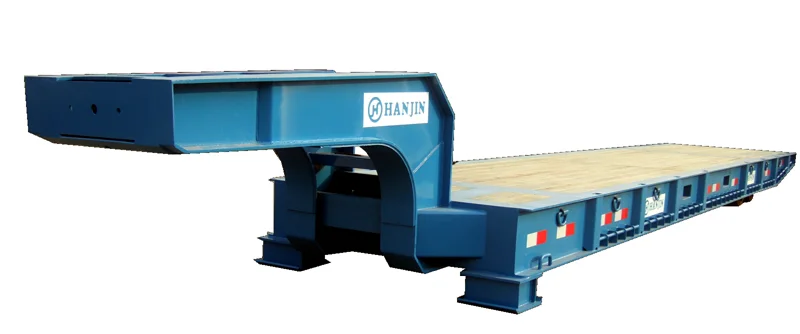

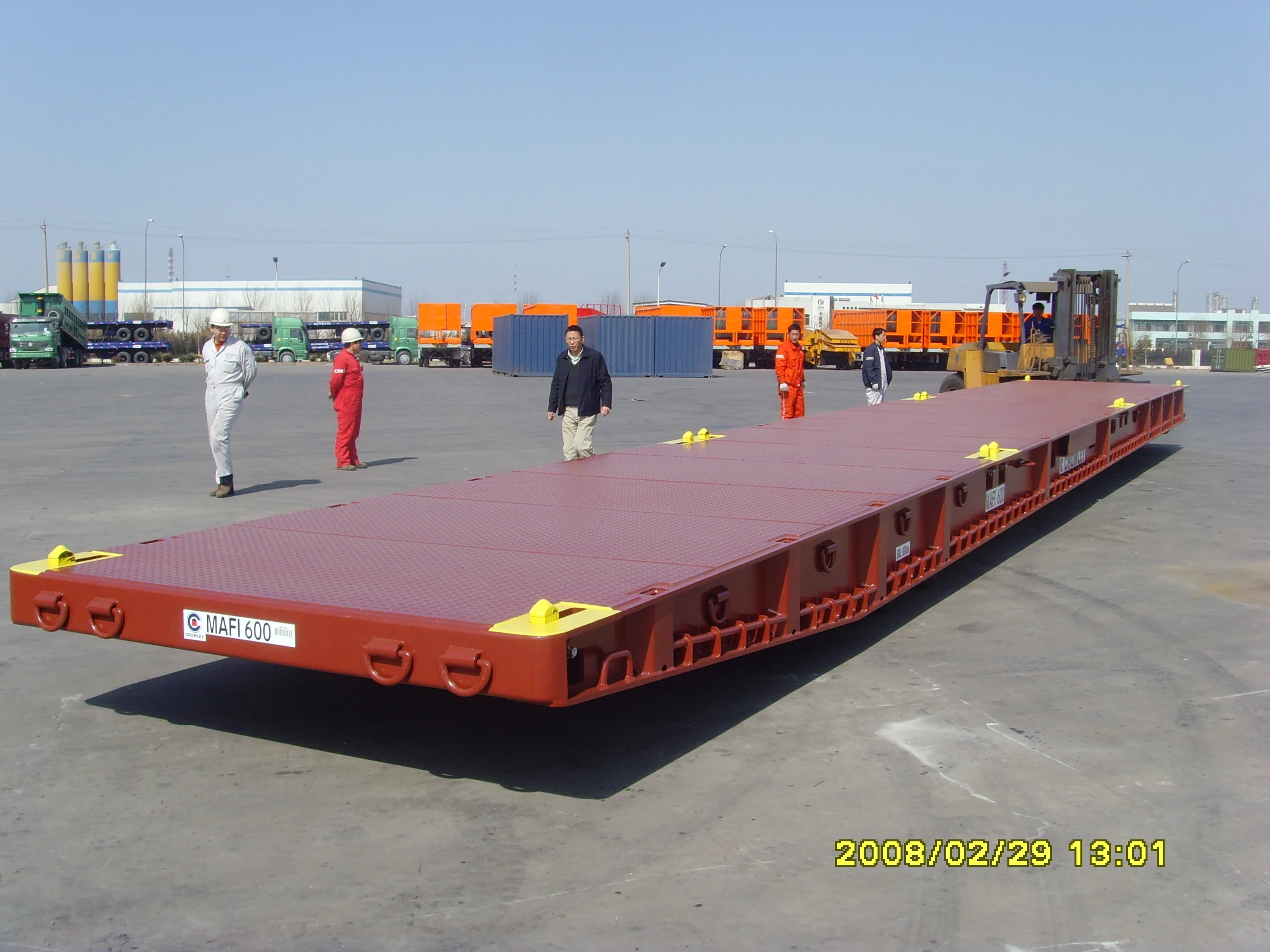

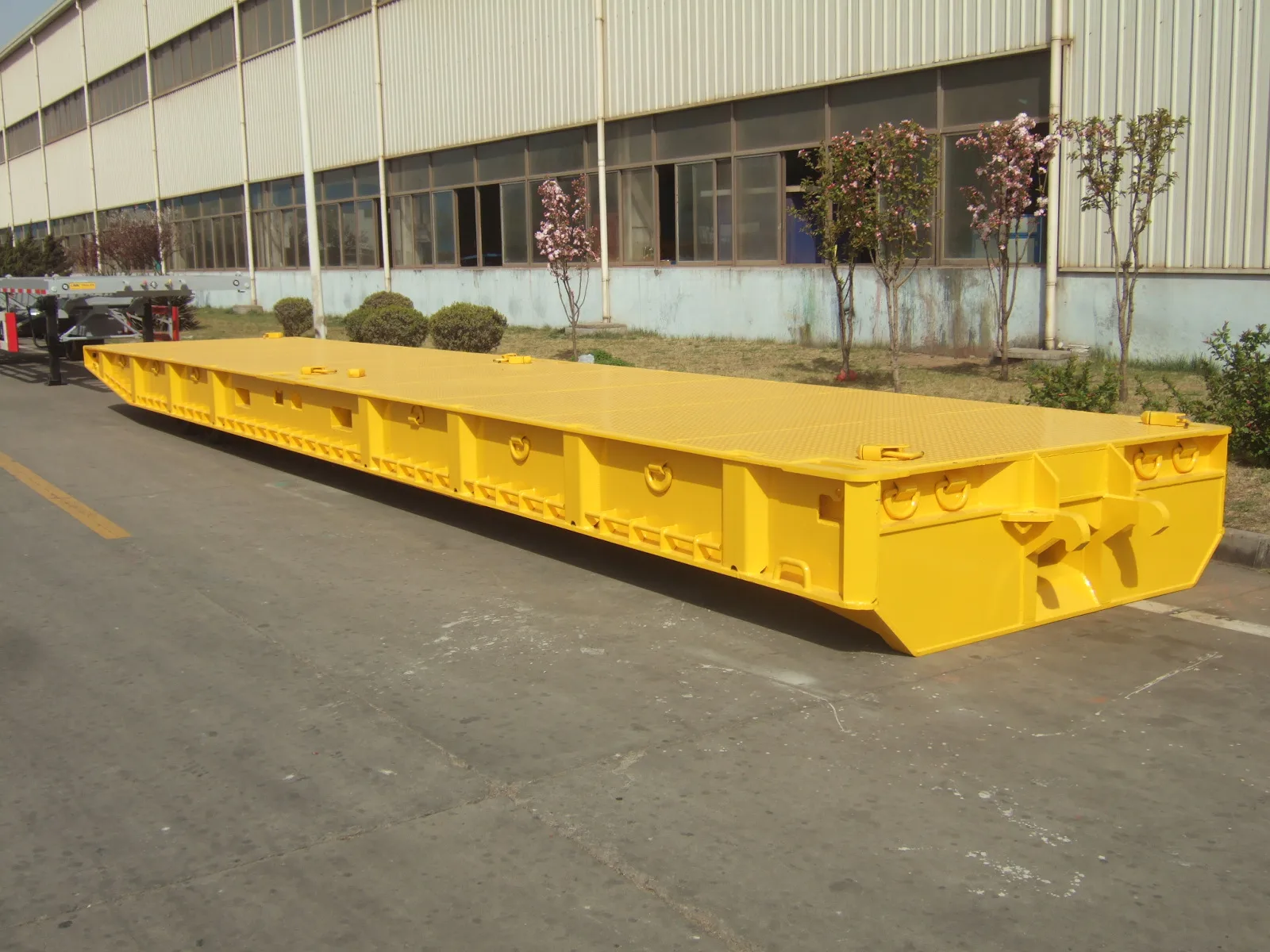

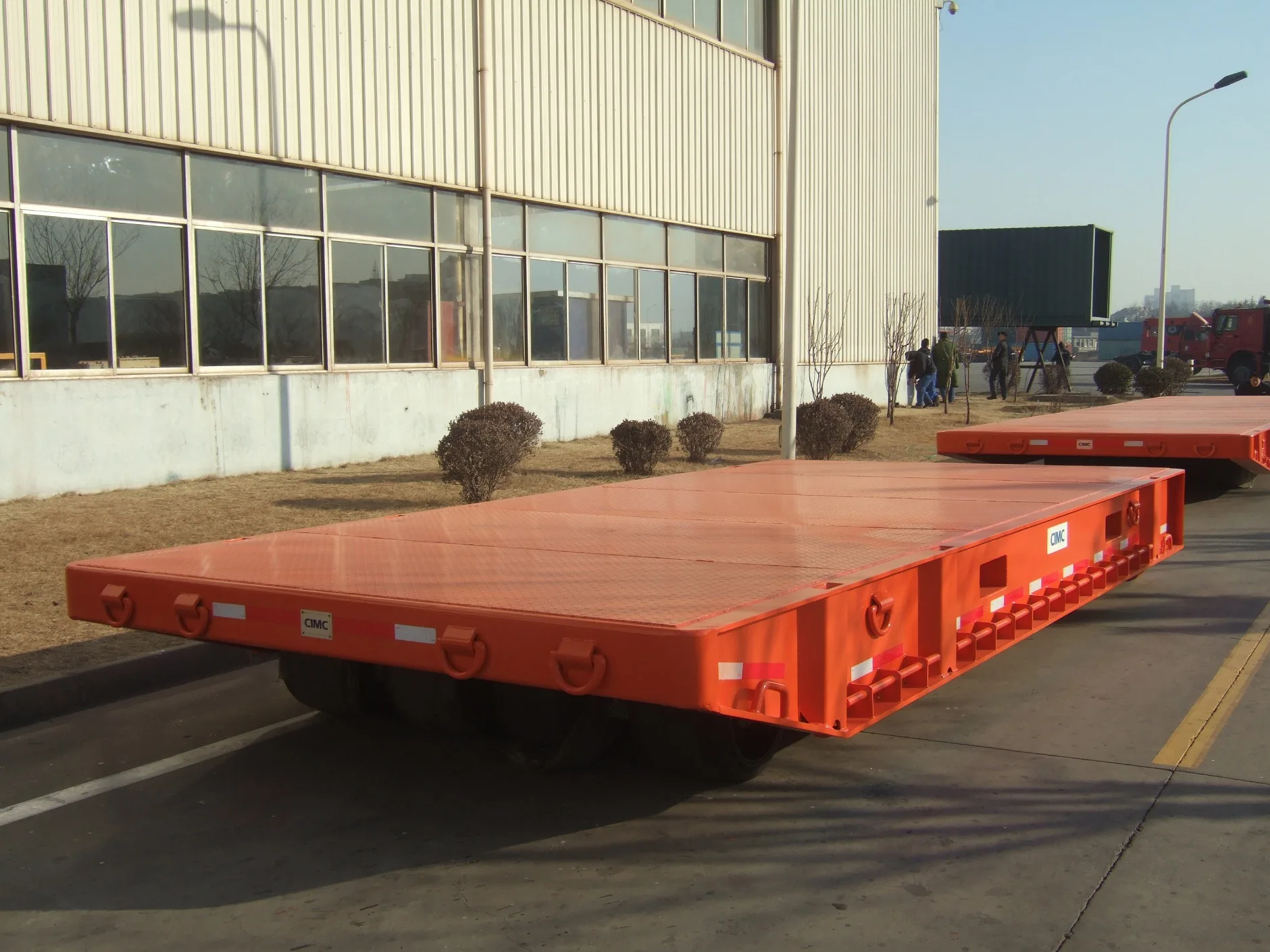

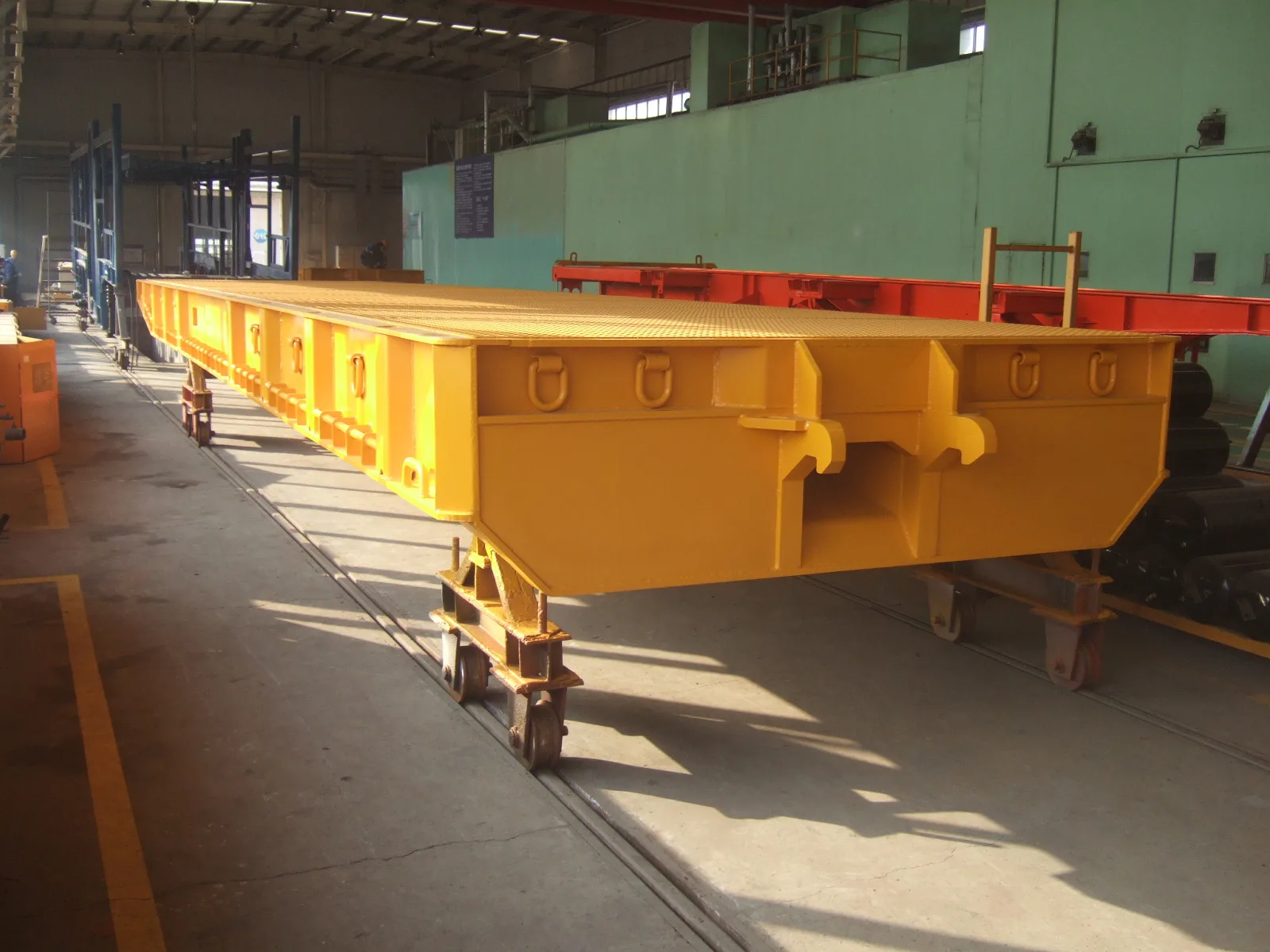

40FT / 100T Roller Trailer

The roller trailer is designed for use in stevedoring and transporting of 1x40ft or 2x20 ft ISO cargo containers or loose cargo or big non knocked-down goods on Ro- Ro vessels or within terminal.

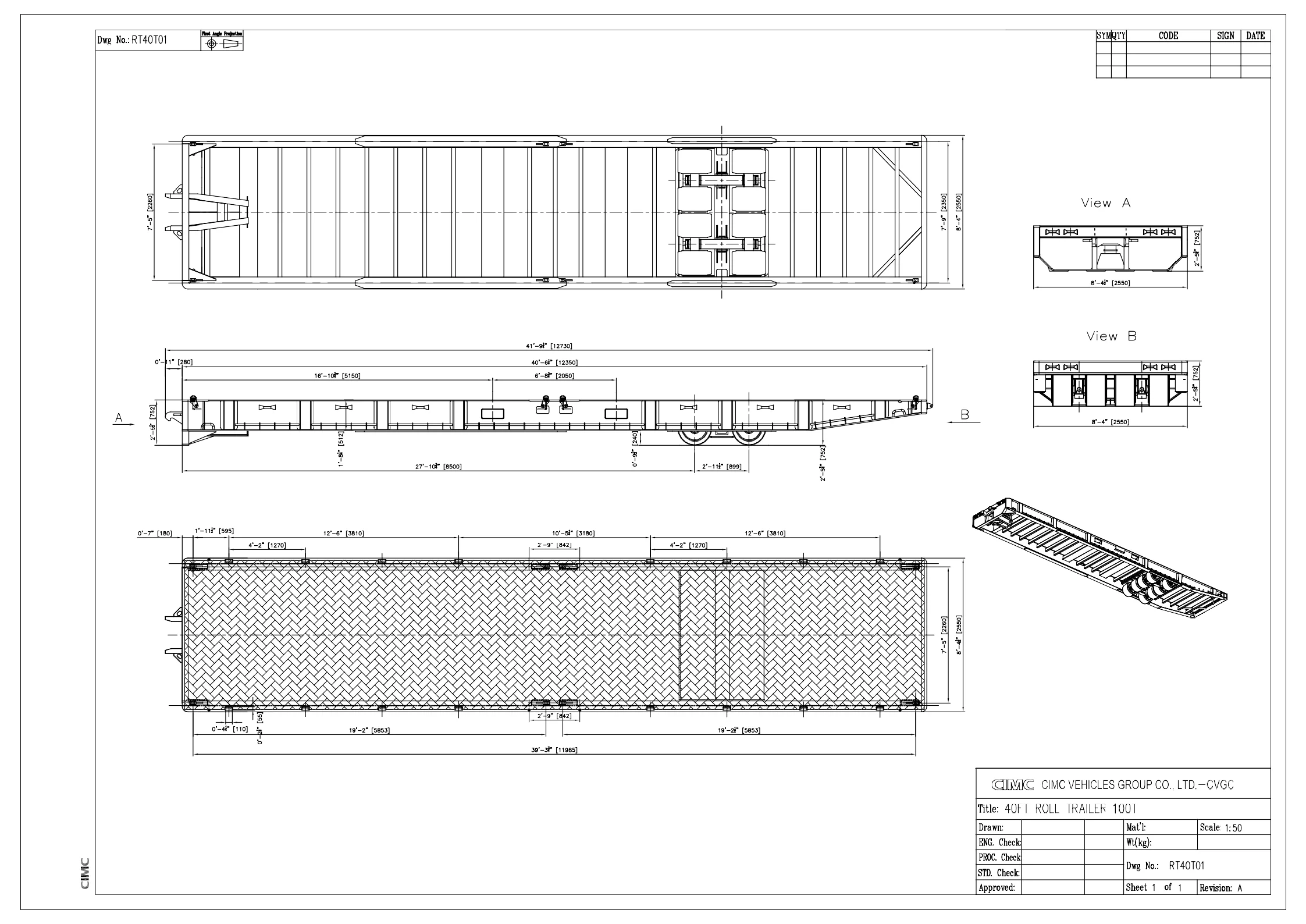

Dimension:

Overall Length: 41’ -9’’(12,730mm), include11’’( 280mm) for safety hook

Platform Length: 40’ -6’’(12,350 mm)

Platform Width: 8’ -4.5’’(2,550 mm)

Platform Height: About2’ -6’’ (752mm) @ unload

Ground clearance 9.5’’ (240mm)

Axle spacer (from front surface):27’ -11’’( 8,500 mm) + 2’ -11’’(900 mm)

Distance between fork lift pockets: 6’-9’’(2,050 mm) Tare Weight (Tolerance ±3%): Approximate 8,500 kg Payload: 100,000kg

Material:

 High strength low alloy steel with 350 MPa yield strength is used for rolled I-beam and fabricated parts.

Properties of steel material:

CIS: CHINA Industrial Standards

Frame:

Material: High strength low alloy steel with 350 MPa yield strength is used for hot rolled I-beam and fabricated parts.

Main Beams:1’ -8’’( 512mm) deep x 8’’(200mm) wide x 3/8’’(10mm) web hot rolled I-section main beams with 5/8’’(16mm) thick top flange and 3/4’’(20mm) thick bottom flange. 2 pieces reinforced bottom rail on each main beam.

Running Gear Cross Members: 10 -7/8’’(275mm) deep x 9 -7/8’’ (250mm) wide welded box structure with 1/2’’(12mm) web and 3/4’’(20mm) thick flange.

Cross Members: 7 -1/8’’(180mm) deep x3 -1/2’’ (90mm) wide x5/16’’(8mm) Channel type.

Fork lift pocket: Two reinforced box profile fork lift tunnels.

Running Gear:

 2 rock arms lowered box construction

Coating:

Shot blasted Sa 2.5

Color by customer’s requirement. Additional Equipment:

Stanchion Pockets: 8 pieces 110mm x 55mm on each side beam.

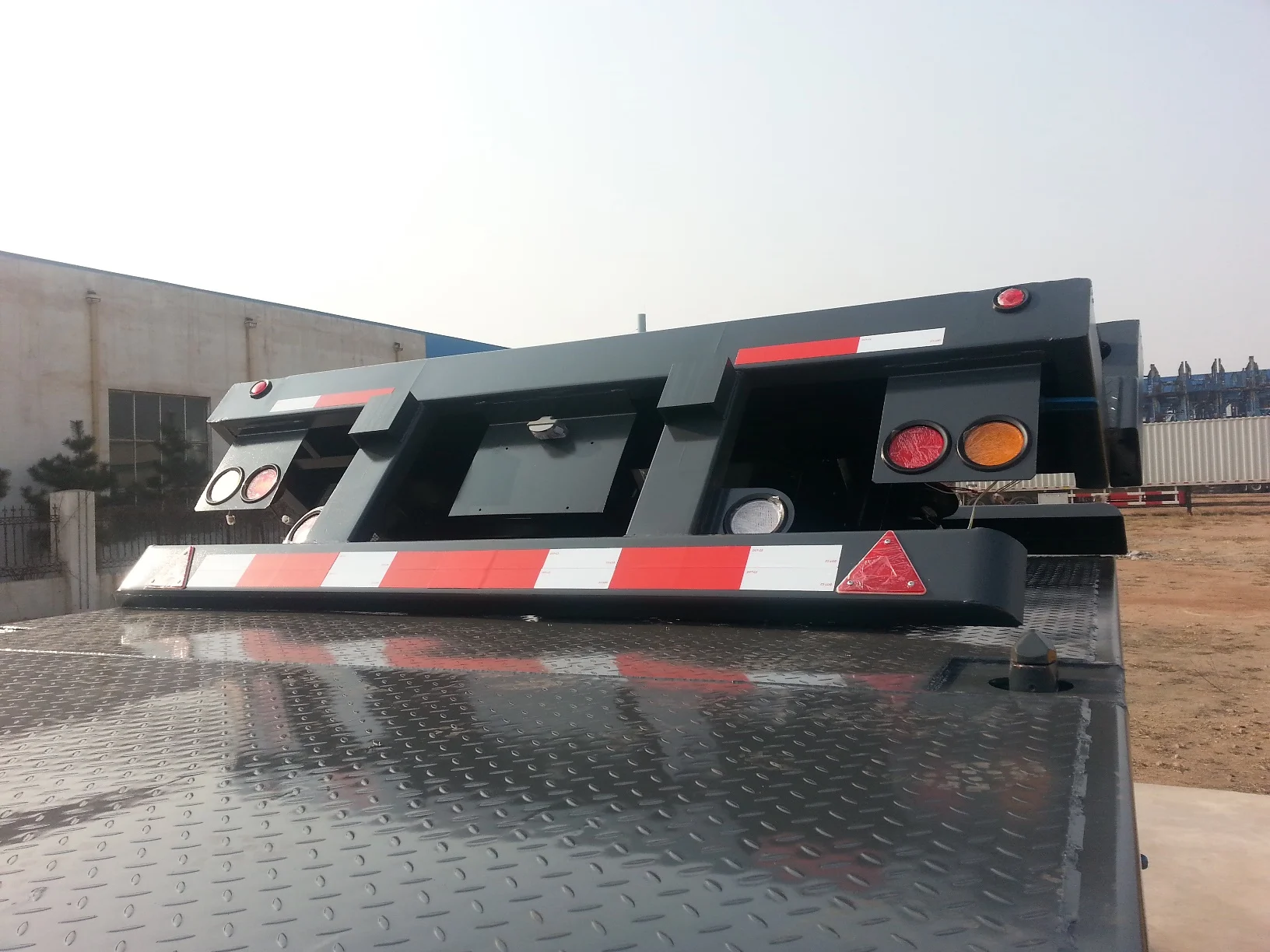

Lashing points: Lashing rail along side beam. 2+2 lashing points on rear panel.

8 Ro-Ro type twist locks for 20’ and 40’
