√ Increase 4 group cant polished,square pipe brightness improves 10%
√ Polishing machine useful life increased to 10-15 years
√ Machine weight increase,16T, improving the stability of equipment
√ Polishing with a rubber wheel, high temperature ,strong wear resistance
Passed the IS09001:2000 international standard certification
Parameter
Technical data
FP-32
FP-32 (New)
FP-36
FP-36(New)
Model(Unit)
32
32
36
36
Working range(mm)
13*13~100*100
13*13~100*100
13*13~100*100
13*13~100*100
Polishing speed
2~30M/NIM
2~30M/NIM
2~40M/NIM
2~40M/NIM
Rated power(KW)
4kw=24,others=5.5kw;
5.5KW=12, 4KW=20;
5.5KW=16, 4KW=20
5.5KW=24, 4KW=12
Motor power(KW)
5.5kw VFD
5.5kw VFD
5.5kw VFD
5.5kw VFD
Total power(KW)
145.5
151.5
173.5
185.5
Voltage(V)
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
Machine size (L*W*H MM)
13040×1500×1350
13040×1500×1350
14500×1500×1350
14500×1500×1350

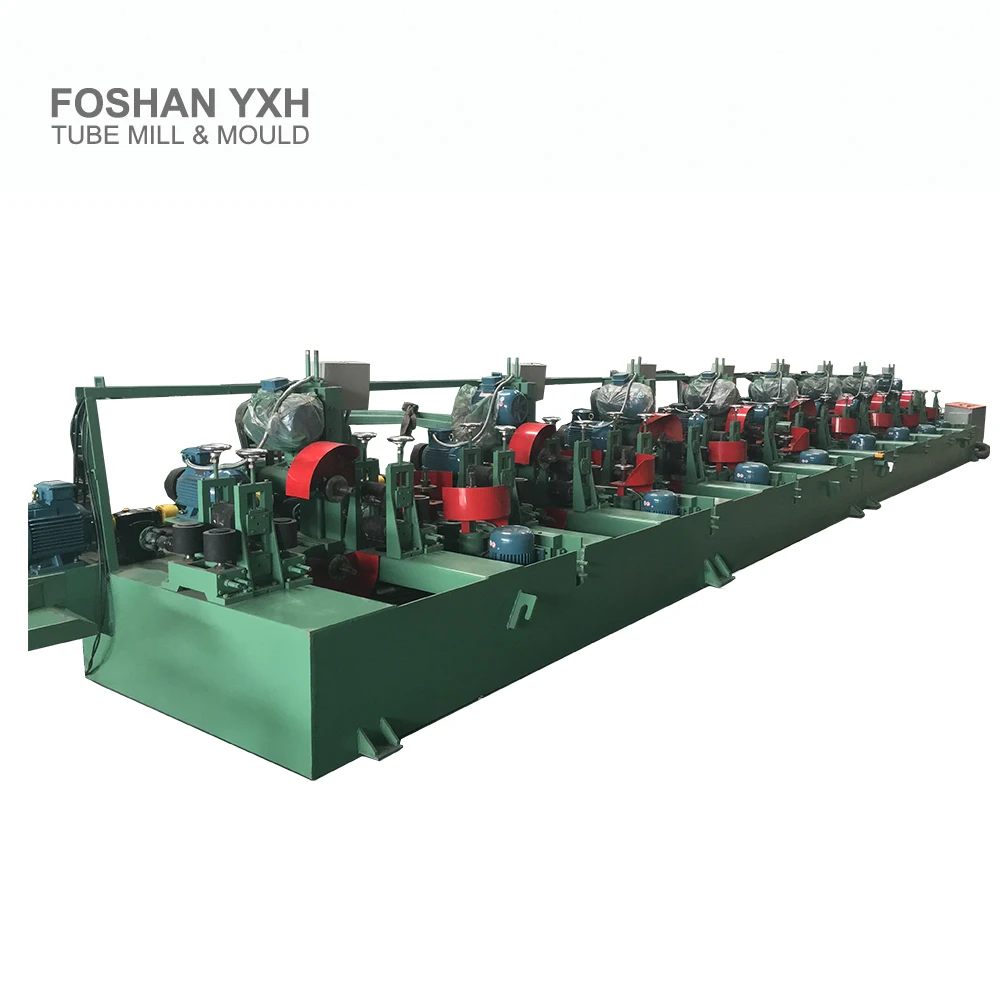

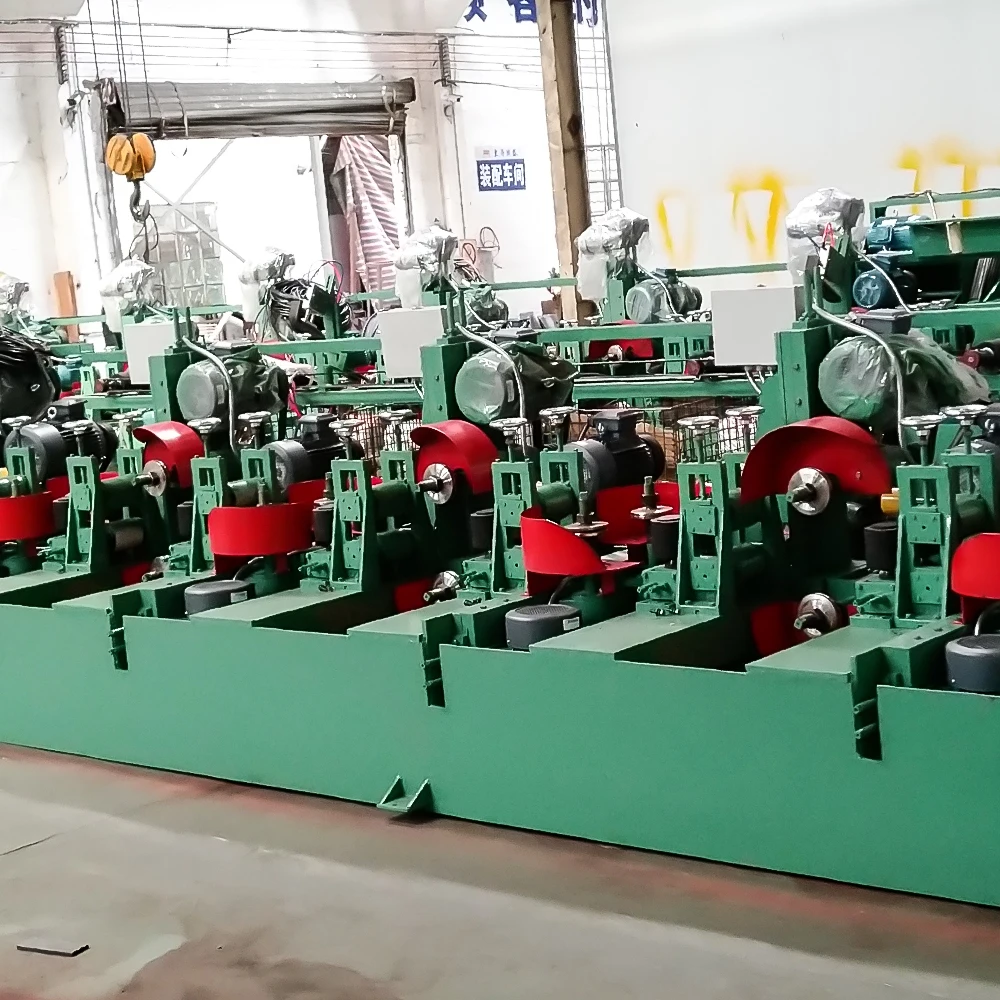

The Square Pipe Polishing Machine is Mainly used for polishing the surface of square and rectangle pipes .It offers economic solution for mirror polishing ,sand polishing and matte polishing of tubes ,using flap wheels ,cloth wheel ,sisal mixed ,cloth wheels and polishing wax.
On- Time shipment and per-shipment product quality safeguards
Refund up the covered amost agree with us
Packaging & Shipping
We use steel wire and wooden frame to fix the stainless steel square pipe polishing machine;
In addition, used shockproof film to protect the main motors.
We use the container to deliver goods to our customer.
Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
Our Services
Offer the technology for free.
Help you train your staff.
Offer plant designing and calculate power consumption.
Send engineers to help you install the machines and train your staff online, until you can produce qualified pipes.
Special notice: The warranty period is one year, except man-damage. If you have any question in operation in operating the machines, you can call us or send emails, we will solve the problem for you asap.
