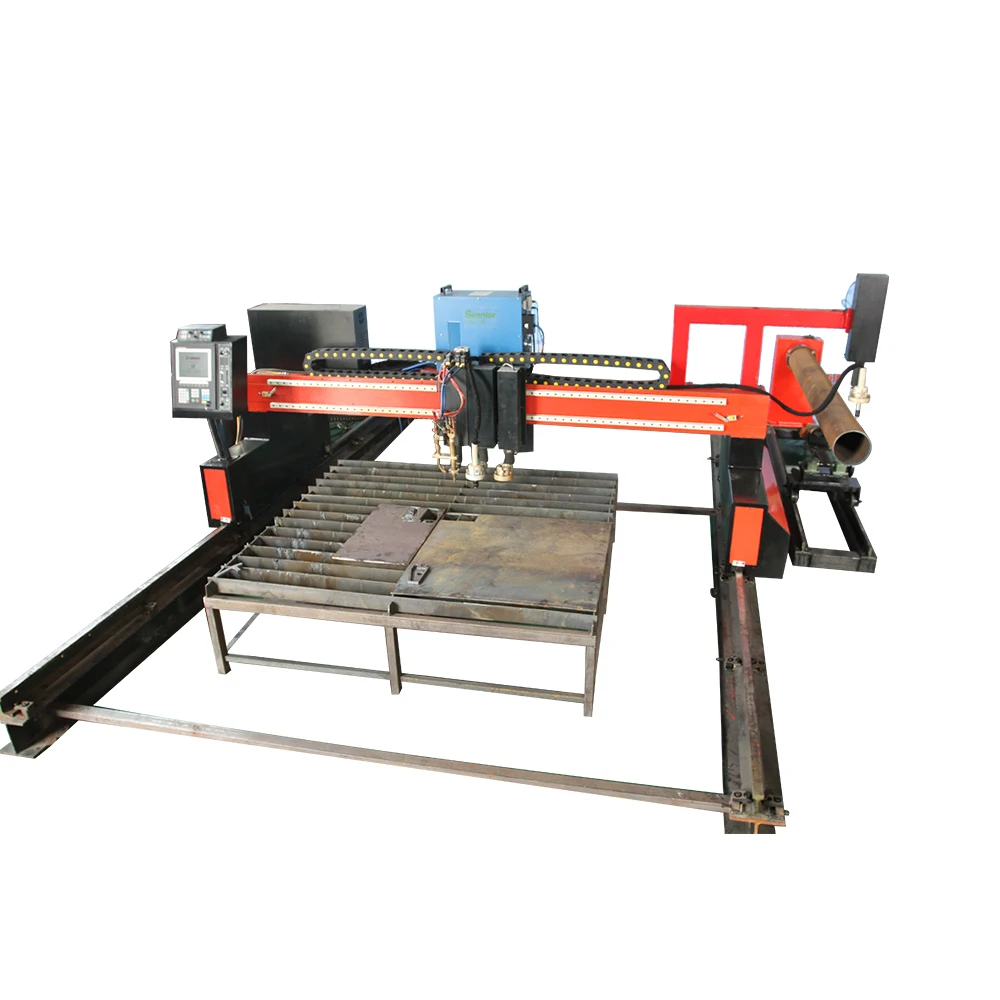

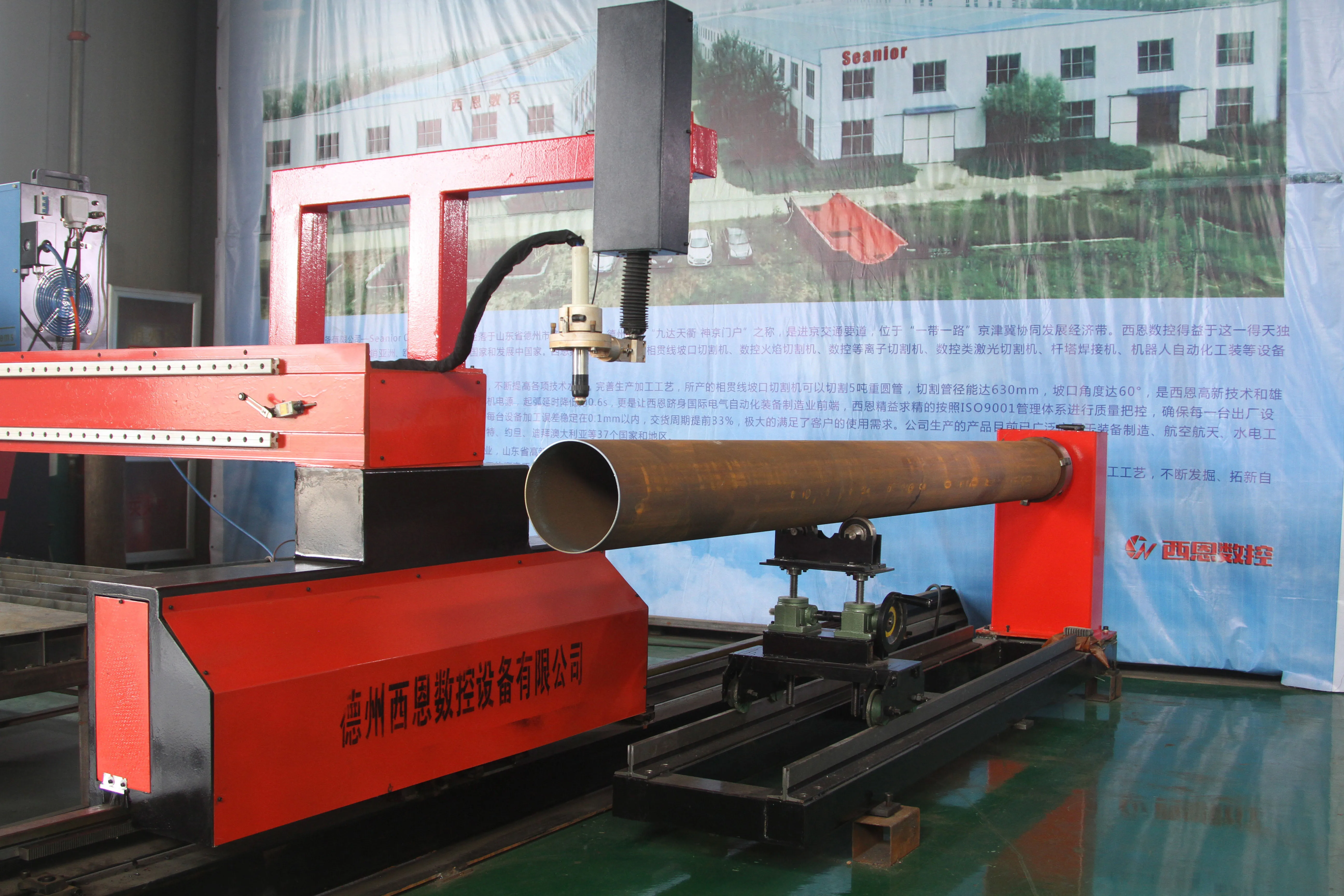

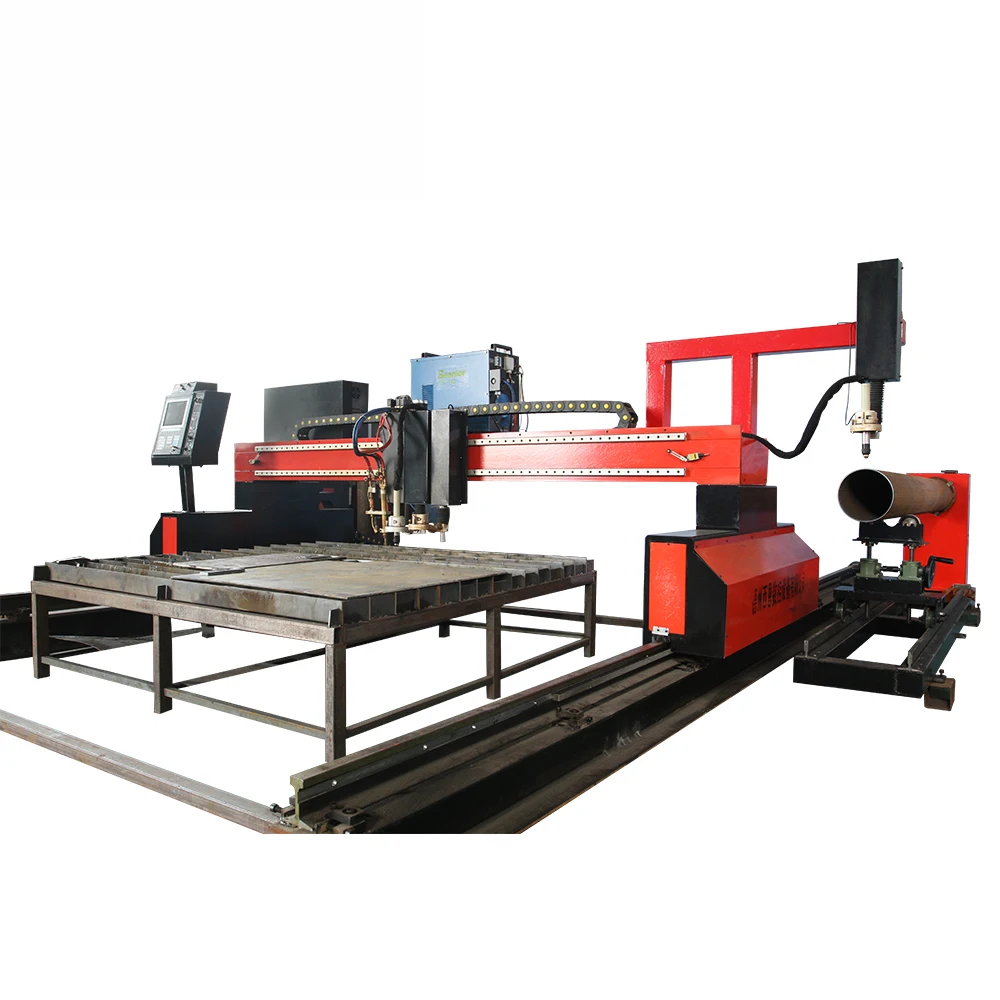

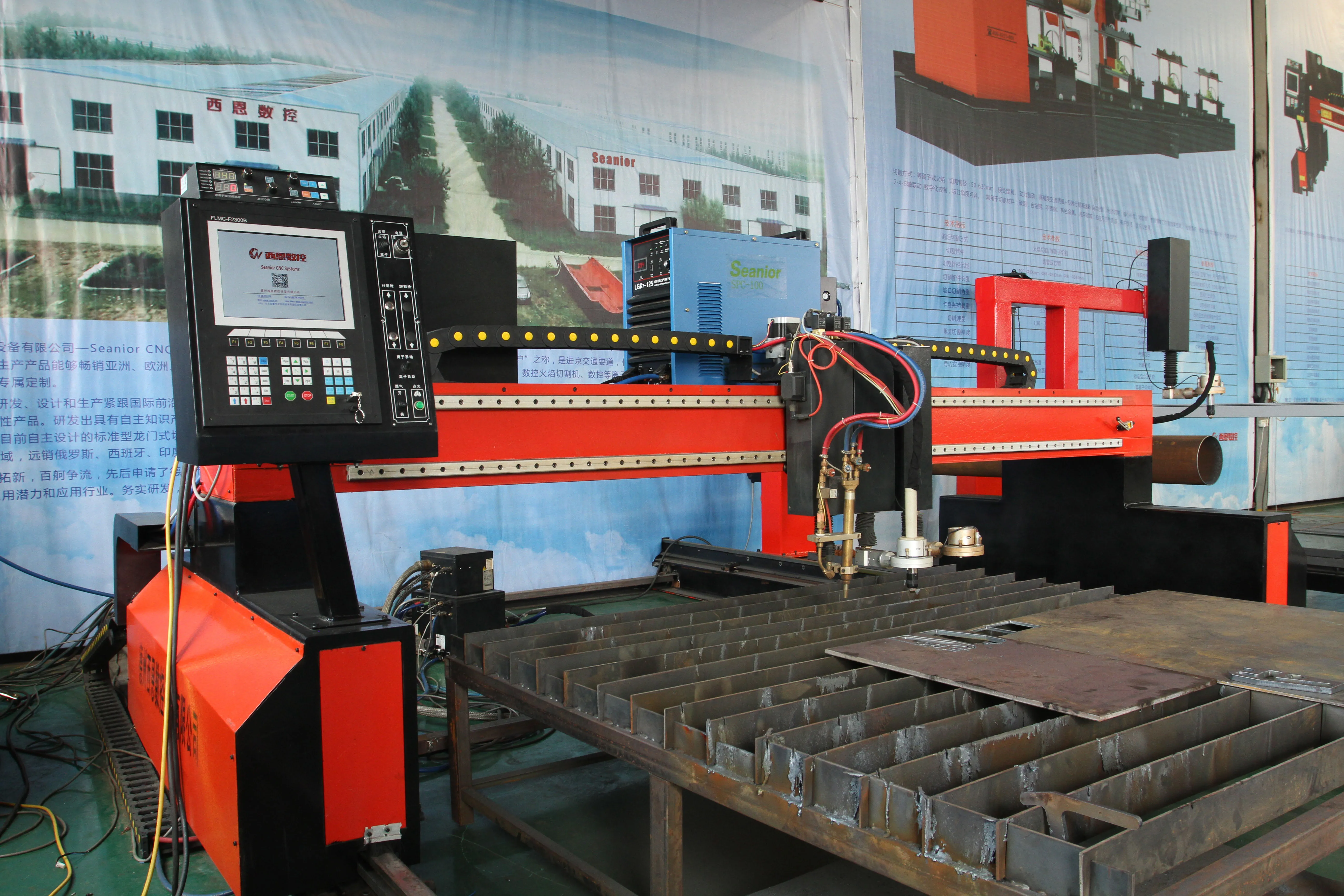

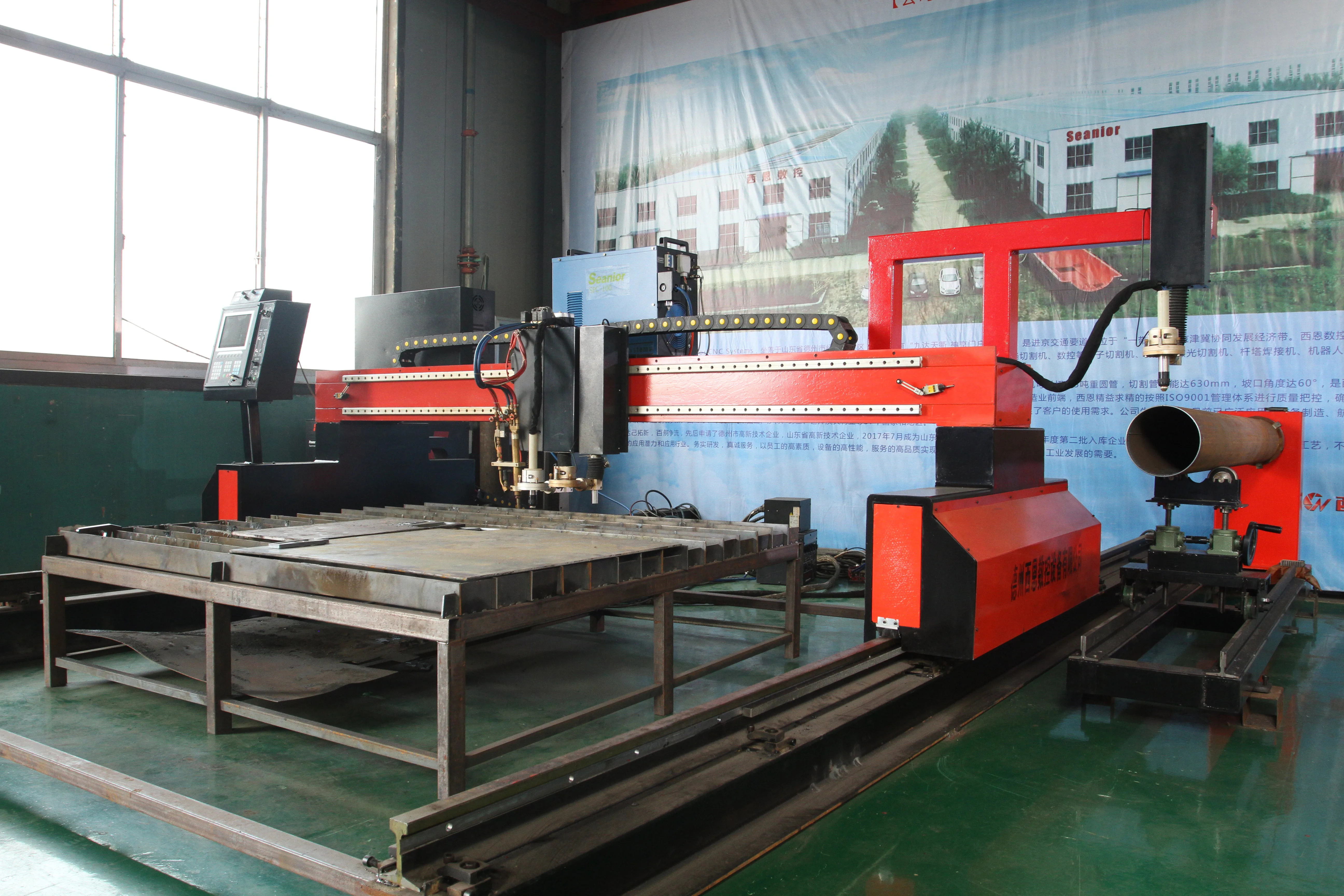

High Precision CNC Gantry Plasma Pipe Profile Cutting Machine

(CNC Plate & Pipe Cutting Machine        CutMaster 4014)

It is a kind of CNC cutting equipment with high efficiency and high precision,and can reduce labor intensity. It is widely used in the process of cutting metal plate in machinery manufacturing industry, and can cut steel, stainless steel, aluminum, coppper and many kinds of non-ferrous metal.

Watch more video on youtube:

https://www.youtube.com/channel/UCRFnUo1ERj6U2njBgMv5bRQ?view_as=subscriber

Productivity workhorse, economical and high efficiency | Fast, Accurate, Long work hours

Consistent, repeatable performance, Multiple processes, Easy to use

View More>>>

Do you want to cut something great and improve your efficiency with CNC Plasma and flame cutting machine?
Are you looking for the high quality plasma/flame metal cutting machine to cut your sheet metal or pipe and tube at best price?
Are you finding German or American suppliers' offer SO HIGH?
How about a person helps you to solve all the problems and leave you to sit back and relax?

Product Description


Economical, high-precision and robust. CutMaster  owns sturdy construction. With Rugged floor-mounted  rails which are machined from 24kg/m crane rail and heavy-duty end truck,  You'll get high- precise cutting quality of long life cycle.


CutMaster can support two high performance plasma systems and up to 11 flame straight cutting systems, which can provide you different cutting requirements and improve your productivity to the largest extent.


Equipped with accurate transmission and guiding system, adopting STARCAM automatic nesting software and F2300B industrial level CNC system, CutMaster II is built to fulfill heavy tasks in your shop with multiple choices.


Are you looking for a machine that can outperform in cutting capability and is low in budget? Meet our robust CutMaster and get excellent cut part quality and benefit from cost-saving, worry-freeing and high-efficiency.                                                        View More>>>

Main Features

1) Heavy-duty CNC gantry cutting machine with easy-to-use F2300B CNC control system.

2) High compliance digital drives provide a smooth cut edge with zero maintenance.

3) Large diameter drive wheels combined with high precision guiding systems offer you superior drive motion.

4) Rugged cross box beam with milled steel plate for high precision guiding system delivery lasting strength, durability and precision.

5) Fast flame cutting torch with height sensing lifer and auto-ignition device let you spend more time cutting and less time in setup.

6) Up to 800 amp plasma depending on your choice.

5) Apply to metal cutting in ship building, construction tower, mechanical engineering, steel service and other heavy industries.                                                      View More>>>

Product Parameters

Technical item
Technical parameters
Effective cutting width
2000mm - 5500mm
Effective cutting length
4000mm - 20000mm
Tailor-made dimension
Accept tailor-made order
Flame piercing thickness
6mm -80mm
Edge cutting thickness
6mm -200mm for flame cutting
Torch lifter vertical traveling distance
≤150mm
Cutting precision
±0.5mm
Cutting speed
0-10000 mm/min
Number of lifter
Double (standard), accept tailor-made order
Cutting process
Plasma cutting and flame cutting
Torch lifting device
flame capacitance adjustment / plasma arc pressure adjustment
duty cycle
24h
processing material
Mild steel , stainless steel and aluminum

Product Details

Gear rack


The rack and pinion combined with double cylinder axis guide rail deliver you high precision motion and high quality cutting edge, which will enhance your competitive power in your market place.

Electric cabinet


The enclosed control cabinet is easily accessible. The digital drives, low-cost  replacement I/O modules and more reduce and limit your repaire and maintenance costs.

Floor mounted rails


Rugged floor mounted rails machined from 24kg/m crane rail for smooth motion required by today's high performance plasma and flame torche.
