5 10TPH JXSC China Factory Price Mobile Alluvial Gold Diamond Recovery Process Plant Coltan Tin Jig Separator Machine
- Category: Mineral Separator >>>
- Supplier: Jiangxi Province County Mining Machinery Factory
Share on (62477508133):
Product Overview
Description
Technical data

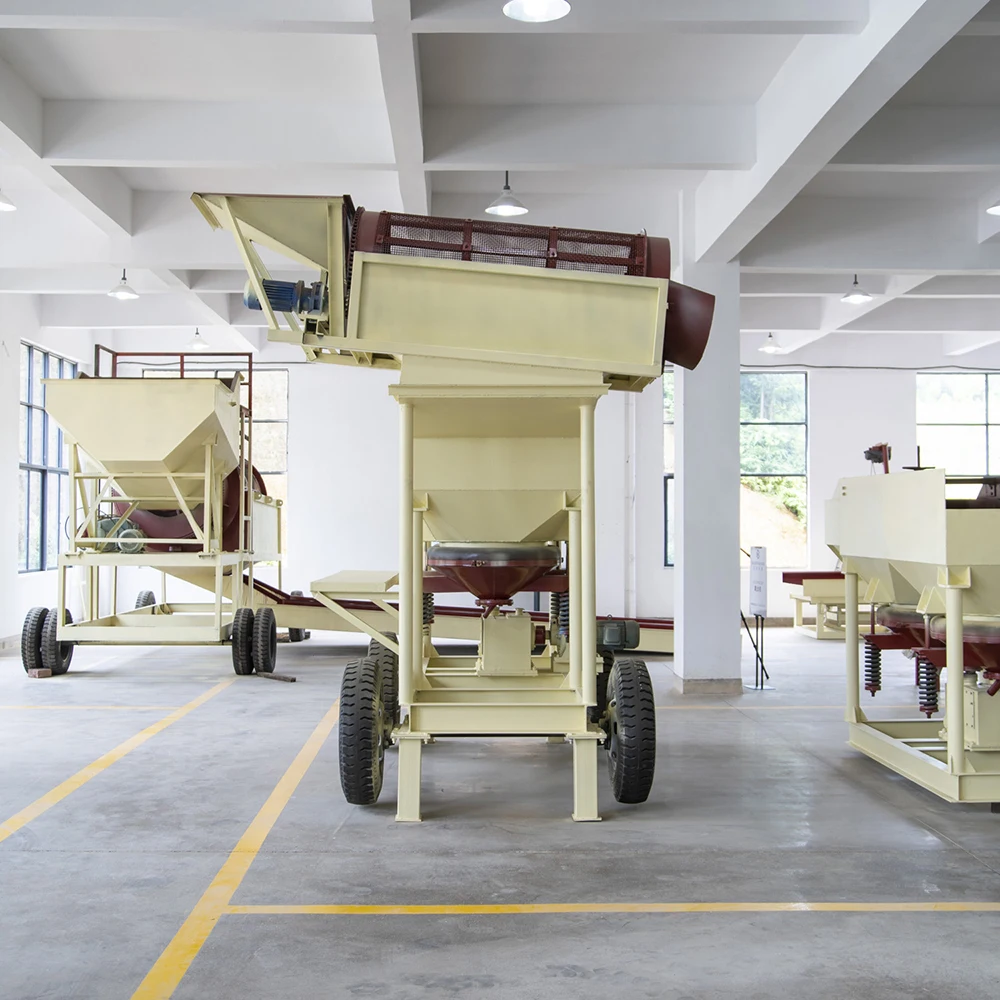

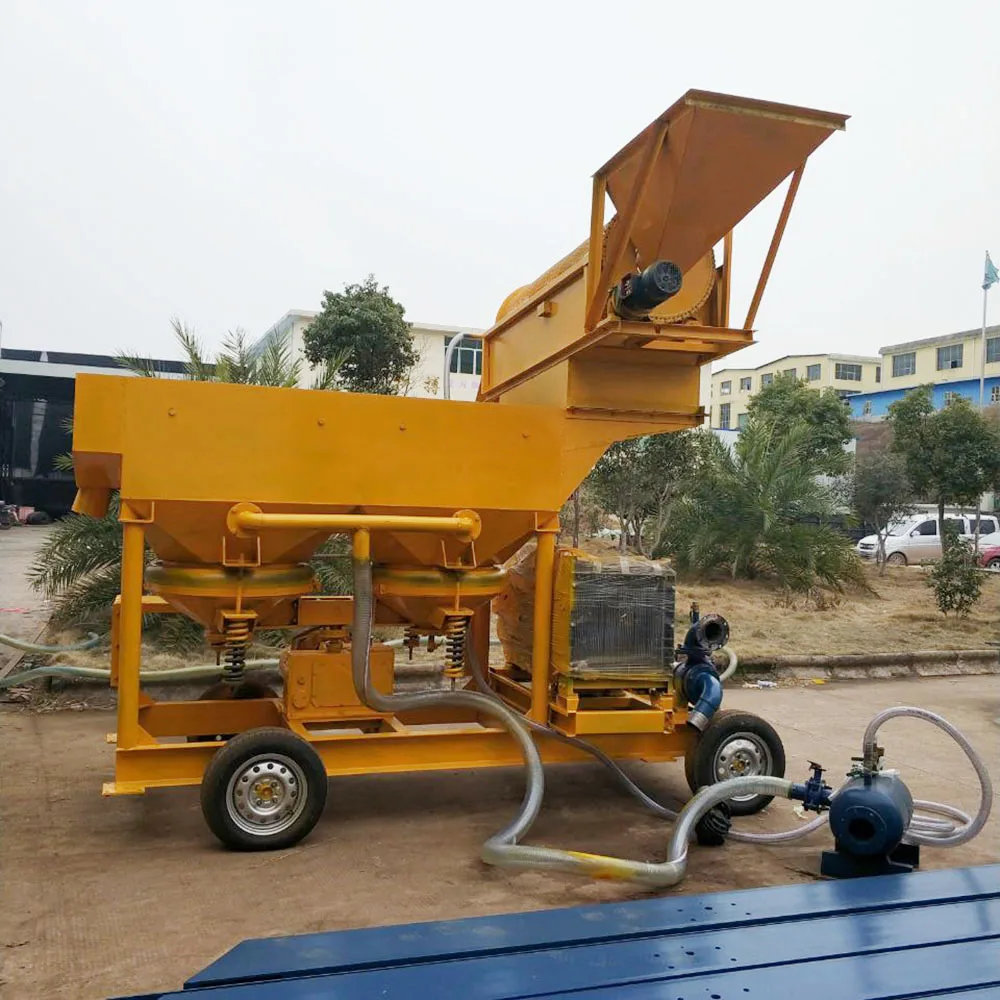

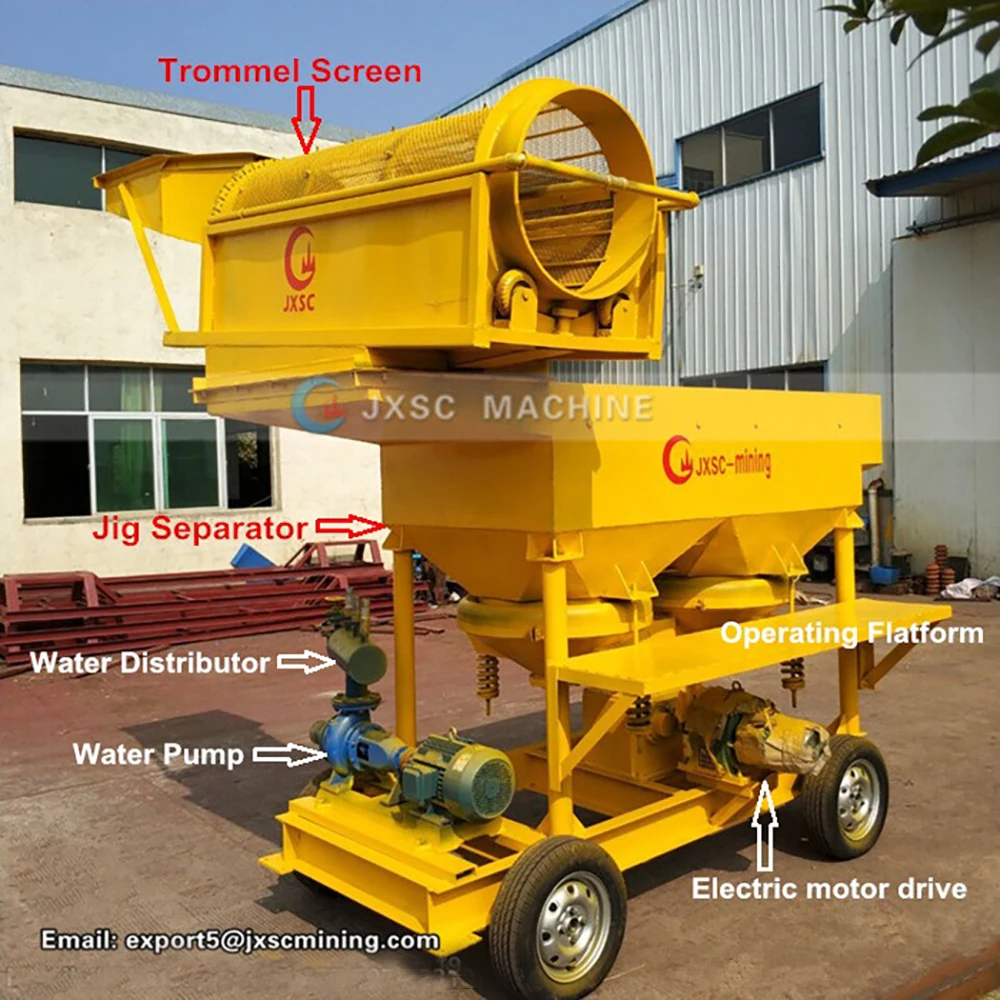

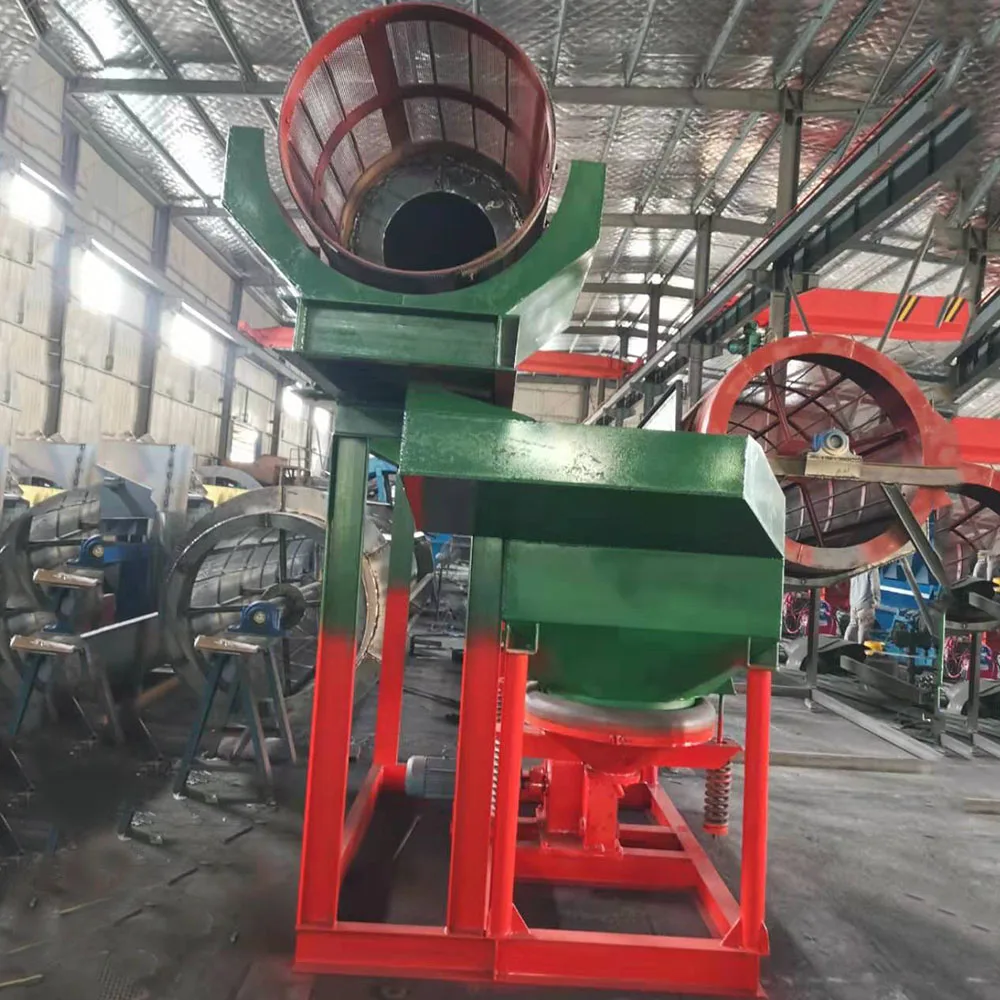

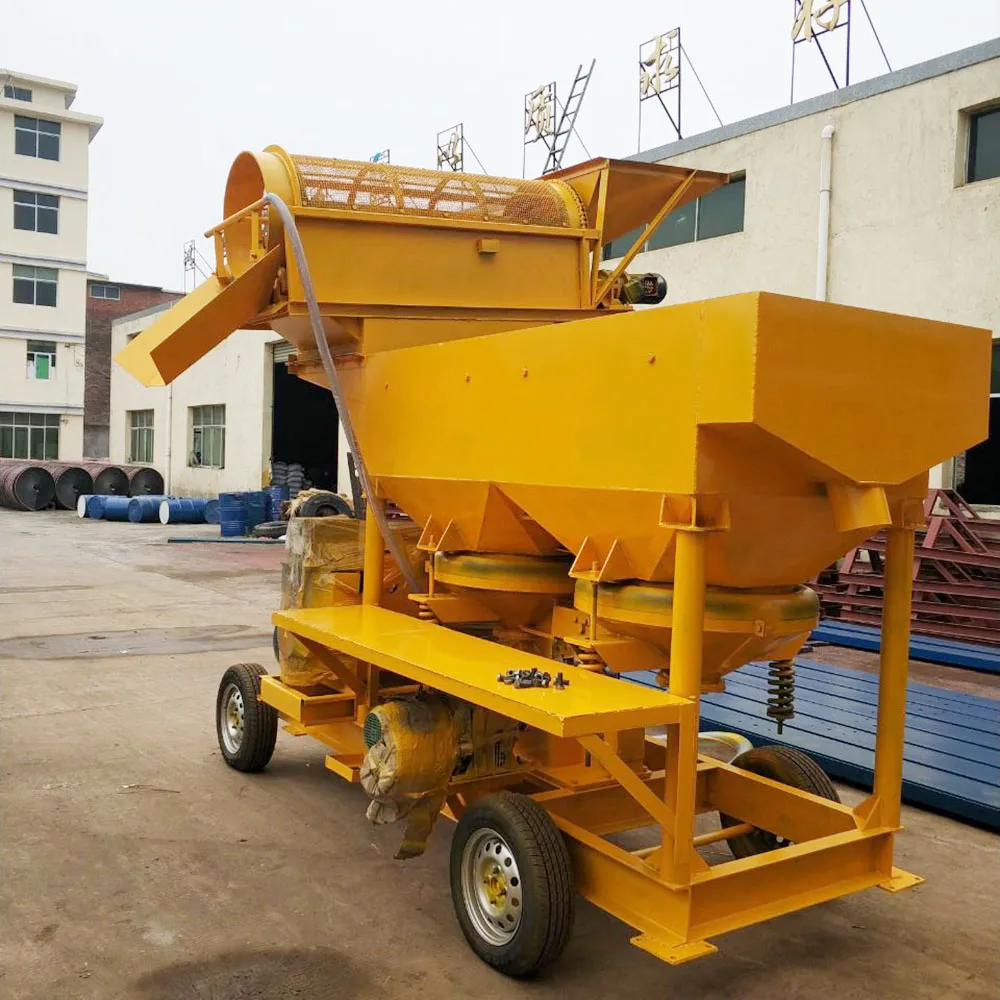

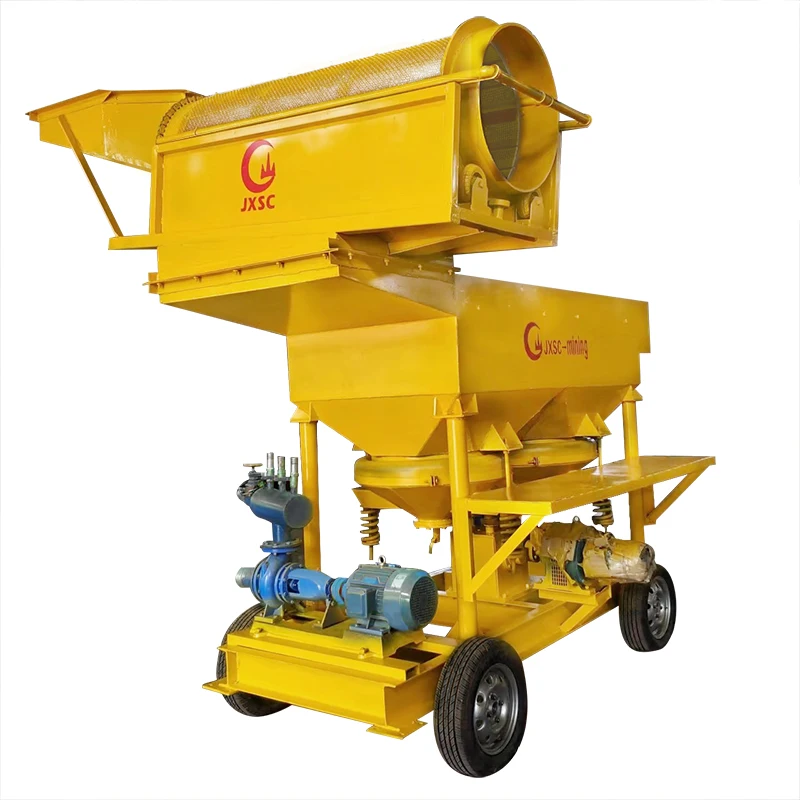

Small diamond mobile wash plant▼
It is an Mobile Integrated machine with small-medium capacity 5-20tons per hour, which is quite suitable forGold/Diamond/Gemstone/Tin/Tungsten/Coltan separation & recovery.
The equipment includes a jig machine and a trommel screnn, which can be screened and gravity separator at the same time. Perfect for small-scale diamond treatment。

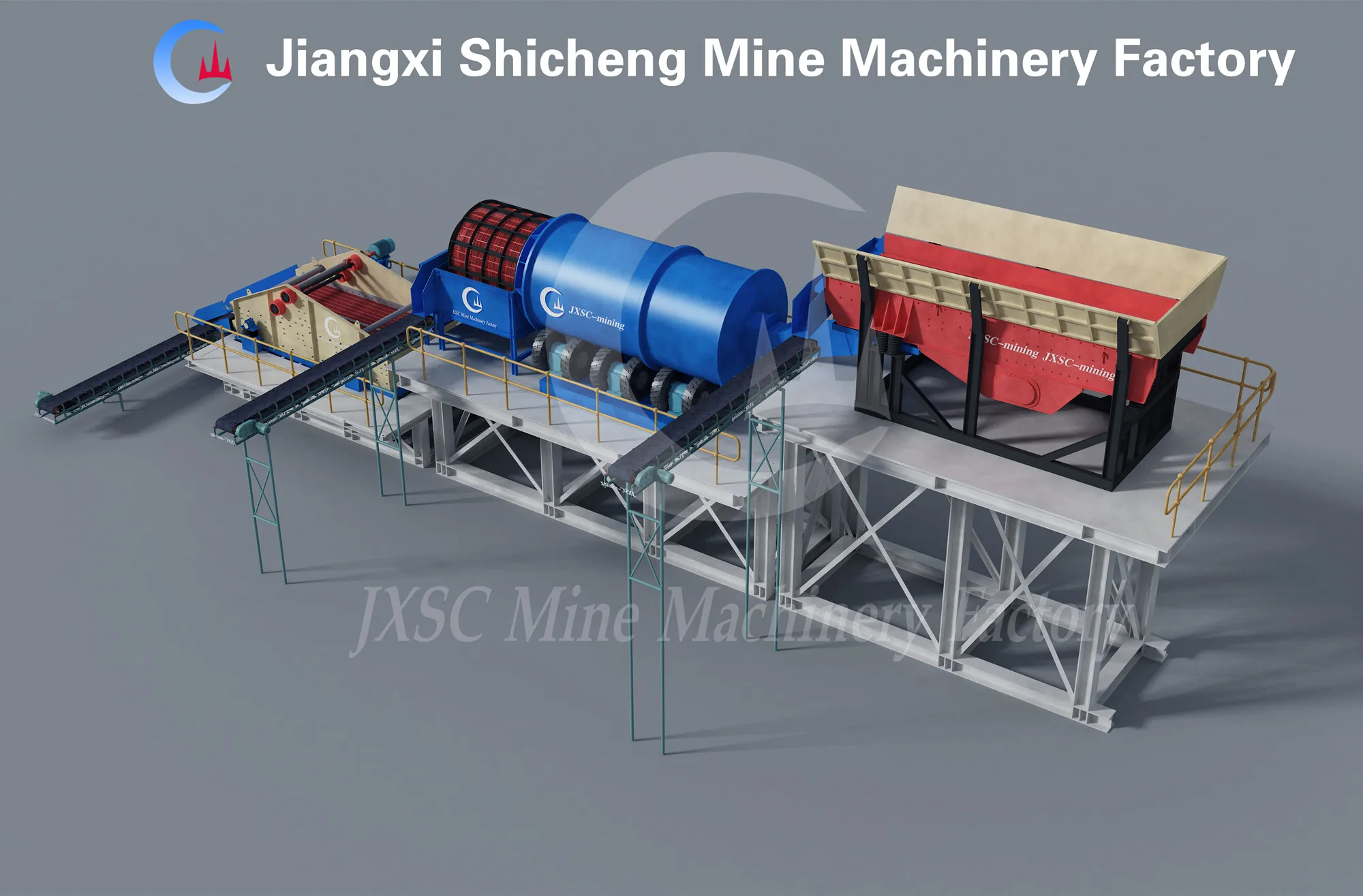

Large diamond mobile wash plant▼

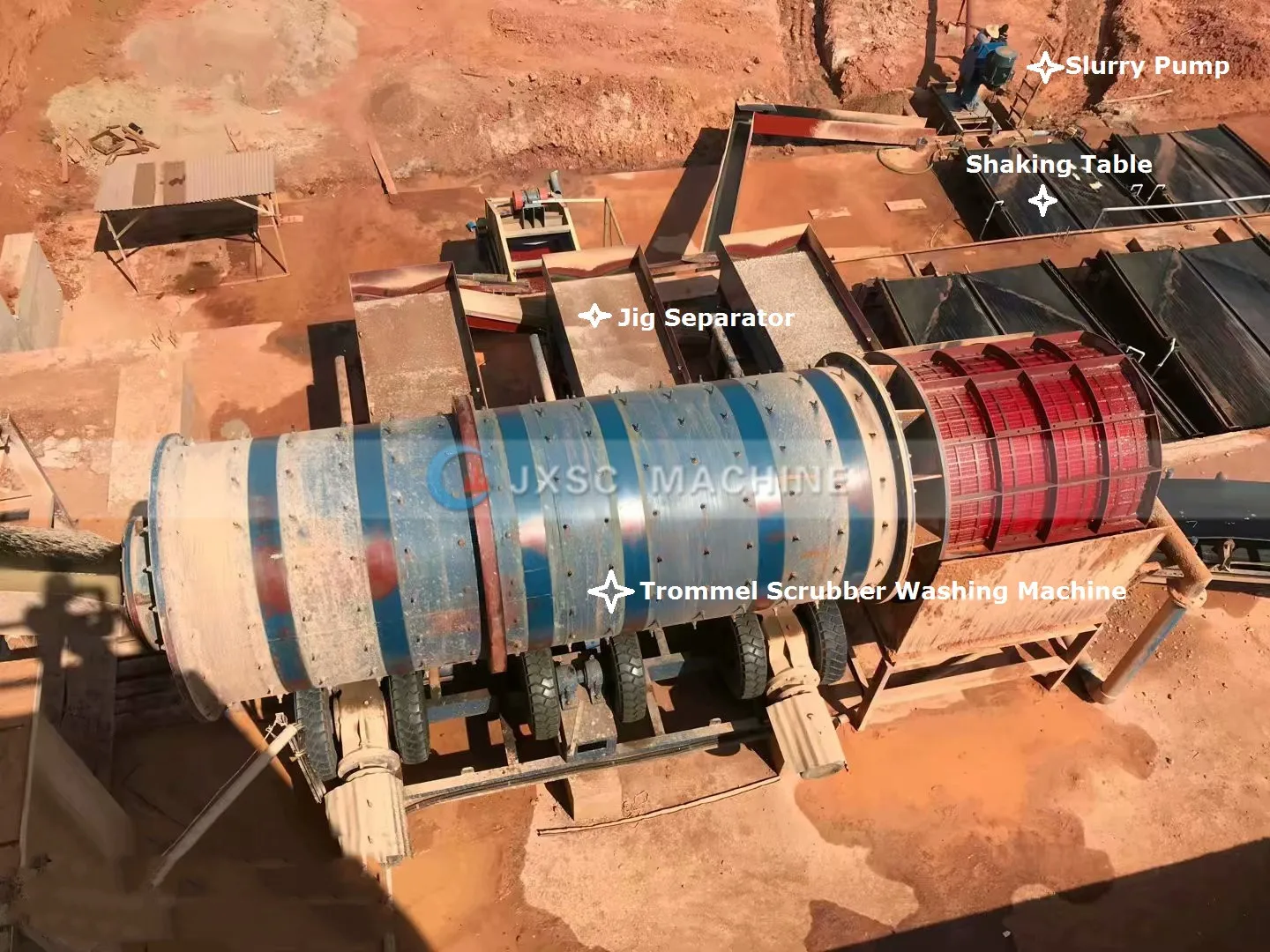

The diamond beneficiation production line is very similar to the sand gold production line. They usually consist of a washing machine plus a sorting machine. Ore washing equipment can be divided into trommel screen and rotary scrubber according to the different mud content. The separator usually uses a jig machine.
Main Product ▼
1.Trommel scrubber is a good diamond mining equipment for diamond clay mine washing,
The trommel is primarily used to remove water-soluble clays, deleterious materials and coatings providing a cleaner product. Our trommels washing screen are notable for its economy and efficiency, whether it is used in cleaning sand, gravel, or washing crushed stone and various ores. What’s more, It can process fine and coarse feed simultaneously,
Our machine adopts the latest cutting edge design. The outer screen is divided into two halves, And they are tightly connected by bolts. The trommel screen inside built with a robust cylinder design, those screen panels are very easy to replace, and you can choose from urethane, rubber, punch plate, or wire cloth media. The drive part is powered by a group of model K127 reducer, and each reducer is equipped with 2 renewable tires. Units integrate abrasion-resistant steel or thick rubber liners, are secured into the scrubber drum to prevent wear and drum leakage. All the seams on a solid shell scrubber are welded to withstand the continual shock loading.
The outside water supply pipe for trommel scrubber is high-quality Q235 steel material, it has a big flow capacity and withstands high pressure. The continuous lifting and dropping action combined with water helps to abrade, scrub, and break down soluble contaminants. Optional trommel screen extensions can be added to provide rough product separation, screening and dewatering capabilities.

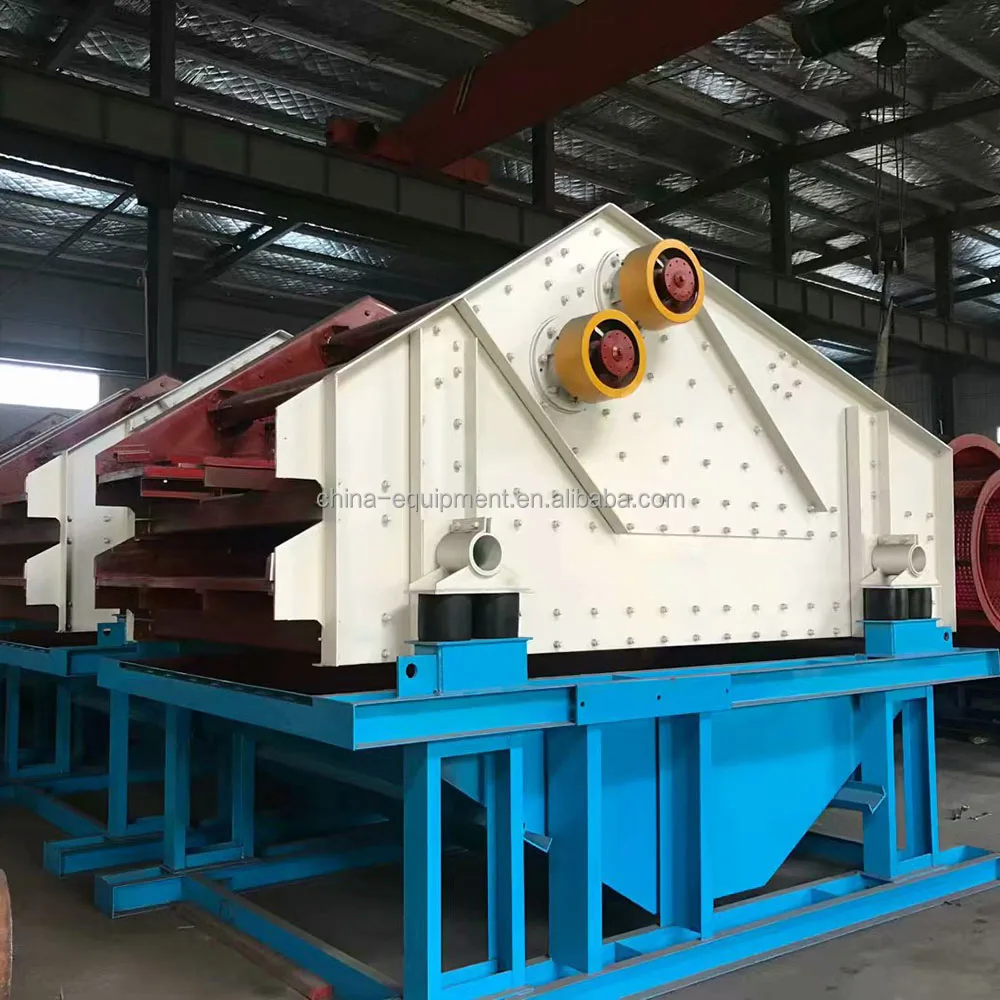

2. Vibrating Screening is another important part, it is used to separate material according to its size. Material is typically fed to a single-, double- or triple-deck screen to make the required sizes. The main water pipe of the vibrating screen adopts flange joint, which can easily connect the external water pipe with the machine.
Through spray high-pressure water, it separates and washes material to obtain a good sieving effect. The material must go through or over a specified size to end up in the right pile. Unlike the crushers, Vibratory Screens cannot produce the material; they can only size material that is already reduced to the product sizes.
Under the screen slurry tank, there is a flange connector, it is convenient to connect the vibrating screen and pipe, and the tank lining with 4mm thick rubber plate, making it more wear resistance. The tank is also equipped with a discharge chute and access door, which can be opened for maintenance.
The driving shaft of the vibration screen, is made of high-quality DIN C45 Steel material. Material is typically fed to a single-, double- or triple-deck screen to make the required sizes.

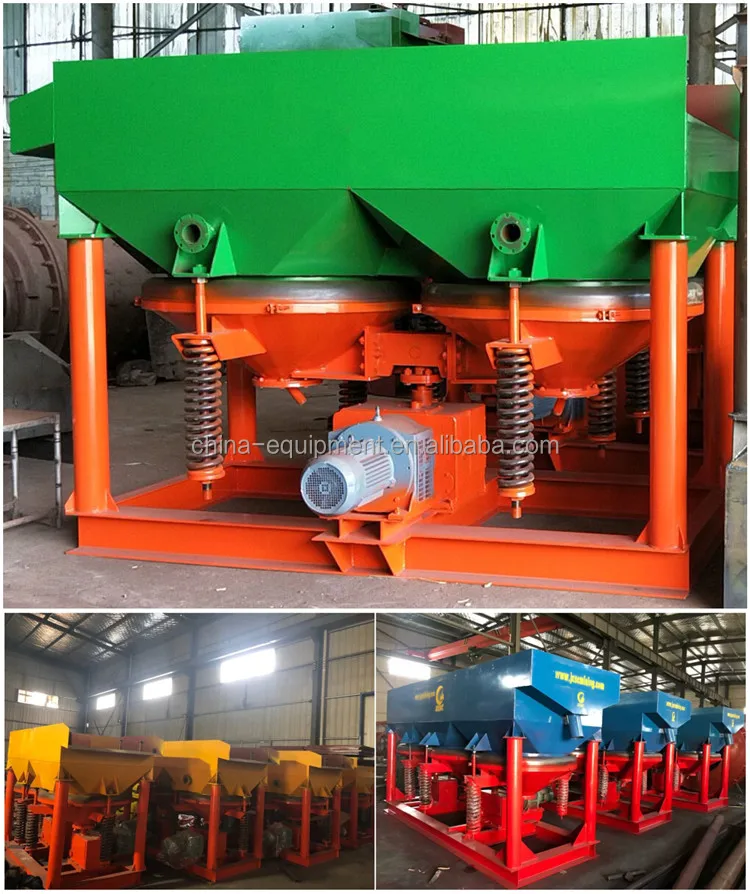

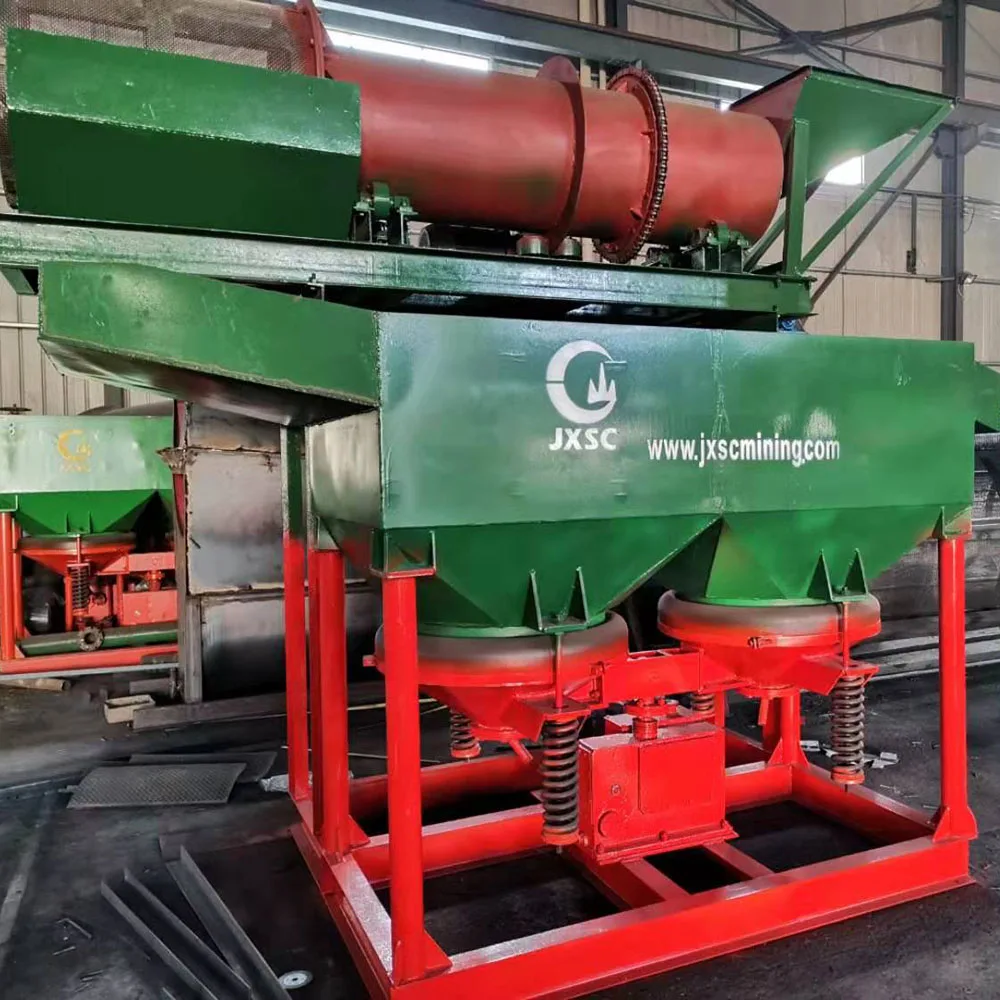

3. jig concentration machine is energy-saving gravity separation equipment, which is developed according to the law of layer theory of jigger bed stratification. The performance of saw-tooth Jig has reached the domestic advanced level, the jig separator is one of the ideal devices in energy-saving gravity separation.
● High capacity, high concentration ratio and high recovery ratio.
● Fabricated with highest quality material
● Easy to install, operate and maintain
● Water conservation ,Saving water 30-40% than ordinary jig.
● The pulsation speed very easy adjusted by regulator
●S uitable to separate out big and small size heavy minerals.

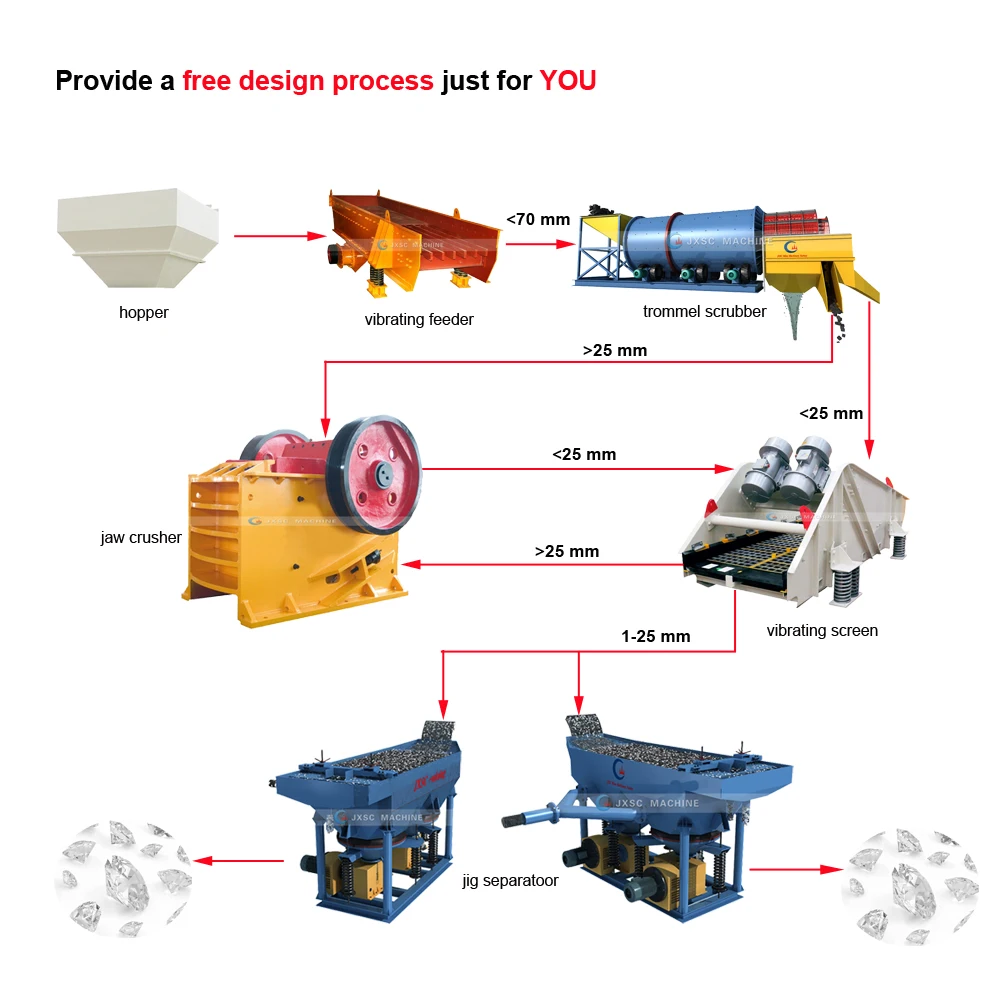

Other Flowchart
We have professional engineers to tailor the right process for you.
\t\t\t\t\t\t\t\t\tOur Service \t\t\t\t\t\t\t
Pre-Sales Service
*Inquiry and consulting support
*Ore sample testing support
*View our Factory
*Design Flowchart
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* 1 year warranty
* Engineers available to service machinery overseas.
Project Case
diamond washing machine trommel scrubber washer with 200T/H capacity in Ghana
capacity:200tph
site;Ghana
mineral:diamond
trommel scrubber screen size:more than 70mm
The project machines;hopper,trommel scrubbe,vibrating screen,belt conveyor,pumps, etc
capacity:200tph
site;Ghana
mineral:diamond
trommel scrubber screen size:more than 70mm
The project machines;hopper,trommel scrubbe,vibrating screen,belt conveyor,pumps, etc

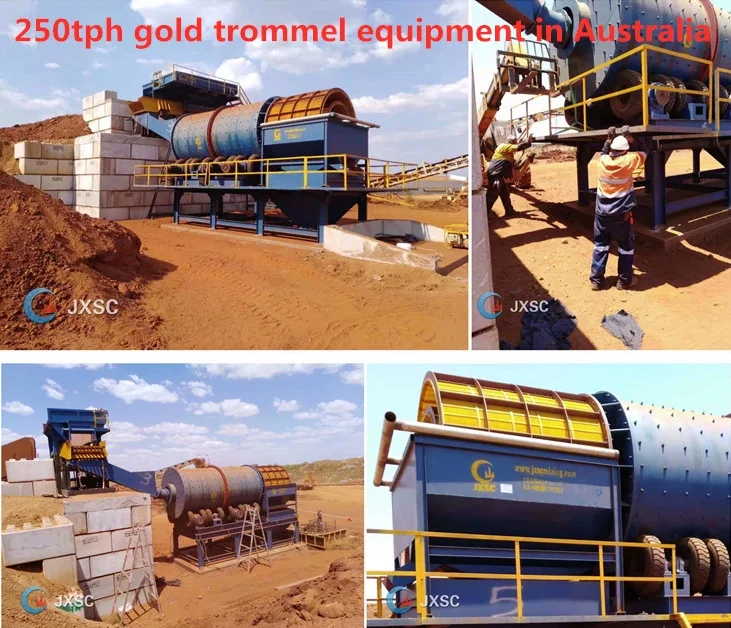

capacity:250tph
site;Australia
scrubber screen size:more than 50mm
machines:trommel scrubber,feeder,hopper,pumps and etc
site;Australia
scrubber screen size:more than 50mm
machines:trommel scrubber,feeder,hopper,pumps and etc

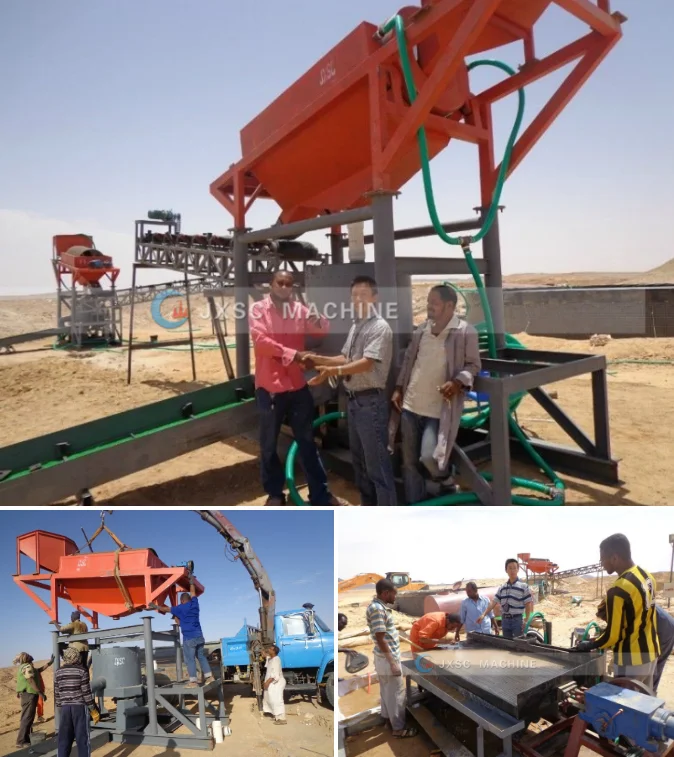

Order date: November,2018Ore process: Alluvial gold ore
Capacity: 20t/h
Site plant: In Sudan
Raw ore info: (1) Raw ore without sticky clay;(2)Max feeding size is 50mm; (3) Particle size of gold concentrate is 0-2mm;
(4)There is no gold between 5-50mm.
JXSC designed solution and provided full sets of equipment for the whole plant.
machines:trommel screen,sluice box, belt conveyor,shaking table ,centrifugal,pumps,etc
We have provided the diamond process plant for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa, Uganda,Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant, diamond washing plant, Iron ore washing plant,ect. |

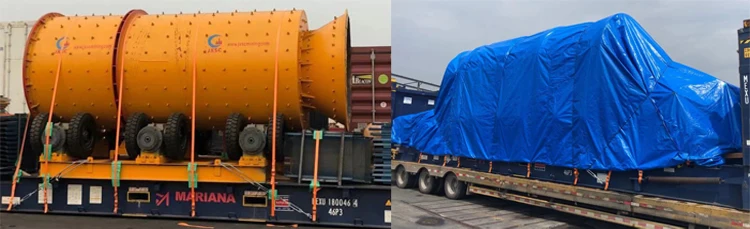

Packing & Shipping
Machines Packing/Loading
machines spare parts would be packed in wooden boxes to avoid broken.
machines are fixed and loaded in container directly.
machines are fixed and loaded in container directly.
Machine Shipping
machine are shipped in 40'HQ Containers by sea.
machine can be also shipped by air if customers request.
machine can be also shipped by air if customers request.
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t
Jiangxi Shicheng Mine Machinery Factory
Jiangxi Shicheng Mine Machinery Factory is an experienced supplier of complete set mining equipments, professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
