Factory Supply 90 ton Hydraulic Mining Shovel SWME900 excavator machine

Share on (62478600265):


Price:$590,500.00 - $592,000.00

Quantity:


Product Overview

Description


Products Description
Sinoway mining hydraulic excavators are designed with the latest technologies, the machines feature both high efficiency and availability combined with an ergonomic working environment offering comfort for the operator, and easy service access for your maintenance crew. All of these features result in the range of Sinoway mining excavator offering the lowest cost per ton. Whatever with face shovel or backhoe mining excavator, diesel powered or electrical powered, our experience and know how in the mining industry ensures each mining excavator we offered to exceed customers' needs.
Product Paramenters

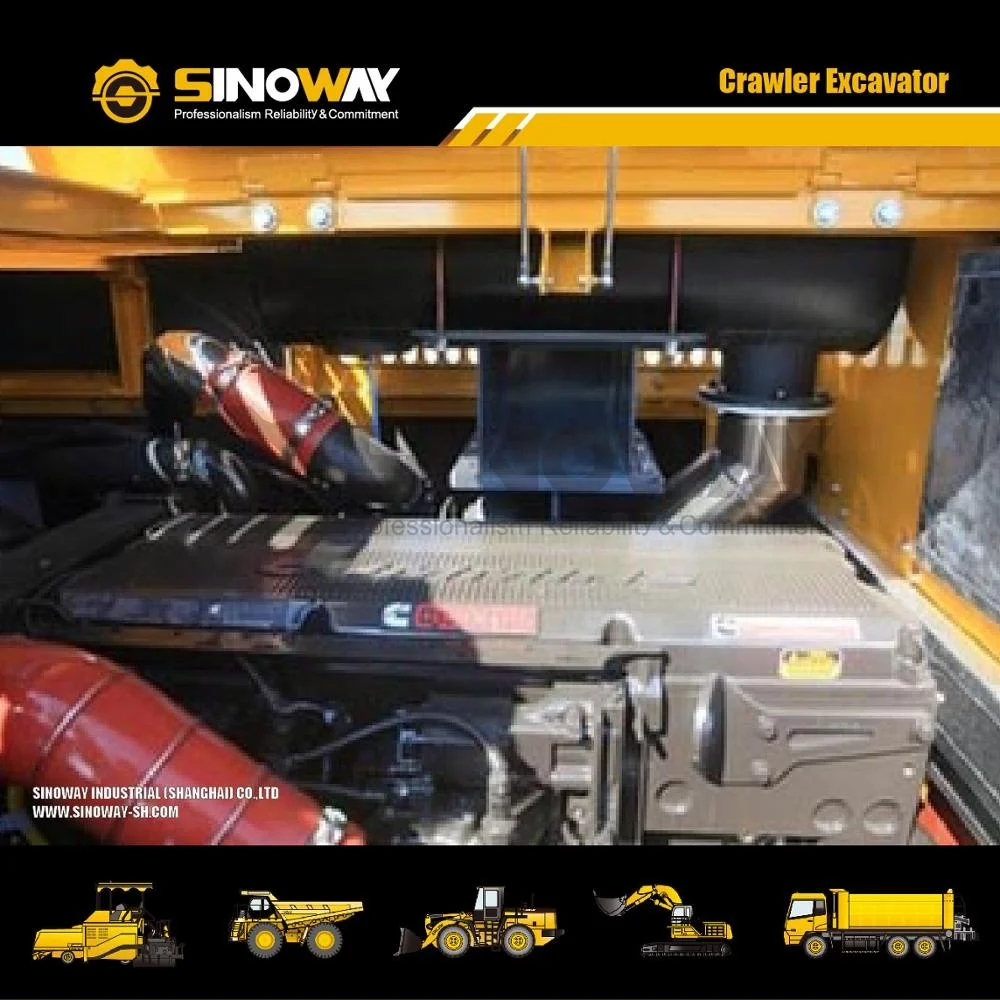

Engine
Model
Cummins QSX15
Type
Six-cylinder,water-cooled, turbocharged,mechanical injection
Rated power
395KW
Rated speed
1800rpm
Max.Torque
2365N.m/1400rpm
Main Technical Specification
Operating weight
88000Kg
Standard bucket capacity
4.5m³
Slewing speed
7.3rpm
Stick digging force
370KN
Bucket digging force
480KN
Travelling System
Travelling speed
2.7~3.9km/h
Grade ability
50%
Ground pressure
0.131Mpa
Dimensions
Overall length
13570mm
Overall width
4550mm
Overall height of boom
5090mm
Counterweight clearance
1680mm
Ground clearance
880mm
Upperstructure width
3350mm
Rear-end length/Slewing radius
4700mm
Overall track length
5840mm
Track length on ground
4545mm
Track gauge
2960/3500mm
Track width
650mm
Boom slewing angle(L/R)
0o
Operating Scope
Arm length
2945mm
Max. cutting height
12060mm
Max. dumping height
8070mm
Max. digging depth
7250mm
Max. reach
12330mm

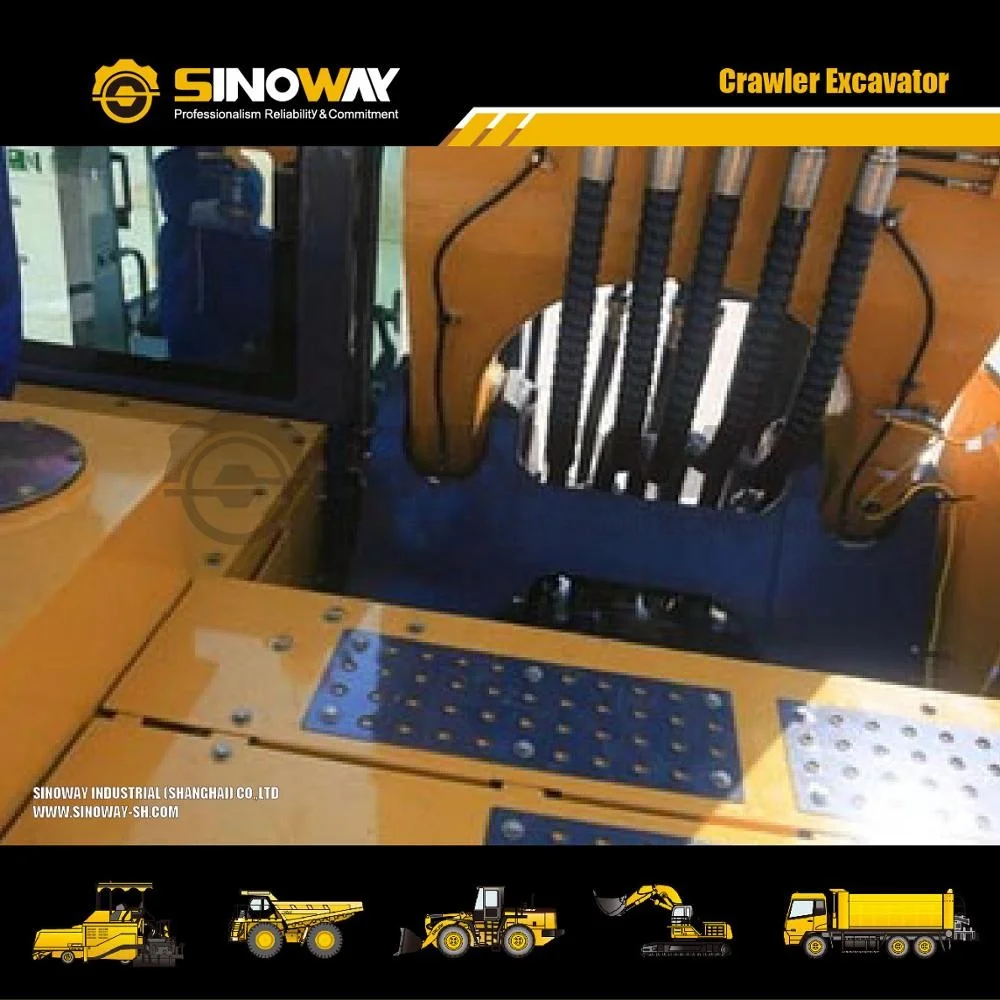

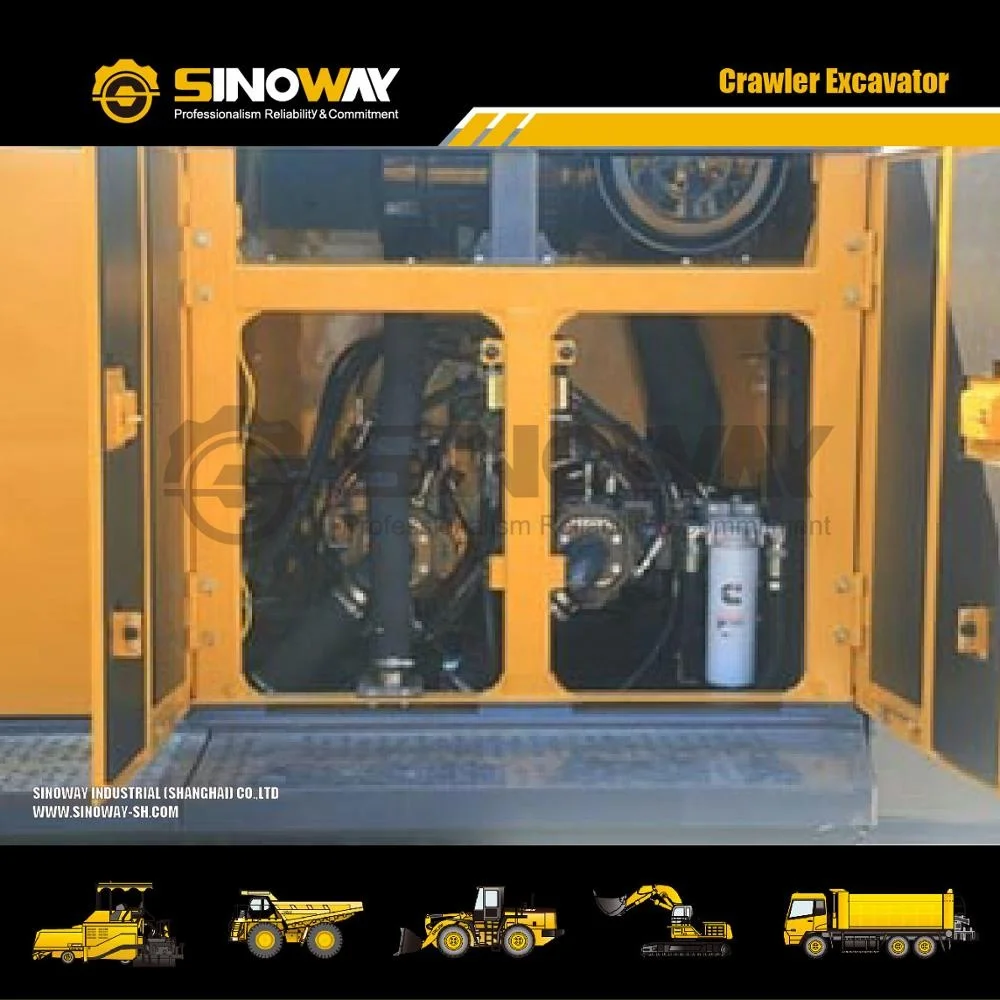

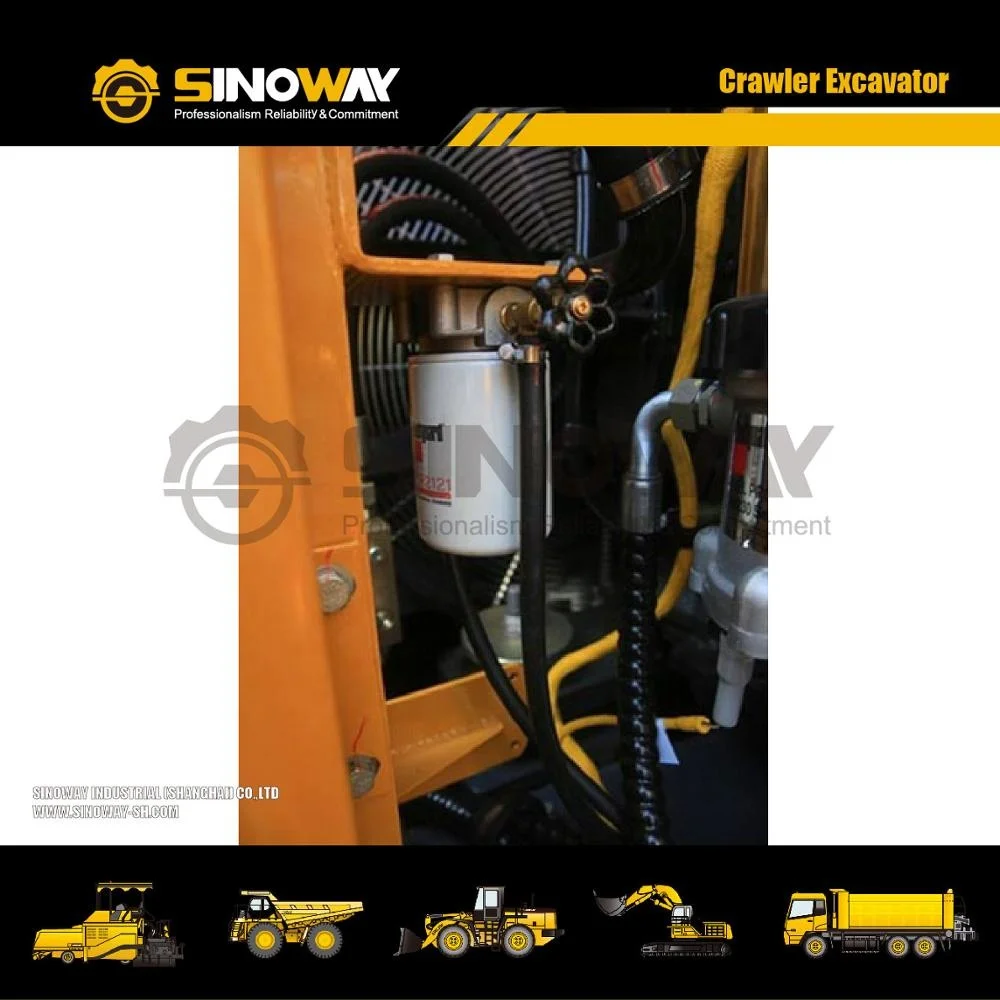

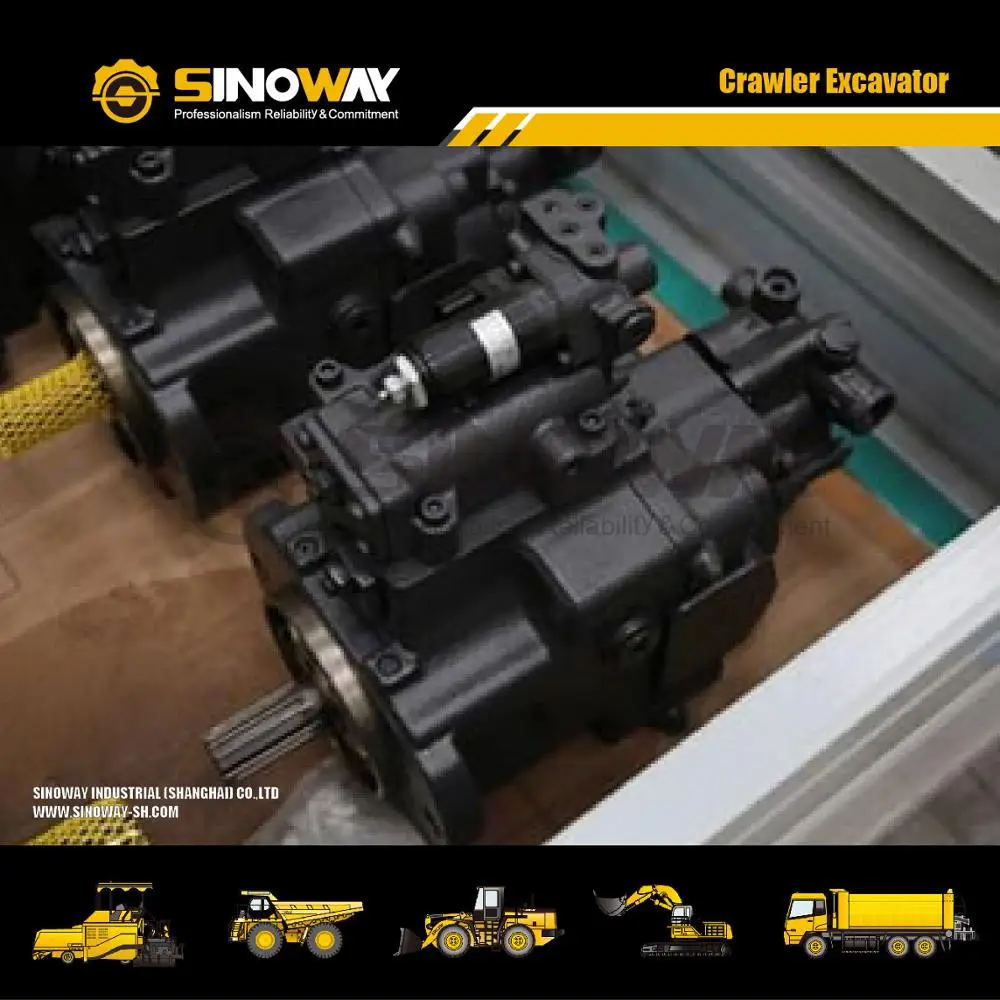

Product Show
