heavy duty four side moulder wood planer
US $22300-$23300
heavy duty single side woodworking planing machine wood surface planer machine thickness planer wood planer machine thicknesser
- Category: Wood Planer >>>
- Supplier: Dongguan Yuansu Hardware Co. Ltd.
Share on (62479075776):
Product Overview
Description

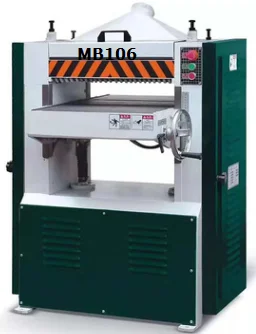

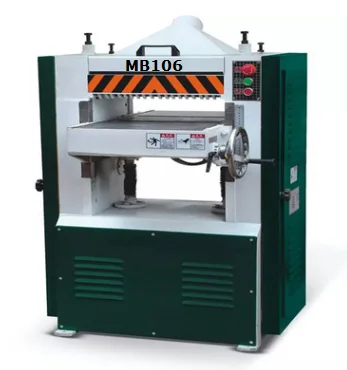

Model no. MB106

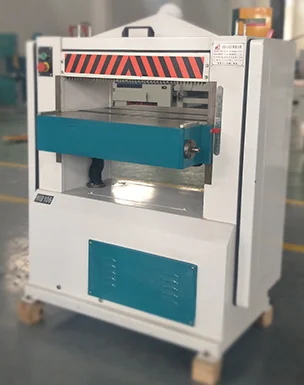

Woodworking thickness planer .
This machine is being widely used to plan the uneven wood surface into smooth conditions.
Max planing width : 630mm.
Motor power: 220v or 380v or customized .

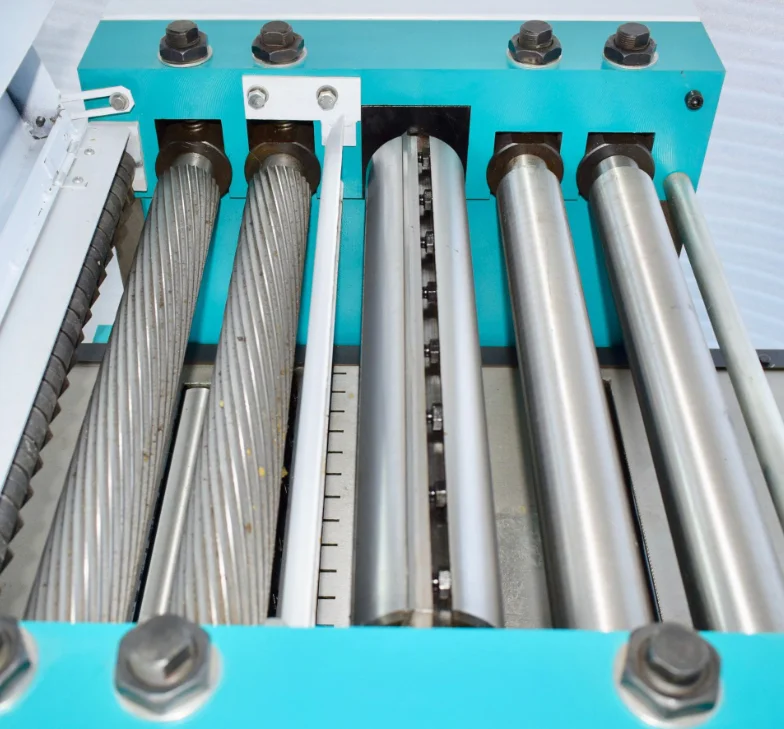

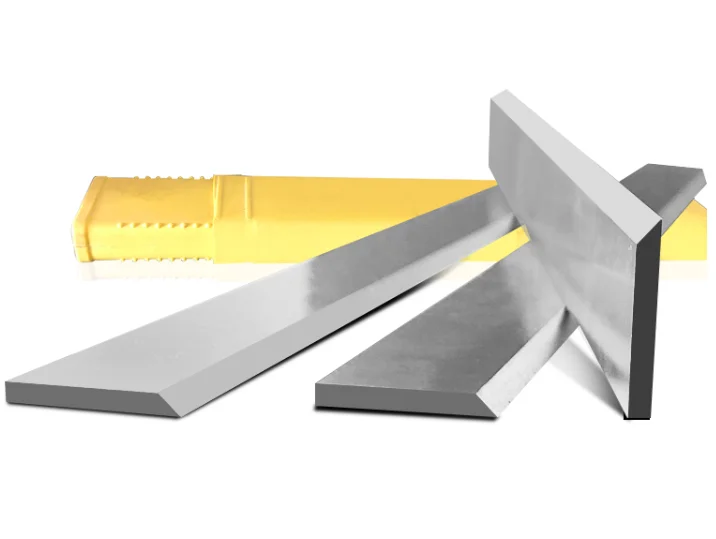

Knife : both straight and spiral are available.
Gross weight: 600.00kgs
Over dimensions:
Model | MB104 | MB105 | MB106 | MB108 |
Max planing width | 400mm | 500mm | 630mm | 830mm |
Planing thickness | 3-180mm | 3-180mm | 3-180mm | 3-180mm |
Min planing length | 250mm | 250mm | 250mm | 250mm |
Spindle speed | 6500r/min | 6500r/min | 7500r/min | 7500r/min |
Motor power | 4.0kw | 5.5kw | 5.5kw | 7.5kw |
Voltage | 380v/220v/customize | 380v/220v/customiz | 380v/220v/customiz | 380v/220v/customiz |
Gross weight | 500.00kgs | 550.00kgs | 600.00kgs | 700.00kgs |
Over dimension | 800*800*1250mm | 800*930*1250mm | 1060*800*1250mm | 1200*800*1250mm |
