PUR hotmelt glue MDF profile wrapping machine PUR300A
US $10000-$20000

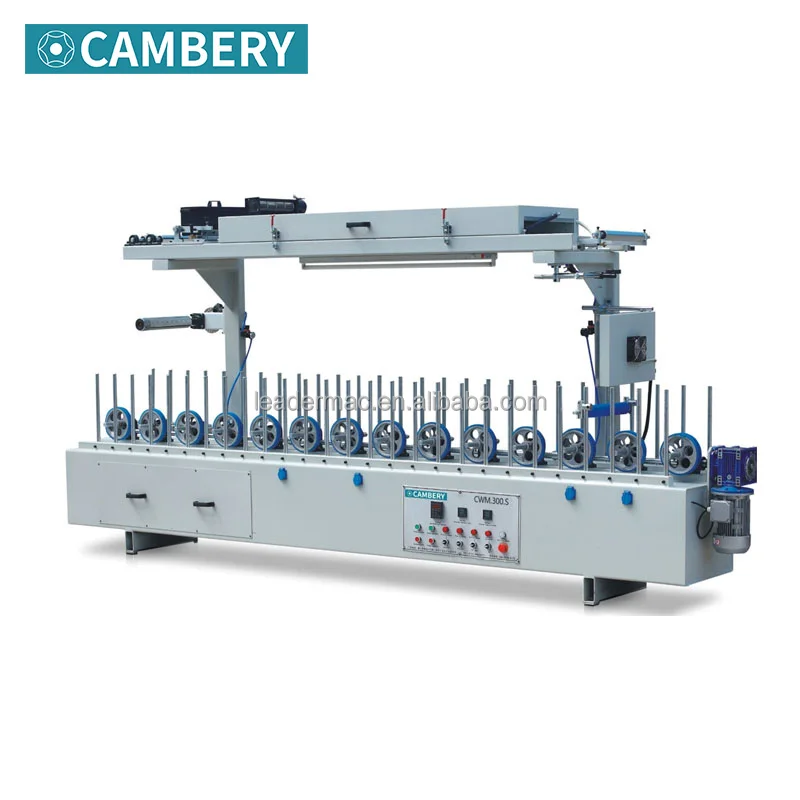

Cpl cold solvent glue profile wrapping machine engineering veneer solvent glue profile wrapper
- Category: Wood Wrapping Machines >>>
- Supplier: Foshan Leader Machinery Co. Ltd.
Share on (62479284529):
Product Overview
Description
PRODUCT INFORMATION
TECHNICAL CHARACTERISTICS
Overall Size | Approx. 4000mm*600mm*1800 mm |
Weight | Approx. 1300 kg |
Power Supply | 220V 50Hz, 3 phase (customized) |
Total Power | 9kW |
Pneumatic Loaded | 6 bar |
Feed Rate | Up to 35 m/min |
Profile Application Spec. | Width Range: Up to 300mm; Height Range: Up to 90mm; Length: Min. 600mm. |
Foil Application Spec. | Core Dia.: 3in.; Foil O.D.: Up to 400mm; Foil Width: Up to 300mm. |
Glue Type | Solvent Glue |
Electronic Components | Schneider® or equivalent |
Pneumatic Components | AirTac® or equivalent |
DETAILS DISPLAY
STABLE BEDFRAME
● Stable bedframe which is manufactured by a rigid foundation, with superior welding, CNC machining, tempering and painting process.

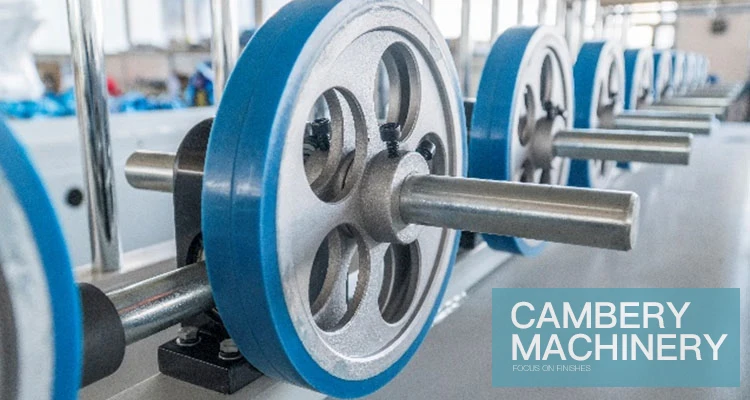

MATERIAL DRIVING
● Driving by a motor with inverter control for speed regulation.
● Through a lateral 90°helicoidally metal gear transmission.
● Installed with robust aluminum alloy wheels.
● Fast and flexible changed design for various intended uses.
● Through a lateral 90°helicoidally metal gear transmission.
● Installed with robust aluminum alloy wheels.
● Fast and flexible changed design for various intended uses.

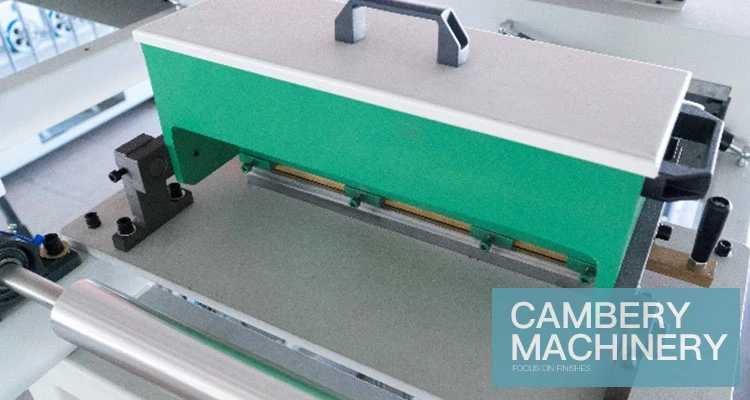

GLUE APPLICATOR
● Non-stick surface treatment.
● Applicator adjustable, 10-300 mm.
● Easy load, easy cleansing, easy exchange.
● Applicator adjustable, 10-300 mm.
● Easy load, easy cleansing, easy exchange.

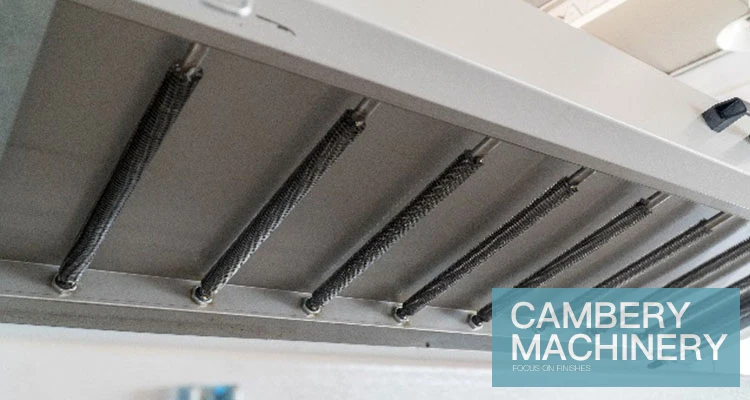

HEATING SYSTEM
● Top heating, remove moistures.
● Vertical heating, pre-heat before sticking.
● Hot guns, fix special profiles.
● Vertical heating, pre-heat before sticking.
● Hot guns, fix special profiles.

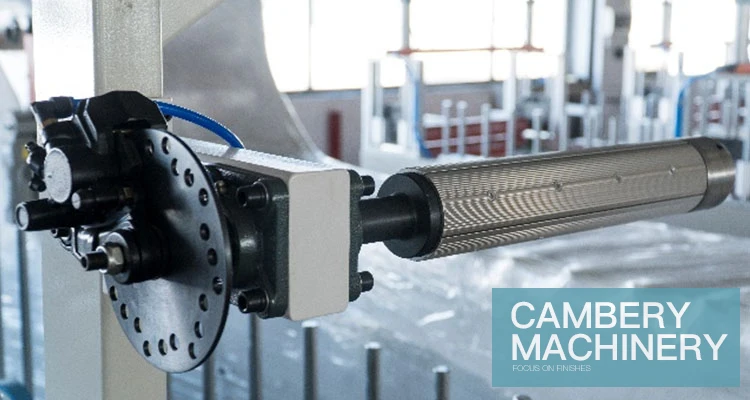

FOIL UNCOILING SHAFT
● Pneumatic shaft for foil uncoiling.
● Pneumatic brake or manual brake are available.
● Pneumatic brake or manual brake are available.

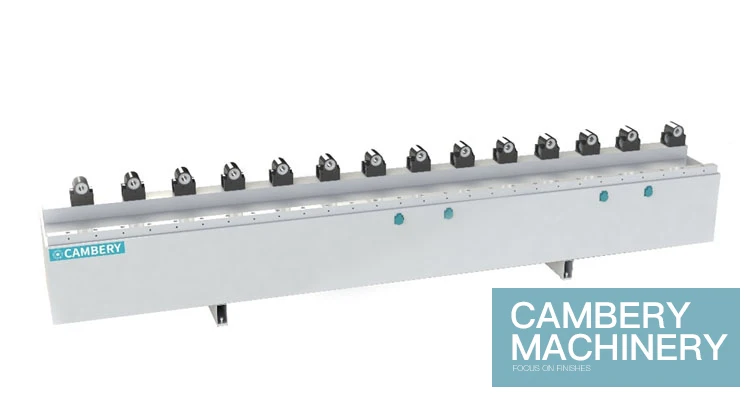

EXCHANGABLE FRAME
● Apply for various shape profiles
● Easy exchange, easy set
● Economical investment
● Easy exchange, easy set
● Economical investment

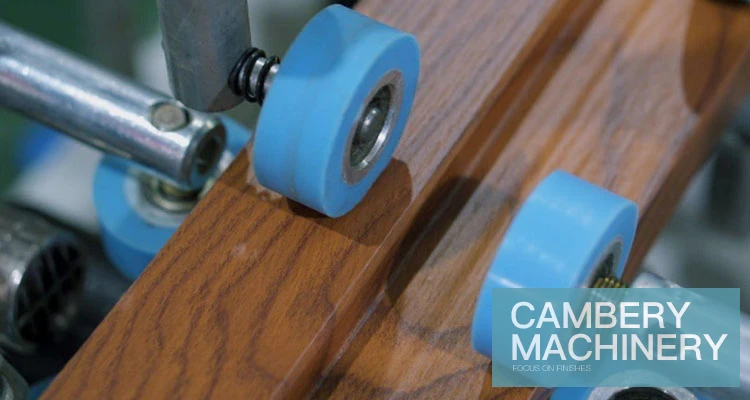

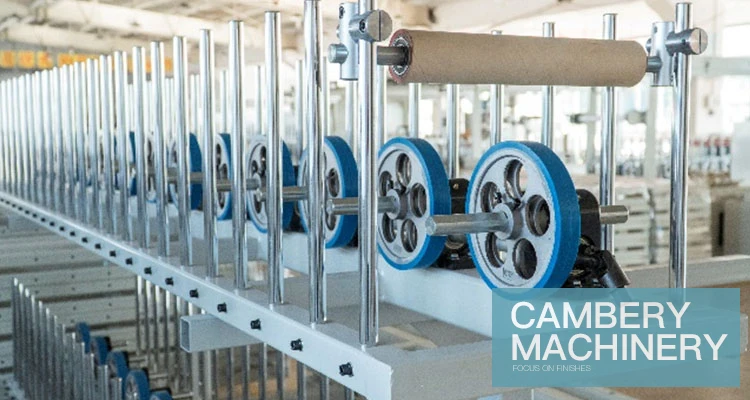

WRAPPING KITS
● 23 Sets wrapping kits, including stainless steel bars, locking clamps, movable heads, wheel pins and various pressing wheels

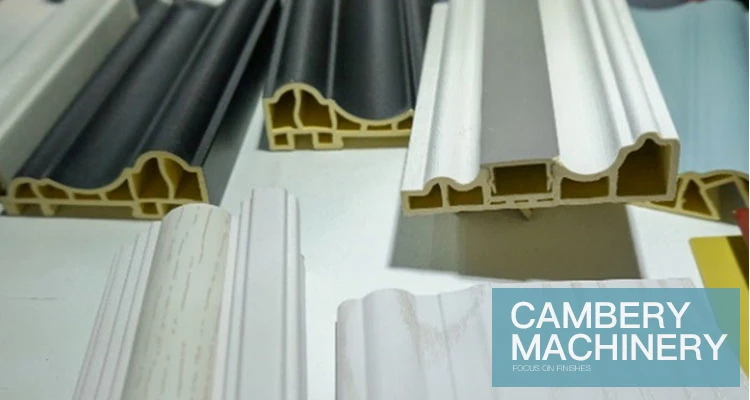

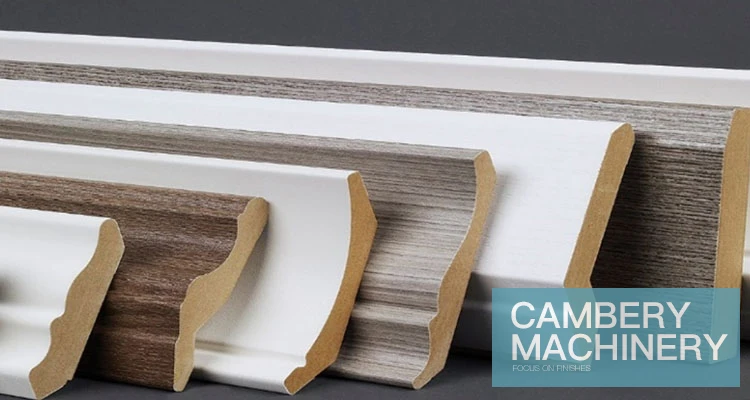

APPLICATION
● Solvent adhesive application with various papers, foil, PVC in roll.

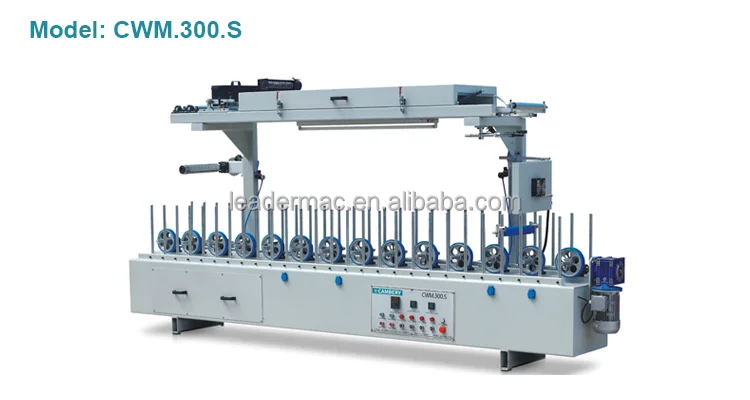

● CWM.300.S is the most economical machine to start decoration business.
● CWM.300.S is the most economical machine to start decoration business.
HOT SALE
COMPANY OVERVIEW
WELCOME TO VISIT US
Cooperation with up to 50 countries around the world.
Cooperation with up to 50 countries around the world.
OUR CERTIFICATION
FAQ
Q1. Warranty
A1. 12 months warranty is effective from the date of acceptance of the machine.
Q2. Payment Terms
A2. TT 30% down payment, 70% before shipment.
Q3. Delivery Time
A3. 15-30 working days from the receipt of the down payment.
Q4. Machine installation
A4. Cambery could assign the technician to the place for the on-site installation if requested by the purchaser.
Q5. Technical Support
A5. Every machine is assigned by a specialist. The response is available within 12 hours while the solution for the
troubleshooting is provided within 48 hours.
Q6. Demo and Testing
A6. Cambery built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.
A1. 12 months warranty is effective from the date of acceptance of the machine.
Q2. Payment Terms
A2. TT 30% down payment, 70% before shipment.
Q3. Delivery Time
A3. 15-30 working days from the receipt of the down payment.
Q4. Machine installation
A4. Cambery could assign the technician to the place for the on-site installation if requested by the purchaser.
Q5. Technical Support
A5. Every machine is assigned by a specialist. The response is available within 12 hours while the solution for the
troubleshooting is provided within 48 hours.
Q6. Demo and Testing
A6. Cambery built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.
