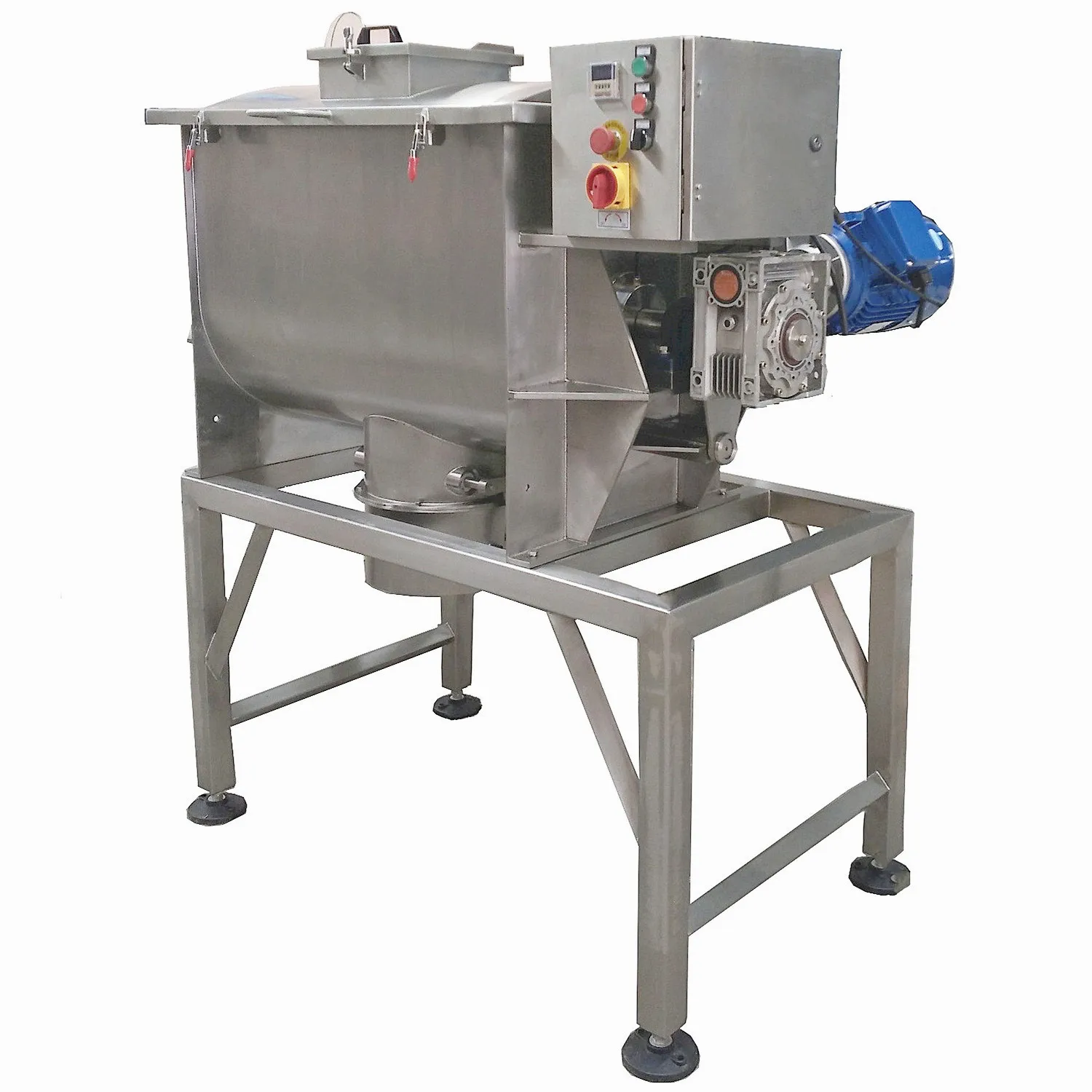

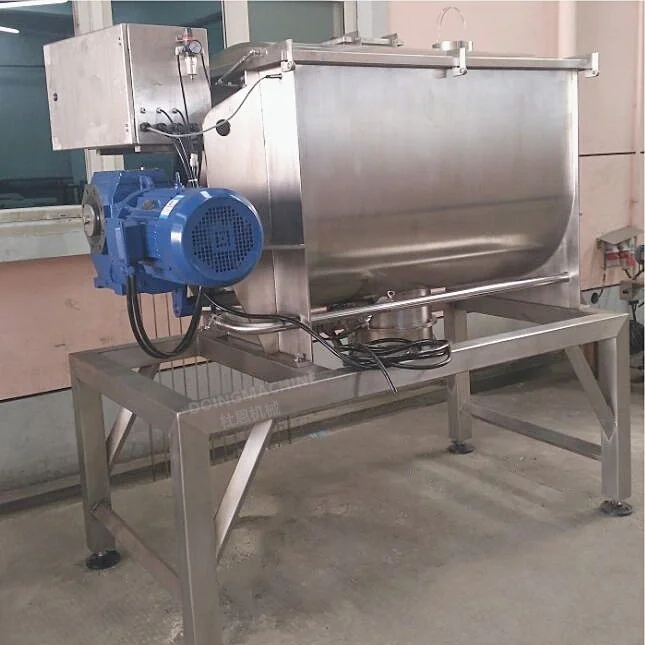

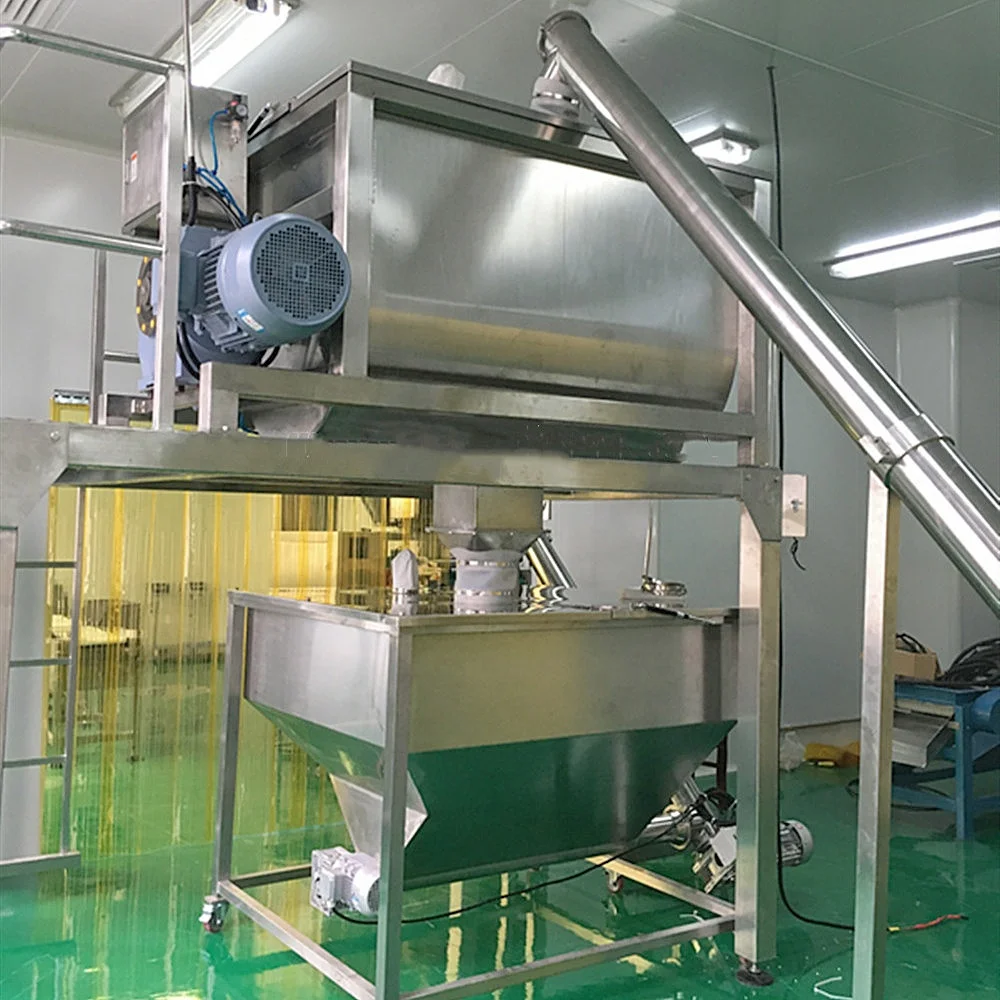

Powder Mixer Machine Small Dry Chilli Powder Mixer Machine
US $1.82-$5.68
Маленькая машина для смешивания сухого порошка чили
- Category: >>>
- Supplier: Changzhou Doing Machine Co. Ltd.
Share on (62480165408):
Product Overview
Description
Product Description
Main features
1.For mixing/blending powders, dry solids, pastes and slurries in various industries ;
2. Mixing vessel volume: 300-5000L;
3. GMP design ;
4. Liquid spray system and heating jacket can be equipped.
2. Mixing vessel volume: 300-5000L;
3. GMP design ;
4. Liquid spray system and heating jacket can be equipped.
Working principle

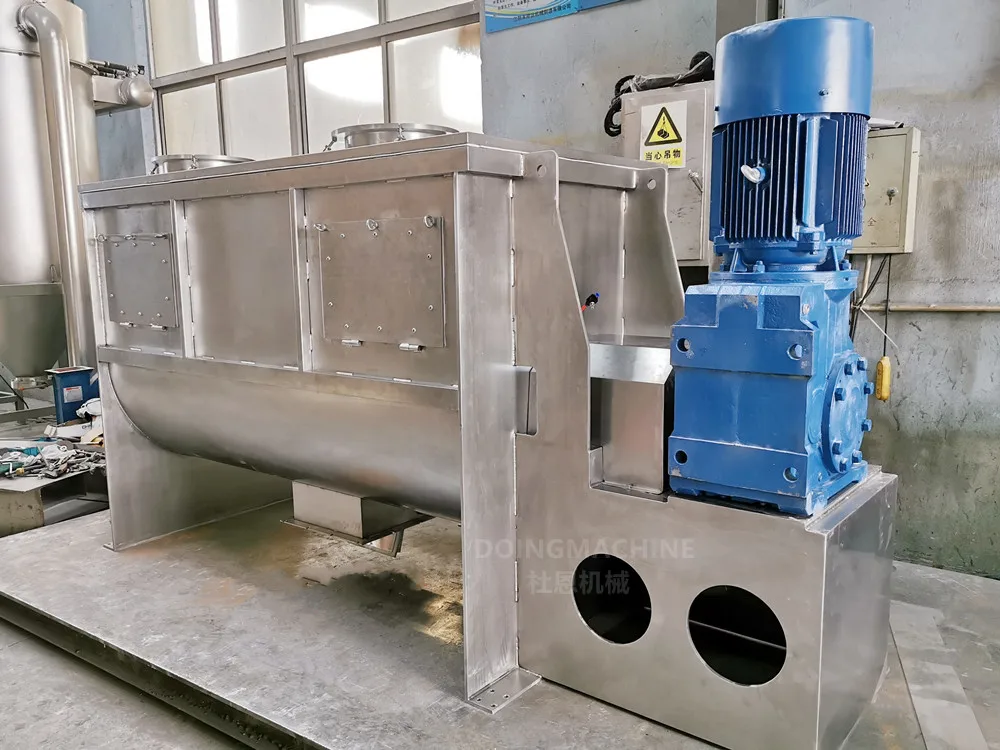

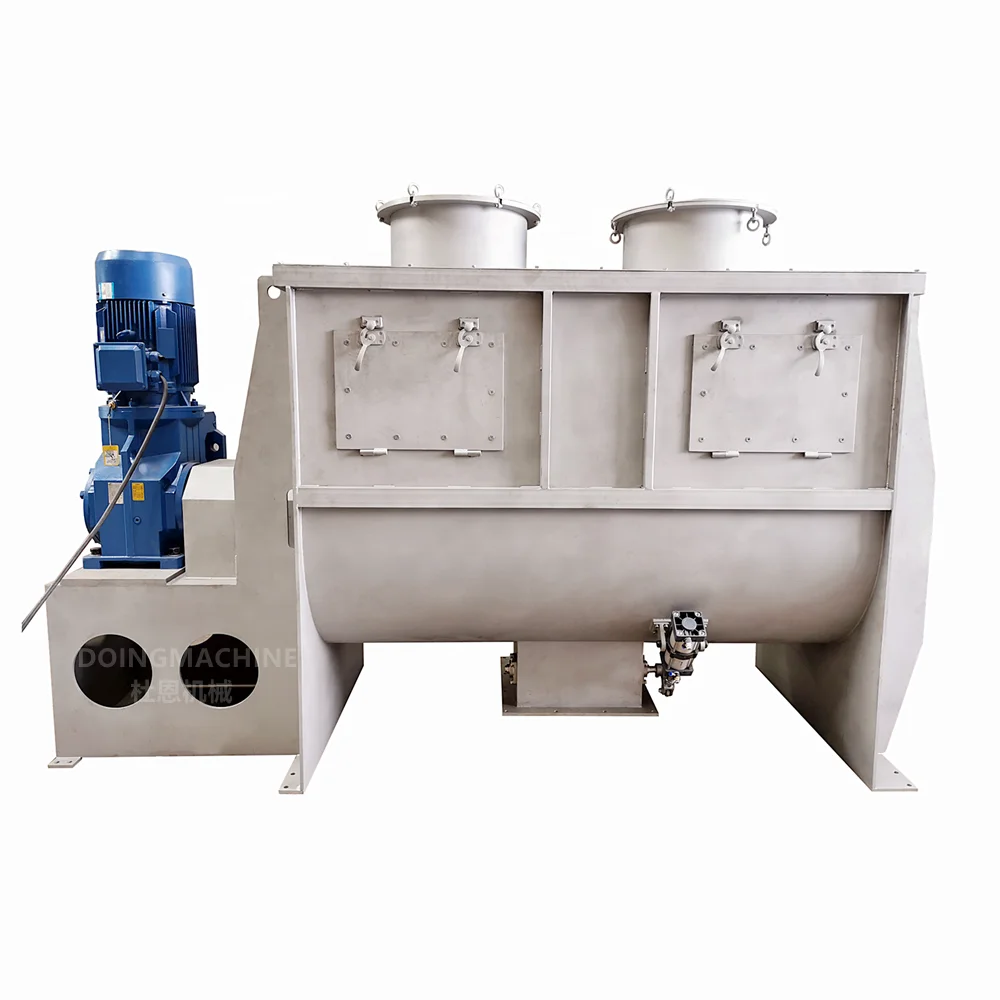

WLDH series horizontal double blade ribbon blender mixer machine consists of a U-shaped horizontal trough and a specially fabricated agitator. A ribbon agitator consists of a set of inner and outer helical agitator. The outer ribbon moves materials in one direction and the inner ribbon moves the materials in the opposite direction.The ribbon ratates at approx. 45 RPM moves materials both radially and laterally to insure thorough blends in short cycle times.
WLDH series horizontal double blade ribbon blender mixer machine is widely used to mix free-flowing powders, granules, small liquid additives to achieve paste and slurry product in food, chemical, and construction line.
WLDH series horizontal double blade ribbon blender mixer machine is widely used to mix free-flowing powders, granules, small liquid additives to achieve paste and slurry product in food, chemical, and construction line.
Technical advantages
1) Strong and fast mixing: Strong and fast mixing can be achieved due to effective drive design and variable speed blending.
2) High-degree of homogeneity: When material is added at the rate of 0.1%, the homogeneity can reach 98% in short time.
3) Heating jacket: A heating jacket can be equipped as an option in the mixing tank shell for heating or drying process. The heating medium can be steam, hot water or hot oil. Design pressure is 0.3 Mpa.
4) Liquid spray nozzle: Spray nozzle can be equipped as an option to add liquid additives which can be evenly sprayed onto the mixture.
5) Well bearing sealing: Shaft sealing is the combination of Teflon packing sealing and air-tight sealing to make sure long life-span.
6) Automatic discharging valve: The combined discharge valve is pneumatic planer flap valve. The flap plate can perfectly match the mixing tank inner wall to make sure no dead corner.
Main technical parameters
Model | WLDH-300 | WLDH-500 | WLDH-1000 | WLDH-2000 | WLDH-3000 | WLDH-5000 |
Volume L | 300 | 500 | 1000 | 2000 | 3000 | 5000 |
Capacity kg/batch | 180 | 300 | 600 | 1200 | 1800 | 3000 |
Rotation speed RPM | 65 | 65 | 48 | 35 | 35 | 27 |
Motor power KW | 4 | 7.5 | 11 | 15 | 18.5 | 30 |
Dimension LxWxH M | 1.9X0.85X1 | 2.5X1X1.2 | 2.9X1.1X1.4 | 3.4X1.5X1.65 | 3.7X1.6X1.85 | 4.3X1.9X2.1 |
Weight kg | 600 | 900 | 1300 | 2000 | 2600 | 4800 |
Detailed Images

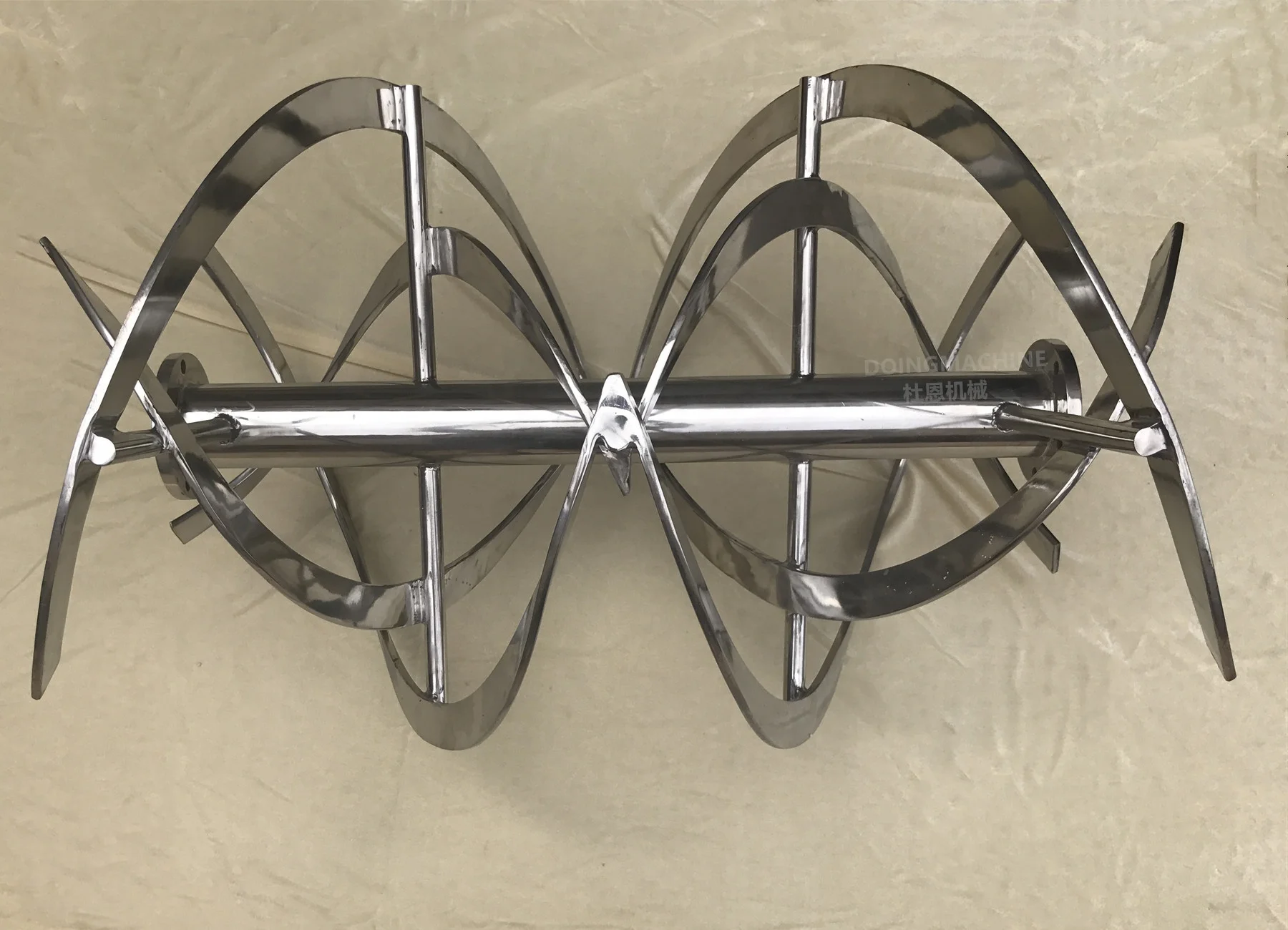

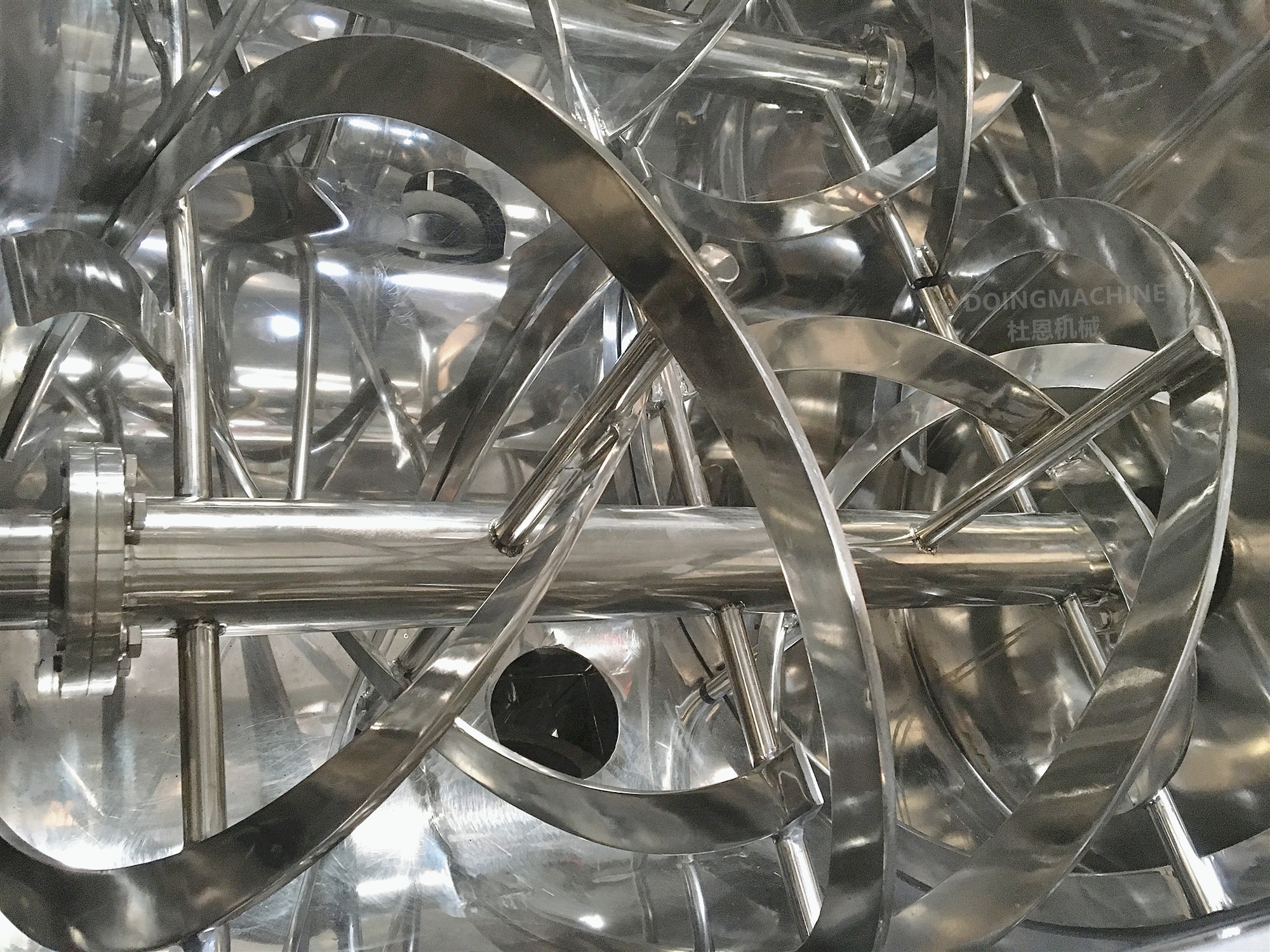

Dismountable ribbon blender agitator

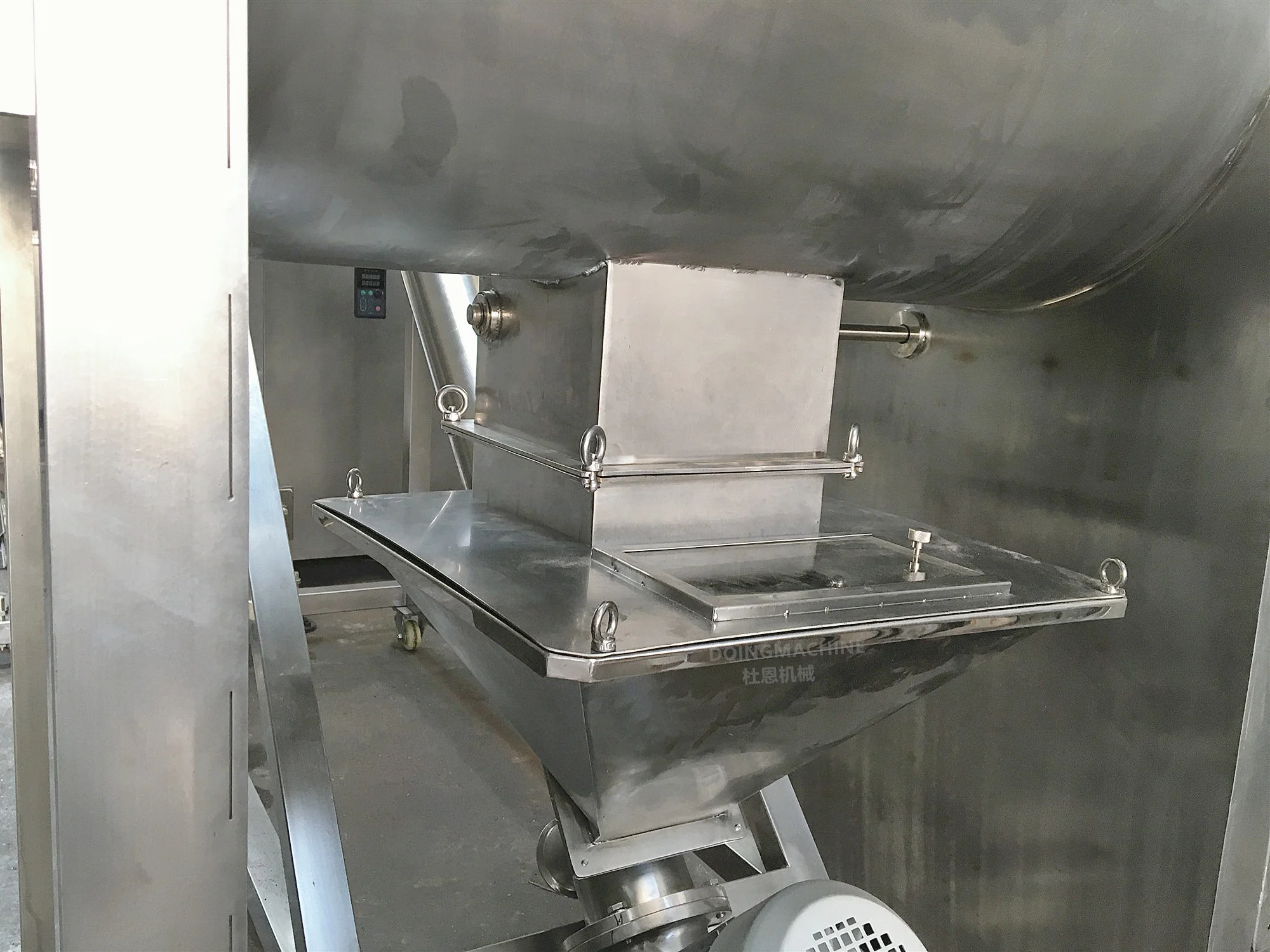

Pneumatic flap valve for discharging
Blending chamber cover
Liquid spray nozzles
Gear box
With heating jacket
Typical Applications
Protein/milk powder
Spices powder
Chemical solids
Packing & Delivery
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our horizontal double blade ribbon blender mixer machine can be customerized. To work out a detailed proposal or quotation, we have to know the following information:
1) Particle size of products to be mixed
2) Bulk density of products to be mixed
3) Mixing volume
4) Construction material:SUS304 or SUS316L
5) Whether heating jacket or liquid spray nozzles are required
Q: How the machine will be delivered ?
A: The mixer is packed in plywood box for shipping
