500T plywood cold press machine

Product Overview

Description

Plywood Cold Press Features:

1. Automatic feed and out convey system

2. Touch Screen,PLC Control
3. Omron & Scheider Electrical Elements
4. Durable Hydraulic Station made in Southern China

Model	HY814 x 8/4C	HY814 x 8/5B
Nominal pressure(KN)	4000	5000
Unit pressure of board surface(Mpa)	1.3	1.3
Width of press board (mm)	2700 x 1370	2700 x 1370
Max. working stroke (mm)	1000	1000
Net opening (mm)	300-1300	300-1300
Diameter and quantity of pressure cylinders (mm)	Φ 320/ 2 pieces	Φ 360/ 2 pieces
Diameter and quntity of lifting cylinders (mm)	Φ 80/ 2 pieces	Φ 80/ 2 pieces
Feeding speed (m/min)	6.78	6.78
Total motor power (kw)	16.1	16.1
Overall dimensions (mm)	3500×2400×4650	3500×2400X4750
Weight (kg)	18000	18000

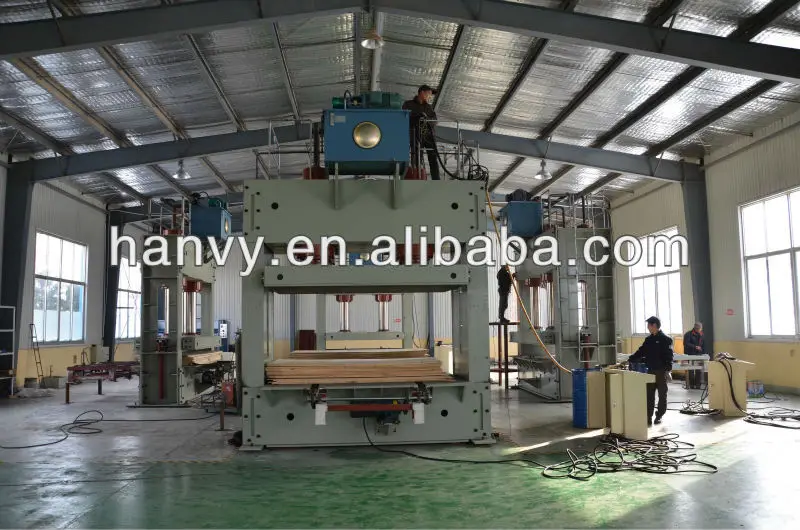

Pre-press machine or cold press machine is an essentional part of the plywood production line. The cold press machine made in our factory has been exported to the oversea market for many years and received full praise from the customers. With high quality and efficiency, it attracts more and more plywood manufactures all over the world.

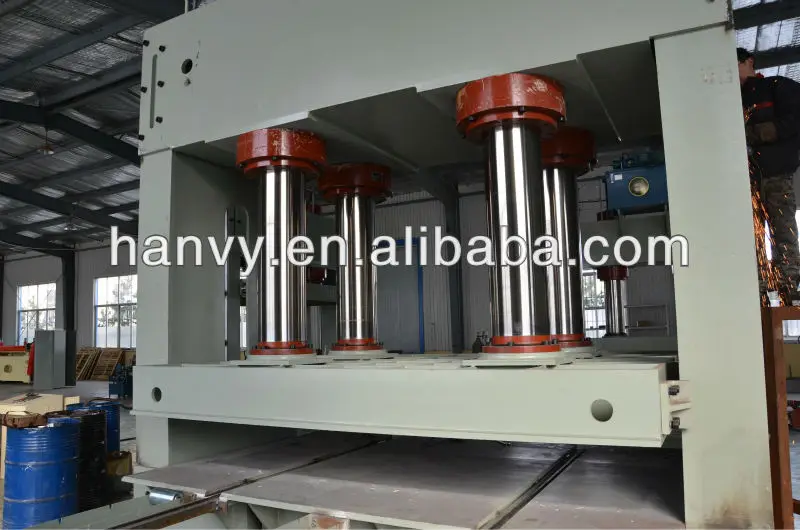

Durable Oil Cylinder

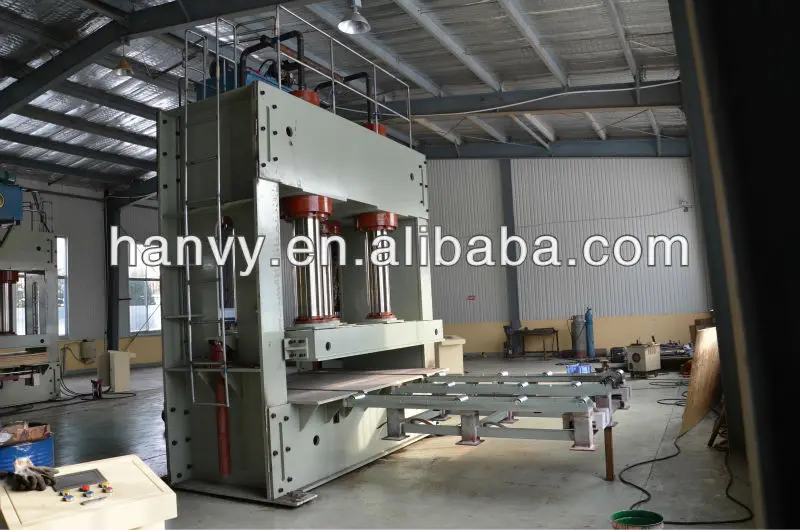

Automatic Feed and Out Convey System

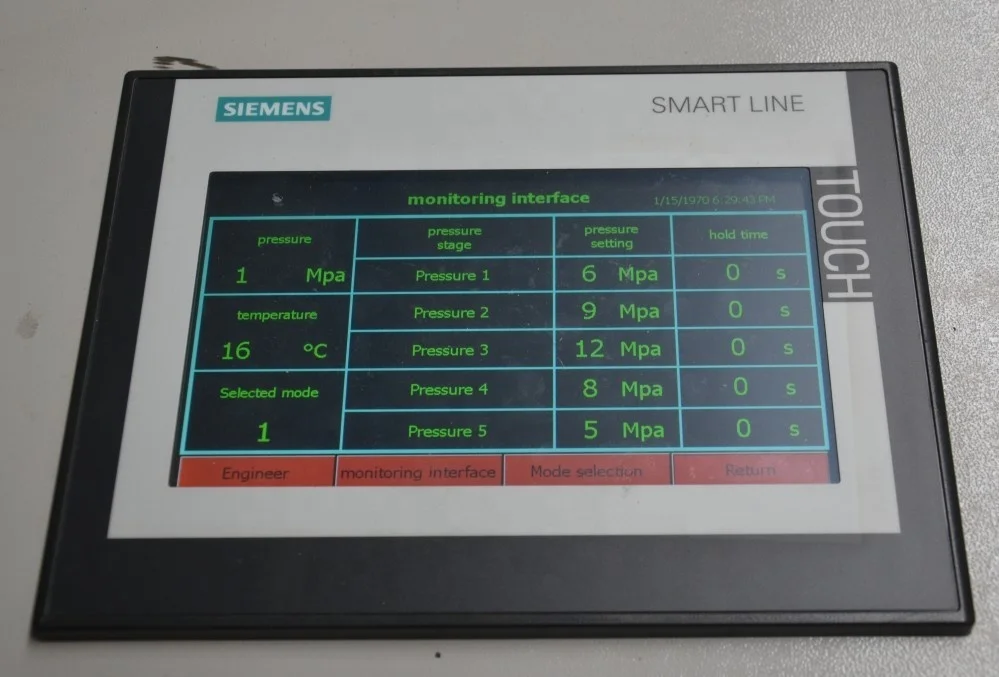

Touch Screen, PLC Control, Level Limt Protection Function, 6 Level Increasing Pressure

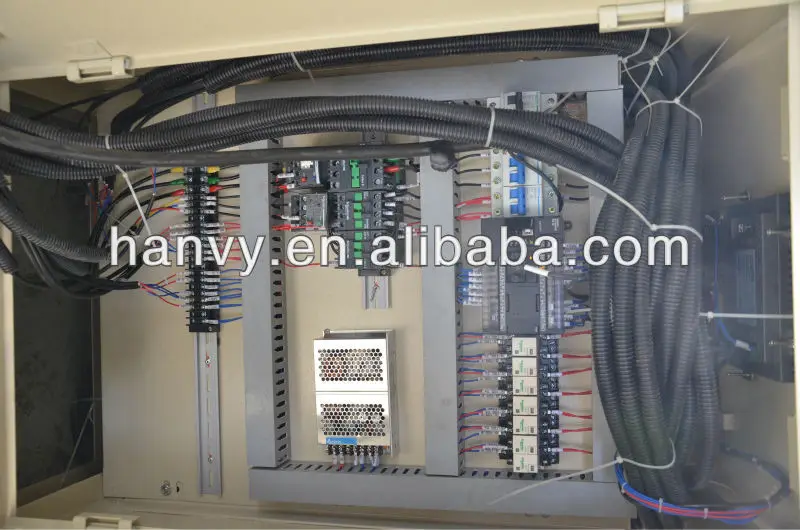

Omron &Scheider Electrical Elements

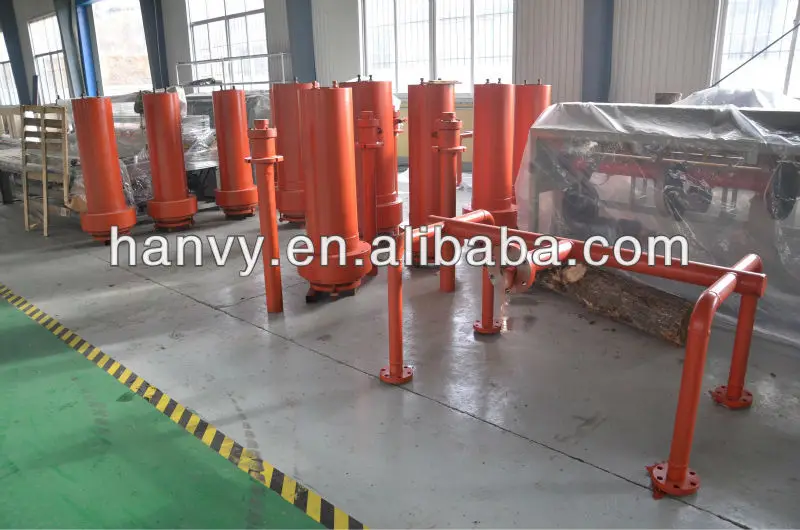

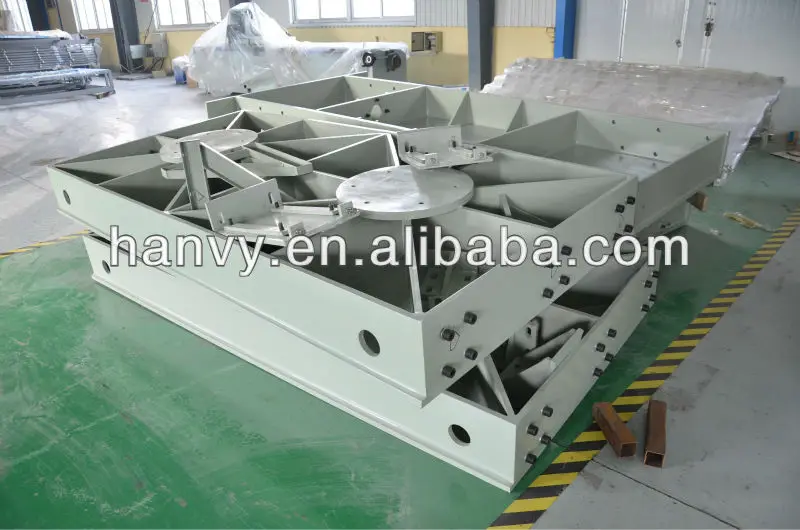

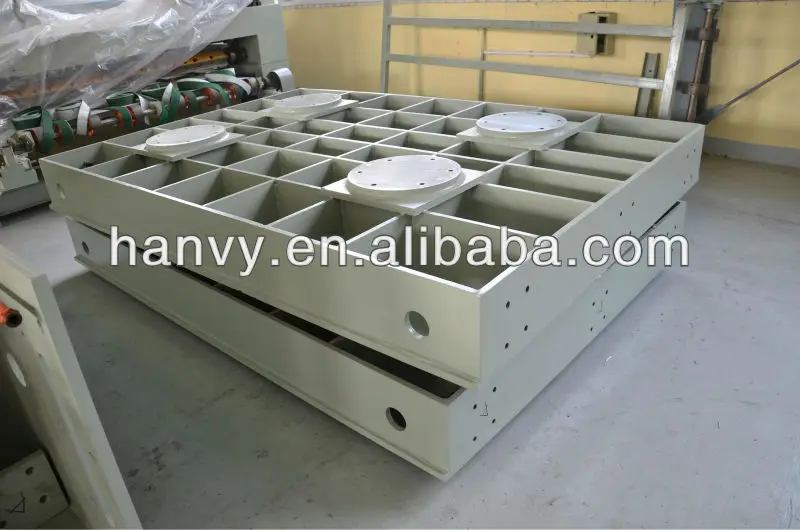

Finished Spare Parts of the Press Machine
