wood planer and thicknesser with mortise / jointer/ table multi functional combined woodworking machine CM250

wood planer and thicknesser with mortise / jointer/ table multi functional combined woodworking machine CM250

Category: Wood Planer >>>
Supplier: Laizhou Sanhe Machinery Co. Ltd.

Price:$700.00 - $900.00

Quantity:

Product Overview

Description

Product Description

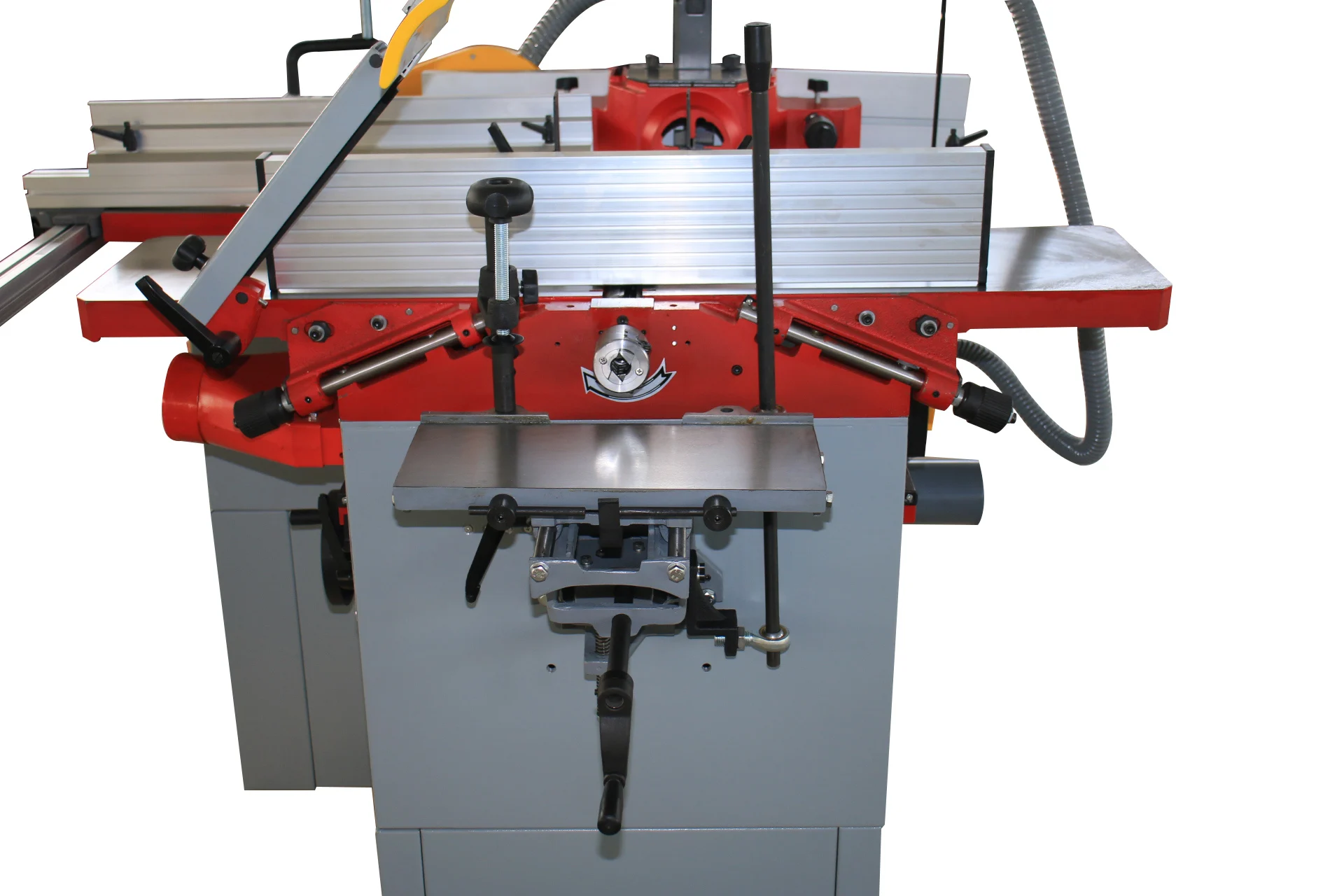

PT 250 is a compact planer and thicknesser with a thicknessing height of 220 mm – ideal for precise planing of boards, planks and beams. To widen the application range the optionally available mortising unit can be added to allow slotting and drilling

FEATURES

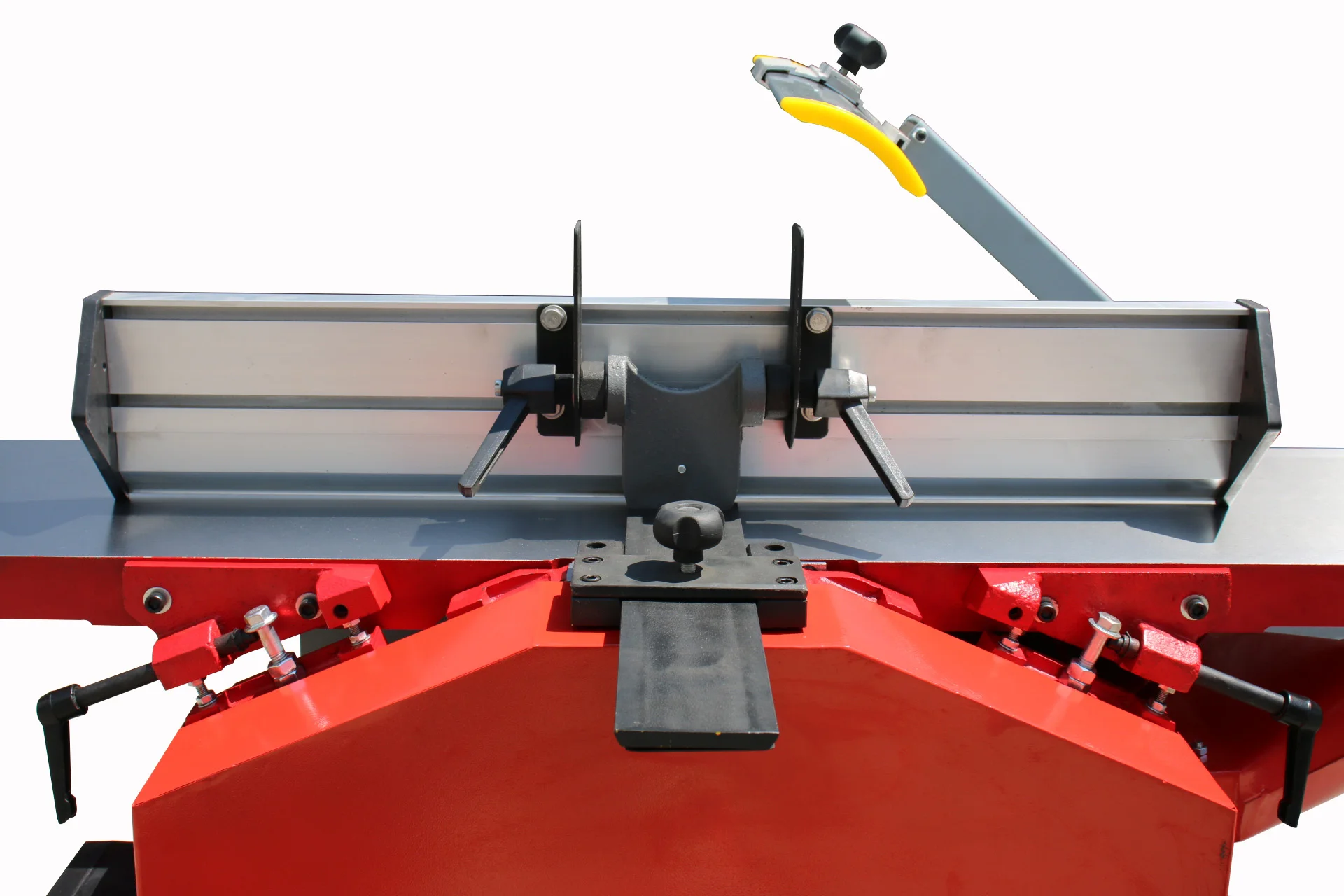

· Solid planer fence with prism guide, tiltable from 90º to 45º

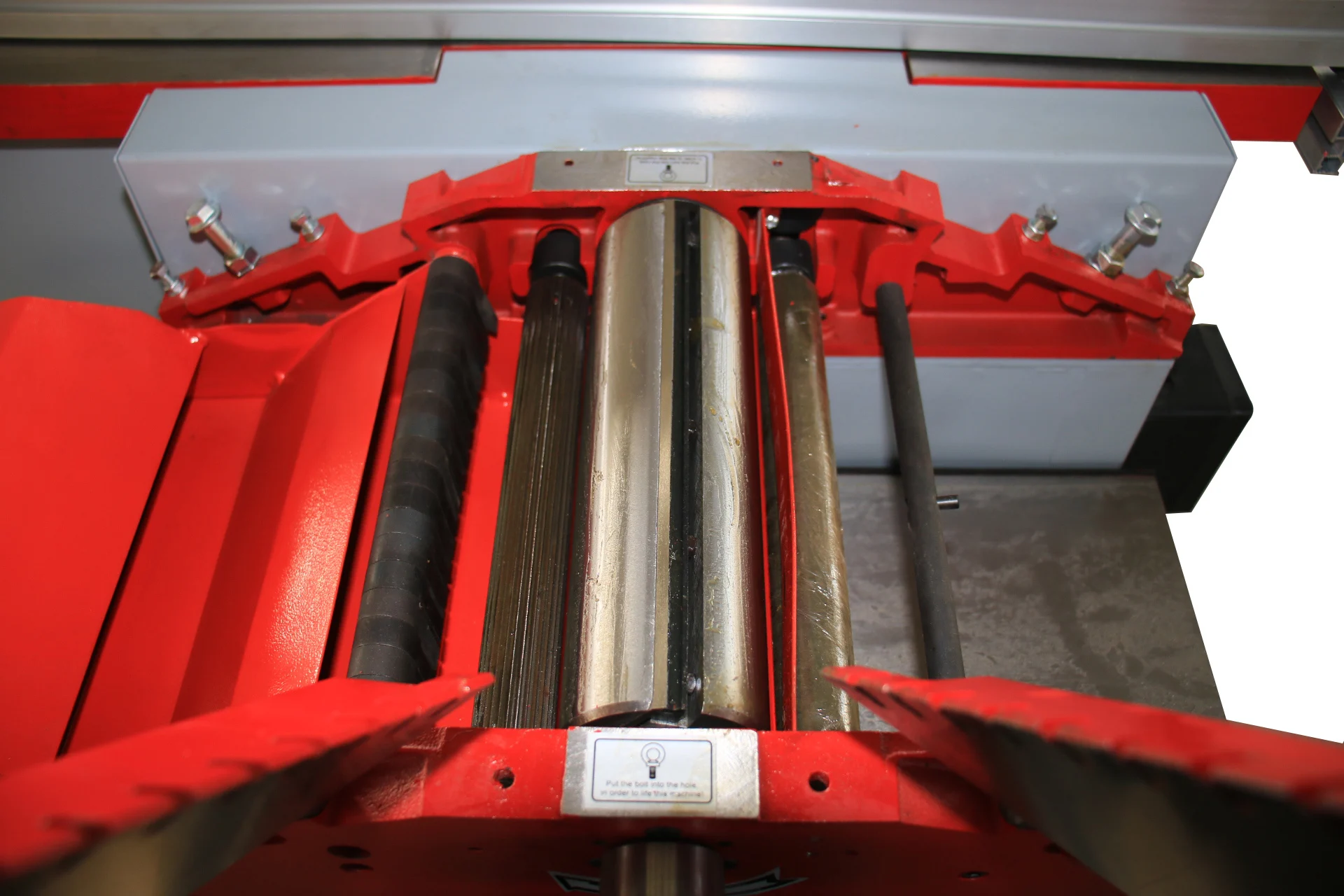

· Maintenance-free 4-knife cutterblock features HSS-quality cutter knives

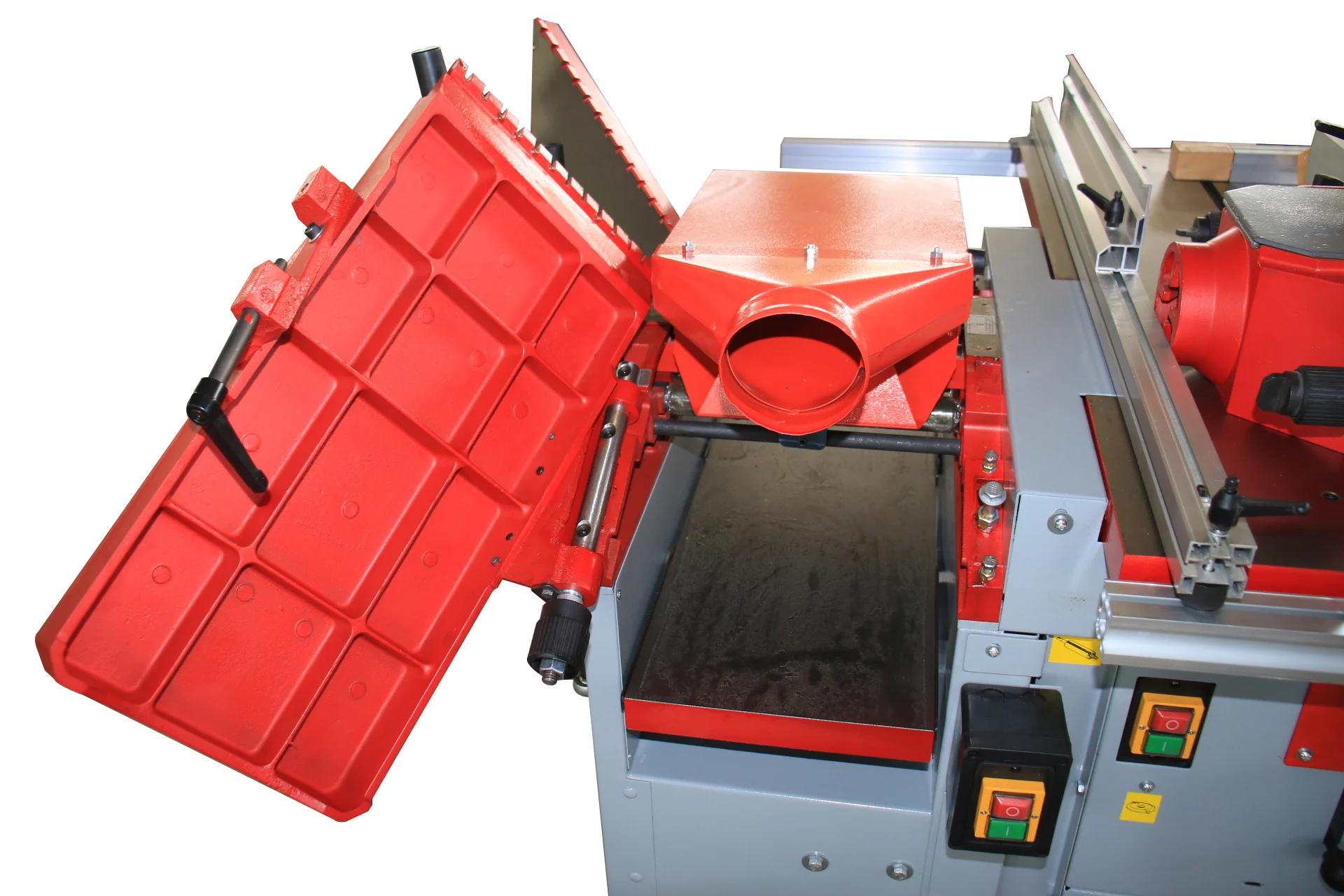

· Tiltable planer tables for quick conversion to thicknessing
· Both planer tables feature fine adjustment and table slots to reduce noise levels
· Integrated tiltable dust hood – extraction outlet 100 mm

· Feed can be switched off when planing
· Switch-plug-combination with motor brake
· Torsion-free, grey cast-iron planer tables ensure best results
· Cutterblock guard in accordance with CE-standards guarantees high level of safety

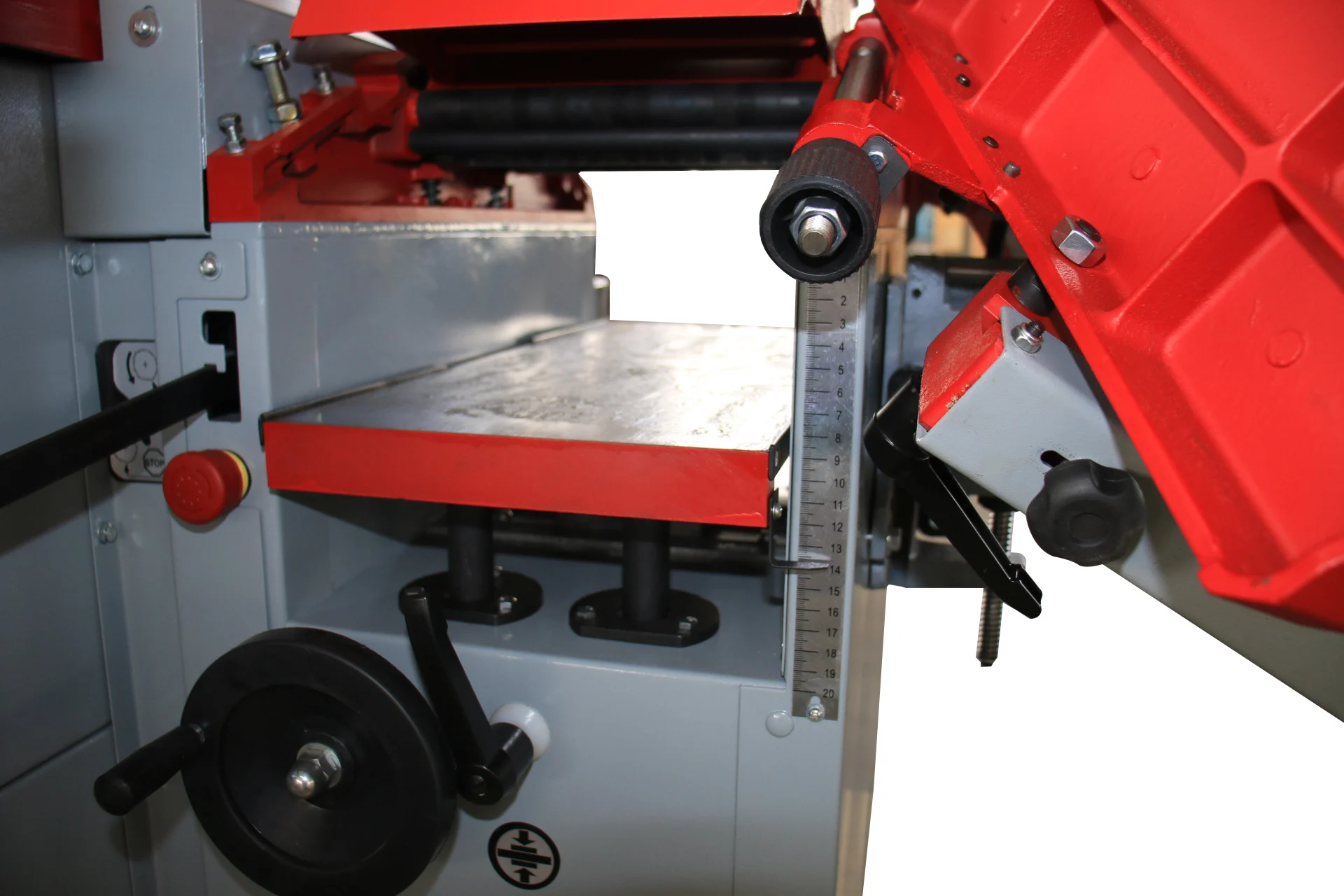

· Thicknessing table runs on central column and is well supported for high accuracy

SPECIFICATIONS FOR 16''PLANER&THICKNESSER
Model No	PT250
Motor power input/out	1.5KW
cutter block	75mm
cutter block knives number	3pcs
cutter block revolutions	400rpm
feeding rollers	32mm
planing width max	250mm
chip max	5mm
guiding ruler angle optional	45°
thicknessing width max	248mm
height max	190mm
chip removal max	2.5mm
feeding speed	8m/min
N.W.(kgs)	142/165kg

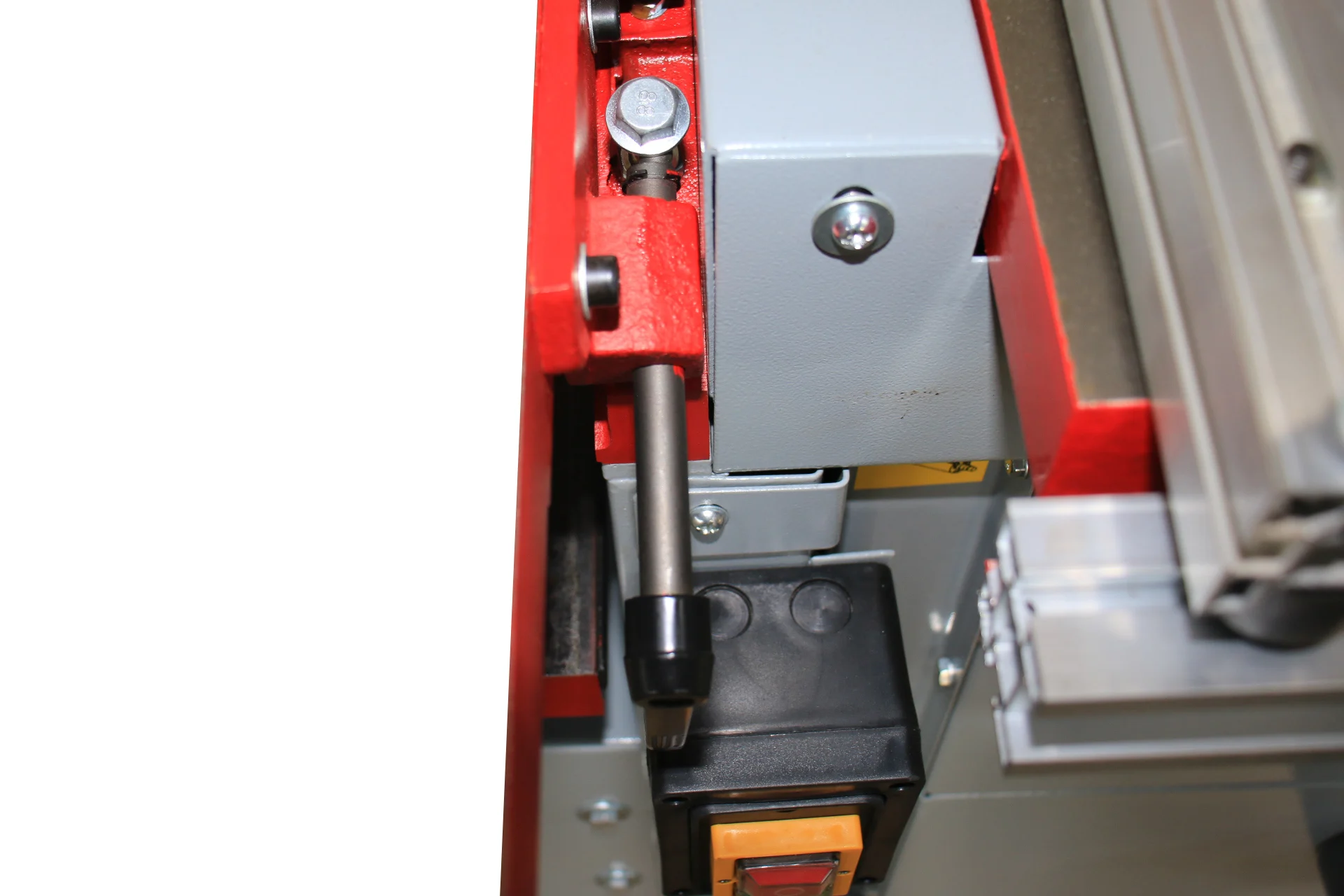

Product details

Company Introduction

Title goes here.

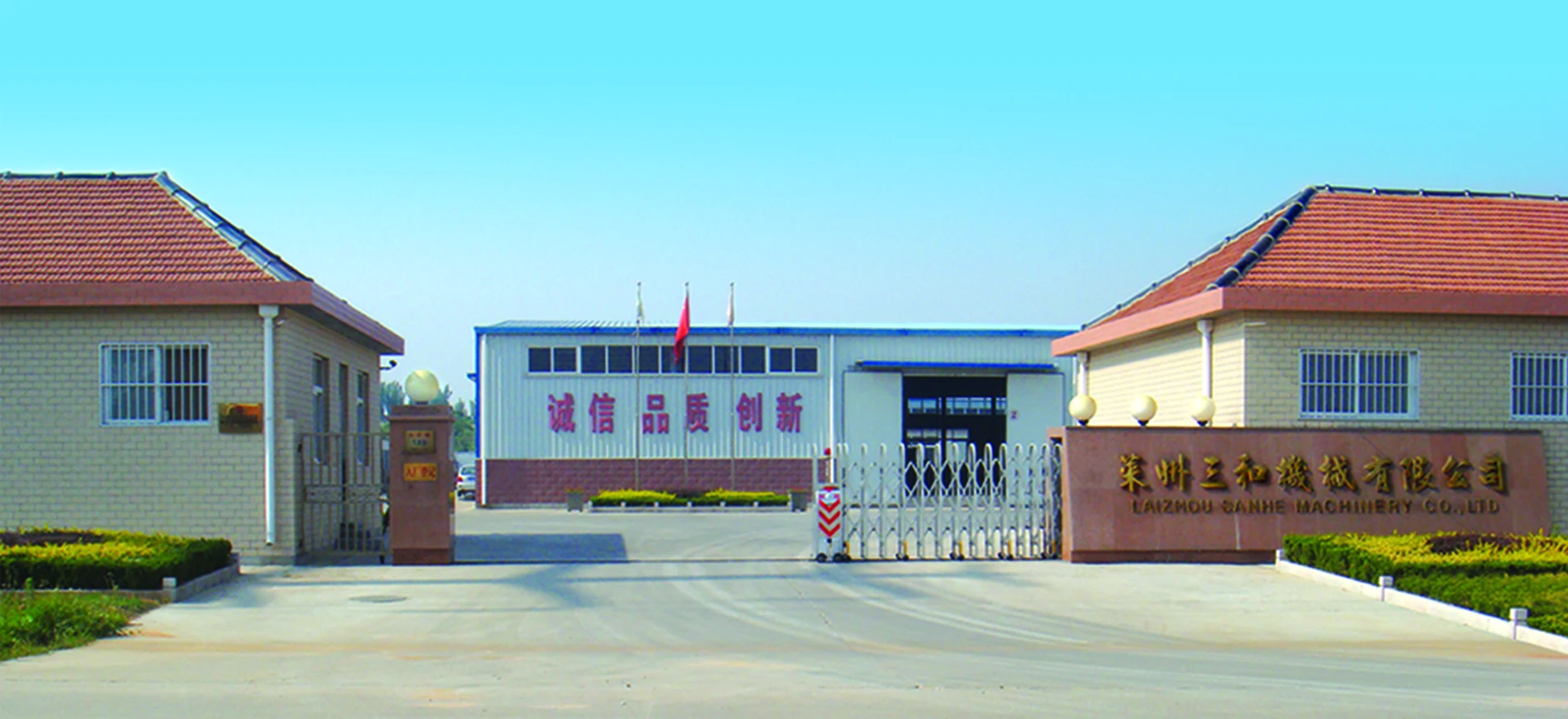

Laizhou Sanhe Machinery Co., Ltd is located in the Shandong peninsula, next to the beautiful Laizhou Bay and picturesque Wenfeng Mountain, with major highways providing convenient transportation.

The new factory covers an area of 15000 square meters,including the 10000 square meters workshop. Since 1999, the company has gained extensive experience in product development,professional engineering, technical and management personal. Since 2009, the company has developed and manufactured a series of woodworking machinery,including metal band saw, metal circular saw, a variety of mobile base, workbenches and miter saw stands,etc.

"Loyal service, quality engineered products, and technical innovation" is always our company principle and pursuit, and we look forward to a close cooperation with you providing you with our untiring service! Welcome to Sanhe machinery!

Our Services & Strength

The company also has exported 120 models to Europe, US, Australia, Japan and other areas. The company has strict management according to the ISO 9000 standard, and has passed various international retailer's factory audits from 2005 to 2014, such as B&Q,SEARS and HOMEDEPOT, etc. Many products like the metal band saw and circular saw have also gained the CE certification.
Our company manufactures a wide range of wood working bench tools and stands for the international market. The company has gained many national patents since 2007 which have been appreciated our customers all over the world.
