XB4 BD33 22mm 3 position symbol rotary selector switch
XB4-BD33 22mm 3 position symbol rotary selector switch
XB4-BD33 22mm 3 position symbol rotary selector switch
XB4-BD33 22mm 3 position symbol rotary selector switch
XB4-BD33 22mm 3 position symbol rotary selector switch
XB4-BD33 22mm 3 position symbol rotary selector switch
XB4-BD33 22mm 3 position symbol rotary selector switch

XB4 BD33 22mm 3 position symbol rotary selector switch

Share on (62485051489):


Price:$1.13 - $1.22

Quantity:


Product Overview

Description



Product Description

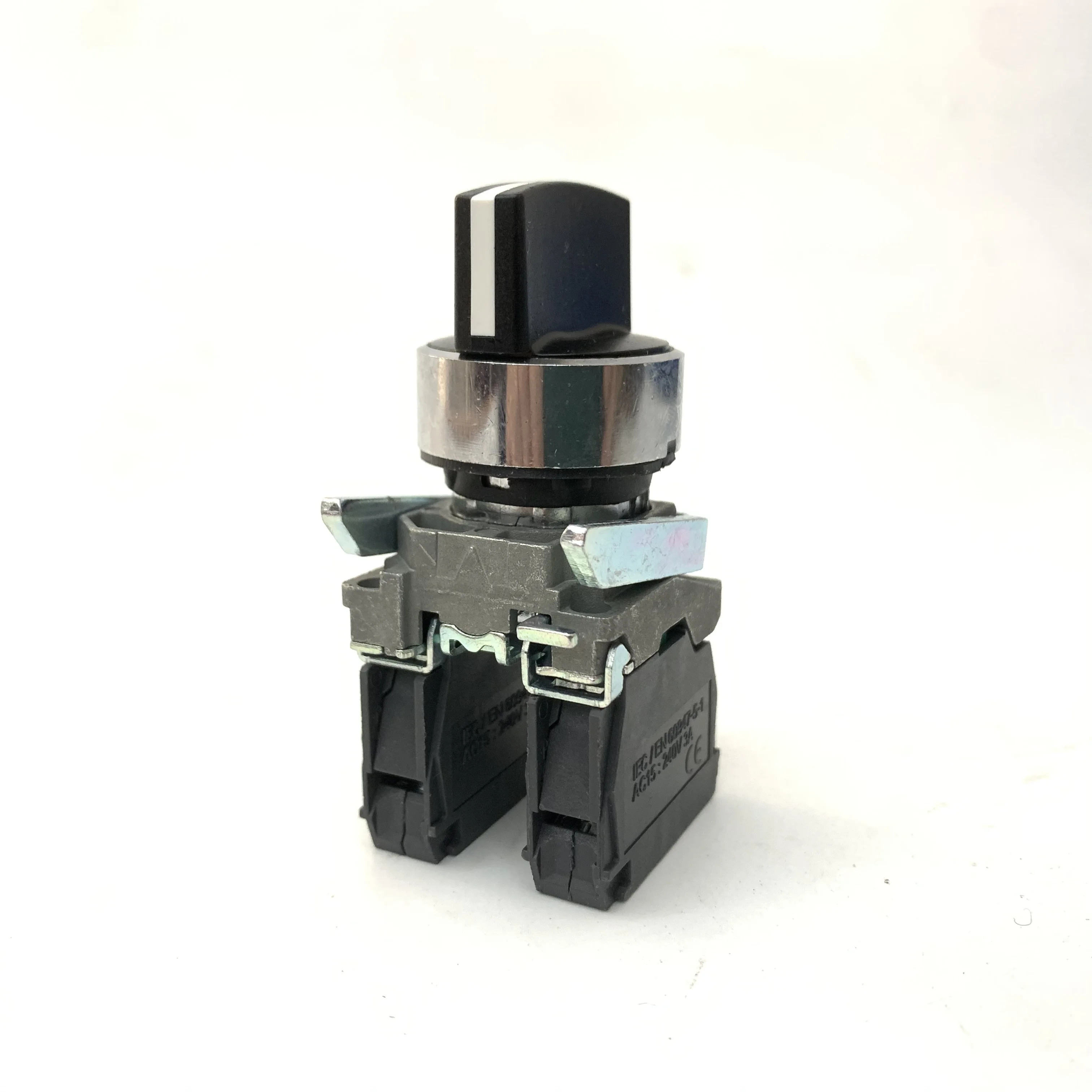

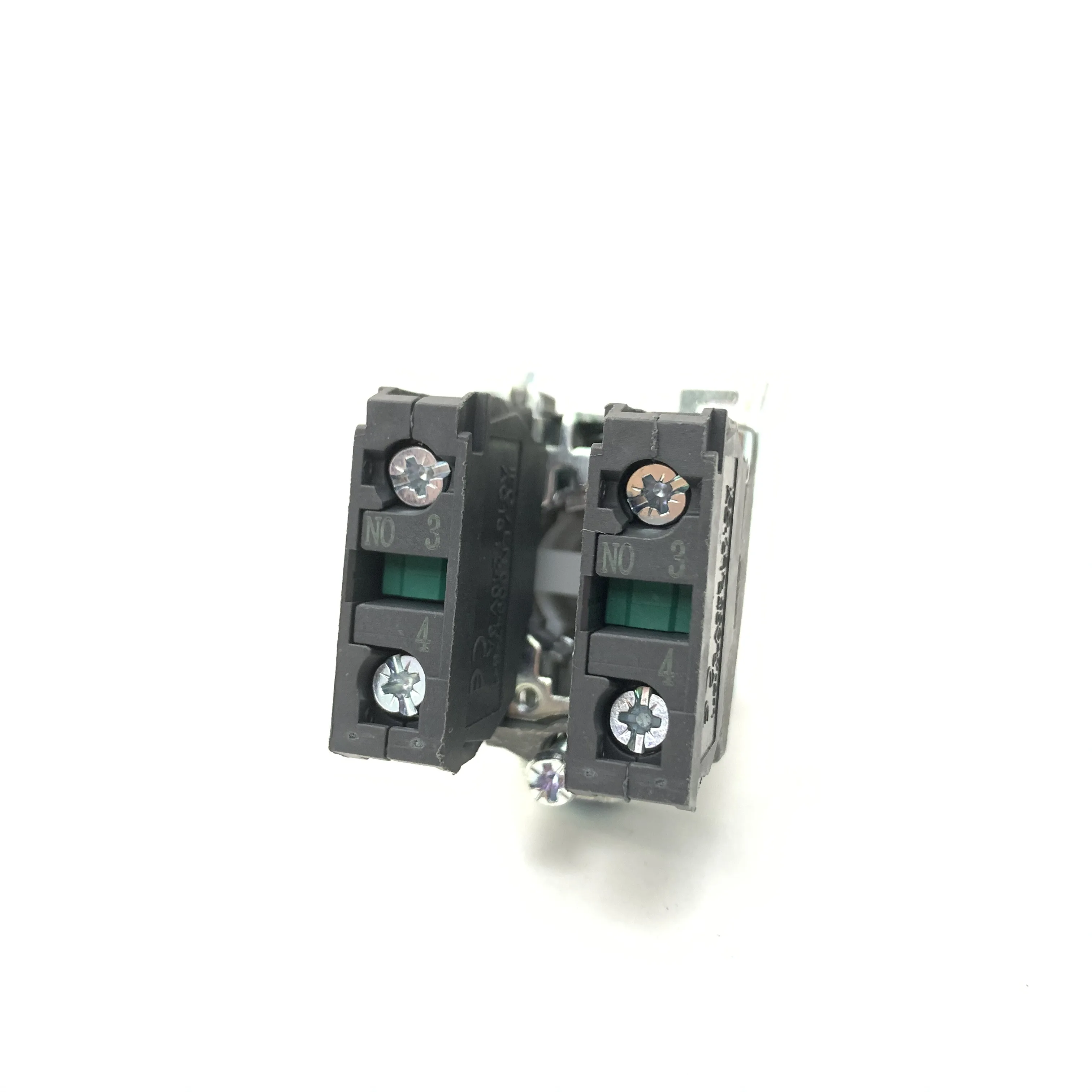

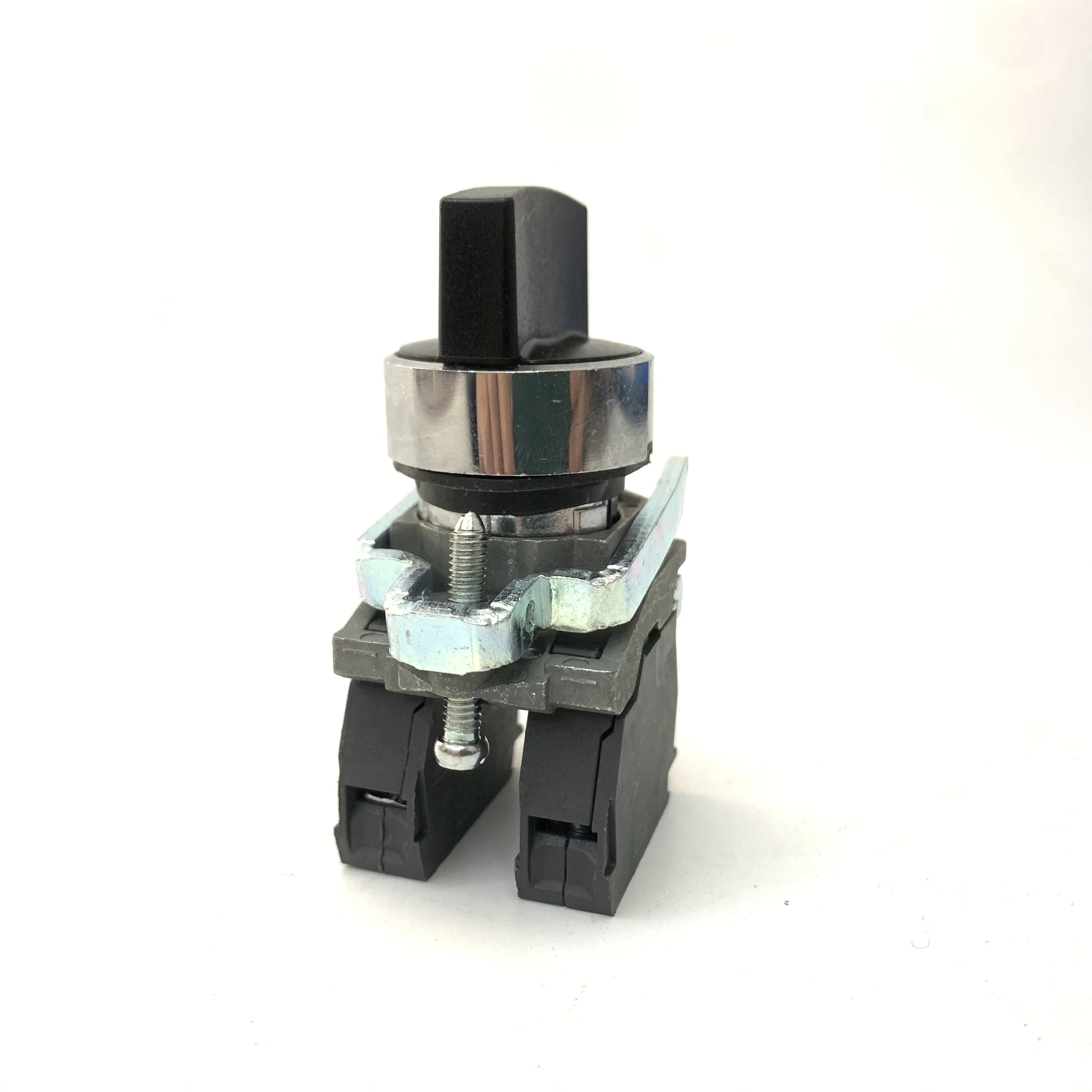

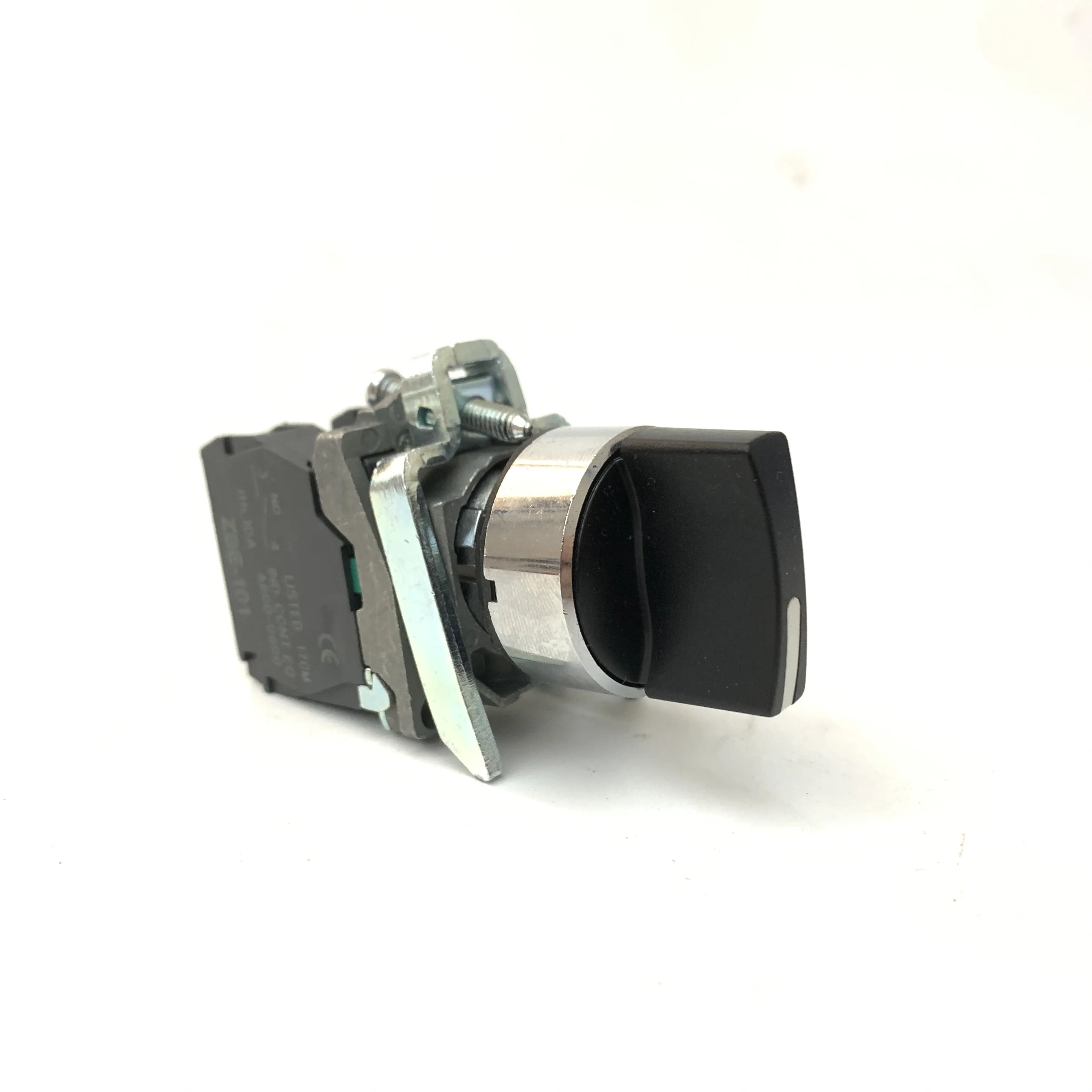

XB4-BD33 22mm 3 position symbol rotary selector switch
XB2, XB4, XB5 series Push Buttons are suitable for industrial control circuits with AC 50Hz or 60Hz, rated operating voltage to 380V and DC operating voltage to 250V, and are used for controlling electromagnetic starters, contactors, relays and other electrical circuits.


Ui(V):
415
Ith(A):
10




Ue(V):
-
380
250
240
125
Ie(A):
AC-15
2.5
-
3
-
DC-13
-
0.27
-
0.55


Ambient temperature:
-25oC~+55oC
Earthquake resistance:
<500Hz,Amplitude about 1.0mm
Impact resistance:
≥10g
Protection level:
IP40,can be customized IP65
Contact resistance:
≤50mΩ
Mechanical life:
Momentary type ≥ 1000000 times,other types ≥100000 times
Electrical life:
≥100000 times
Short circuit protection:
RT16-10A
connections - terminals:
1 x 0.5 mm² with cable end, 2 x 1.5 mm² or 1 x 2.5 mm² without cable end
Standard:
GB 14048.5-2008、IEC 60947-5-1


Details Images






Packaging & Shipping








Company Profile




Certifications




After Sales Service


Customer's Good Comment






Any question,please feel free to tell me,our sales group will reply as soon as possible.


FAQ


Q1:Are you a manufacturer?
A:We have our own factory,all products are inspected before leaving the factory to ensure good quality.


Q2:What's your MOQ?
A:The moq of different products will be different,pls confirm with our sales before ordering.


Q3:What's your time of making samples and what's the sample charge?
A:Usually we will take 3-7days to make the samples,we can provide free samples for products with a value of less than 5 US dollars, but you need to pay the shipping cost.


Q4:What's price term and payment term?
A:We accept EXW,FOB,CNF,CFR,DDU and so on,the payment can be 100%T/T;30% advance,70% before shipment,L/C at sight,we recommend Alibaba Trade Assurance Order, which is convenient for payment and guarantees the rights of buyers and sellers.


Q5:What's your delivery time?
A:Honestly,it depends on the order quantity and the season you place the order.
