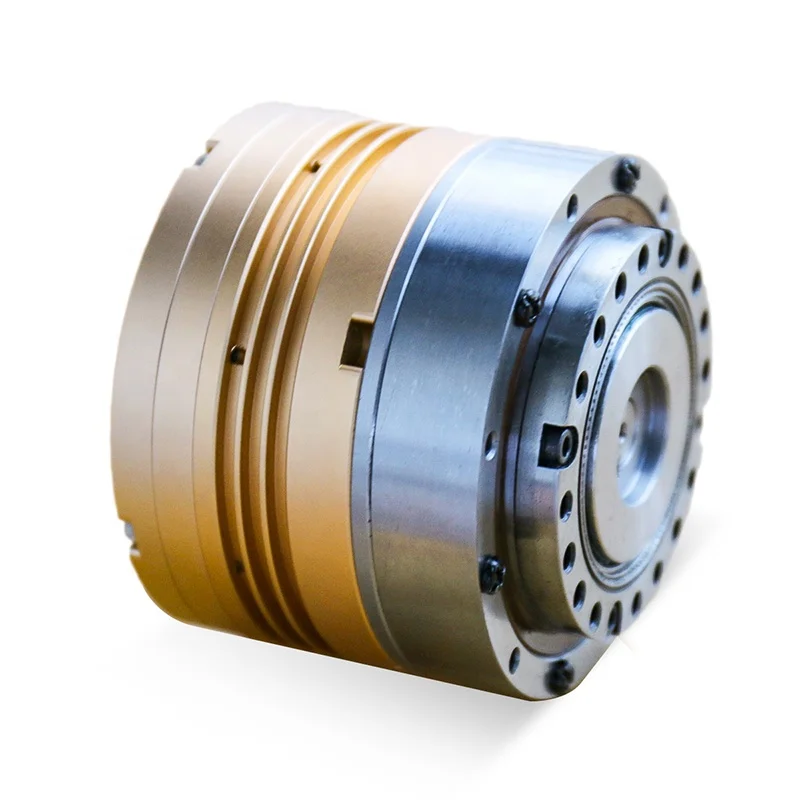

Most Popular Robot Joint Module Motor Robotic Joint Motor Harmonic Reducer Robot Joint Motor
- Category: DC Motor >>>
- Supplier: Ant Automation Equipment(Shenzhen) Co. Ltd.
Share on (62487300592):
Product Overview
Description
Most Popular Robot Joint Module Motor Robotic Joint Motor Harmonic Reducer Robot Joint Motor
Product Description
You Must Know Before Order
Dear Customers, Thanks for visiting our website and product. In order to have a better understanding of our product ,
please allow us to remind you with following two tips :
- (1) We set up the price based on different quantity , please contact our sales with your estimated order quantity so we can quote you accordingly .
- (2) The above price is not shipping included , please tell us your delivery address for shipping cost quote if you don't have your own carrier or forwarder.
Contact Supplier Get More Detail
Product Features:
- 1.CAN Comunication, (SmartCan protocol, Rate 1M)
- 2.15bit absolute encoder, one circle pulse up to 327683.
- 3.Providing the Multi-circle memory function but need extra battery (Matching).Pulse mode: repower up and automatically return the power off position.Comnunication mode: record the power off position
- 4.Multipole DD motor with high torque output.
- 5.Integrated servo motor with compact design and plug & play concept.
- 6.Low noise, low vibration, high speed positioning, high reliability
- 7.Foc fieldoriented vector control, supporting position/ speed closed loop.
- 8.Can work in zero lag given pulse state, follow zero lag.
- 9.Provide serial port , can monitor the state of the motor and modify the parameters
- 10.Position mode, supporting pulse direction signal, encoder following
- 11.Speed mode, supporting pwm duty cycle signal speed regulatio
- 12.With blocking, overcurrent protection, overvoltage protection
Model No. | M8010E17B50 | M8010E17B100 | |
Overall unit | Rated voltage | 36VDC±10% | 36VDC±10% |
Rated current | 3.5A | 3.5A | |
Output torque | 34NM | 51NM | |
Weight | IKG | IKG | |
Rang of speed | 0-30RPM | 0-15RPM | |
Reducer | Reduction ratio | 50 | 100 |
Rated torque | 34NM | 51NM | |
Peek torque | 44NM | 70NM | |
Backlash | Less than 20Arc second | Less than 20Arc second | |
Designed life | 8500Hour | 8500 Hour | |
Motor | Torque | 1NM | 1NM |
Nominal Speed | 1000RPM | 1000RPM | |
Max Speed | 1500RPM | 1500RPM | |
Rate | 100w | 100w | |
Resistance | 0.86 | 0.86 | |
Inductance | 0.8mh | 0.8mh | |
Return signal | 15 multi-turn absolute value encoder | ||
Cooling-down method | Natural cooling | ||
Position control model | Max input pulse frequency | 500KHz | |
Pulse command mode | Pulse+direction , A+B | ||
Electronic gear ratio | Set range 1-65535:1-65535 | ||
Position sampling frequency | 2KHz | ||
Defencive function | Locked-rotor warning | ||
Communication interface | Smartcan (CAN protocol, Rate 1M Hz)Serial port TTL | ||
Environment | Ambient temperature | 0-40 °C | |
Max permissible temperature | 85 °C | ||
Humidity | 5~95% | ||
Contact Supplier Get More Detail
Our Services
- Pro-Sale Service:
1. Good Quality / Factory Price / Quick Response Reliable Service, is our working faith.
2. Professional and High efficient foreign sale- team, Reply your Alibaba inquiry and trade massages in 6 working hours, you can totally believe our service.
- Middle-Sale Service:
1. Checking the most suitable shipping ways for customers.
2. Testing quality again before sending goods.
3. Sending the tracking numberbil of loading. and update the situations of the goods customers receive the goods
- After-Sale Service:
1. We are very glad that customer give us some suggestion for price and products.
2. If have any question, please contact with us freely by E-mail or Telephone for more details.
Company Information
Ant Automation Equipment (Shenzhen) Co., Ltd. is a high-tech enterprise specializing in the research and development, production, sales and service of industrial automation equipment. The company introduced advanced technology from developed countries and combined with its many years of industry experience, developed and developed a series of industrial automation control products. The current product line has covered robots arm, harmonic reducers, servo motors, and industrial control systems. Users are involved in food, pharmaceutical and other industries.
The company has established a huge sales and service network in China to provide our customers with timely and thoughtful services.
If you need any favorable or fast shipping
Welcome to contact us
FAQ
Q: Are you a factory?
A: Yes,we are factory,have more than 10 years experience;
Q: What is your MOQ;
A: At present, our MOQ is 1 set;
Q: How long is the delivery time?
A: In general, the delivery time is 15 days for 1 set.
Q: What is your guarantee term?
A: The warranty period for our products is one year along with lift time technical support.
Q: Are you manufacturer or trading company?
A: We are manufacturer for automation robot in Shenzhen city, China.
Q: How about your after-sale service?
A: We provide technical support via online communication.Moreover, if you need, we can also send our technical staff for onsite installation or debugging. Welcom to you visit our company to learn and check the robot.
Q: What is your payment term?
A: The payment method is 50% prepayment, 50% balance before cargo delivery.
