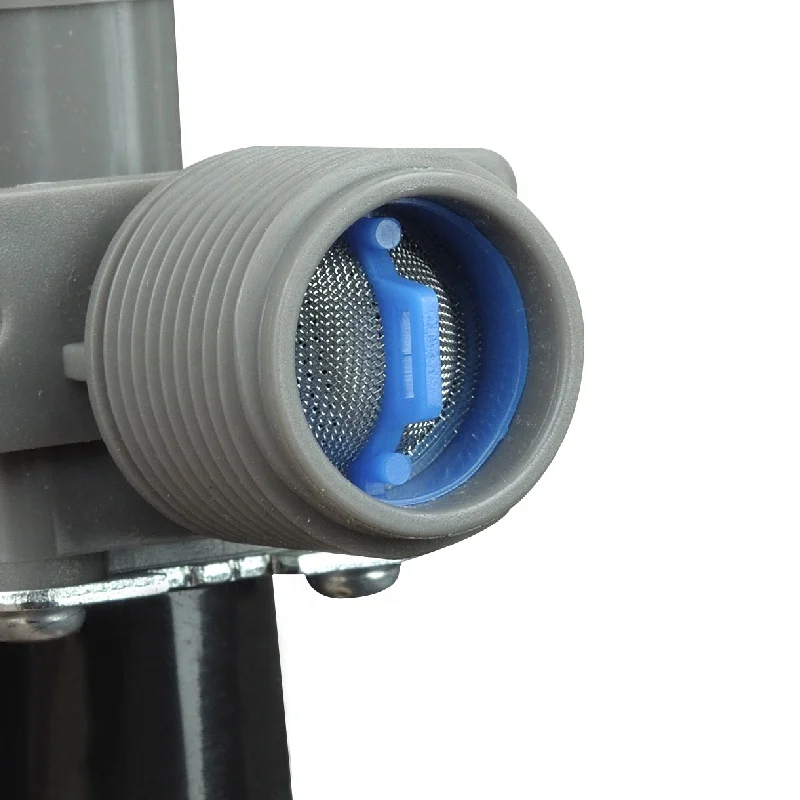

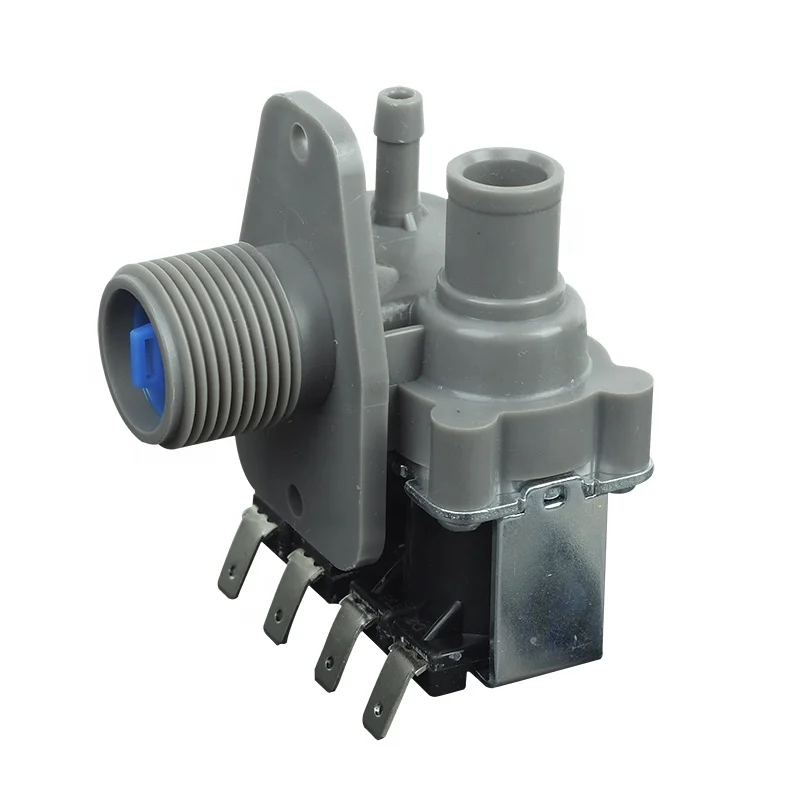

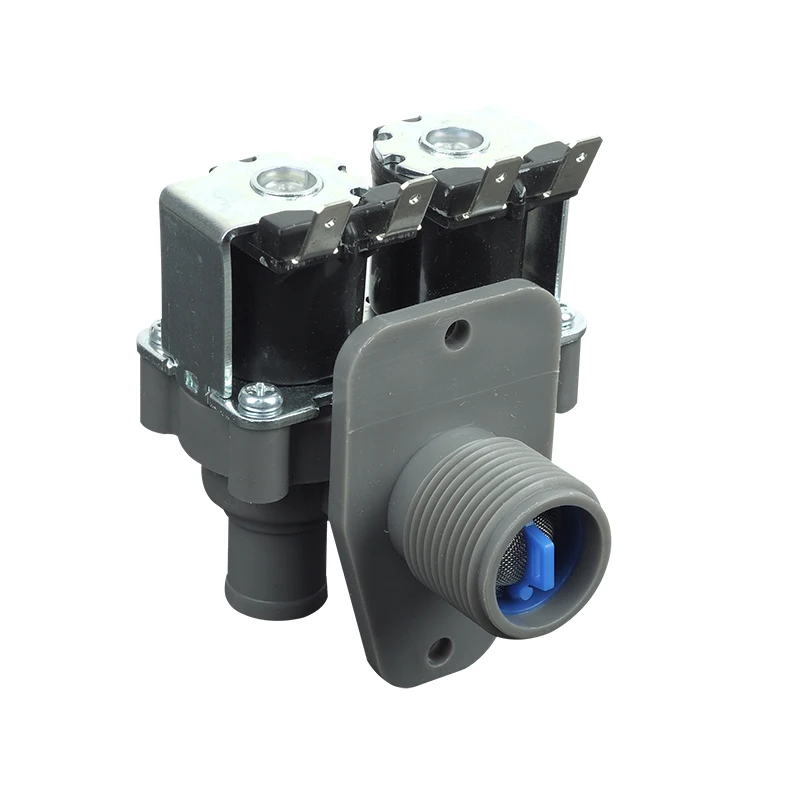

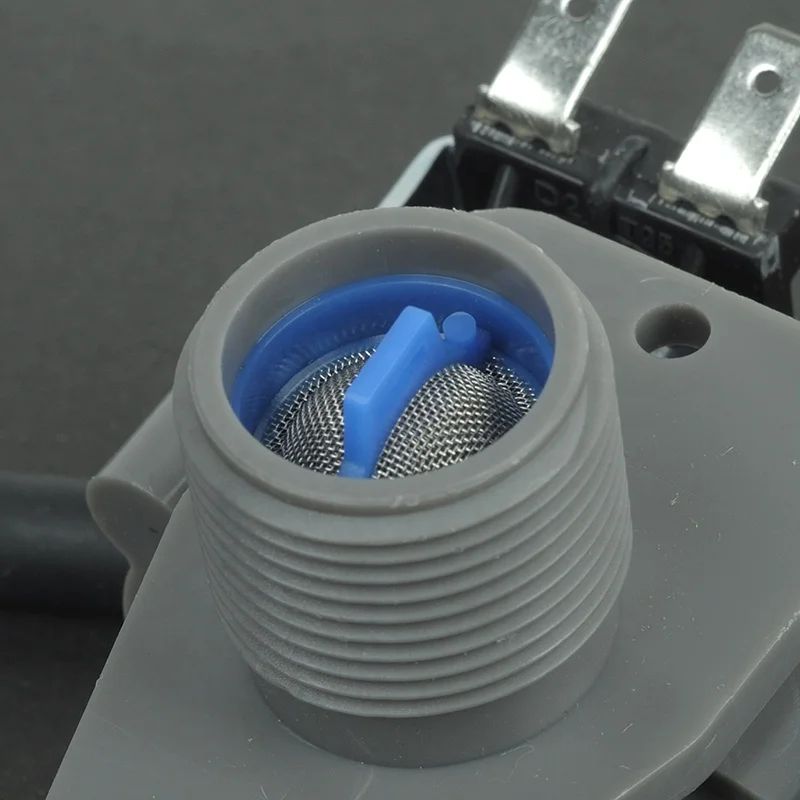

Впускной водяной клапан для стиральной машины WEILI, запасные части/клапан давления, запасные части
- Category: Water Filter Parts >>>
- Supplier: WUHU LEJIA ELECTRICAL CO LTD
Share on (62488320148):
Product Overview
Description
:

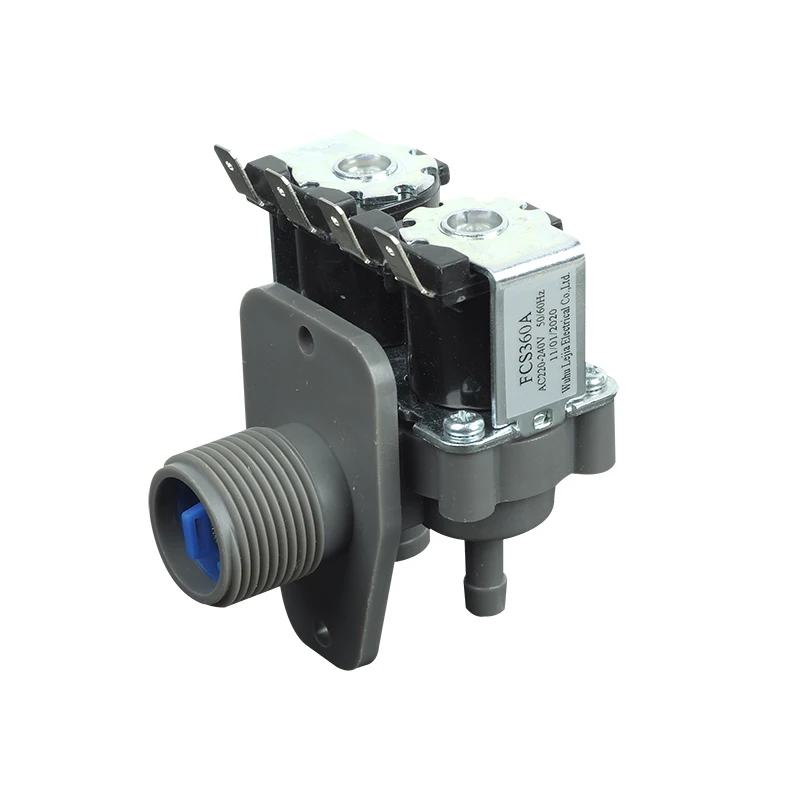

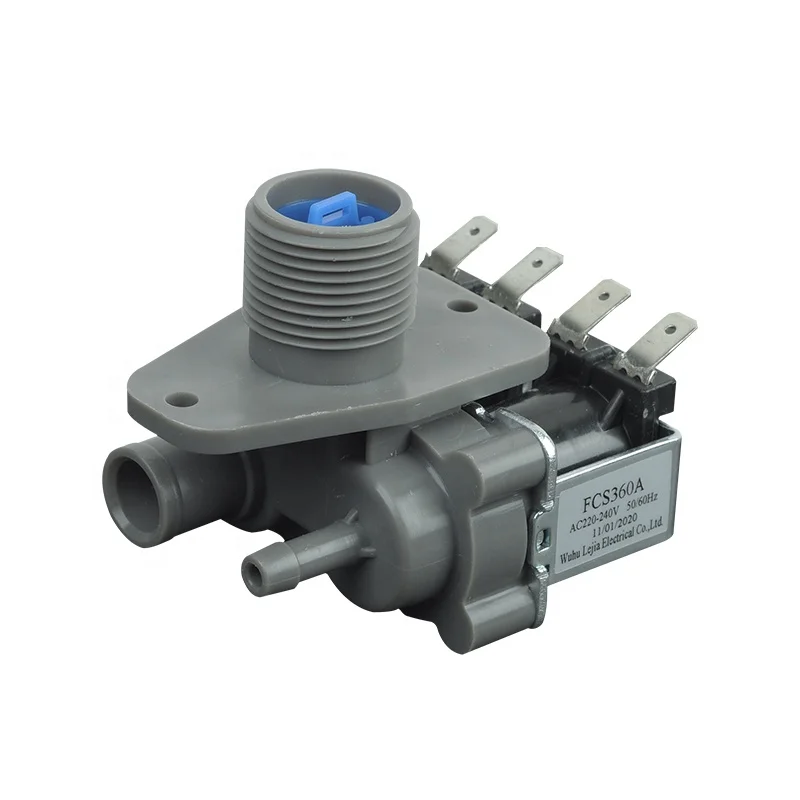

FCS360A
| |
Type | FCS360A Ordinary Valve Series |
Operating Voltage | AC220-240V 50/60Hz |
| AC100-110V 50/60Hz |
Applicable Fluid | Water 1-80℃ |
Standard Flow | 3-25L/min Customizable ( large flow ) |
| 0.2-7L/min Customizable ( small flow ) |
Water pressure | 0.02-1.0Mpa |
Requirements of working environment
Temp of working environment | 1℃±60℃ | Permissible limiting pressure (water pressure) | <1.2Mpa |
35%-90%RH(No condensation state) | Mounting direction | It is mounted in vertical direction, the inclination doesn’t exceed 15 degrees | |
Storage temp | -5±80℃(No freezing state) |
|
|
Storage humidity | 25%-95%RH(No condensation state) |
|
|
Performance
The strength test | Static pressure 1.6Mpa | Withstand voltage pressure | 1.2Mpa/5min | |
No-load test | Voltage V*0.9
| Permissible limiting voltage | V*1.15 | |
High water pressure startup and closing
| At water pressure 0.8Mpa, voltage V*0.9,the solenoid valve can be started and closed normally | |||
Low water pressure startup and closing
| At water pressure 0.02Mpa, voltage V*0.9,the solenoid valve can be started and closed normally | |||
Leakage upon high water pressure | 1.2Mpa zero leakage | |||
Leakage upon low water pressure | 0.02Mpa leakage <0.1ml/min | |||
Electric strength | Among the conductive part, mounting hole and nonconductive metal, it can withstand 1500V/50Hz, leakage current 0.75mA for 1min without the breakdown | |||
Insluation resistance | The resistance between the charged part and nonconductive metallic part teated by the megohmmeter of 500V≥100Ω | |||
Sealing test |
Static pressure
| Air | High pressure | 1Mpa |
|
|
| Low pressure | 0.02Mpa |
|
| Cold water | High pressure | 1.2Mpa |
|
|
| Low pressure | 0.02Mpa |
|
| Hot water | High pressure | 0.8Mpa |
|
|
| Low pressure | 0.02Mpa |
Relation between pressure and flow rate
Pressure(Mpa) | 0.02 | 0.05 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 |
Average flow rate (L/min) | 3 | 8 | 12 | 16 | 20 | 23 | 27 | 30 | 32 | 34 |
Water level sensor & Inlet valve
1.We will reply your enquiry within 24hours.Fast Online contact response.
2.High quality,Resonable price,Fast delivery.
3.All products will be inspect strictly before packing.
4.Well and proper packing,reduce the damage in the shipping as much as possible.
5.After-sale service:We gurantee 1 year quality warranty.Within one year,if the products come out any quality problem,we promise to make free replacement.
6.Customization: We are accepting customer's design,including the label design,colour box design.
7.Payment terms: T/T; Western Union; 30% TT advance,70% before shipment.
8.Delivery time : 15-30 days after receive the deposit .
Pls feel free to contact us for any enquiry !
