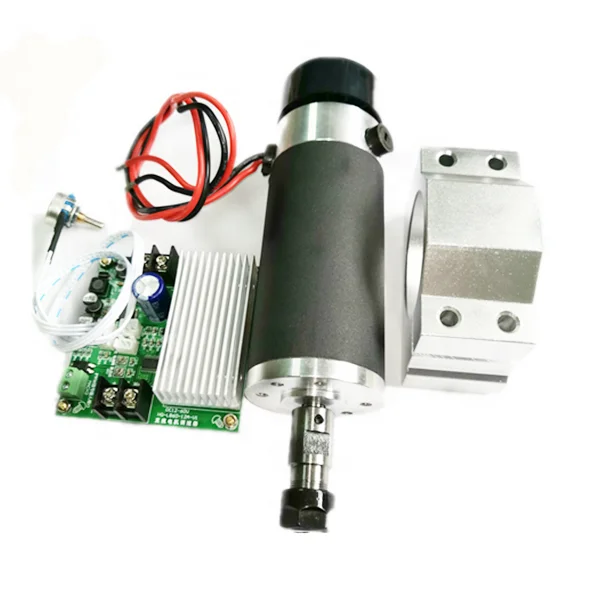

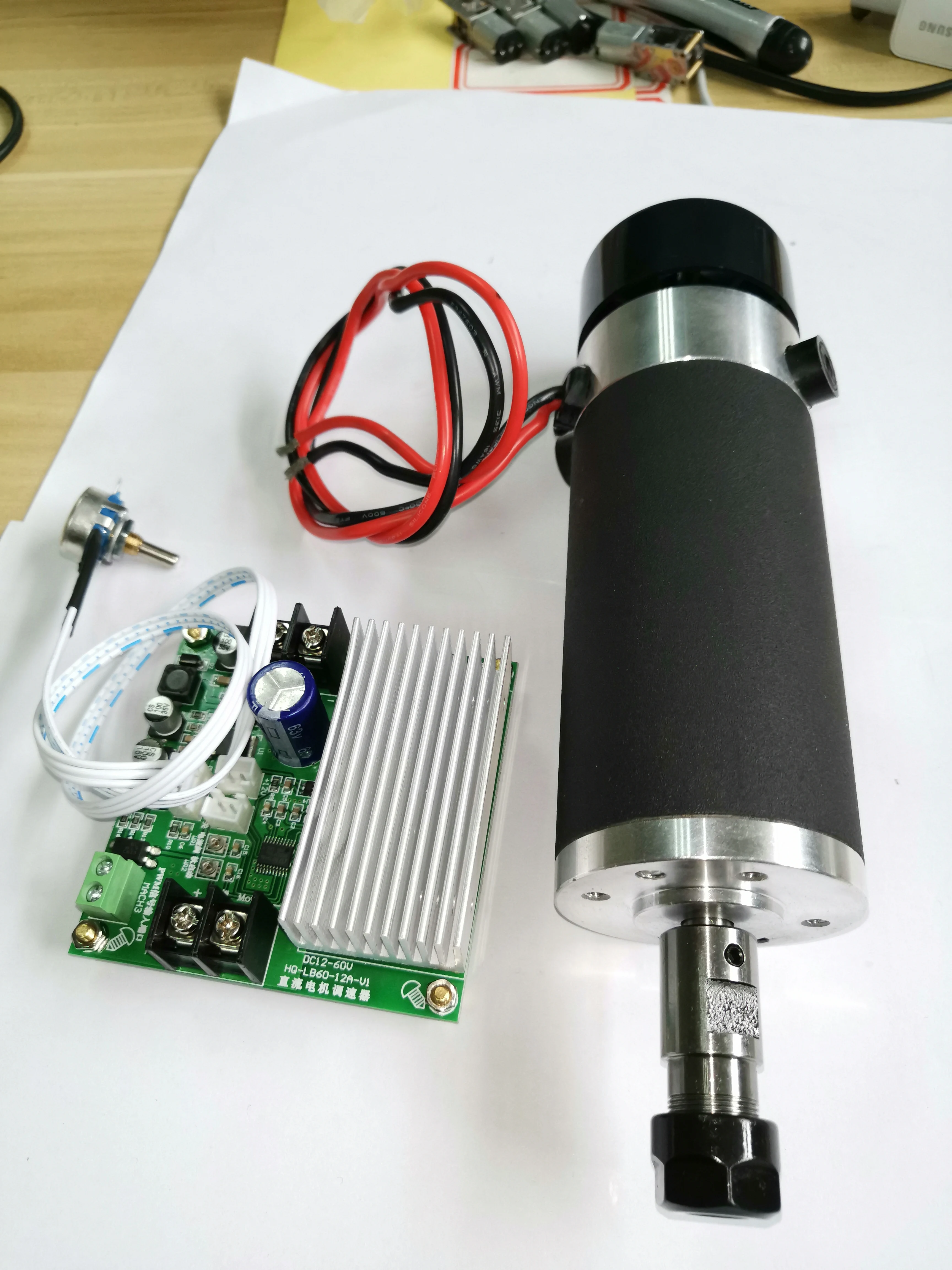

300w brushless dc spindle motor 48V power supply speed controller Holder

Product Overview

Description

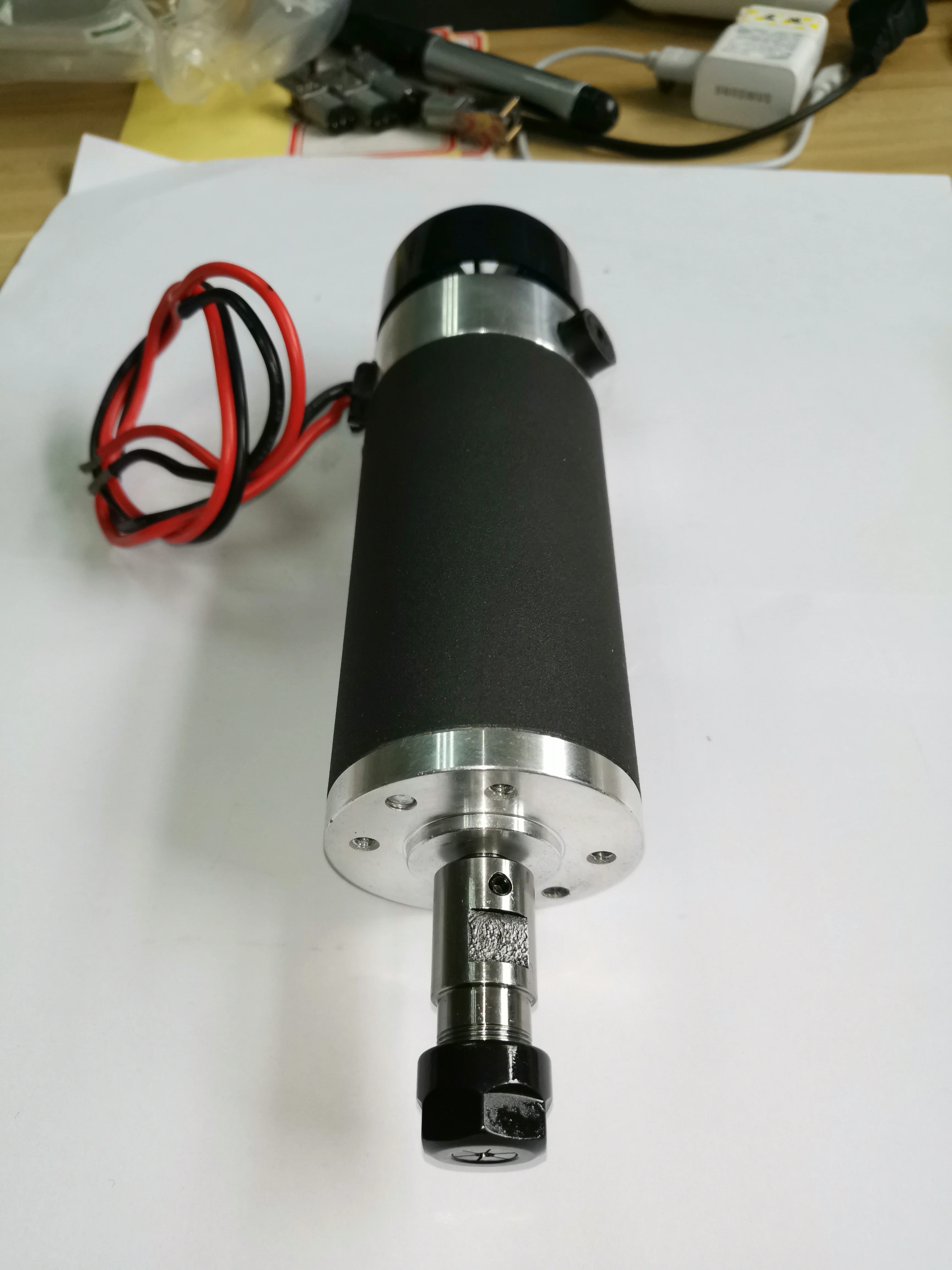

High speed 500w brushless dc spindle motor kit





Working voltage: DC48V (DC)
Power: 500W
Speed: 12000RPM
Torque: 550mN.m
Insulation resistance: >2 megohms
Insulation dielectric strength: 400V

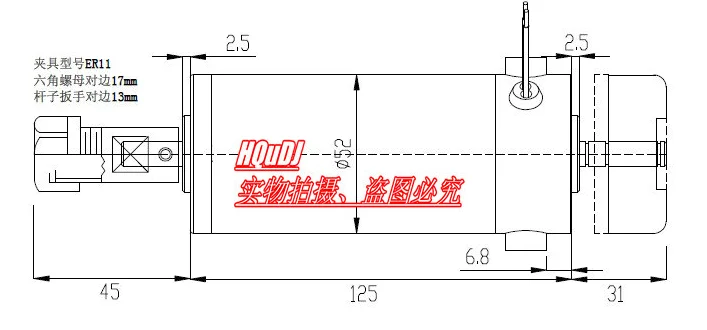

Diameter: 52mm high-grade black matte body
Length of the chuck part: 35mm of the shank, (including nuts and sandwich 43mm)
The diameter of the chuck part is: 16mm
Total length of motor: 201mm (including clamping part and motor)
Spindle net weight: 1.1KG
Fixed seat net weight: 0.35KG
The radial runout of the main shaft is around 0.02-0.05.
Can be used to engrave materials such as metal or non-metal.
This spindle comes with forced air cooling and can work for a long time.



Spindle motor features:

1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle  , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.



Provide:

1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.cooled by self: 400w
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw (same HSD)
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw



We also have spindle motor matching inverter(VFD),water pump,bracket, collect , gripper etc.

If you need other kinds of parts, please don't hesitate to contact us.
