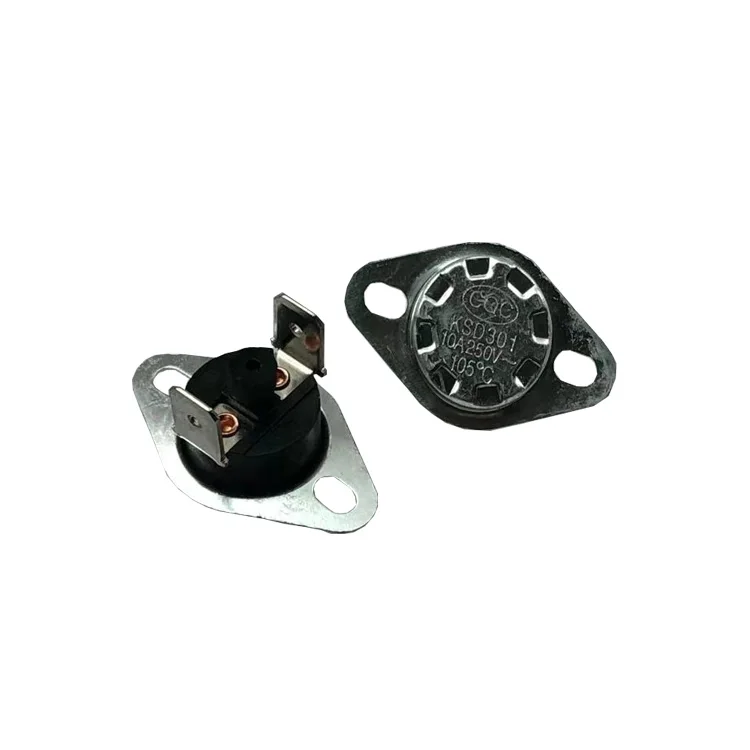

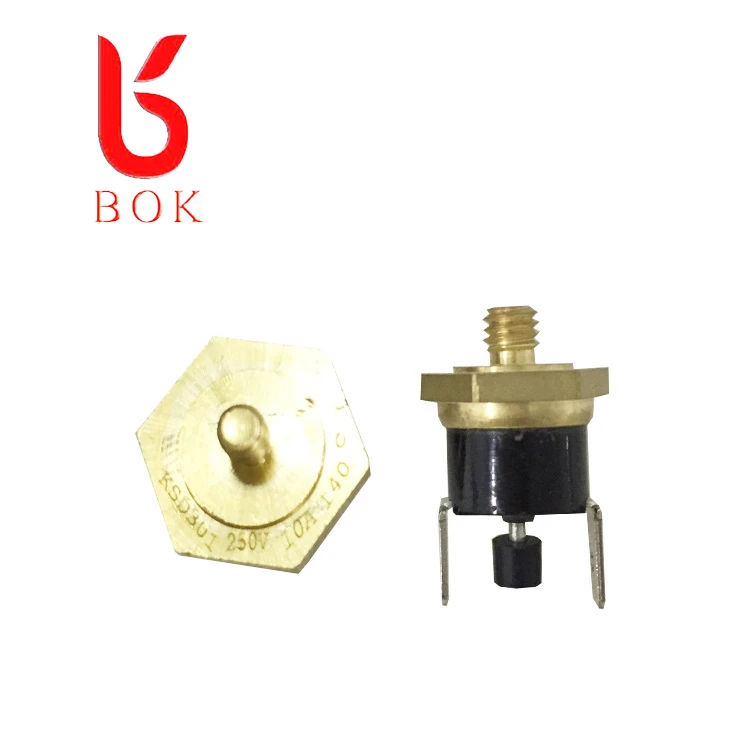

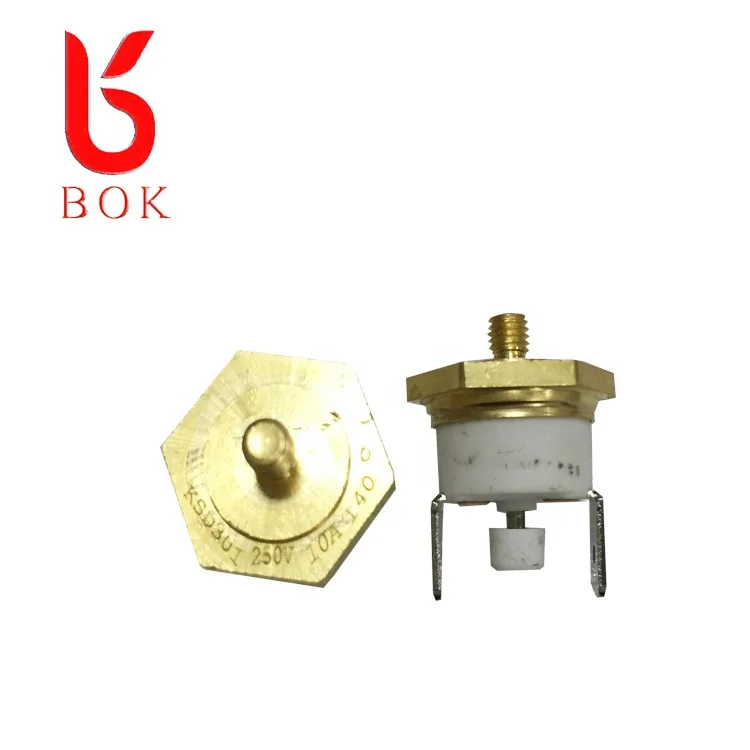

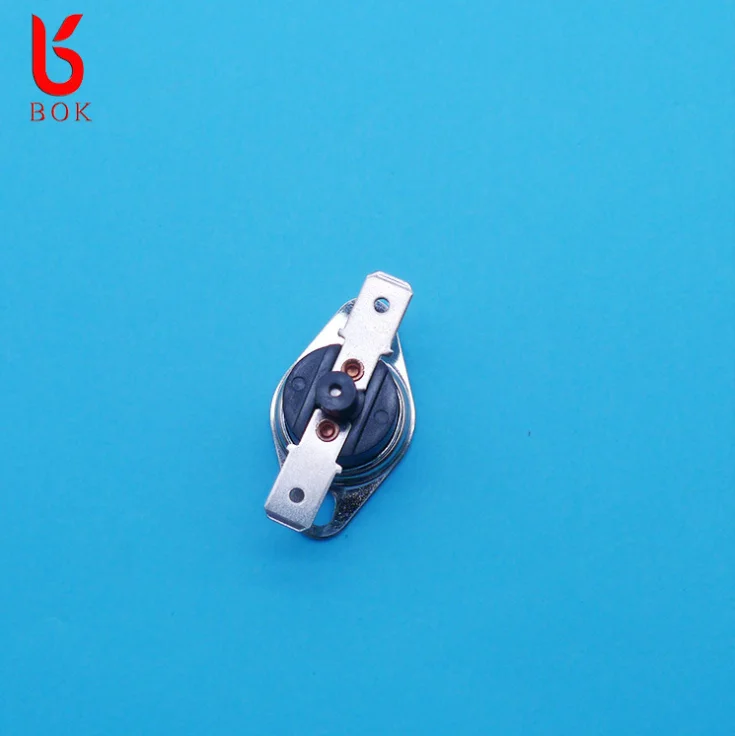

Ceramic manual reset thermostat KSD301 205c temperature overheat protector anti dry burning temperature control switch
Ceramic manual reset thermostat KSD301 205c temperature overheat protector anti-dry burning temperature control switch
Ceramic manual reset thermostat KSD301 205c temperature overheat protector anti-dry burning temperature control switch
Ceramic manual reset thermostat KSD301 205c temperature overheat protector anti-dry burning temperature control switch
Ceramic manual reset thermostat KSD301 205c temperature overheat protector anti-dry burning temperature control switch
Ceramic manual reset thermostat KSD301 205c temperature overheat protector anti-dry burning temperature control switch
Ceramic manual reset thermostat KSD301 205c temperature overheat protector anti-dry burning temperature control switch

Ceramic manual reset thermostat KSD301 205c temperature overheat protector anti dry burning temperature control switch

Share on (62489474693):


Price:$0.73 - $0.76

Quantity:


Product Overview

Description



Products Description


Product Name
Jump Type Temperature Control Switch
Model
KSD301
Material
composite silver contacts / metal iron case
Switch type
 normally closed / normally open
Electrical parameters
AC250V 50-60Hz 10A/15A/20A/25A
Operating temperature range
50~260℃
Life
≥100000 (times)
Action temperature error
±3℃/5℃
Reset temperature error
±15℃
Contact resistance
≤50mΩ
Insulation resistance
≥100mΩ


CODE
OPEN TEMP
RESET TEMP
CODE
OPEN TEMP
RESET TEMP
40
40±5°C
≥30°C
95
95±5°C
80±5°C
45
45±5°C
≥33°C
100
100±5°C
82±5°C
50
50±5°C
≥35°C
105
105±5°C
85±5°C
55
55±5°C
42±6°C
110
110±5°C
90±5°C
60
60±5°C
48±5°C
115
115±5°C
95±5°C
65
65±5°C
48±5°C
120
120±5°C
100±5°C
70
70±5°C
55±5°C
125
125±5°C
102±5°C
75
75±5°C
60±5°C
130
130±5°C
105±5°C
80
80±5°C
65±5°C
135
135±5°C
108±5°C
85
85±5°C
70±5°C
140
140±5°C
110±5°C
90
90±5°C
75±5°C
145
145±5°C
110±5°C










product description.
KSD301 series products are thermostats that use bimetallic pieces as temperature sensing elements. When the appliance is working normally, the bimetals are in a free state and the contacts are in a closed state. When the temperature reaches the operating temperature, the bimetals will generate internal stress when heated Act quickly to open the contacts and cut off the circuit, thus controlling the temperature. When the appliance cools down to the reset temperature, the contacts close automatically and resume normal operation.


Product features.
KSD301 type thermostat is a closed type thermostat developed with imported thermal bimetal. It has the characteristics of small size, rapid action, precise temperature control, large control current and long service life.


Product use.
KSD301 is mainly used for low-power sub-horsepower motors, various transformers, coils, household appliances, computer communications, fans, hair dryers, air conditioners, vacuum cleaners, electric stoves, electric heaters, mixers, soymilk machines, induction cookers, ballasts , Electric heating belts, health care equipment, water pumps, exhaust fans, vacuum cleaners, air-conditioning motors, motors, electric heating appliances, nickel-hydrogen nickel-chromium battery packs, notebook computers, mobile phones, etc.
