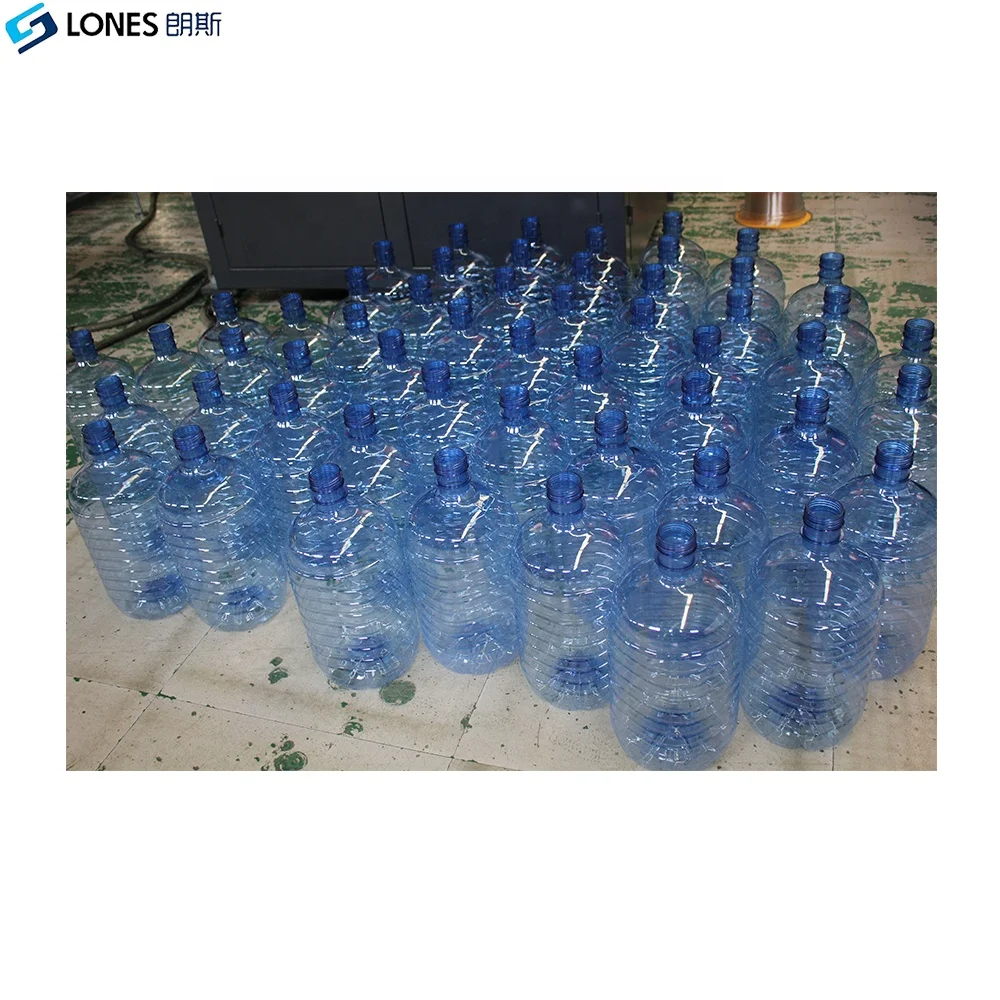

LS A1 15L custom full automatic pet bottle making machine for 3 to 5 gallon PET bottles machine with auto loader 450BPH factory
LS-A1-15L custom full automatic pet bottle making machine for 3 to 5 gallon PET bottles machine with auto loader 450BPH factory
LS-A1-15L custom full automatic pet bottle making machine for 3 to 5 gallon PET bottles machine with auto loader 450BPH factory
LS-A1-15L custom full automatic pet bottle making machine for 3 to 5 gallon PET bottles machine with auto loader 450BPH factory
LS-A1-15L custom full automatic pet bottle making machine for 3 to 5 gallon PET bottles machine with auto loader 450BPH factory
LS-A1-15L custom full automatic pet bottle making machine for 3 to 5 gallon PET bottles machine with auto loader 450BPH factory
LS-A1-15L custom full automatic pet bottle making machine for 3 to 5 gallon PET bottles machine with auto loader 450BPH factory

LS A1 15L custom full automatic pet bottle making machine for 3 to 5 gallon PET bottles machine with auto loader 450BPH factory

Share on (62490192560):


Price:$27,000.00

Quantity:


Product Overview

Description



Product Description


Product Application

LONES MACHINERY has been engaged in plastic bottle blowing machine research,development and production more than 10 years.My factory concentrating on plastic container packaging the whole line of solutions,to provide from PET preforms to bottle design,semi automatic/full automatic blow moulding machine as well as bottle mould ,cap mould ,preform mould and handle series of plastic mould solutions.

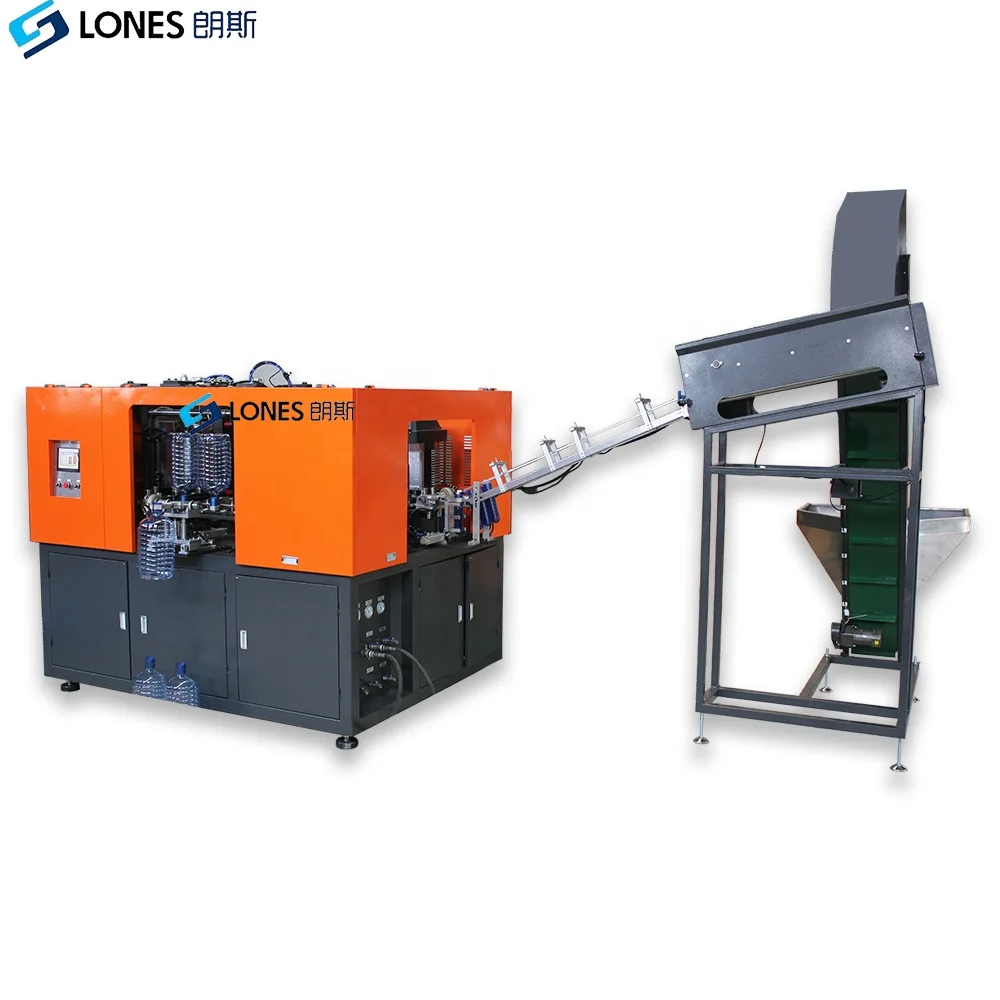

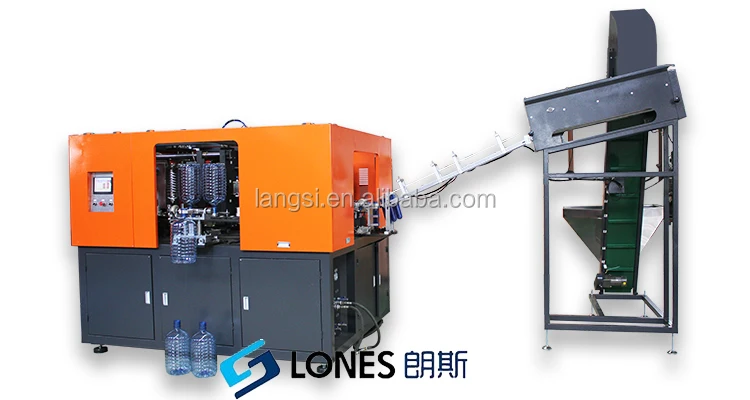

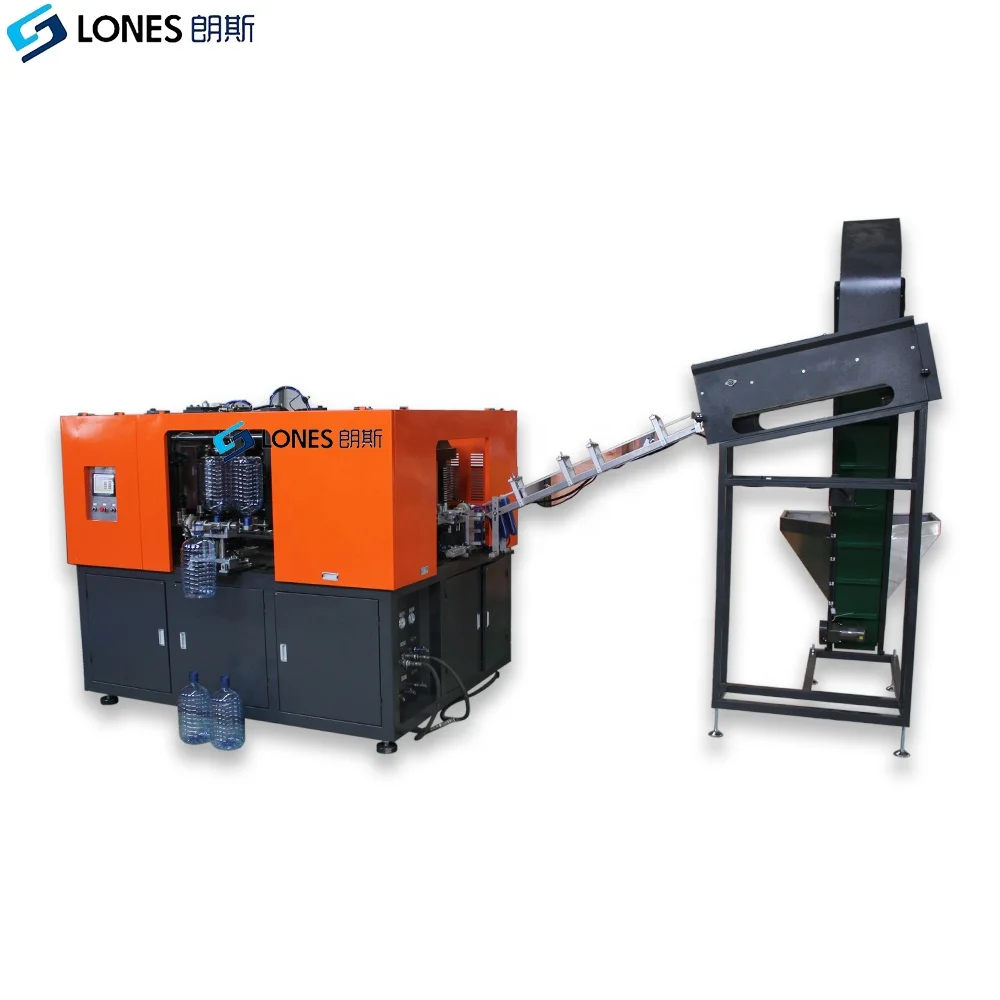

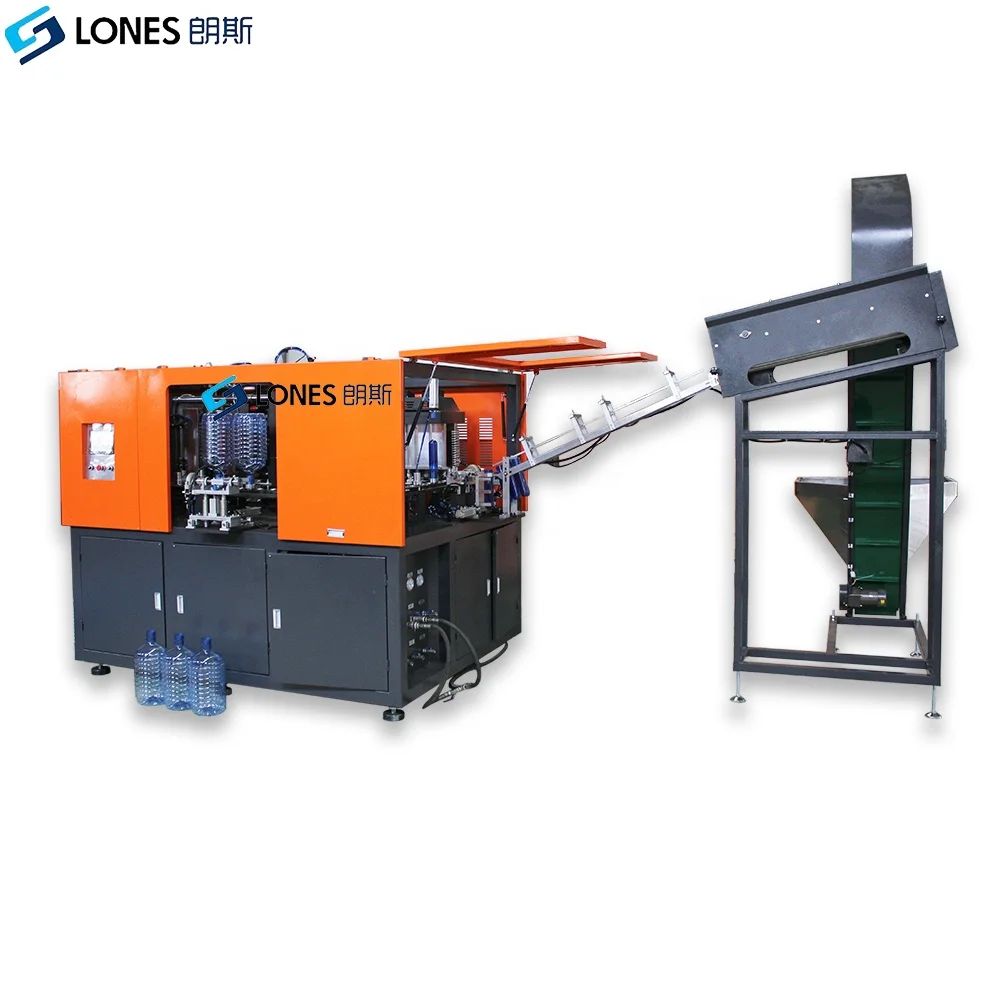

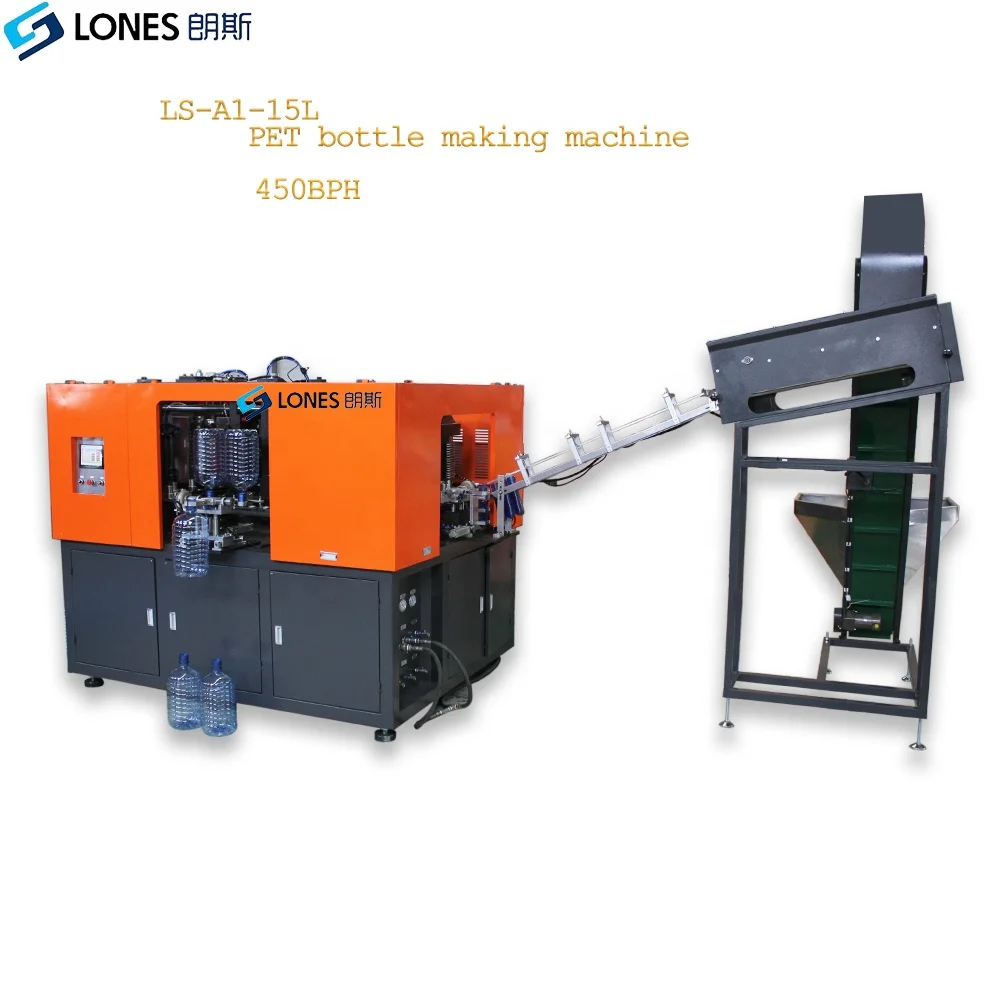

      LS-A1-15L FULL AUTOMATIC BLOW MOULDING MACHINE WITH AUXILIARY MACHINE
THEORETICAL OUTPUT
450BPH for 15000ml bottle
MAX.  CONTAINER VOLUME
20L
MAX.NECK DIAMETER
45MM
MAX.CONTAINER DIAMETER
110MM
MAX.CONTAINER HEIGHT
450MM
NUMBER OF CAVITY
1CAVITY
TOTAL POWER
40KW
USE POWER
25KW
WORKING PRESSURE
1.0MPA
LOW  PRESSURE CONSUMING
1600L/MIN
BLOWING  PRESSURE
≤3.0MPA
HIGH PRESSURE CONSUMING
2400L/MIN
MACHINE WEIGHT
2200KGS
HIGH AIR COMPRESSOR
2.4M3/3.0MPA
LOW AIR COMPRESSOR
2.0M3/1.0MPA
AIR TANK
0.6M3/3.0MPA
HIGH AIR COOLING DRYER
3.0M3/3.0MPA
LOW AIR COOLING DRYER
2.0M3/1.0MPA
WATER CHILLER
5HP












Main Features

1) MITSUBISHI PLC, stable performance, simple operation.

2) Selection of German FESTO and Japanese SMC pneumatic components.

3)Energy-saving design,  compact and reasonable structure.

4) With fault alarm, diagnosis system, make maintenance more convenient.

5) Adopt environment-friendly design, non-toxic conveyor belt conveying preform .

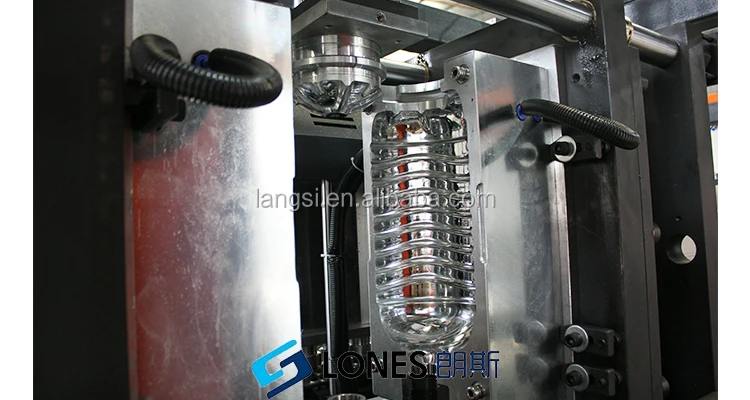

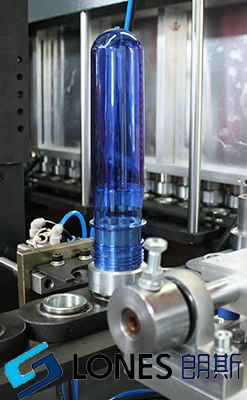

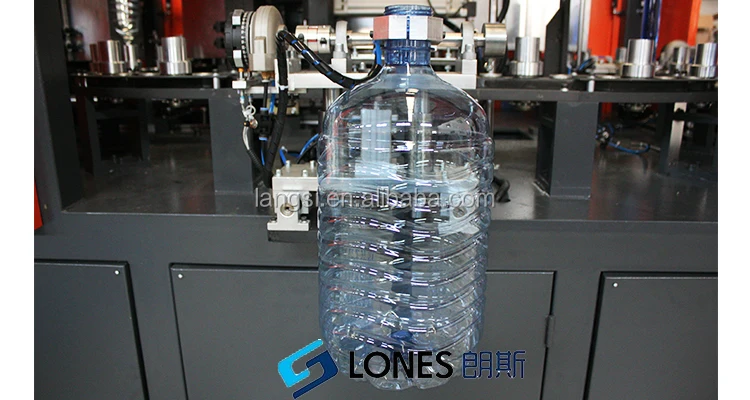

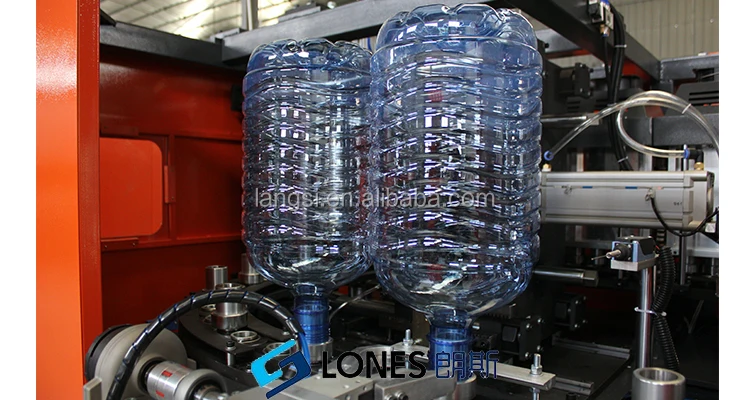

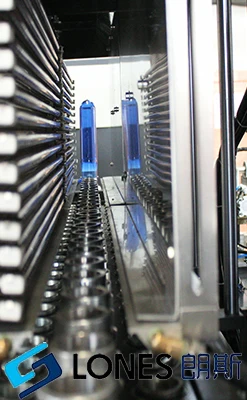

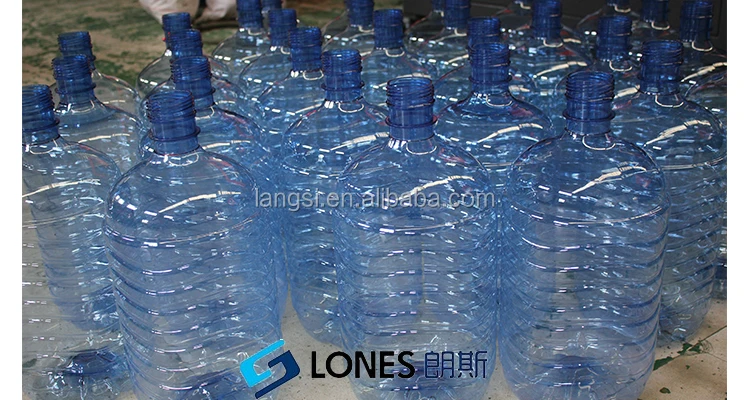

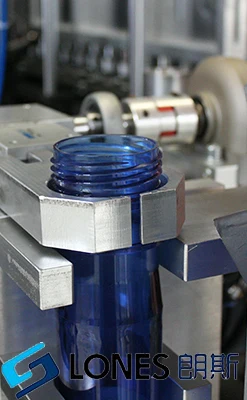

Detailed Images






Our Service

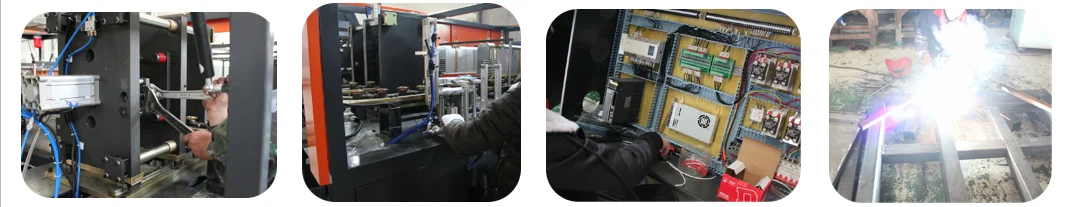

Manufacturing Technique

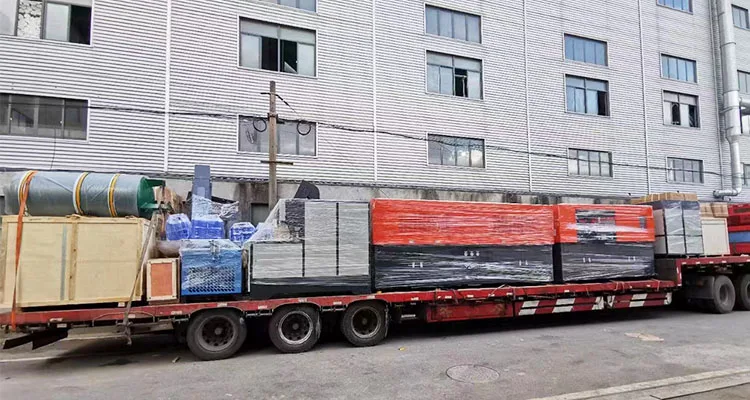

Packing & Delivery

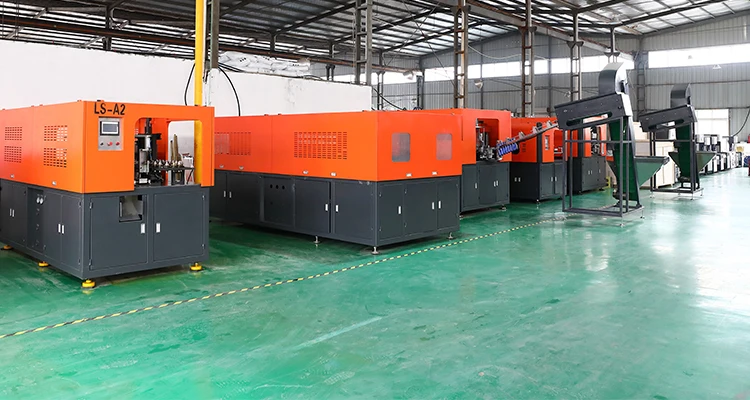

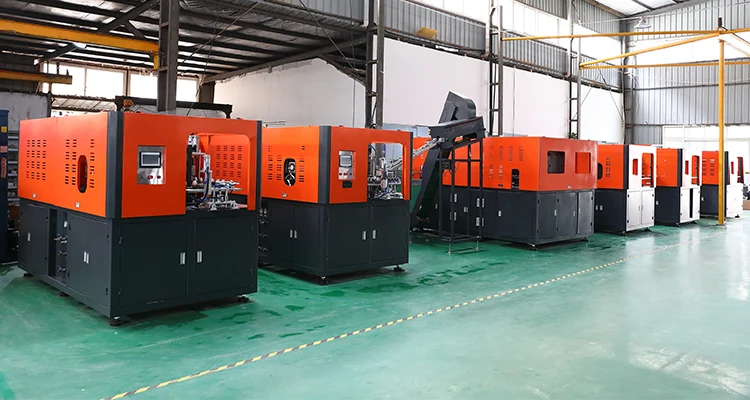

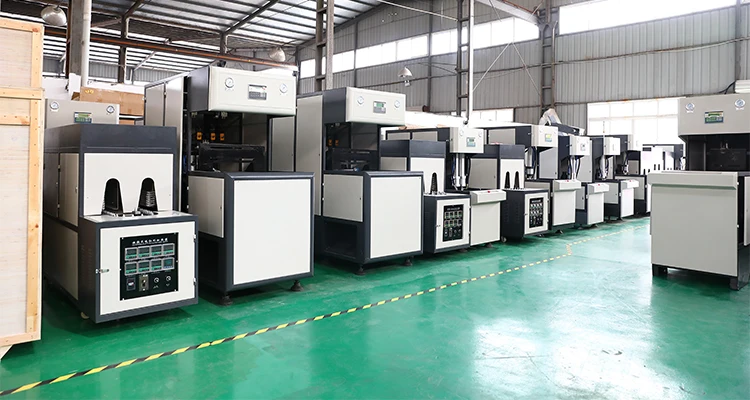

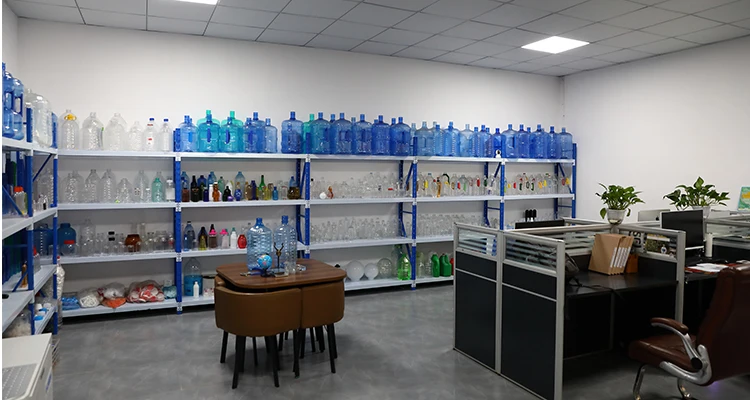

My Factory
