Product Overview
Description
Product Description

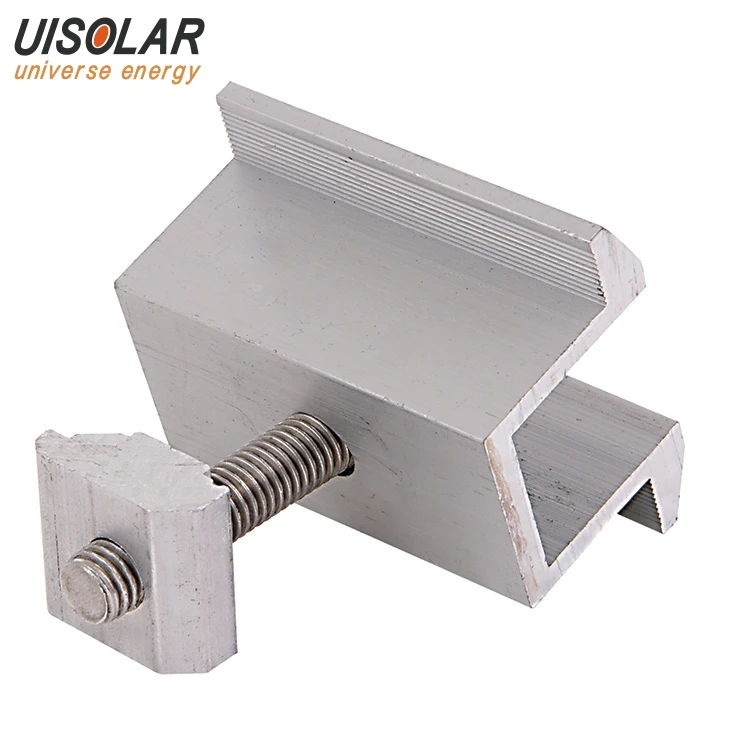

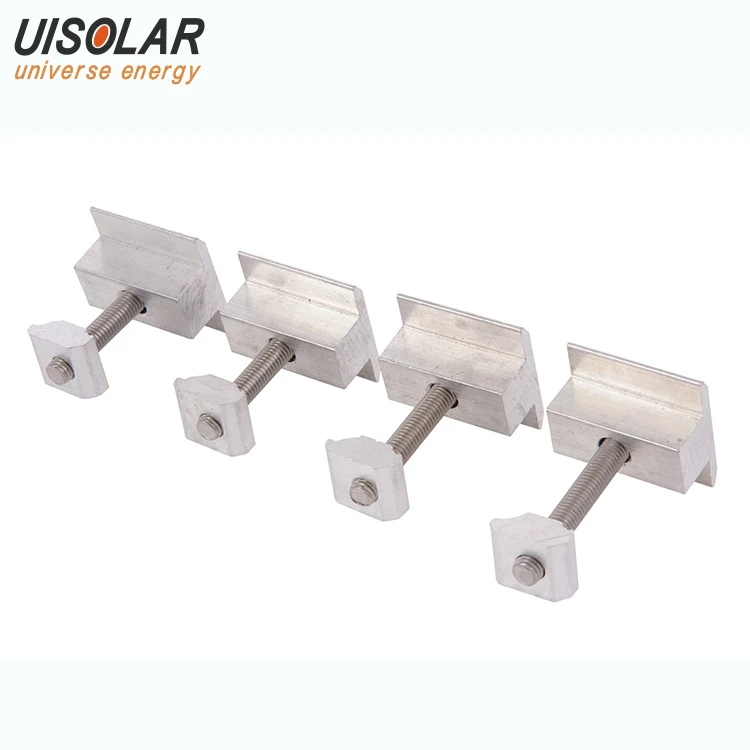

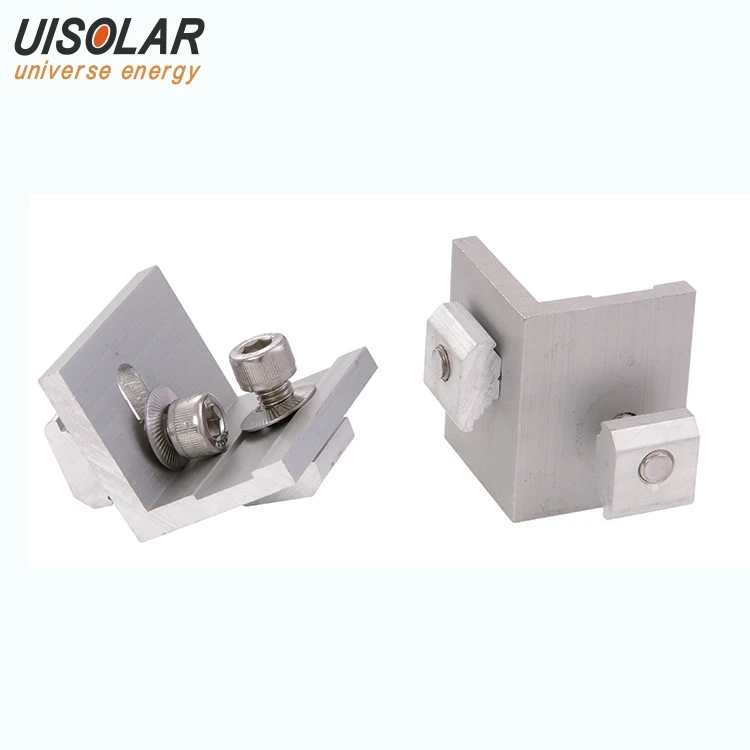

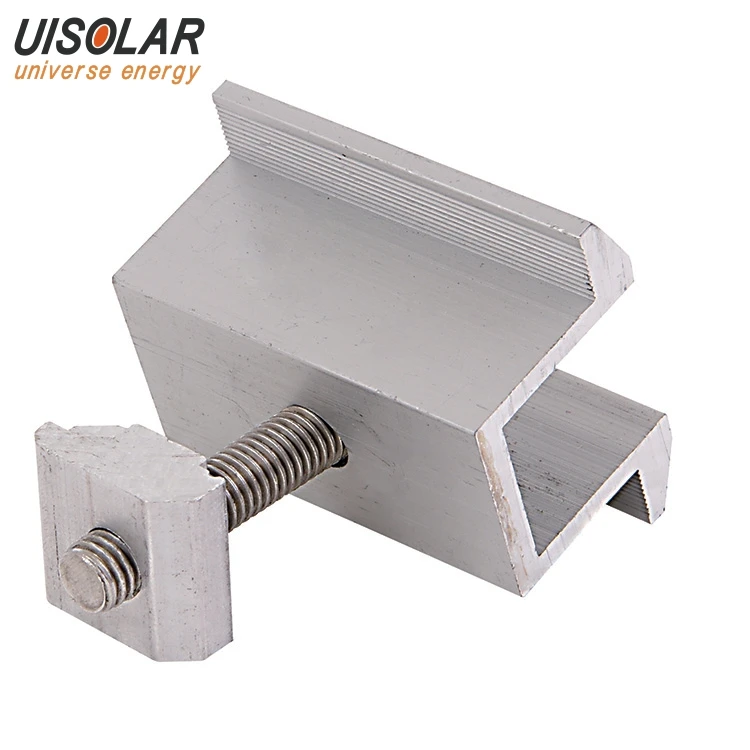

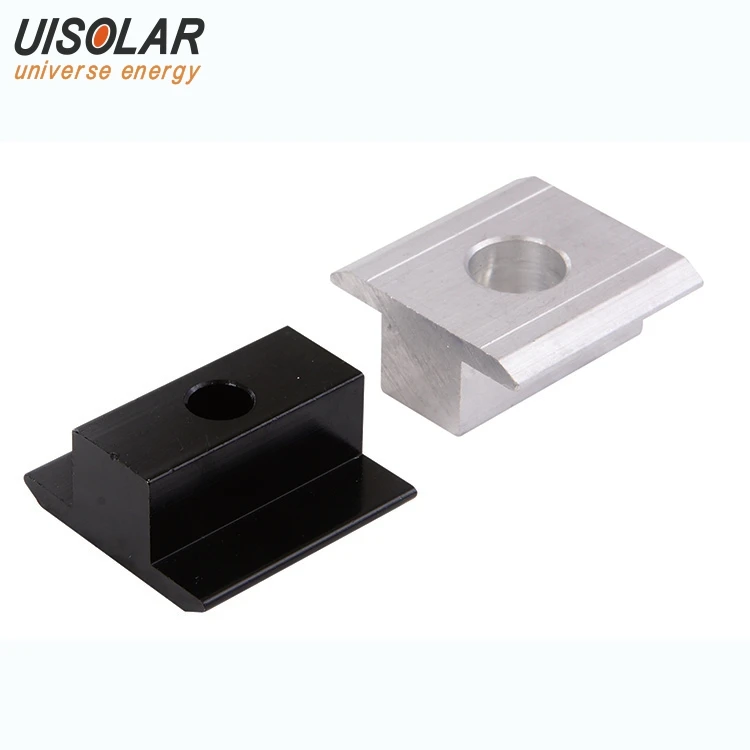

Aluminum mid-clamp and end clamp group,which are applied to 35mm-50mm framed solar panel.With natural siver or black anodized aluminum material 6005-T5. With accurate design, the mid-clamp can make the connection between the panels firmly. Aluminum framed panel clamps for fixing panel on the rail.
| Product Parameter | |
| Product Name | Framed Panel Clamps |
| Installation Site | Solar Mounting Rail |
| Type | Mid Clamp; End Clamp |
| Material | Aluminum 6005-T5 & Sus 304 |
| Color | Silver Or Customized |
| Surface | Anodized |
| Wind Speed | 60m/s |
| Snow Load | 1.4KN/m2 |
| Standard | AS/NZS 1170; JIS C 8955:2011 |
| Warranty | 10 Years |
| Service life | 25 Years |
| Function | Mid Clamps Fix Panel On The Rail In The Inner Part End Clamps Fix Panel On The Rail At The End Of Panel |
| Advantages | Easy Installation; Safety And Reliability; 10-Year Warranty |
| Our Service | OEM / ODM |
