1Hp 2Hp 3Hp Submersible Pump Irrigation Pump solar water pump
- Category: Solar Water Pump >>>
- Supplier: Jiangyin Solar Master Energy Co. Ltd.
Share on (62491282236):
Product Overview
Description
Product Description

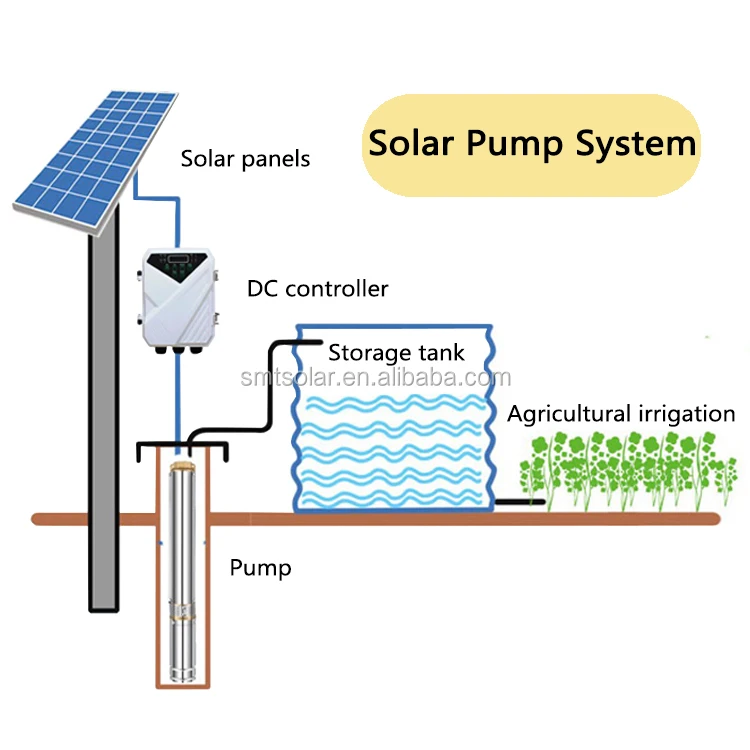

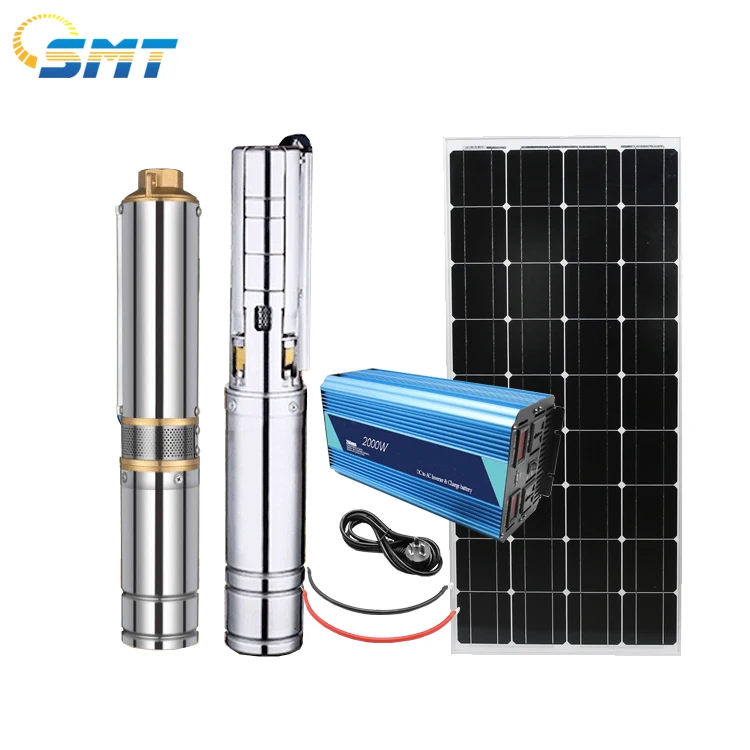

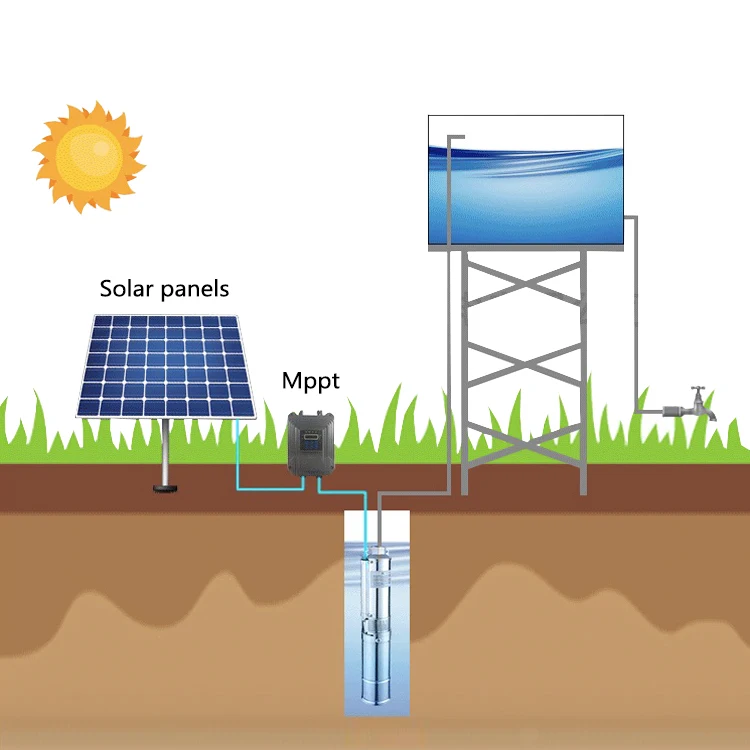

SOLAR WATER PUMP SYSTEM | ||||||
MODEL | SMT 1HP-DC | SMT 2HP-DC | SMT 3HP-DC | |||
280W Mono Solar Panel (Pcs) | 3 | 8 | 10 | |||
DC Disconnect Switch (Pcs) | 1 | 2 | 2 | |||
Solar Pumping Inverter (#/Kw) | 1/0.6 | 1/1.2 | 1/1.8 | |||
Solar Pump (#/Kw) | 1/0.6 | 1/1.1 | 1/1.5 | |||
DC Cable (m) | 100 | 200 | 300 | |||
MC4 Connector (Pair) | 4 PCS | 4 PCS | 8 PCS | |||
Water Level Switch (Pcs) | 1 | |||||
Mounting System | Ground Mounting System For SMT | |||||
PV Tools | Wire Cable Cutter & Stripper,MC3 MC4 CrimperMC4 Connectors Assembly | |||||
Components
SOLAR PANEL
Peak Power Watts:280W , Poly Optional.
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions:1650×992×35 mm
(65.0×39.1×1.38 inches)
Weight:18.6 kg
SOLAR PUMP INVERTER
Inverter Power: 600/1200/1800W
Max. DC Input Voltage: 150/200/200V
MPP Voltage: 60-120VDC/120-160VDC/120-160VDC
Warranty: 3 Years
Wifi Stick, Lan & GPRS Optional.

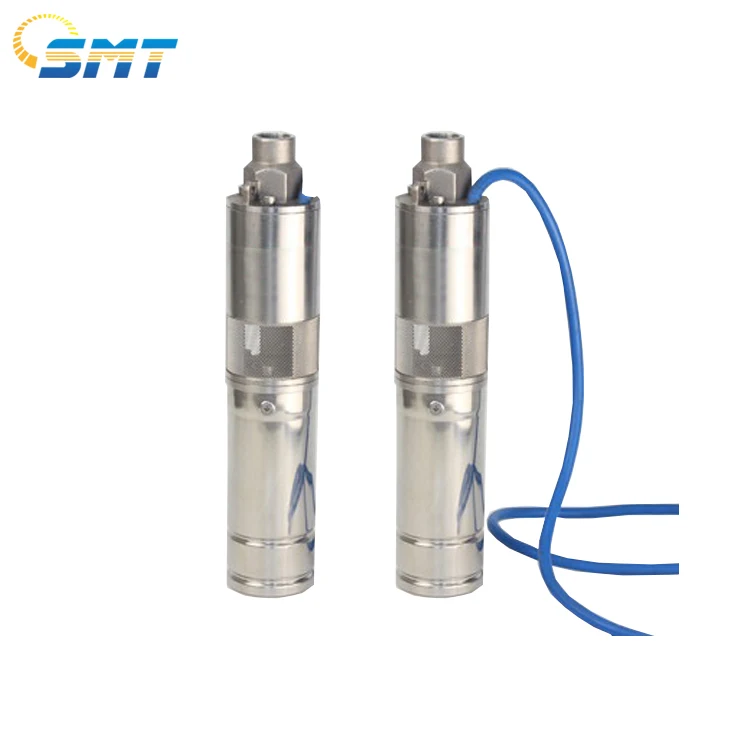

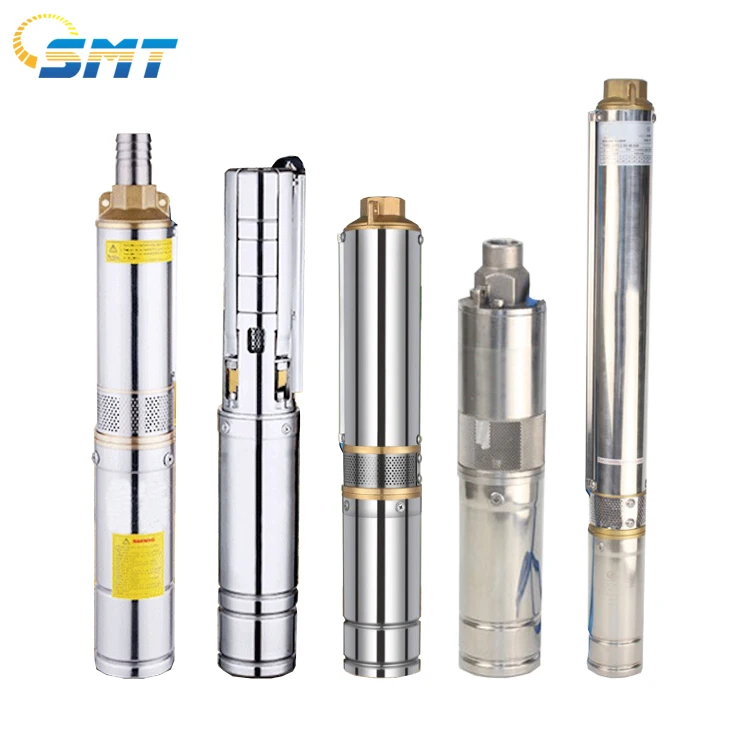

3 Inch DC solar deep well pump | ||
Pump head: | Copper/SS304 | |
Pump body: | SS201(SS304 is avaliable) | |
Impeller: | SS304 | |
Bearing: | NSK Brand | |
Cable: | 3m | |
OIL cooling motor: | permanent magnetic synchronous | |
1.High efficiency because of PMSM | ||
2.MPPT function | ||
3.Intelligent water shortage protection | ||
4.Longer life than normal AC water pump | ||
5.Over-load protechion, under-load protection,lock-rotor protection, thermal proteciton | ||
Related Products
Packing & Delivery
Company Profile
Solar Master Technology (SMT) is one of the leading partially vertically integrated manufacturers, focusing on the research and development of crystalline solar cells, solar panels and mounting systems. It was founded in 2010 with headquarter in Wuxi, China. SMT has the advanced and fully automated production and testing equipment, with each annually production capacity of 400MW, 600MW and 1000MW.
SMT also delivers optimized solar energy solutions to meet the need of industrial, commercial and utility customers all around the world. We can help to develop a tailor-made, personalized concept that fits your needs and energy requirements while considering localized conditions.
