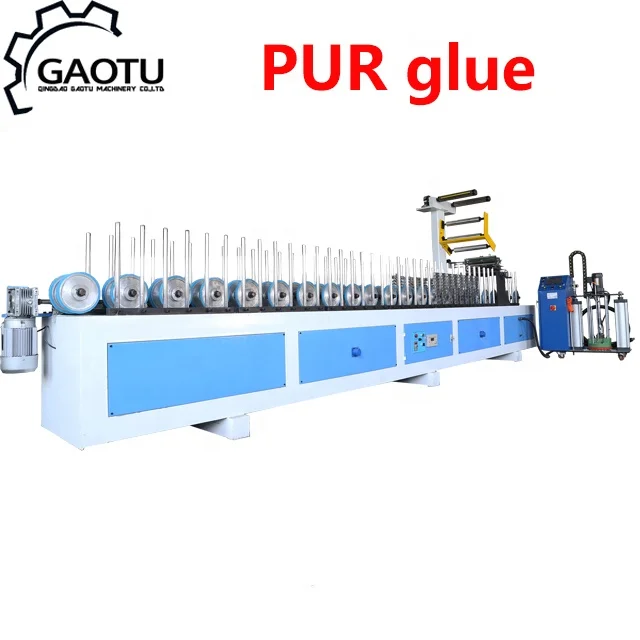

PUR glue profile wrapping machine

Product Overview

Description

PUR profile wrapping machine is special for wrapping decoration moulding line, aluminum workpieces , material surface finishing with leather, PVC, veneer material etc ,this machine have a strong feature of easy operation, laminating rapidly, strong adhesive, no bubbles according to the pieces different shapes, such as angle parts, around ARC, roughness, extruding, complicate shapes, It may offer perfect processing effect for surface of decorative strips with complicated shapes.            PUR Leather profile wrapping machine is suitable for sticking leather,PVC,veneer etc on decorative strip(wpc strips),aluminum profils,and is mainly for different angles,ARC,roughness and the edges to get excellent performance.what's more,PUR glue has the features of anti-aging,anti-UV which makes it to be the top choice for outdoor.PUR glue is a type of solid hot melt glue,called the moisture reactive hot melt adhesive,which is different from traditional hot melt adhesive,contain the chemicals that will be reflected with moisture air when it melted to form a irreversible substance-Unavailable secondary melt.So that the finished products are processed by PUR wrapping machine with the features of weather durable,Protective environment,anti-dissolvent.PUR glue possesses the features of extremely permeability and affinity,PUR laminating machine is suitable for sticking different materials,especially for water-proof sanitary products,high glossy film products and Arcylic products without any wrinkle,bubbles to get the perfect surface.



GT300AF   Specifications
Maximum film covering width			300mm
Maximum process thickness			90mm
Conveying power			1.5kw
Power of the heating gun			800W*8
Conveying roller			23group*2
Pressing roller			104pcs
Conveying speed			0-28 meter/min
Single hole			100pcs
Double hole			100pcs
compression bar			100PCS
Machine size			7000*1250*2250mm
Machine weight			1800KGS

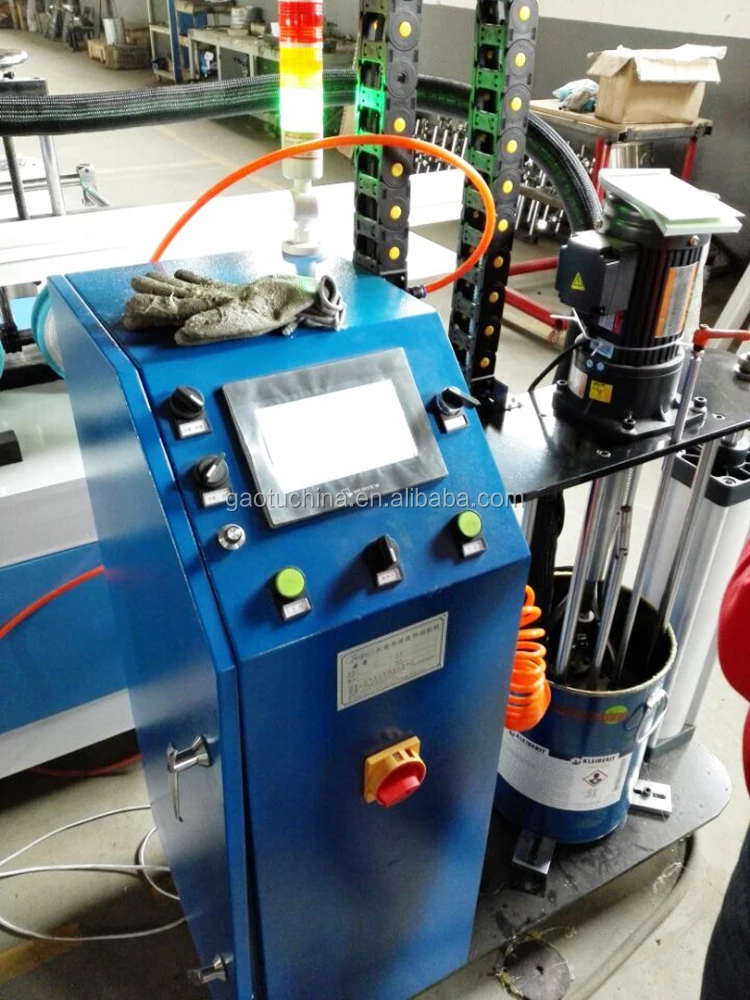

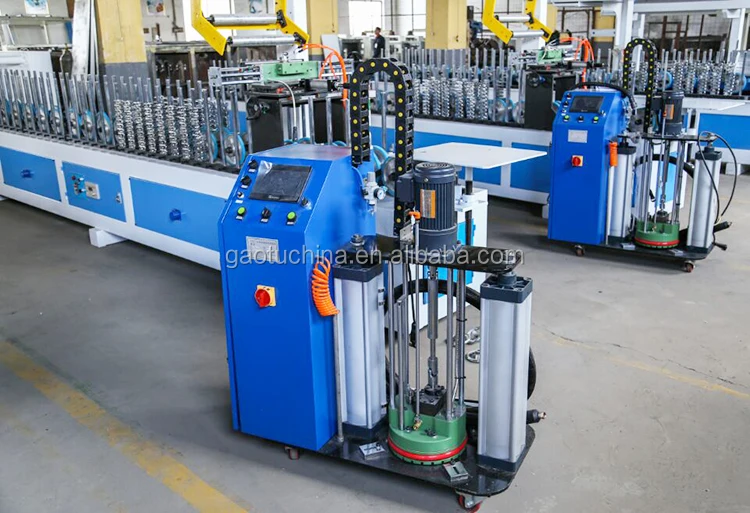

The Hot melt Glue barrel
The specification of glue barrel			20kg /barrel (5 gallon)
Heating power			7.5kw
The max speed of motor			60rmp
Control system			PLC + Touched screen
The inner diameter of barrel			280mm (can be customized )
The working temperature			10-200 degree
Max working pressure			10Mpa
Machine weight			300kg
Temp Accuracy			1 degree
Dimension			1100*500*1500mm
PUR wrapping machine
Applications PUR universal wrapping machine is suitable for sticking leather,PVC,veneer etc on decorative strip(wpc strips),aluminum profils,and is mainly for different angles,ARC,roughness and the edges to get excellent performance.what's more,PUR glue has the features of anti-aging,anti-UV which makes it to be the top choice for outdoor.
Suitable materials
PUR glue is a type of solid hot melt glue,called the moisture reactive hot melt adhesive,which is different from traditional hot melt adhesive,contain the chemicals that will be reflected with moisture air when it melted to form a irreversible substance-Unavailable secondary melt.So that the finished products are processed by PUR wrapping machine with the features of weather durable,Protective environment,anti-dissolvent.PUR glue possesses the features of extremely permeability and affinity,PUR laminating machine is suitable for sticking different materials,especially for water-proof sanitary products,high glossy film products and Arcylic products without any wrinkle,bubbles to get the perfect surface.
