Automatic garage door infrared beam sensor
US $9.00-$9.50
Chain or Belt Drive Rail Track Residential Sectional doors, Tilting doors ZTQ Garage Door Opener
- Category: Garage Door Openers >>>
- Supplier: Shenzhen Zhongtian Door Co. Ltd.
Share on (62491608169):
Product Overview
Description
Product Description

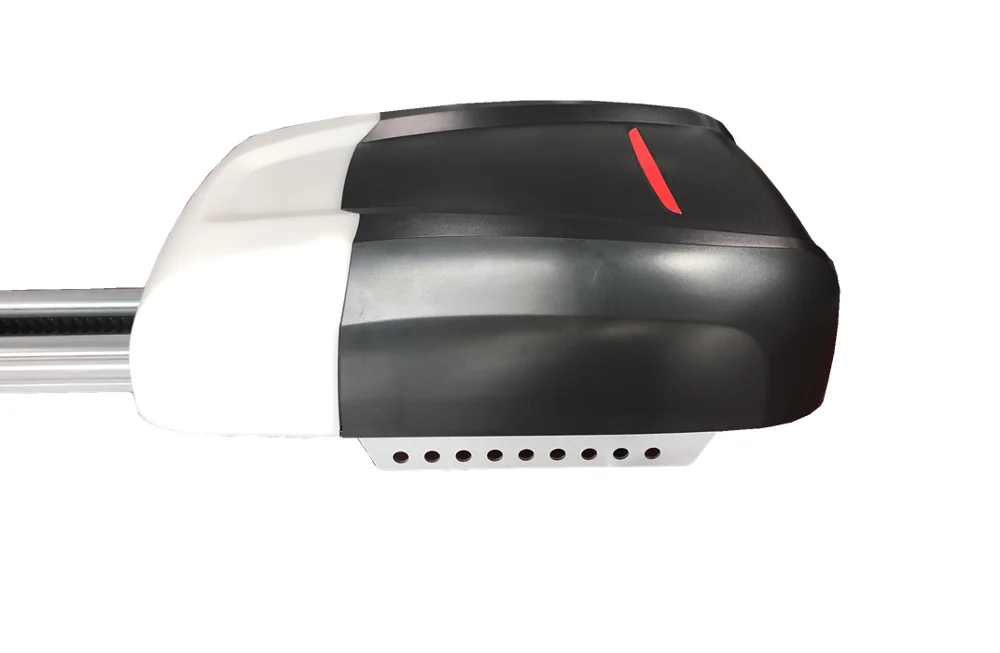

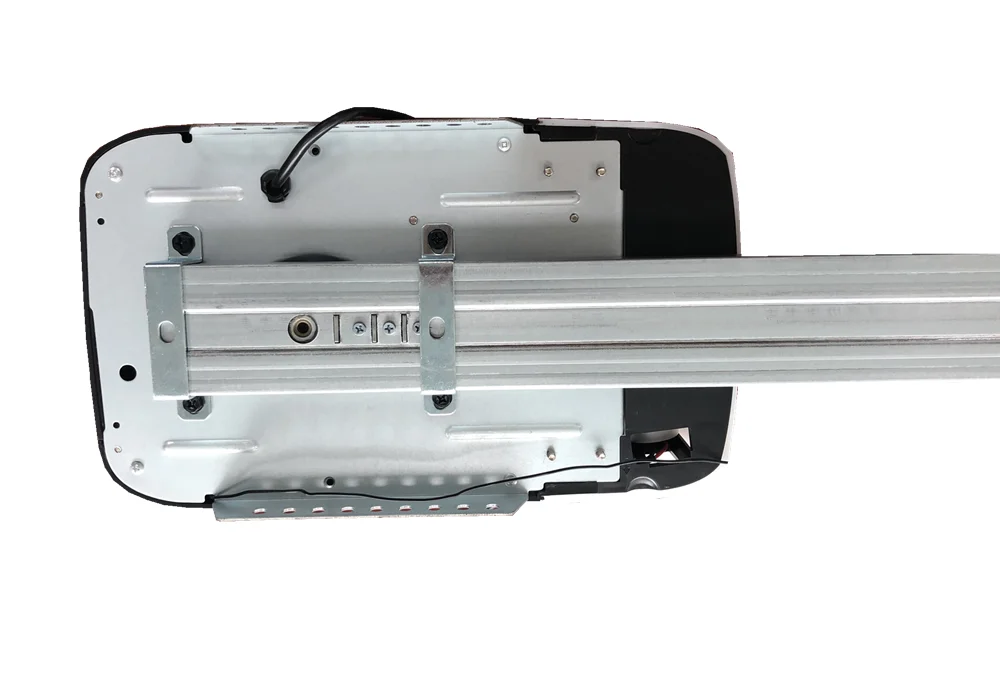

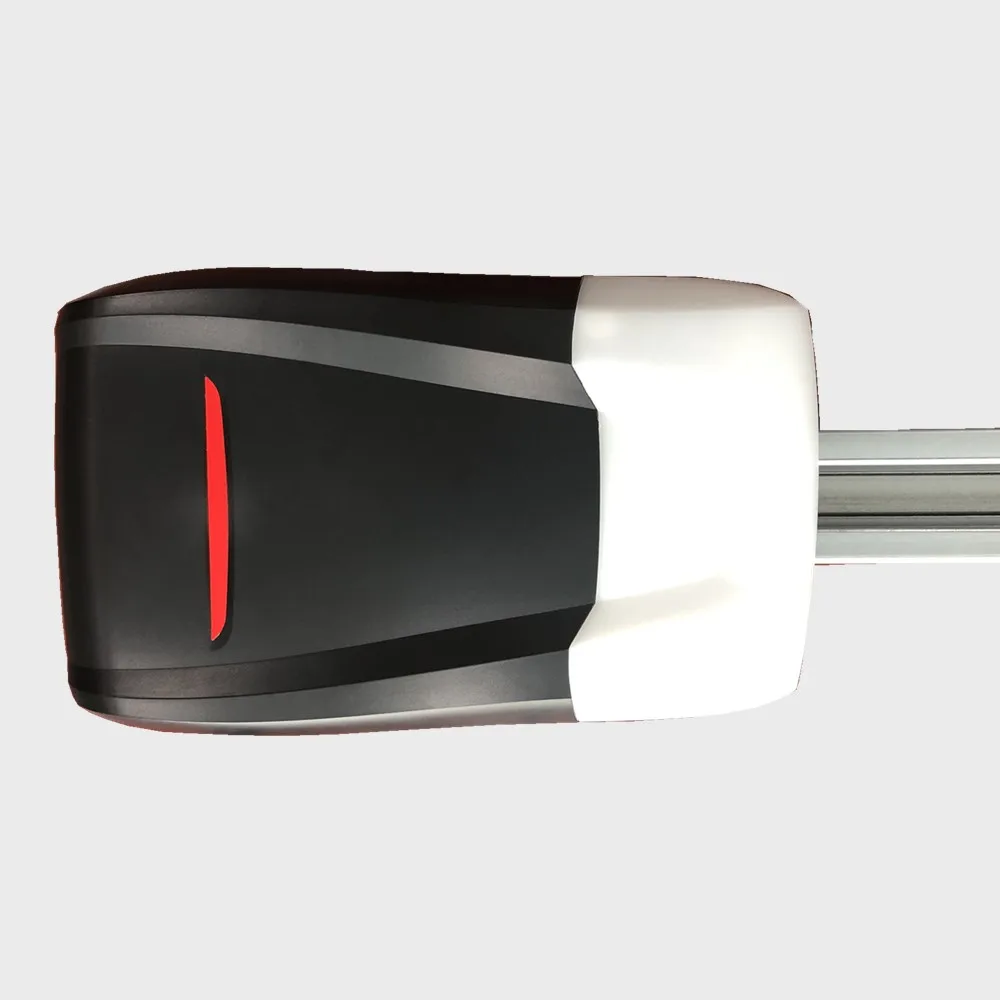

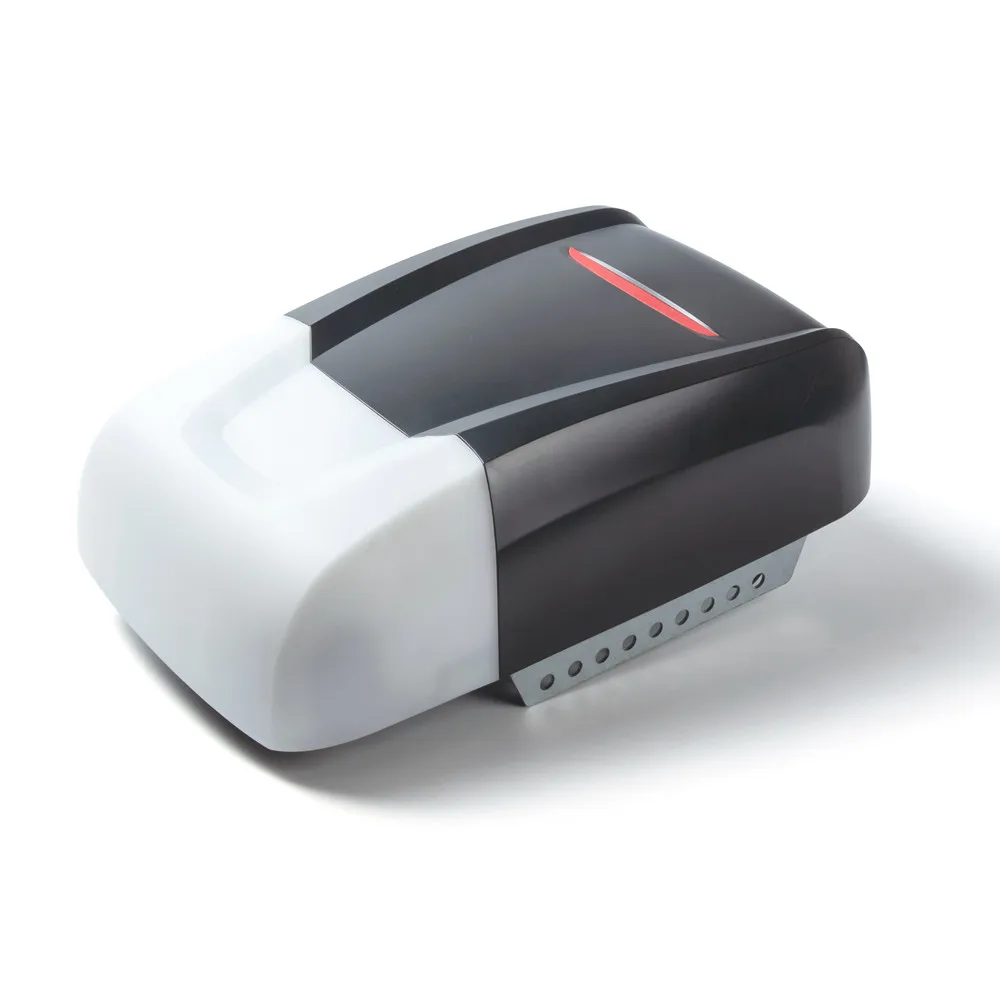

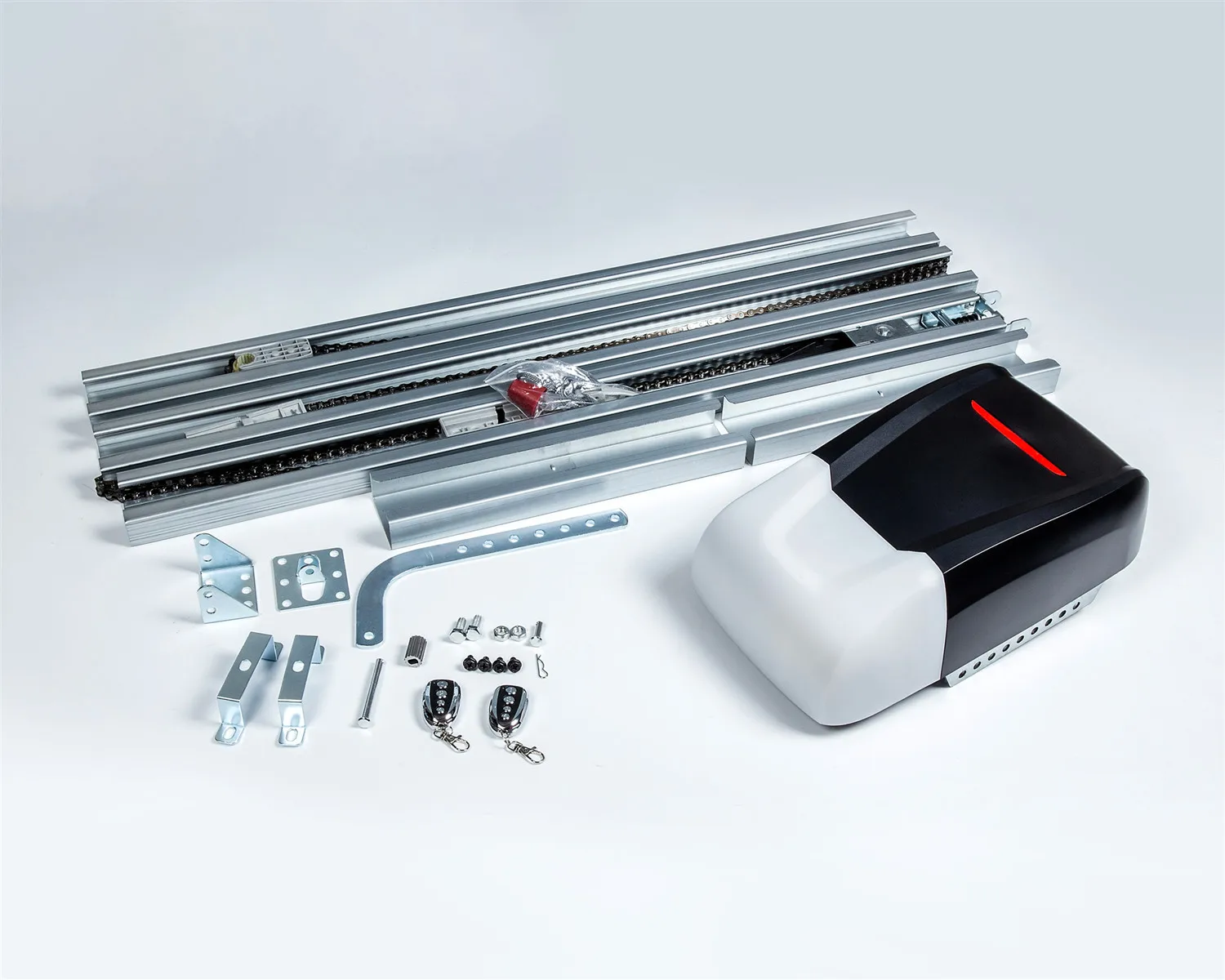

ZTQ garage door opener:
This model of garage door opener is applicable for residential garage doors areas from 12m² to 17m².
The rail drive can be durable chain, or slient belt . Rail length can be customized accordlingly to meet diffferent size of door. The motor(power head) can also compatible for C rail and T rail.
This motor also includes the compatibility of built-in Wi-Fi module, and fast running speed 200mm/s,wth it's reliable quality, it's hotsell in worldwide market.
ZTQ with T-rail
T rail is made of durable cast iron.
Length customized from 3m to 4m.
Belt or Chain drive.
ZTQ with C-rail
C rail is made of Galvanized steel.Length customized from 3m to 4m.
Belt or Chain drive.
Belt or Chain drive.
Details Images
With Fast speed, Wifi module
Fast running speed;
Wi-Fi APP operate garage doors
Metal chassis
Strong and durable
Easy Operation panel
Easy installing, debugging, programming
Product Paramenters
ITEM | ZTQ800 | ZTQ1000 | ZTGD1200 |
Pulling and Push Force | 800N | 1000N | 1200N |
Rated Voltage | AC:110-240V,~50HZ-60HZ | AC:110-240V ~50HZ-60HZ | AC:110-240V ~50HZ-60HZ |
Motor Power | Max 154W | Max 200W | Max 260W |
Apply door area | Max 12m² | Max 15m² | Max 17m² |
Rail Length | 3m, 3.3m, 3.6m, 3.9m | 3m, 3.3m, 3.6m, 3.9m | 3m, 3.3m, 3.6m, 3.9m |
Opener noise | Below 60DB | Below 60DB | Below 60DB |
Running speed | 120, 140, 180, 200mm/s | 120, 140, 180, 200mm/s | 120, 140, 180, 200mm/s |
Remote Distance | 25-35m | 25-35m | 25-35m |
Remote control code | Rolling code | Rolling code | Rolling code |
Remote frequency | 433.92MHZ | 433.92MHZ | 433.92MHZ |
Temperature range | -45℃~+70℃ | -45℃~+70℃ | -45℃~+70℃ |
Product Features
1. Easy installing and programming
2. Soft start and Soft stop
3. Electronic limit setting provides precise door travel
4. Automatic reverse if obstructed during close
5. Automatic force setting
6. Emergency manual release handle
7. Courtesy LED light, turn on when door is activated and turns off automatically 3 mins later
8. Smart Wi-Fi APP control and monitor your garage door from anywhere.
Product Application
Residential sectional doors
Residetial one-piece doors
Optional Accessory
Wireless push botton:
For use inside of the garage or/and room to enable access to the garage
Wireless keypad:
For use outside of the home to enable access to the garage doors
Safety Beam:
o prevent SERIOUS INJURY or DEATH from closing garage door.
Emergency Lock:
For opening door from outside of garage when power off t
Backup Battery:
For use when Power off
Universal receiver:
For use other controllings
Certifications
Company Profile
Shenzhen Zhongtian Door Co., Ltd. is a professional large-scale manufacturer of all types of garage door openers, rolling door openers and DC tular Motor. Our company was established in 2004 in Shenzhen, and we have 16 years of experiences in R&D, Production of kinds of door openers.
Through the efforts of our whole staffs, we have become a leading manufacturer in the industry. We have continuously to make sure product quality, and adopt advanced Production Equipment and Quality testing equipment. Our prodcuts passed certifications such CE, RoHS, FCC, SAA, TUV, SGS.
Our company regards “reasonable prices, efficient production time and good after-sales service” as our tenet. We hope to cooperate with more customers for mutual development and benefits.
Through the efforts of our whole staffs, we have become a leading manufacturer in the industry. We have continuously to make sure product quality, and adopt advanced Production Equipment and Quality testing equipment. Our prodcuts passed certifications such CE, RoHS, FCC, SAA, TUV, SGS.
Our company regards “reasonable prices, efficient production time and good after-sales service” as our tenet. We hope to cooperate with more customers for mutual development and benefits.
High Capacity production line
Skilled workers
Rigorous QC testing
Rail production line
Automatic packaging
Professional sales team
We welcome potential buyers to contact us!
