Product Overview
Description
Main equipment available:6s Vibration Shaking Table Lead Ore Processing Plant
Jigger machine Trommel scrubber
Spiral separator Flotation machine
Centrifugal concentrator Jaw crusher
Mobile trommel small Hammer mill
Fixed trommel Ball mill
Complete alluvial gold line Complete rock gold line
Please CLICK the above items for more information! Full Plant Design is Available for both Rock and Alluvial type minerals.

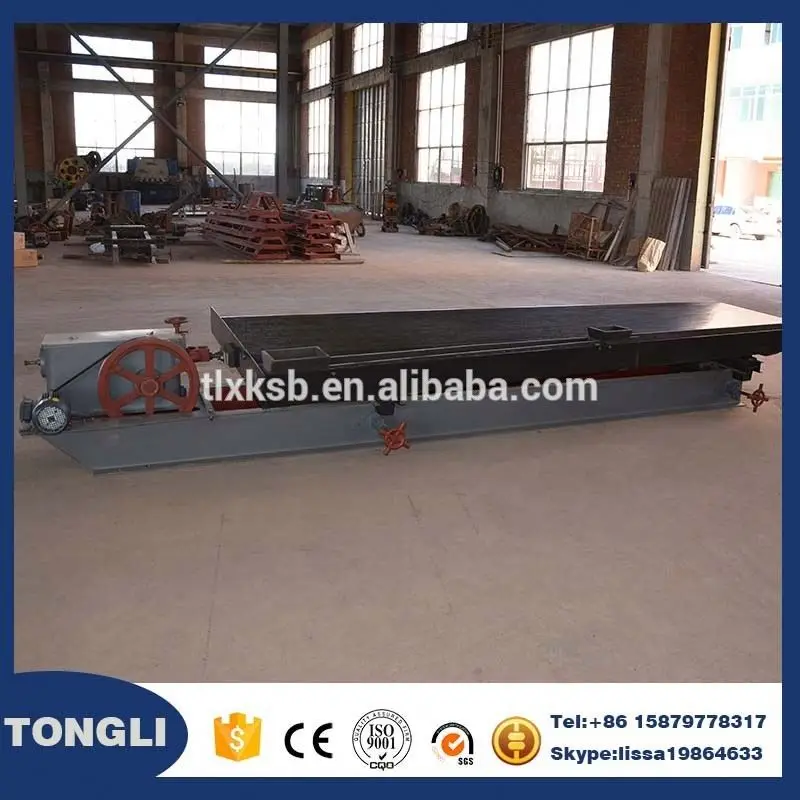

6s Vibration Shaking Table Lead Ore Processing Plant
Product Description

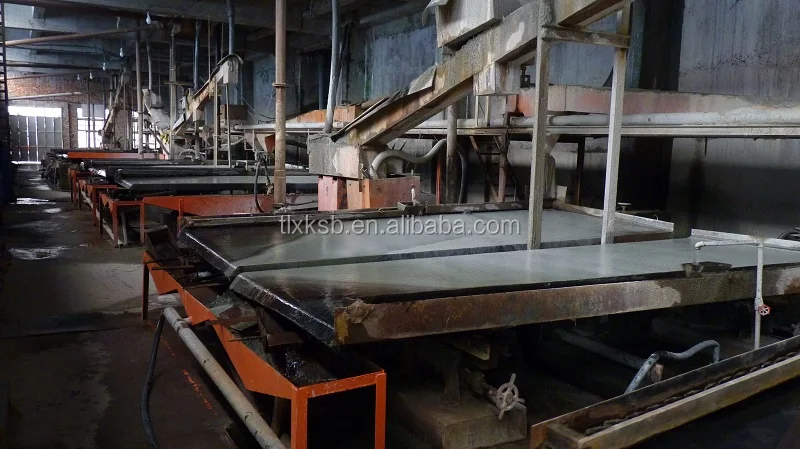

The Shaking Table(Lead Ore Processing Plant ) is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore.Lead Ore Processing Plant
6s Vibration Shaking Table Lead Ore Processing Plant
The Lead Ore Processing Plant is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope s 2-0.22mm. shaking table plant| Technical Specification | |||||
| Model | LS4500 | LY3000 | LY2100 | LY1100 | |
| Deck size | mm | 4500*1850*1560 | 3000*1620*1100 | 2100*1050*850 | 1100*500*430 |
| Feeding size | sand ore | -2 | -2 | -2 | -2 |
| slime ore | -0.074 | -0.1 | -0.074 | -0.074 | |
| Capacity (t/h) | sand ore | 0.5-1.8 | 0.7-1.5 | 0.4-0.8 | 0.1-0.2 |
| slime ore | 0.5-0.8 | 0.4-1 | 0.3-0.5 | 0.05-0.1 | |
| Motor power | kw | 1.1 | 1.1 | 1.1 | 0.55 |
| Dimension | mm | 5600*1850*860 | 4075*1320*780 | 3040*1050*1020 | 1530*500*800 |

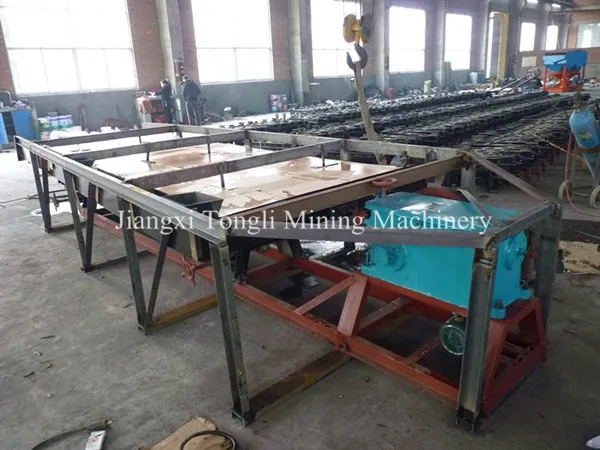

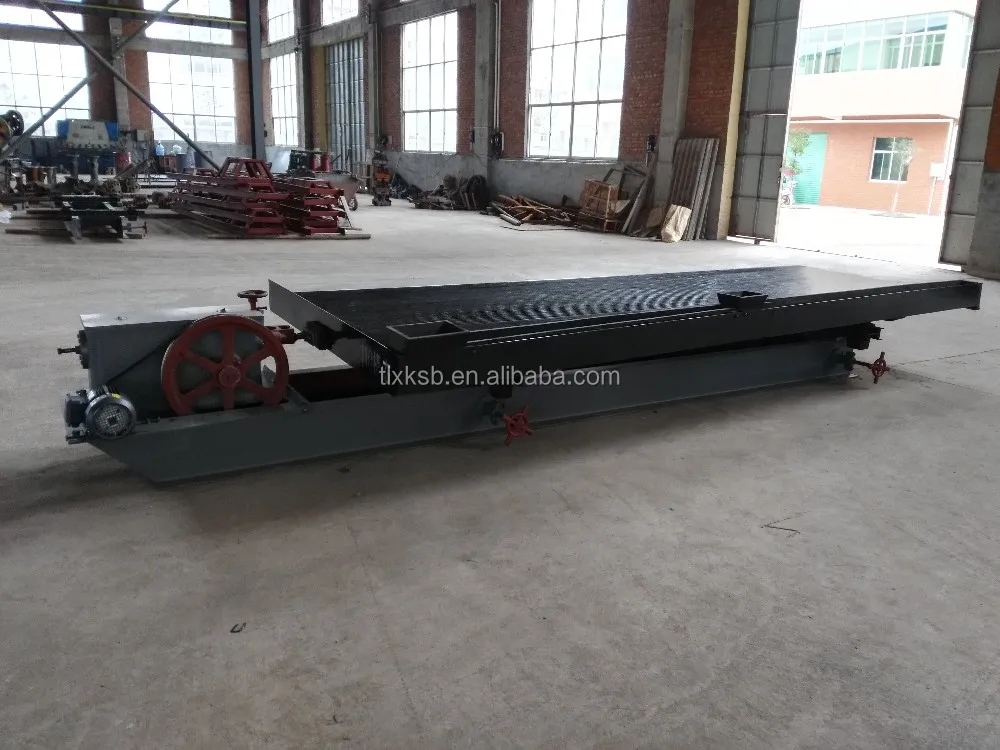

1.Big channel support shaking table ---28#channel support
6s Vibration Shaking Table Lead Ore Processing Plant

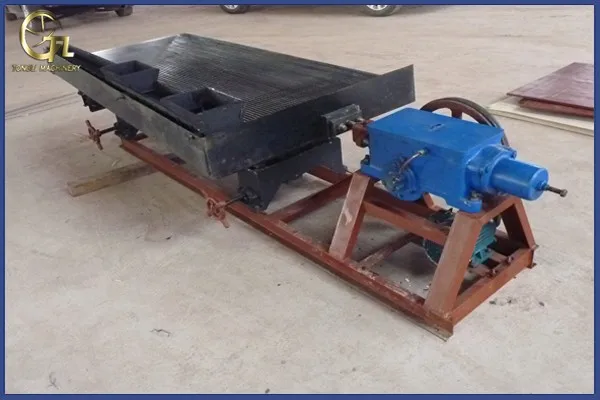

2.Small channel support shaking table---10# channel support
6s Vibration Shaking Table Lead Ore Processing Plant
3.Small channel support shaking table---10# channel support
6s Vibration Shaking Table Lead Ore Processing Plant
Main Features Lead Ore Processing Plant

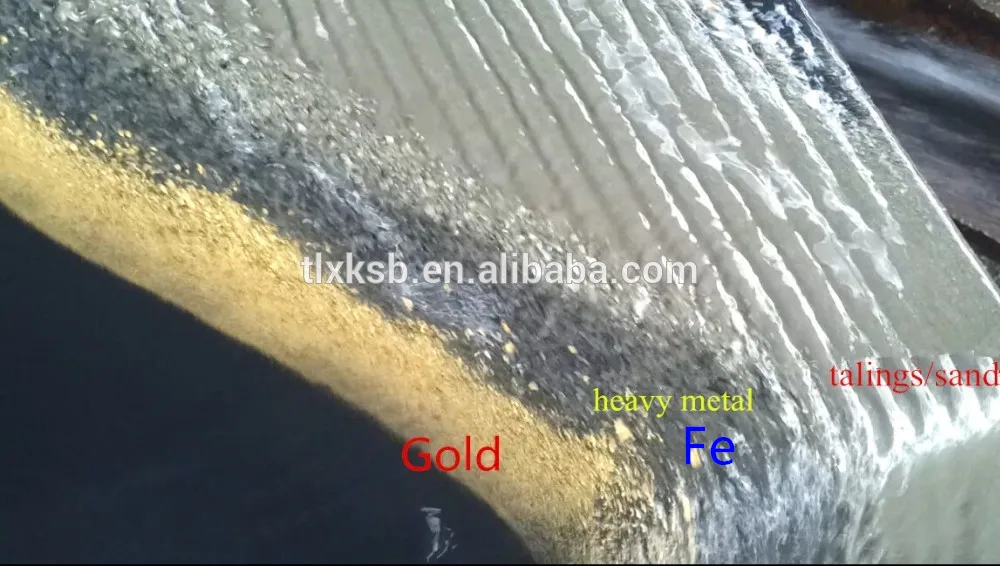

1) High separation accuracy. It can get final concentrates, middling, and tailing only for one time separation of the raw ore.Lead Ore Processing Plant
6s Vibration Shaking Table Lead Ore Processing Plant
2) High concentration ratio.small gold mining plant
6s Vibration Shaking Table Lead Ore Processing Plant
3) High separation efficiency.Lead Ore Processing Plant
6s Vibration Shaking Table Lead Ore Processing Plant
4) Easier safeguard shaking table plant
6s Vibration Shaking Table Lead Ore Processing Plant
5) The frequency stroke is easier to be adjusted.small gold mining plant
Structure Lead Ore Processing Plant
The gold shaking table is main composed of driving device, table, slope adjustor, ore bin, water bin, and the support frame.shaking table plant
| Detail Imagee |
6s Vibration Shaking Table Lead Ore Processing Plant

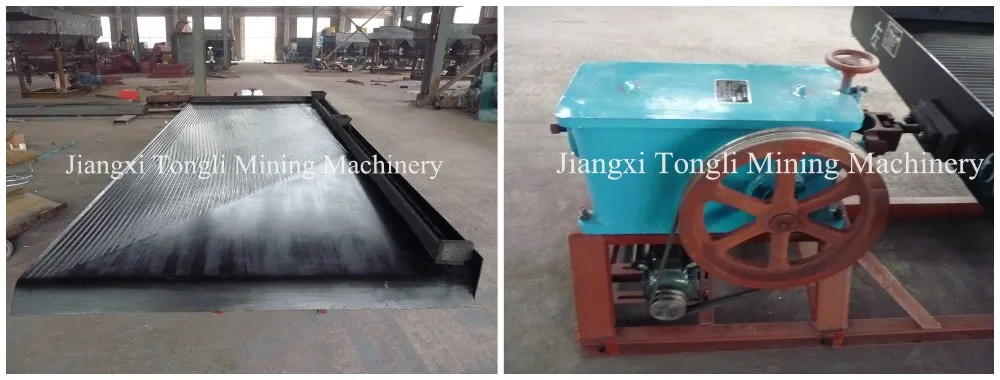

Name: Deck / Table gold shaking table Tongli are 3 different deck designs available:
(1) Thecoarse oredeck for 0.5 mm to 2 mm;
(2) Thefine sanddeck for 0.074 mm to 0.5 mm;
(3) Theslime deckfor 0.05 mm to 0.074 mm. | Name: Head motion / Driving device gold shaking table gold shaking table is furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum.gold shaker table It is one of the most important part of shaking table |

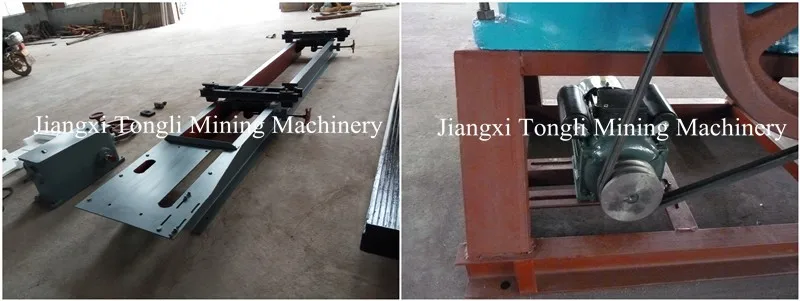

Name: Support device gold shaking table Tongli mainly have 3 supporting device: #28 channel steel type support #10 channel steel type support #8 channel steel type support | Name: Motor engine gold shaking table The motor engine for our godl shaker table is the type which is specially applied for export and which is with high quality.table separator It is different from the one for domestic market. Siemens motors are available |
6s Vibration Shaking Table Lead Ore Processing Plant

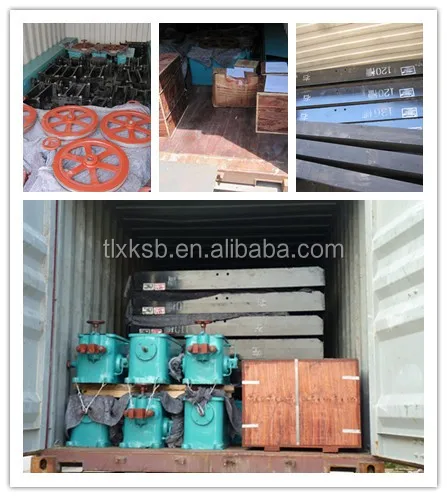

Packaging & Shipping

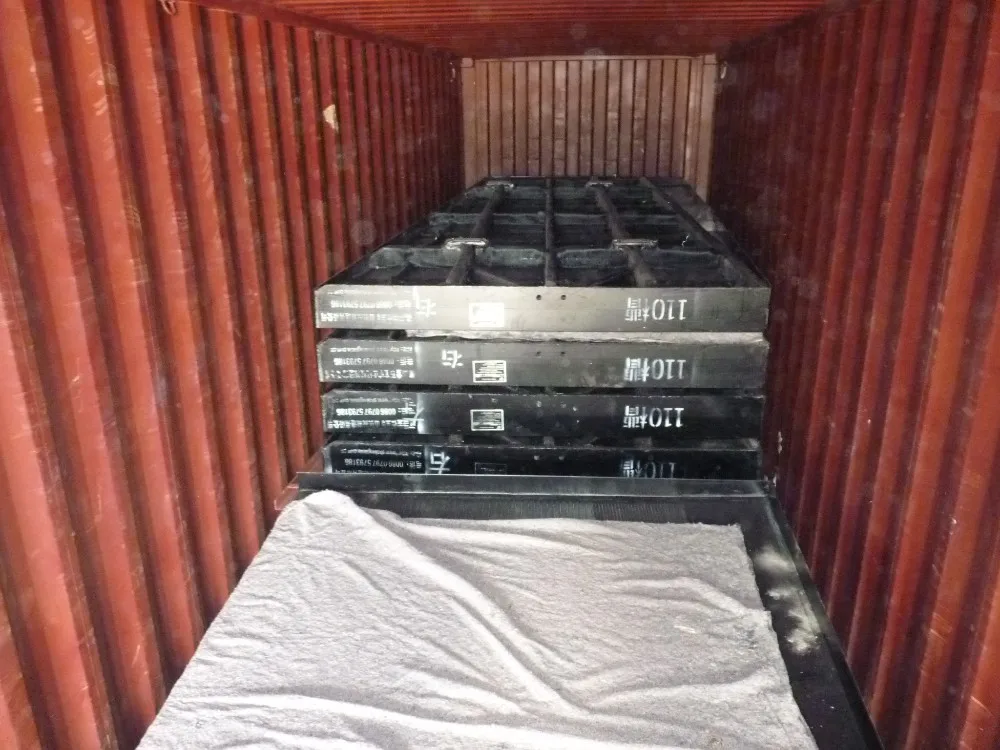

LCL shipmentof shaking table Pack after assemble
For single set, the shaking table is usually packed in steel frame after assemble. |  |

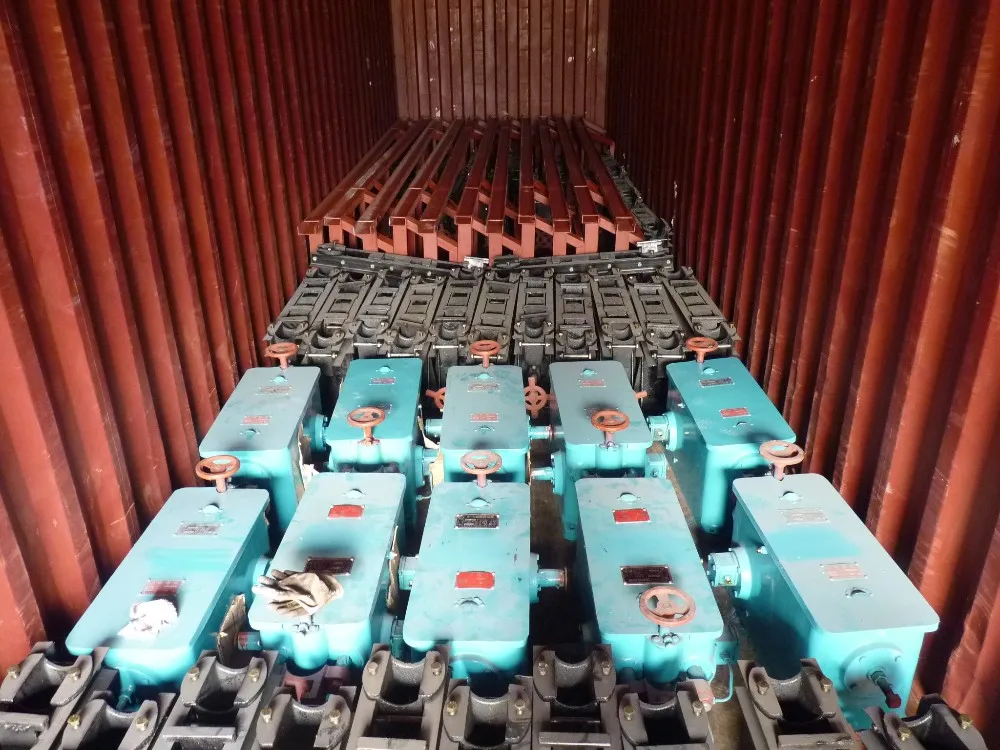

FCL shipment of gold shaking table Pack after assemble
For several sets.be sent out by 20/40 container.don't have package6s Vibration Shaking Table Lead Ore Processing Plant |  |
About Us
 | Jiangxi Tongli Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 15 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on. |
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1. Are you a trade company or a manufacturer?
A: We are an ISO9001:2008 and CE verified manufacturer specialized in various kinds of mining equipment as well as mining technology. OEM & ODM service are available.
2. What is your delivery time?
A: The delivery time is about 7-20 days after receipt of payment.
3. What is the payment terms?
A: The payment term is 45% payment in advance, 55% balance before shipment.
4. Why choose you as supplier?
1). High quality & most competitive price
We are a factory who could provide the lowest price to you.
We are top 10 and with more than 15 years experiences in mining equipment.
2). Fast delivery--Goods will be shipped within 7 - 30 days based on order quantity.
3). Best service--Overseas customers can enjoy 24/7 after-sale service and dispatching service
4). 3D & CAD flow chart desig
Welcome to sent inquiry and welcome to visit our factory!
