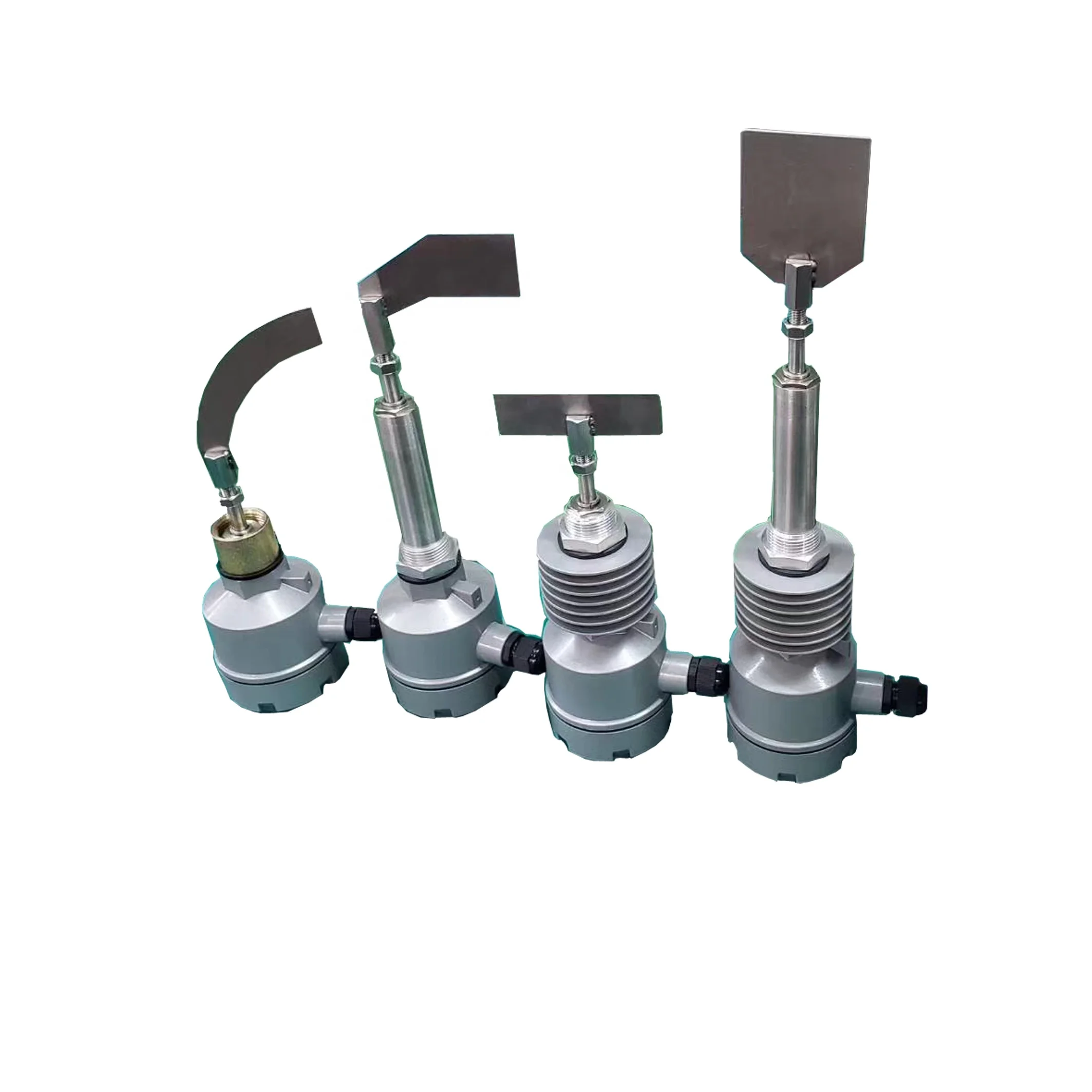

Rotary Paddle switch is basically used for solid level measurements. Typically in measuring level of powdered or grannular substance in the tank.During normal operation (no material present) a synchronous motor rotates the paddle at 1 RPM. When this paddle rotation is impeded by material, surrounding the paddle, motor will stall and cause the Micro-switch to change state.
Contact Capacity: 250VAC/5A(Resistive Load),SPDT
Working Temperature -30-80℃ or≥200℃ Power: 3W
Rotating Torque: 1N.m Paddle
material: SUS304
Protection Grade: IP65
Wire Outlet:M20*1.5
Specific Gravity of the Applicable Medium:≥0.4g/cm3

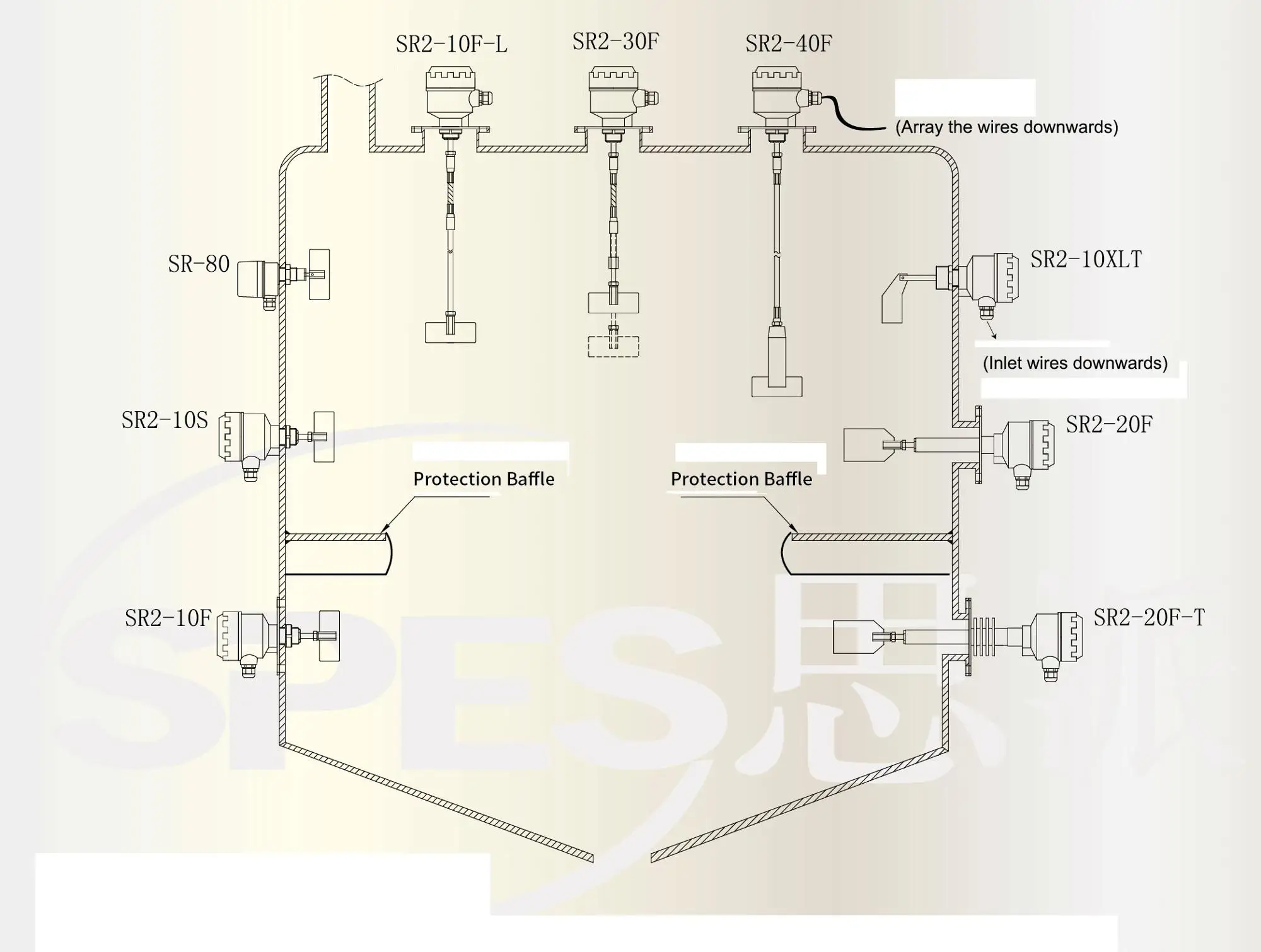

Direction for use
使用说明
please confirm the power supply before installation to avoid damage to the motor
Do not install under the inlet to avoid material impact
during horizontal installation, please keep the wire inlet downward
,during the vertical installation,please keep the external wires downward and fasten
the inlet connector and the upper cover of the junction box to avoid the infiltraiton of rainwater and other substances
so as to guarantee normal operation.
during vertical installation, the level switch can be titled down horizontall at 15-20to reduce material accumulation
when the rotary paddle level switch is installed at a low level in a large container, please install a protection baffle
