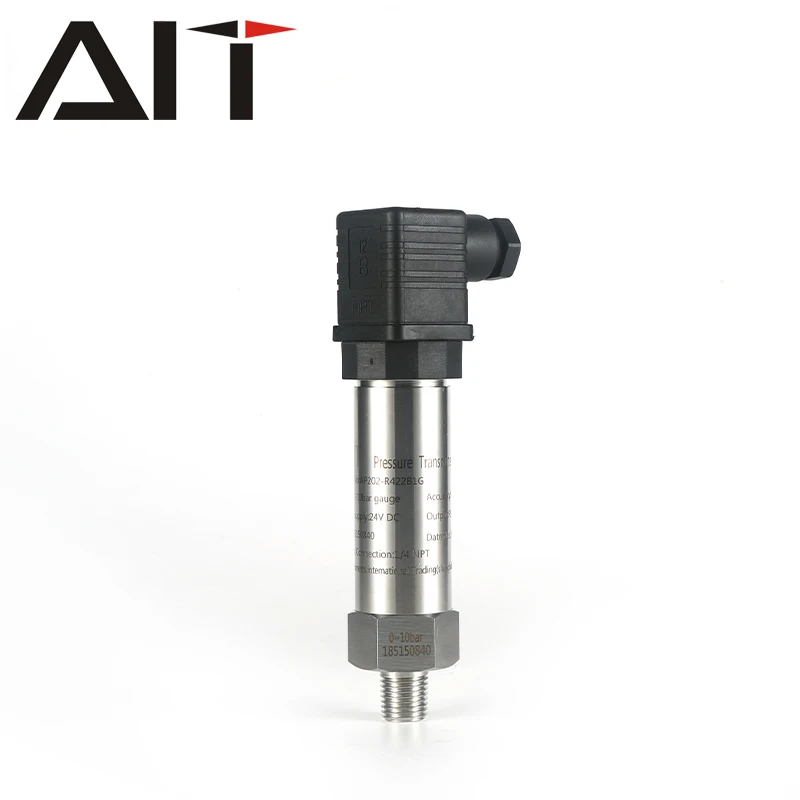

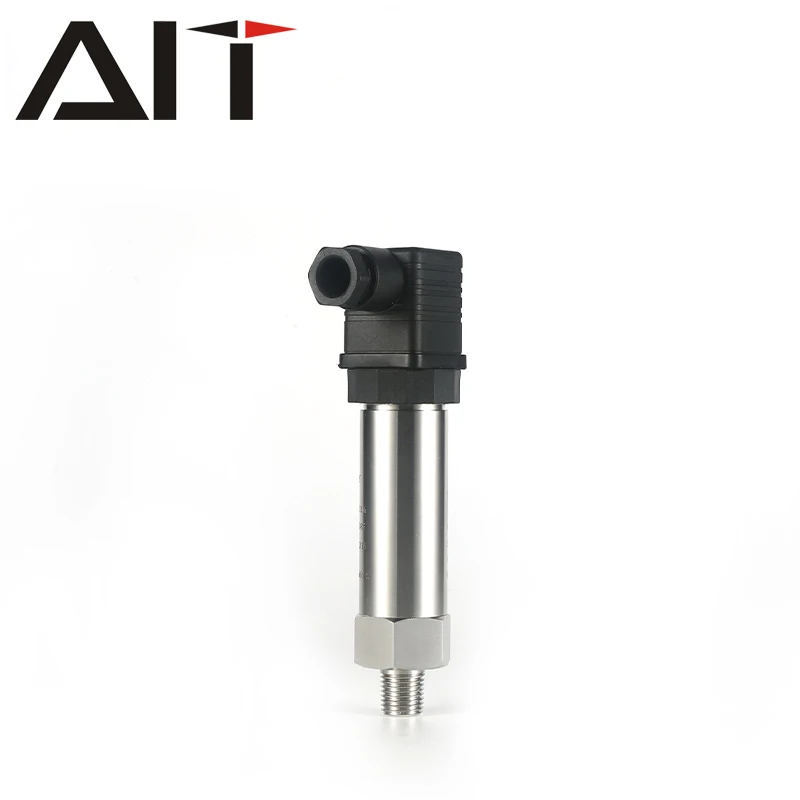

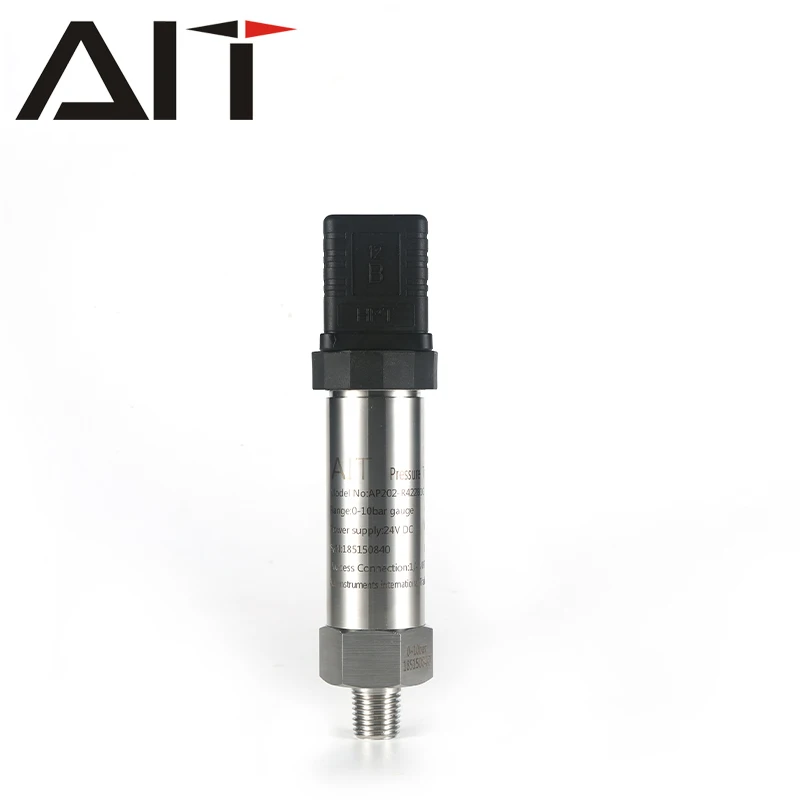

Digital 0.1% 0.5% Accuracy Ex proof Pressure Sensor China Dp Pressure Transmitter for Sewage Water Treatment
Digital 0.1% 0.5% Accuracy Ex-proof Pressure Sensor China Dp Pressure Transmitter for Sewage Water Treatment
Digital 0.1% 0.5% Accuracy Ex-proof Pressure Sensor China Dp Pressure Transmitter for Sewage Water Treatment
Digital 0.1% 0.5% Accuracy Ex-proof Pressure Sensor China Dp Pressure Transmitter for Sewage Water Treatment
Digital 0.1% 0.5% Accuracy Ex-proof Pressure Sensor China Dp Pressure Transmitter for Sewage Water Treatment
Digital 0.1% 0.5% Accuracy Ex-proof Pressure Sensor China Dp Pressure Transmitter for Sewage Water Treatment
Digital 0.1% 0.5% Accuracy Ex-proof Pressure Sensor China Dp Pressure Transmitter for Sewage Water Treatment

Digital 0.1% 0.5% Accuracy Ex proof Pressure Sensor China Dp Pressure Transmitter for Sewage Water Treatment

Share on (62494462387):


Price:$25.00 - $32.00

Quantity:


Product Overview

Description



china digital 420ma pneumatic high smart differential water pressure transmitter price


Main Products Display

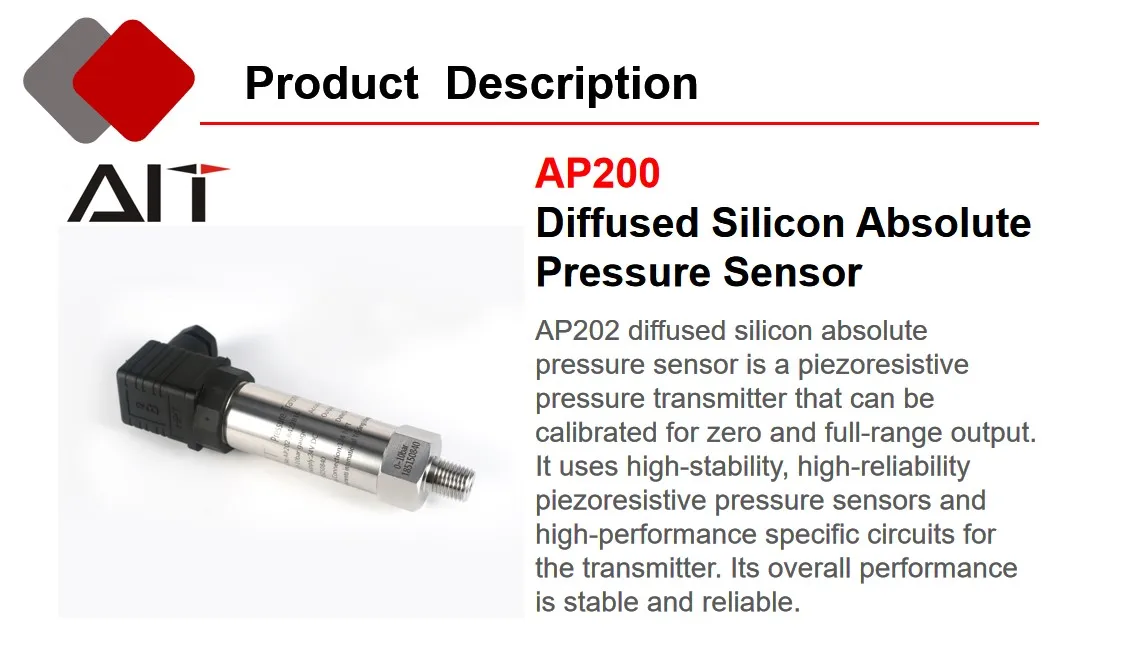

Product Description



The RP202 pressure transmitter is designed for applications such as air conditioning refrigeration and water treatment control equipment, such as booster pumps, air compressors and air conditioning systems. It is also suitable for a variety of other industrial applications, with a variety of structural forms and diverse output formats. A variety of pressure connections to meet most application requirements. Compact, especially suitable for installation in tight spaces.





    Qualified Chinese original manufacturer that exported  pressure transmitters to overseas markets (EURO,AMERICA,ASIA)    more than 200,000+ sets.


Enough Experience on local applications for overseas markets

     Meet your toughest environmental conditions with -45℃ working LED display (Option), Customerized color of Housing,  Special manual with local language, technical support for OEM,ODM coopertion,etc.

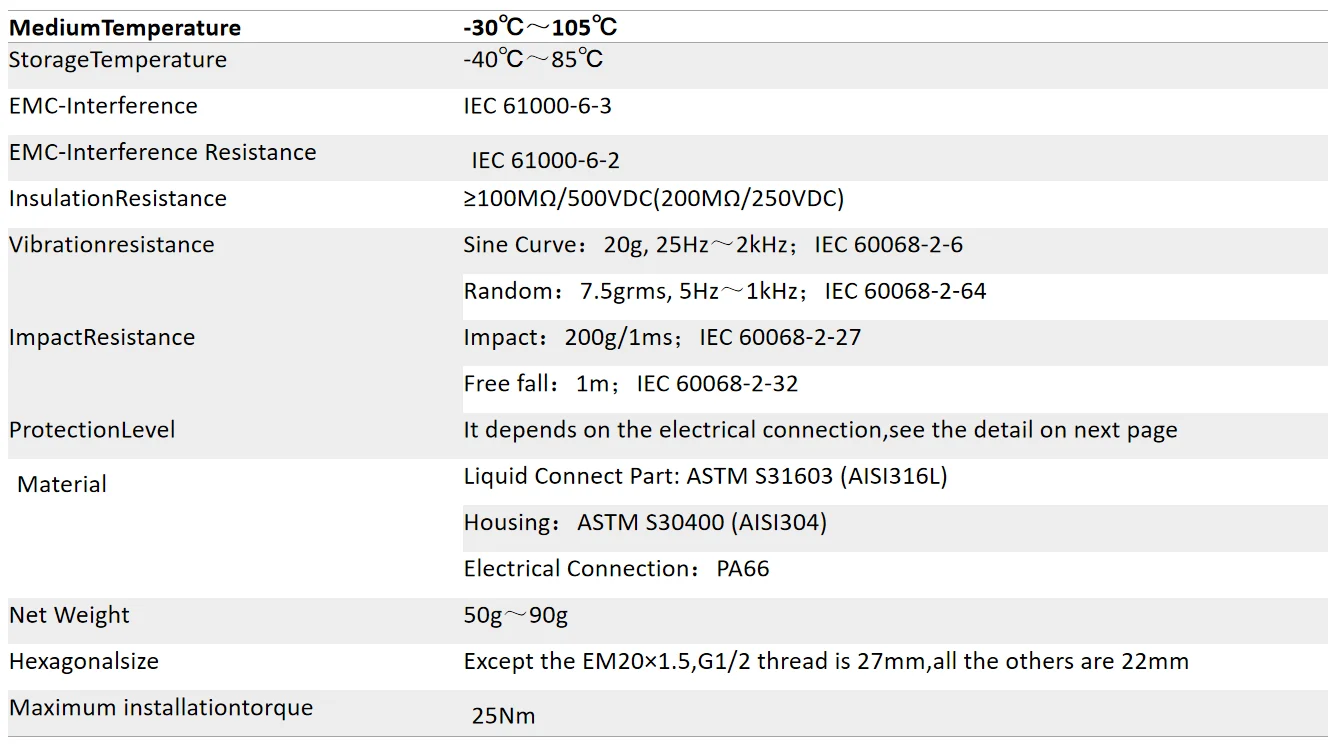

Performance Specifications


Range
-100kPa--0~6kPa--60MPa
pressure type
gauge
absolute
seal
Power supply
24VDC
5VDC
Output
4-20ma, 0-10V ,  485RTU
1-5V,  0-5V, 0.5-4.5V
Precision level
0.1
0.25
0.5
Temperature coefficient
0.1%FS10℃
0.2%FS10℃
0.25%FS10℃
Temperature influence
0.2%FS（-20--65℃）
0.5%FS（-20--65℃）
1%FS（-20--65℃）

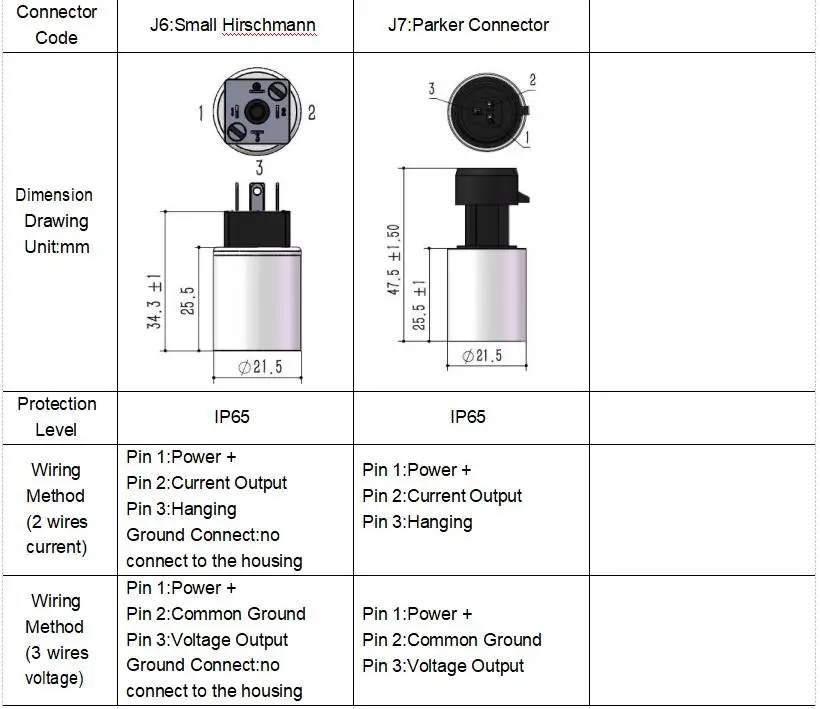

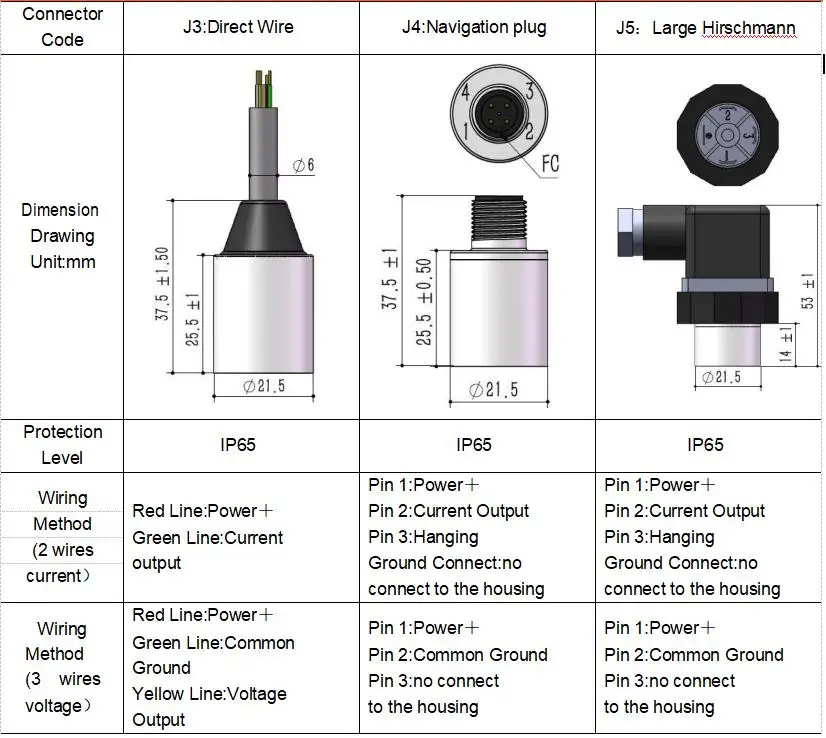

Electrical connection
Direct Lead, M12 Navigation plug,Hirschmann, Parker Connector, Customization

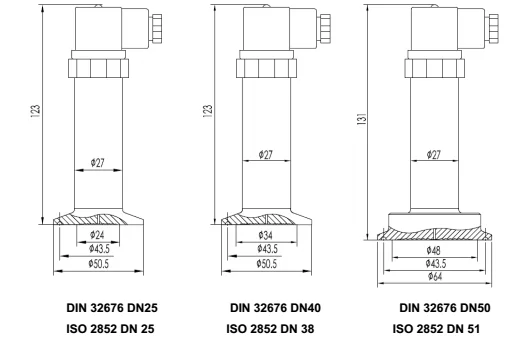

Process connection
G1/8(M), G1/4(M),G1/2(M),NPT1/8(M),NPT1/2(M),NPT1/4(M),M20*1.5(M) Flat diaphragm customization
Diaphragm material
stainless steel 316
Hastelloy C
customization
Explosion-proof performance
Exd II BT 4(optional), only suitable for Direct Lead electrical connection
Ambient temperature
-20℃~80℃
Ambient temperature
-30℃~100℃
Ambient temperature
-40℃~80℃
Degrees of protection
IP65
Insulation resistance
>100MQ/500VDC

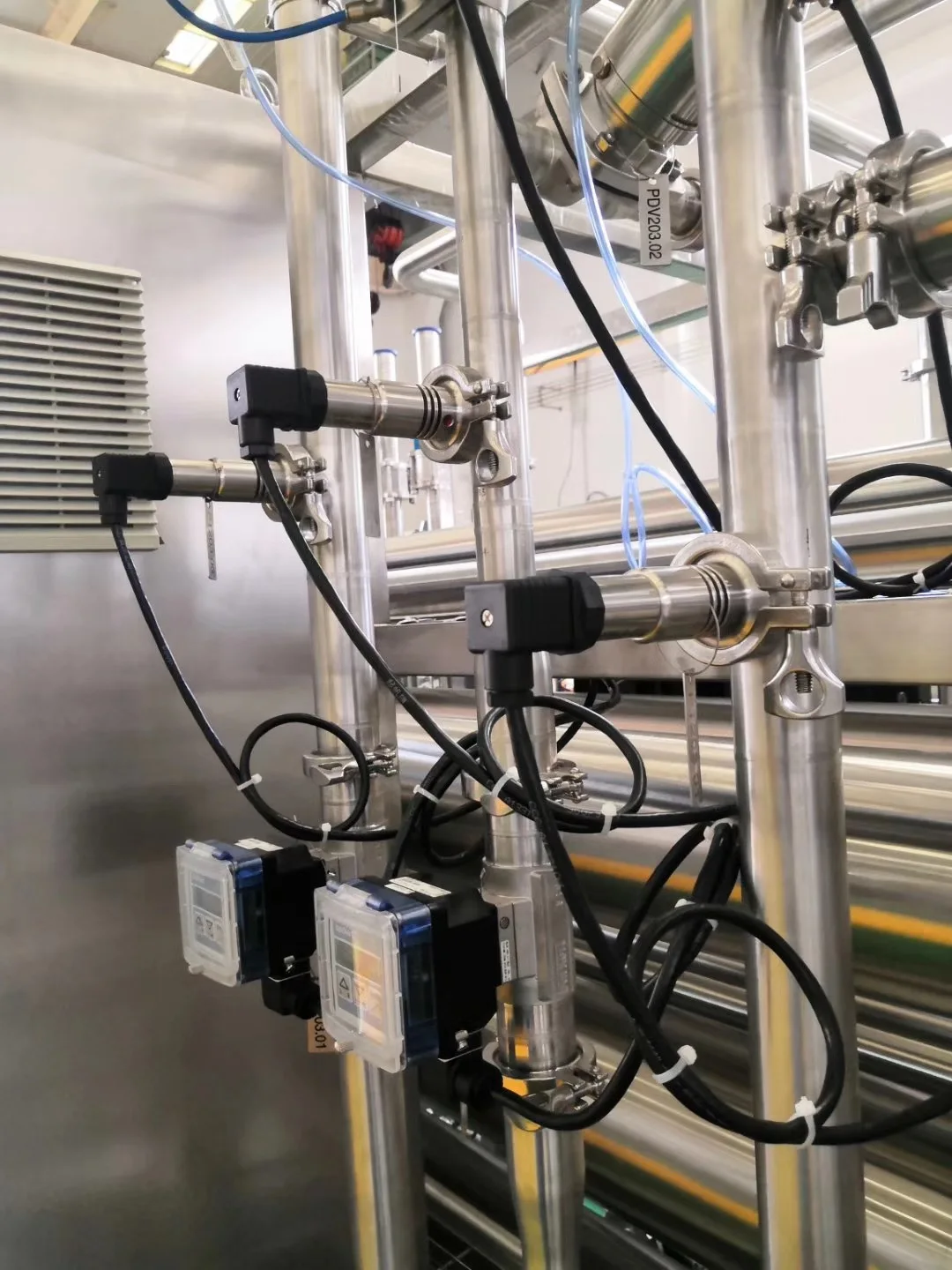

Detailed Images








Company Profile






All-Instruments International Trading (Shanghai) Co.,Ltd widely supports pressure tansmitter,pressure sensors, fowmeters, analyzers and other agent instuments for world wide  clients in Middle East, North America, South America, Southeast Asia, Europe, South Africa etc. countries and regions clients.




Exhibition





Russia, South Korea, the United States, Italy,
Germany, the Netherlands, Singapore, Malaysia,
India, Morocco, etc.

Overseas sales accounted for approximately 40% of total sales revenue。
