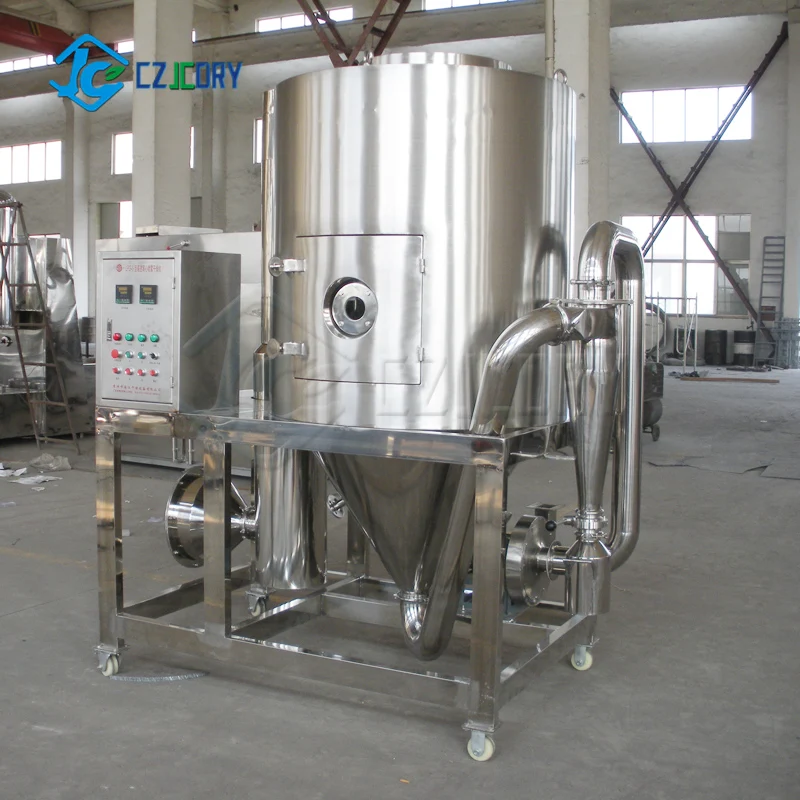

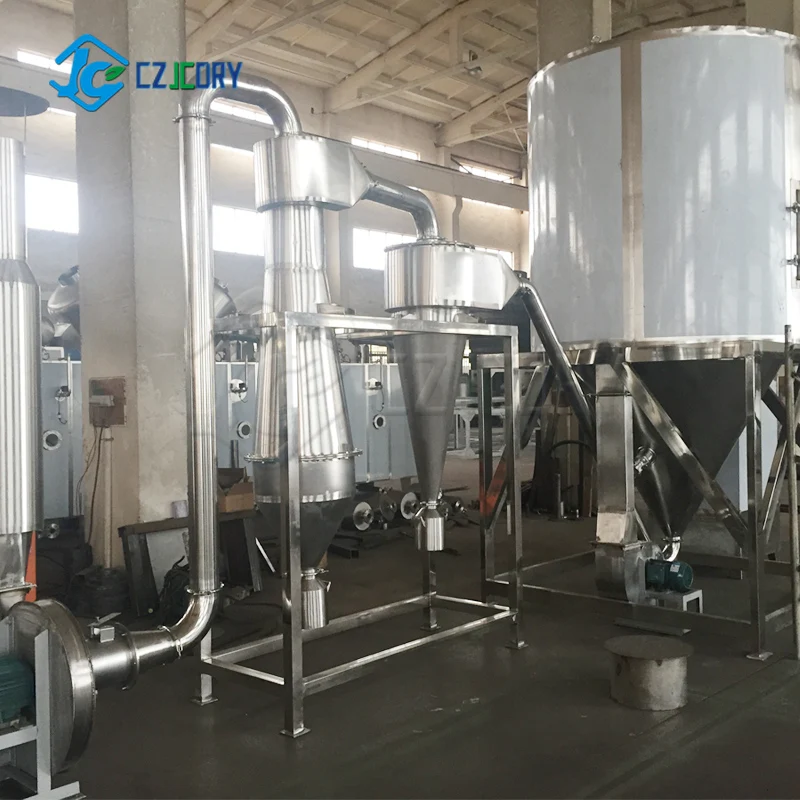

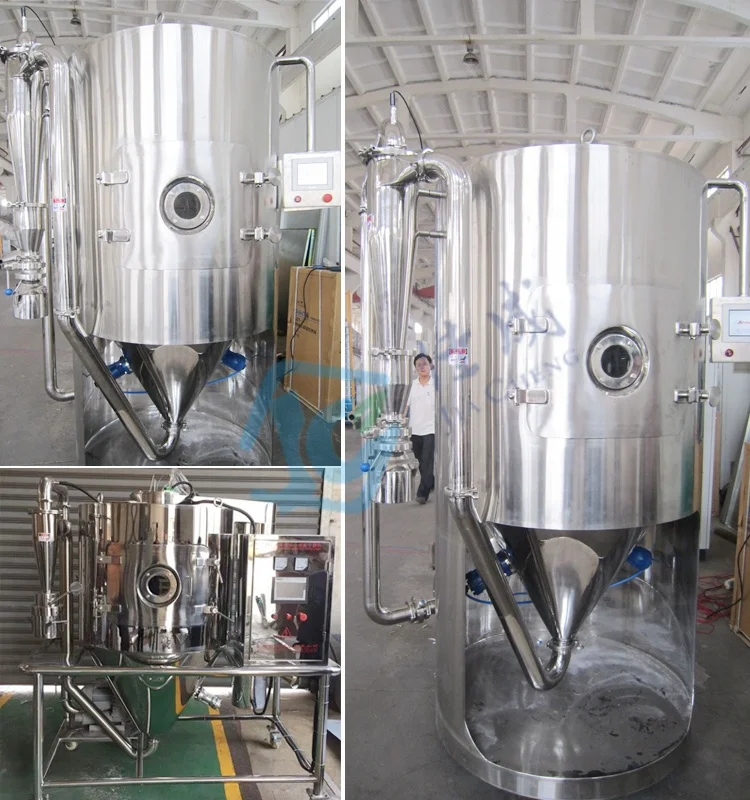

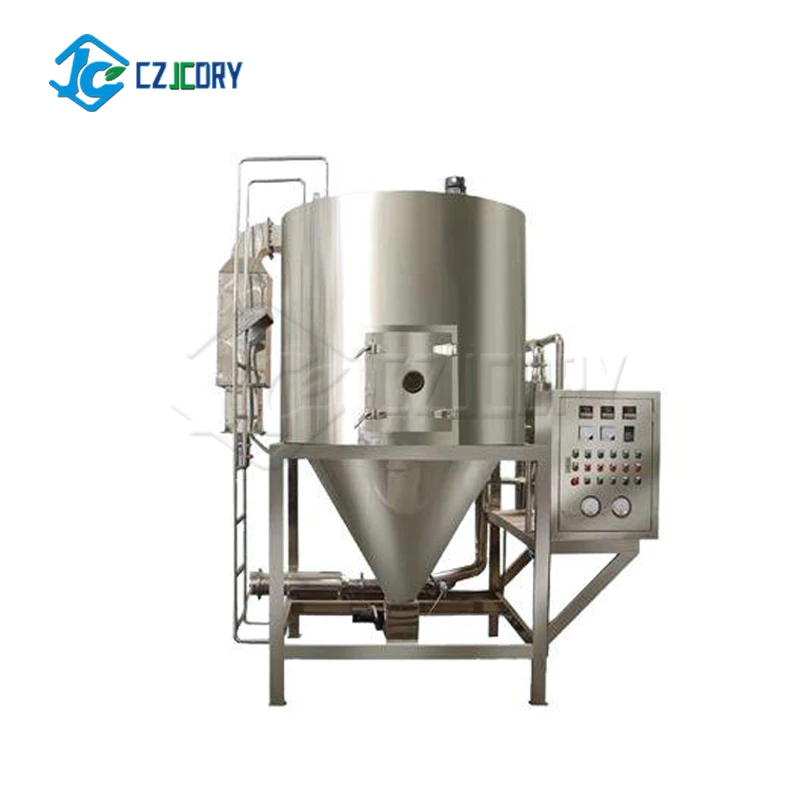

LPG High Speed Centrifugal Spray Dryer/ Fresh milk powder spray dryer
- Category: Food & Beverage Machinery >>>
- Supplier: Changzhou Jiacheng Drying Equipment Co. Ltd.
Share on (62495534766):
Product Overview
Description
Why Choose Us
Product Overview
Product Introduction:

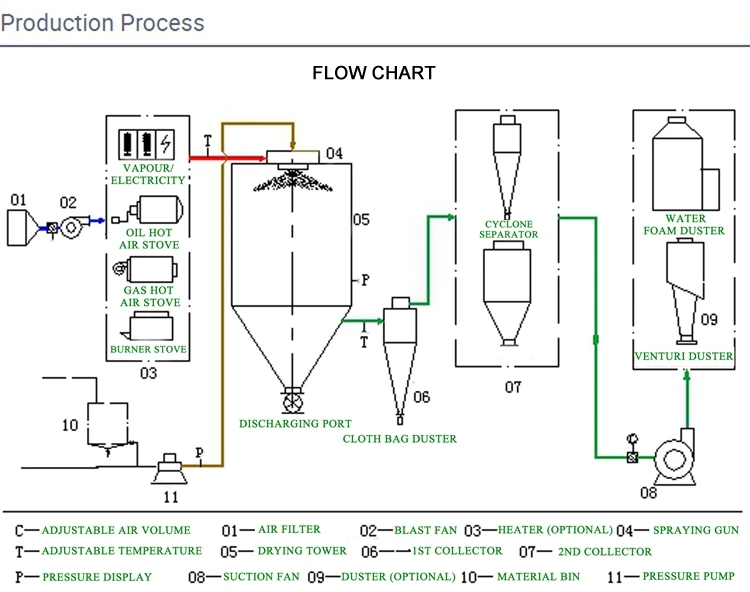

Spray drying is the most widely used process in the liquid process forming and drying industry. The air is heated by a heater and enters the air distributor on the top of the dryer. The hot air enters the drying chamber evenly in a spiral shape. The feed liquid passes through the high-speed centrifugal atomizer on the top of the tower, (rotating) sprays into very fine mist droplets, and contacts with hot air in parallel to dry into products in a very short time. The finished product is continuously output from the bottom of the tower and the cyclone separator, and the exhaust gas is evacuated by the fan.
Generally, output particle size of the centrifugal spray dryer is 120-140 meshes. The cyclone separator can recover 85% of the dry material through the horizontal cyclone separator. The recovery rate can reach 93%-96% through the secondary cyclone separator. It is best to use the secondary cyclone separator. Cyclone separator, the dry powder rate of the tower reaches 93%, and at the same time with the wet dust collector, the material yield reaches the highest. The protection of actual raw materials is the most important. Heat-sensitive materials are prone to deterioration and deterioration at high temperatures. Therefore, in the spray drying process, it is important to dry at an appropriate temperature to achieve the same conditions, high yield, and good product quality. Pay attention to the protection of dry goods. The tower made by our company is based on the actual situation and the special situation of the material. The diameter of the tower body is relatively large. A pneumatic vibrator or air sweeping device is installed on the cone part to protect the dry powder from deterioration when it accumulates in the cone. , so that the dry powder can reach the outlet as soon as possible.
Generally, output particle size of the centrifugal spray dryer is 120-140 meshes. The cyclone separator can recover 85% of the dry material through the horizontal cyclone separator. The recovery rate can reach 93%-96% through the secondary cyclone separator. It is best to use the secondary cyclone separator. Cyclone separator, the dry powder rate of the tower reaches 93%, and at the same time with the wet dust collector, the material yield reaches the highest. The protection of actual raw materials is the most important. Heat-sensitive materials are prone to deterioration and deterioration at high temperatures. Therefore, in the spray drying process, it is important to dry at an appropriate temperature to achieve the same conditions, high yield, and good product quality. Pay attention to the protection of dry goods. The tower made by our company is based on the actual situation and the special situation of the material. The diameter of the tower body is relatively large. A pneumatic vibrator or air sweeping device is installed on the cone part to protect the dry powder from deterioration when it accumulates in the cone. , so that the dry powder can reach the outlet as soon as possible.
Application:
It is suitable for producing powdery, granular or block solid products from solutions, emulsions, Liquid suspension and pumpable pasty liquid raw materials. Therefore, spray drying is an ideal process when the particle size distribution, residual moisture content, bulk density and particle freshness of the finished product must meet precise standards. The manufactured products have good uniformity, fluidity, solubility, high purity and high quality.
Product feature:
1. High speed of drying. After the spraying of he material liquid, the surface area of the material will be increased greatly. In the hot-air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.
2. It is especially suitable for drying the heat sensitive materials. Its final products own the good uniformity, mobility, dissolving capacity. And the final products are high in purity and good in quality.
3. The production procedure is simple and the operational control is easy. The liquid with the moisture contents 40-60% (for special materials, the contents may reach 90%) can be dried into power or particle products once a time. After the drying, there is no need for smashing of sorting, so as to reduce the operation procedures in the production and enhance the purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out the control and management.
2. It is especially suitable for drying the heat sensitive materials. Its final products own the good uniformity, mobility, dissolving capacity. And the final products are high in purity and good in quality.
3. The production procedure is simple and the operational control is easy. The liquid with the moisture contents 40-60% (for special materials, the contents may reach 90%) can be dried into power or particle products once a time. After the drying, there is no need for smashing of sorting, so as to reduce the operation procedures in the production and enhance the purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out the control and management.
Centrifugal type
According to different customer requirements, as per the customer's material characteristics, there are many options for spray specifications and models. For details, please contact customer service.
Pressure/air stream type
According to different customer requirements, as per customer's material characteristics, there are many options for spray specifications and models. For details, please contact customer service.
Stainless steel
According to different customer requirements, as per the customer's material characteristics, the material of the equipment is available in stainless steel, such as 304, 316 and 2205. For details, please contact customer service.
Carbon steel
According to different customer requirements, as per customer's material characteristics, the material of the equipment is carbon steel, such as A3 and Q235. For details, please contact customer service.
Centrifugal atomizer
Air stream spraying gun
Electric, steam & gas can choose
Archimedes air inlet spiral design
Professional hot air distribution device
Matching spray percussion device
PLC control
According to different customer requirements, the electronic control of the equipment is optional with intelligent PLC control. For details, please contact customer service.
Manual button control
According to different customer requirements, the electronic control of the equipment is optional with button control. For
details, please contact customer service.
details, please contact customer service.

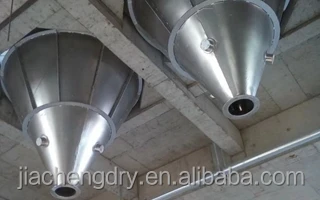

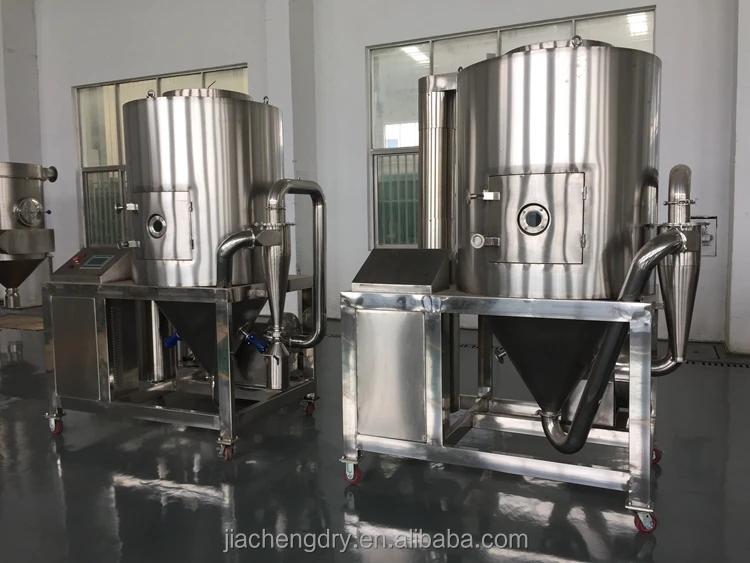

Details Images

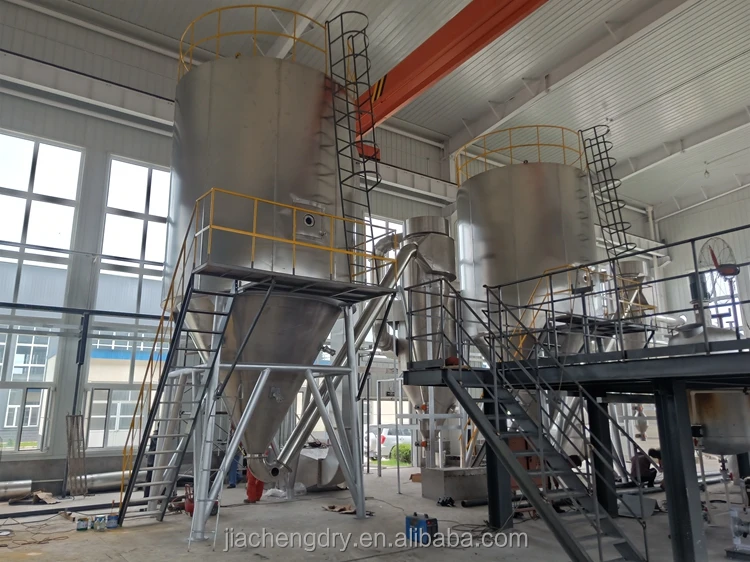

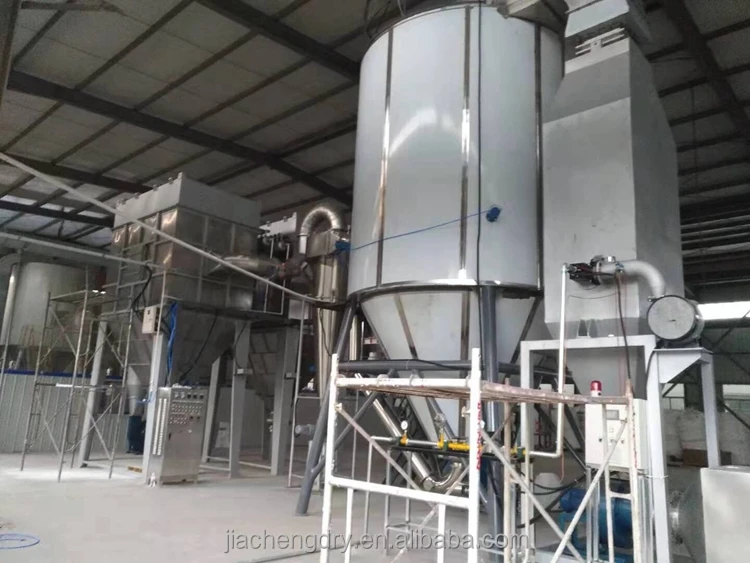

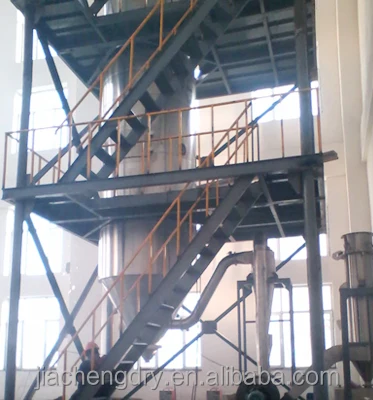

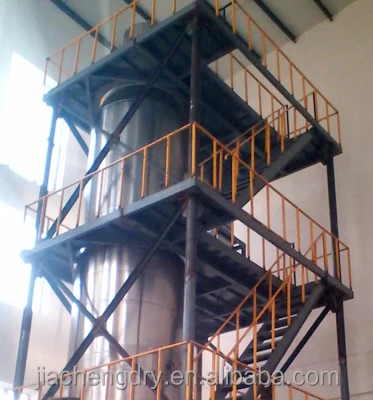

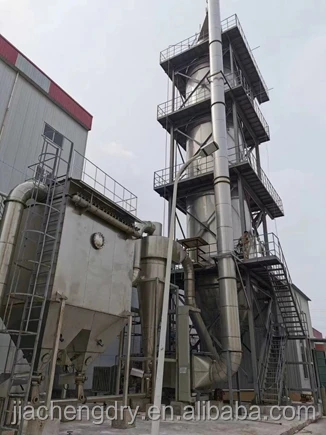

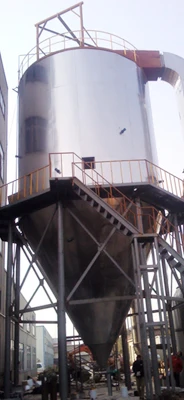

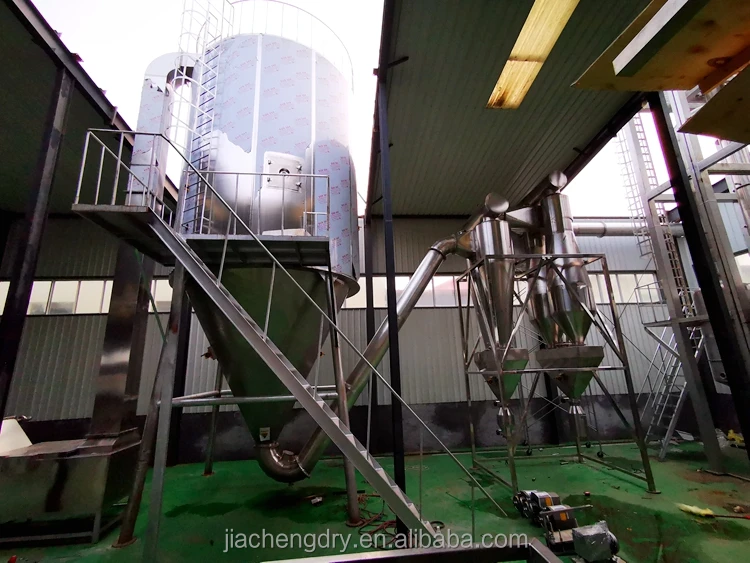

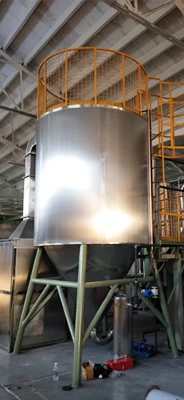

Successful Projects

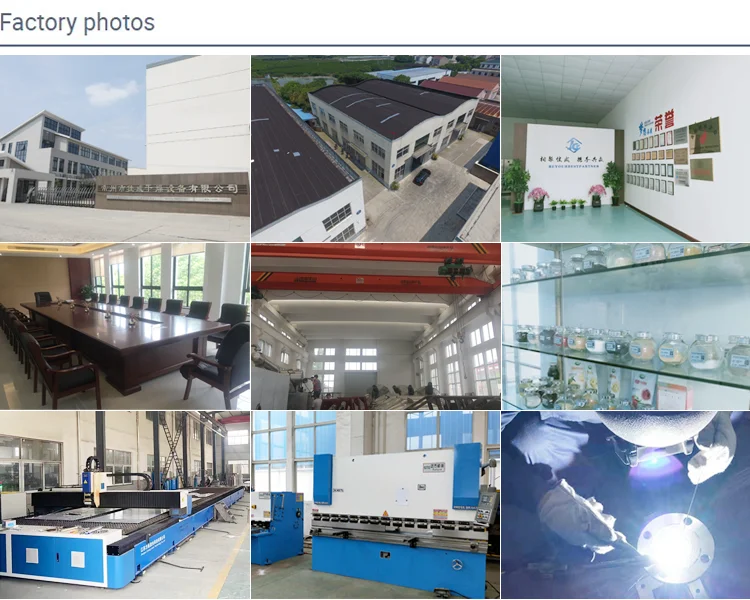

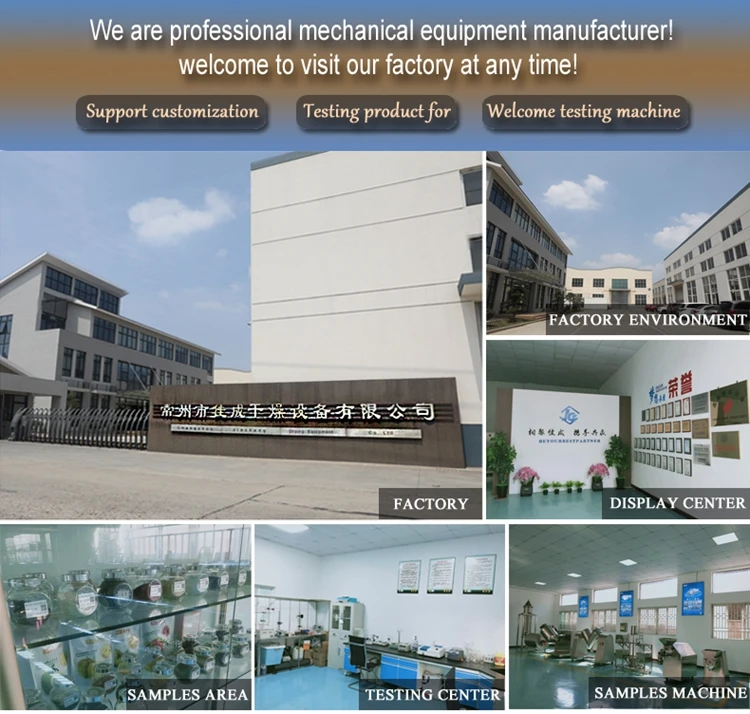

Company Profile
Changzhou Jiacheng Drying Equipment Co., Ltd. is a professional enterprise dedicated to undertaking various drying technology projects and integrating the design, manufacture and sales of drying equipment. It is located in Zhenglu Town Industrial Zone, Changzhou, a water town in the south of the Yangtze River with beautiful scenery and convenient transportation.
We have a modern professional production workshop and production equipment, strong technical force, and have gathered an experienced mechanical equipment production team and many senior mechanical design engineers to design and develop a variety of mechanical equipment. The product categories now cover the advantageous fields of drying, mixing, granulation coating, crushing, screening, extraction, new energy and environmental protection water treatment equipment, involving chemical, food, pharmaceutical and other industries.
Our main products included in:
1. Dryer series: Hot Air Circulation Oven, (single-layer or multi-layer) Belt Dryer, Vacuum Drying Oven, Rake Vacuum Dryer, Double-cone Rotary Vacuum Dryer, Rotary Drum Dryer, Drum Scraper Dryer, Boiling Dryer, Spin Flash Dryer, Vibrating Fluid Bed Dryer, Spiral Vibratory Dryer, Efficient Boiling Dryer, Vertical Boiling Dryer, Hollow Paddle Dryer, Continuous Disc Dryer, Airflow Dryer, Spray Drying Machine and etc.
2. Granulator series: Fluidizing Dryer, Dry Roller Granulator, High-speed Mixing Granulator, Fluidized Granulation Coating Machine, High-efficiency Coating Machine, Rotary Granulator, Swaying Granulator, Screw Extrusion Granulator, Spherical Shot Blasting Machine and etc.
3. Mixer series: Lifting Mixer, Two Dimensional Mixer, Three Dimensional Mixer, V Mixer, Double Conical Mixer, Square Cone Mixer, Zero-gravity Mixer, Horizontal Ribbon Mixer, Coulter Mixing Machine, Notch Shape Mixer, Screw Mixer and etc.
4. Grinder series: Effect Grinding Machine, China Herb Grinder, Roughness Grinder, Super Micron Mill, Fast Speed Grinder and etc.
5. Auxiliary series: (square or round) Vibrating Sieve, Gas Hot Air Stove, Coal Hot Air Stove, Oil Hot Air Stove, Cloth Bag Duster, Vacuum Feeder and etc.
6. Other series: Liquid-liquid Extraction Equipment, Battery Magnetic Powder Production Line, Solid Beverage Production Line, Electrolytic Water Treatment Equipment.
7. Except mechanical equipment, we can supply the overall design of the production line.
We have a modern professional production workshop and production equipment, strong technical force, and have gathered an experienced mechanical equipment production team and many senior mechanical design engineers to design and develop a variety of mechanical equipment. The product categories now cover the advantageous fields of drying, mixing, granulation coating, crushing, screening, extraction, new energy and environmental protection water treatment equipment, involving chemical, food, pharmaceutical and other industries.
Our main products included in:
1. Dryer series: Hot Air Circulation Oven, (single-layer or multi-layer) Belt Dryer, Vacuum Drying Oven, Rake Vacuum Dryer, Double-cone Rotary Vacuum Dryer, Rotary Drum Dryer, Drum Scraper Dryer, Boiling Dryer, Spin Flash Dryer, Vibrating Fluid Bed Dryer, Spiral Vibratory Dryer, Efficient Boiling Dryer, Vertical Boiling Dryer, Hollow Paddle Dryer, Continuous Disc Dryer, Airflow Dryer, Spray Drying Machine and etc.
2. Granulator series: Fluidizing Dryer, Dry Roller Granulator, High-speed Mixing Granulator, Fluidized Granulation Coating Machine, High-efficiency Coating Machine, Rotary Granulator, Swaying Granulator, Screw Extrusion Granulator, Spherical Shot Blasting Machine and etc.
3. Mixer series: Lifting Mixer, Two Dimensional Mixer, Three Dimensional Mixer, V Mixer, Double Conical Mixer, Square Cone Mixer, Zero-gravity Mixer, Horizontal Ribbon Mixer, Coulter Mixing Machine, Notch Shape Mixer, Screw Mixer and etc.
4. Grinder series: Effect Grinding Machine, China Herb Grinder, Roughness Grinder, Super Micron Mill, Fast Speed Grinder and etc.
5. Auxiliary series: (square or round) Vibrating Sieve, Gas Hot Air Stove, Coal Hot Air Stove, Oil Hot Air Stove, Cloth Bag Duster, Vacuum Feeder and etc.
6. Other series: Liquid-liquid Extraction Equipment, Battery Magnetic Powder Production Line, Solid Beverage Production Line, Electrolytic Water Treatment Equipment.
7. Except mechanical equipment, we can supply the overall design of the production line.
our service
Pre-sale instructions: Establish customer files, get in touch with customers, introduce our factory's technology and equipment, understand customer needs, recommend corresponding equipment according to needs, implement test materials and related technical preparations, and improve technical parameters.
In-sale instructions: Provide users with relevant drawings and technical information, coordinate the installation and construction of user equipment, and inform users of the production speed and quality. Ensure that user engineering progress is synchronized with equipment manufacturing. Handle emergencies and maintain good communication with users.
After-sale instructions:
①We provide equipment English manuals for guidance. If you need, we will send an engineer to the site to guide and train workers until delivery.
②Responsible for the operation and maintenance skills training of relevant personnel of users.
③Provide spare parts with high quality and low price for a long time.
④The warranty period of the equipment is one year. If the equipment is damaged due to the quality of the equipment itself within one year after acceptance, it will be responsible for free remote guidance and maintenance. If there is a failure caused by improper operation, the cost will be charged. If necessary, engineers can be sent to the site for maintenance.
In-sale instructions: Provide users with relevant drawings and technical information, coordinate the installation and construction of user equipment, and inform users of the production speed and quality. Ensure that user engineering progress is synchronized with equipment manufacturing. Handle emergencies and maintain good communication with users.
After-sale instructions:
①We provide equipment English manuals for guidance. If you need, we will send an engineer to the site to guide and train workers until delivery.
②Responsible for the operation and maintenance skills training of relevant personnel of users.
③Provide spare parts with high quality and low price for a long time.
④The warranty period of the equipment is one year. If the equipment is damaged due to the quality of the equipment itself within one year after acceptance, it will be responsible for free remote guidance and maintenance. If there is a failure caused by improper operation, the cost will be charged. If necessary, engineers can be sent to the site for maintenance.
Packaging & shipping
FAQ
1. Can we extract liquid raw materials with this spray dryer?
Yes, in order to help you better, we suggest you can provide the name of the raw material.
2.Can we use our own ingredients for extraction testing?
Sure. We can test and then send video and test report for your reference.
3.Do you have OEM service? Do you provide spare parts?
Yes, we have OEM, we can provide one year machine spare parts and wearing parts for free.
4.How can we visit your factory?
You can fly to Shanghai Hongqiao or Pudong airport, or we near to Nanjing or Wuxi airport, you can tell us your details location. We will arrange a driver to pick you up to airport.
5.How to transport the equipment?
We usually choose shipping by sea or by air. For the Laboratory-scale equipment can be shipped by air according to customer requirements.
6.What’s the voltage of the equipment?
The equipment voltage usually 380V. If the user needs 220V/480V/230V, it can be customized according to the voltage standard of the country where your equipment is used.
7.Can you give our guidance for other machines to complete our line?
Yes, our company has been established for more than 10 years, and we can also recommend other machine suppliers that we do not sell, such as packaging machines, filling machines, etc., breaker egg machine , cutting machines, etc.
8.How about your payment terms?
A.Usually we can use T/T or L/C.
B.Under the condition of wire transfer, 30% deposit in advance, and 70% must be paid before shipment.
C.Under L/C conditions, 100% irrevocable L/C without soft terms is acceptable. Please consult the sales manager you work with.
If you have any other questions, please let us be more sincere, and any questions will be 100% sincere and effective to contact us.
Our 24Hr online: +86 13915098637 （wechat/whatsapp)
Online website：//www.czjcdry.com
https://jiachengdry.en.alibaba.com
Yes, in order to help you better, we suggest you can provide the name of the raw material.
2.Can we use our own ingredients for extraction testing?
Sure. We can test and then send video and test report for your reference.
3.Do you have OEM service? Do you provide spare parts?
Yes, we have OEM, we can provide one year machine spare parts and wearing parts for free.
4.How can we visit your factory?
You can fly to Shanghai Hongqiao or Pudong airport, or we near to Nanjing or Wuxi airport, you can tell us your details location. We will arrange a driver to pick you up to airport.
5.How to transport the equipment?
We usually choose shipping by sea or by air. For the Laboratory-scale equipment can be shipped by air according to customer requirements.
6.What’s the voltage of the equipment?
The equipment voltage usually 380V. If the user needs 220V/480V/230V, it can be customized according to the voltage standard of the country where your equipment is used.
7.Can you give our guidance for other machines to complete our line?
Yes, our company has been established for more than 10 years, and we can also recommend other machine suppliers that we do not sell, such as packaging machines, filling machines, etc., breaker egg machine , cutting machines, etc.
8.How about your payment terms?
A.Usually we can use T/T or L/C.
B.Under the condition of wire transfer, 30% deposit in advance, and 70% must be paid before shipment.
C.Under L/C conditions, 100% irrevocable L/C without soft terms is acceptable. Please consult the sales manager you work with.
If you have any other questions, please let us be more sincere, and any questions will be 100% sincere and effective to contact us.
Our 24Hr online: +86 13915098637 （wechat/whatsapp)
Online website：//www.czjcdry.com
https://jiachengdry.en.alibaba.com
