1515 WorkBee CNC Router with xPROV5 GRBL Controller with 2.2KW Water Cooled spindle Engraving Milling Machine Super september
- Category: Wood Router >>>
- Supplier: Niuren 3D Technology (Shenzhen) Co. Ltd.
Share on (62495909515):
Product Overview
Description
Products Description
1500x1500mm WorkBee CNC Router Machine Full Kit
The WorkBee CNC design has gone through different changes. WorkBee Version 1 originally had the leadscrews placed in compression. All Bulk Man 3D’s WorkBee kits now sold are Newest Version, with the major differences being the use of Tingle Tension System and longer leadscrews in the X and Y Axis. This helps to solve the problem of Whipping when for long length or faster Speed,which is very popular in CNC machine market.
Based on C-Beam, V-Slot, Xtreme Solid V-Wheels and TR8x8(P2) Leadscrews it is reliable. It has been carefully designed and can accurately cut foams, woods, plastics and aluminum to 0.1-0.2 mm accuracy or better.
The WorkBee CNC Machine is a 4 axis (3 + 1) machine, this means there are 3 physical axis (X,Y,Z) and a slave axis of Y which is called the A Axis. The WorkBee CNC Machine uses specific lengths of Extrusions and Leadscrews.
CNC xPROV5 Controller+2.2KW Water CooledSpindle
The Bulk Man 3D WorkBee was originally designed by Ryan Lock of Ooznest UK, and it incorporates many upgrades. It is a super-strong, accurate and easy to assemble CNC machine.
The WorkBee CNC design has gone through different changes. WorkBee Version 1 originally had the leadscrews placed in compression. All Bulk Man 3D’s WorkBee kits now sold are Newest Version, with the major differences being the use of Tingle Tension System and longer leadscrews in the X and Y Axis. This helps to solve the problem of Whipping when for long length or faster Speed,which is very popular in CNC machine market.
Based on C-Beam, V-Slot, Xtreme Solid V-Wheels and TR8x8(P2) Leadscrews it is reliable. It has been carefully designed and can accurately cut foams, woods, plastics and aluminum to 0.1-0.2 mm accuracy or better.
The WorkBee CNC Machine is a 4 axis (3 + 1) machine, this means there are 3 physical axis (X,Y,Z) and a slave axis of Y which is called the A Axis. The WorkBee CNC Machine uses specific lengths of Extrusions and Leadscrews.
Advantage: This kit is the latest version comes with a new Tension System to minimise Lead Screw ‘Whip’ !
Our WorkBee Full Kit is a self-assembly kit and comes with everything needed for building your CNC Machine. Other parts that are needed for you to perform your ‘first cut’ are:
* Baseboard (usually ply or mdf)
* Endmills / Drillbits
* Power cord (this varies across different countries)
* Software : Customers need to log in the official website to download or buy them.
(GRBL is free to download, Mach3 need to buy license from their official website)
* Baseboard (usually ply or mdf)
* Endmills / Drillbits
* Power cord (this varies across different countries)
* Software : Customers need to log in the official website to download or buy them.
(GRBL is free to download, Mach3 need to buy license from their official website)
This WorkBee CNC Full Kit includes the following contents:
* 1500x1500mm WorkBee Mechanical Kit (Extrusion:Sleek silver/Industrial Black)
* 4 x Nema23( 2.45N.m) Stepper Motors
* Cable Drag Chain Bundle
* xPROV5 GRBL Controller Bundle
* Cable Drag Chain Bundle
* xPROV5 GRBL Controller Bundle
* 2.2kW 110V/220V Water Cooled Spindle Bundle
* All Extrusions are M5 Tapped as where it is necessary
All assembly guide links will be provided after shipment.
If you need any help, please do not hesitate to contact us, we are very happy to help!
If you need any help, please do not hesitate to contact us, we are very happy to help!
Dimension | ||||||
Item No. | Item | Frame Size | Working Area | |||
WB-5075 | Workbee cnc Mechanical Kit | 300x520mm | ||||
WB-7575 | 550x520mm | |||||
WB-7510 | 550x770mm | |||||
WB-1010 | 800x770mm | |||||
WB-1015 | 800x1270mm | |||||
WB-1515 | 1300x1270mm | |||||

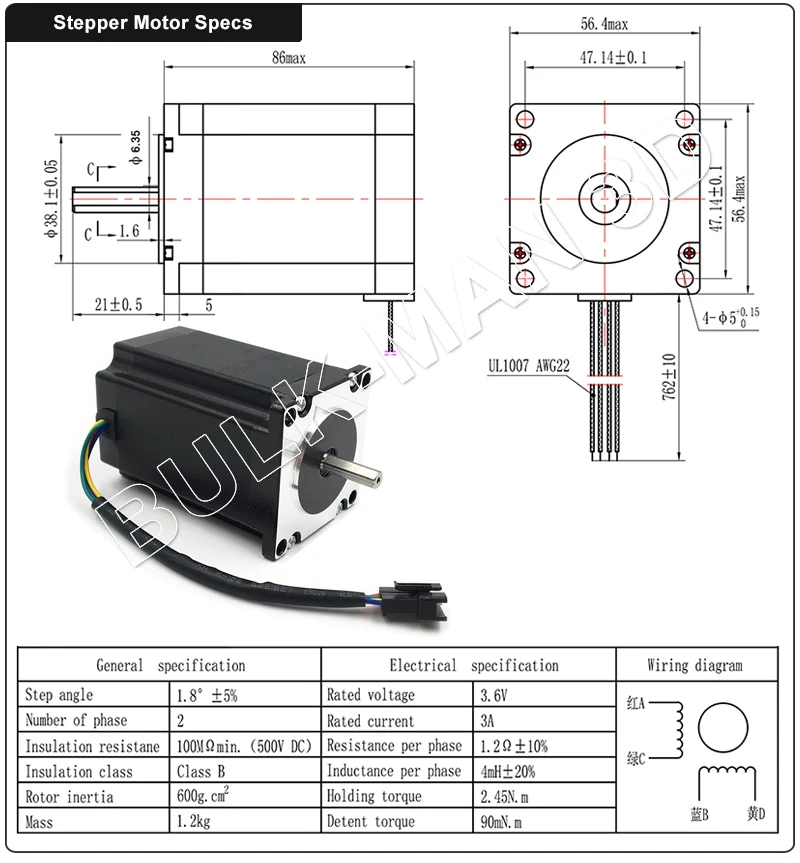

Specs of Nema23 High-Torque (2.45N.m) Stepper Motor:
* NEMA 23 (High Torque)* Shaft Size: 1/4″
* Step Angle: 1.8
* Holding Torque: 2.45N.m
* Rated voltage: 3.6 V
* Rated current: 2.8 A

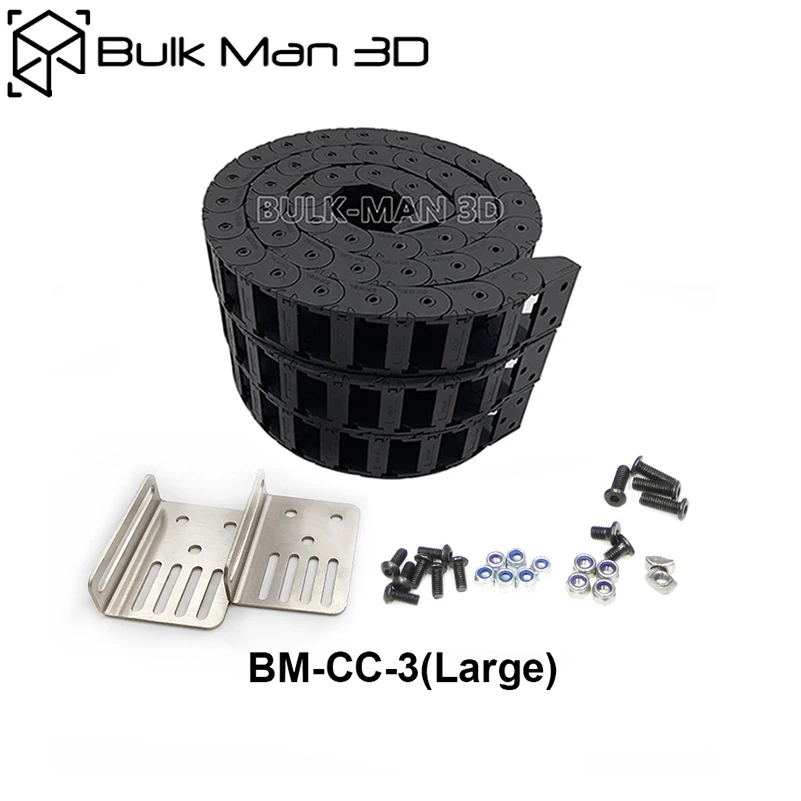

Cable Drag Chain bundle
Cable Drag Chain bundle contains all the hardware for mounting Cable Drag Chains on your
WorkBee CNC machine to help with cable management.Controller Description

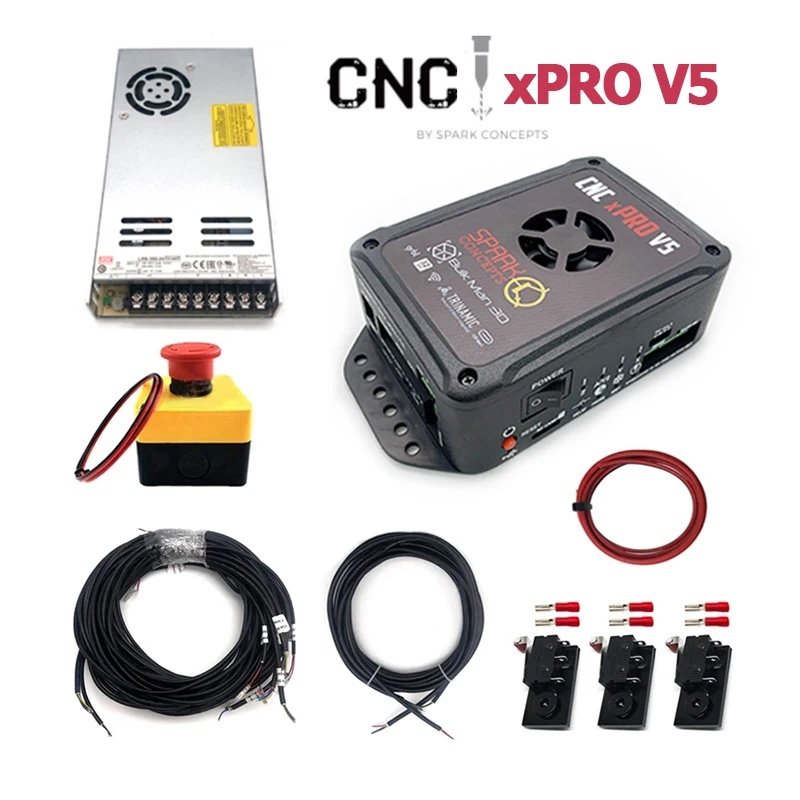

xPRO V5 CNC Controller is used to control the CNC Machine and send G-Code.
The xPRO V5 CNC Controller which is the most advanced GRBL CNC Controller of its class in the world. It has 6A silent stepper drivers, WiFi and off-line options, and 4x faster than other controllers.
The xPRO V5 CNC Controller which is the most advanced GRBL CNC Controller of its class in the world. It has 6A silent stepper drivers, WiFi and off-line options, and 4x faster than other controllers.
The GRBL software is free and most of it is OpenSource which allows for the community to further upgrade features and functionality of the program to better suit their needs.
xPRO V5
The xPRO V5 is the most advanced GRBL CNC Controller in the world. Developed by Spark Concepts in USA who have been making GRBL CNC products for many years. It runs off a 32bit processor with over 4x the processing power of most other GRBL controllers.
The xPRO V5 is pre-assembled and pre-flashed with the latest GRBL version. We recommend the xPRO V5 as the best controller option available. The stepper drivers are easily suitable for our High Torque Stepper Motors and can even power stronger motors such as Nema34.
This controller features:
32bit processor
High powered Trinamic 6A Stepper Drivers
Supports VFD control
Easy Plug and Play
SD Card which allows for offline use
Both Wi-Fi connection & USB connection (user choice)
32bit processor
High powered Trinamic 6A Stepper Drivers
Supports VFD control
Easy Plug and Play
SD Card which allows for offline use
Both Wi-Fi connection & USB connection (user choice)

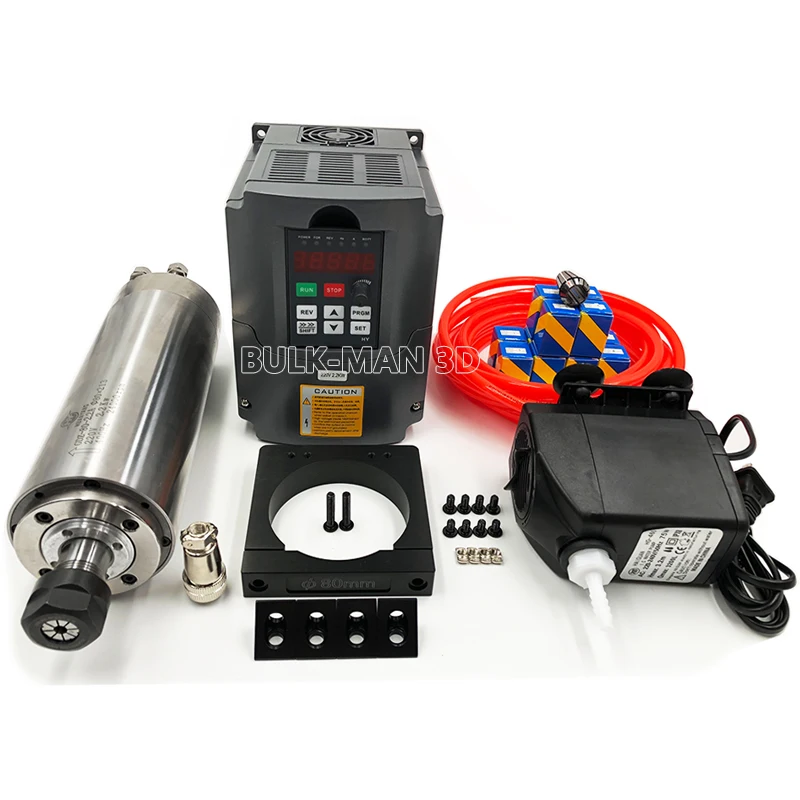

Specs of 2.2 kW Water Cooled Spindle:
* Net weight: 9.5kg
* Spindle Spec: φ 80 x 215 mm
* Power: 2.2 kW
* Voltage: 220 ~250 V or 110 V
* Frequency: 400 Hz
* Speed: 0-24000 R/min
* Water Cooling
* Run-out off: less than 0.005 mm
* Grease Lubrication
* VFD Inverter 1.5 kW 220 V or 110 V
* Collet: ER20 (28pcs)
Sizes: 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm/7.5mm/8mm/8.5mm/9mm/9.5mm/10mm/10.5mm/11mm/11.5mm/12mm/12.5mm/12.7mm/13mm
* Spindle Spec: φ 80 x 215 mm
* Power: 2.2 kW
* Voltage: 220 ~250 V or 110 V
* Frequency: 400 Hz
* Speed: 0-24000 R/min
* Water Cooling
* Run-out off: less than 0.005 mm
* Grease Lubrication
* VFD Inverter 1.5 kW 220 V or 110 V
* Collet: ER20 (28pcs)
Sizes: 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm/7.5mm/8mm/8.5mm/9mm/9.5mm/10mm/10.5mm/11mm/11.5mm/12mm/12.5mm/12.7mm/13mm
Compatible Material for Cutting/Milling/Engraving:
Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam
More Infomation
Dual Drive System:
The WorkBee CNC also has two different spoiler board configurations. One for shallow work up to 27mm deep, and a lowered setup to 47mm deep. Having this option is beneficial. If the plan is to only cut thin materials, it is a waste of rigidity to have the Z-Axis reach down more than needed. The Screw Driven version, right image above, shows the lowered configuration.
Z Travel Explained
The WorkBee has two spoilerboard support configurations. One with a travel of 66mm,and alower one with a travel of 106mm. The reason for the two configurations is that if the machine is always used to cut thin materials, for accuracy reasons it is better to have the work piece as close to the Z-Actuator as possible, so in this case the machine should be setup in the higher 66mm travel configuration. The higher configuration has a Z travel of 66mm, with a 12mm spoiler board, this will reduce the Z travel to 54mm. In this case 54mm is maximum thickness of material that will fit on the machine.To calculate the max cutting depth for a chosen piece of material it is:
Max Cutting Depth = Z travel – Material Thickness
For instance a setup with a 12mm spoiler board, the max Z travel is 54mm, so when cutting into a material 30mm thick the max cutting depth would be:
Max Cutting Depth = 54 – 30 = 24mm
This means with a 30mm piece of material it would not be possible to cut it the whole way through. The max thickness that can be cut the whole way through is half the Z travel.So with a Z travel of 55mm, 27mm is the maximum thickness of material that could be cut the whole way through. And for the lower configuration the maximum thickness that can be cut the whole way through is 47mm.
Z Height
54mm Or 94mm Travel, 27mm Or 47mm Workable depth, with a 12mm spoilerboard. The spoilerboard supports have two height configurations, these are the maximums for each configuration.
54mm Or 94mm Travel, 27mm Or 47mm Workable depth, with a 12mm spoilerboard. The spoilerboard supports have two height configurations, these are the maximums for each configuration.
Motion
Drive System– ACME Lead Screws Or GT3 Timing Belts
Linear Guides– Polycarbonate wheels on anodised C-Beam V-Slot Extrusion.
Motors– NEMA23 345oz Stepper Motors (X, Y & Z)
Accuracy– 0.05 – 0.10mm (Screw Driven) Or 0.10 – 0.20mm (Belt Driven)
Drive System– ACME Lead Screws Or GT3 Timing Belts
Linear Guides– Polycarbonate wheels on anodised C-Beam V-Slot Extrusion.
Motors– NEMA23 345oz Stepper Motors (X, Y & Z)
Accuracy– 0.05 – 0.10mm (Screw Driven) Or 0.10 – 0.20mm (Belt Driven)
Note:
Maximum recommended speed for Lead Screws 1000mm or greater is 400RPM.
Maximum recommended speed for Lead Screws 1000mm or greater is 400RPM.
Credit
” V-Slot ” and ” C-Beam ” are registered trademarks of OpenBuilds LLC as released under the Creative Commons Licence “Attribution-ShareAlike”All our components are designed to work and are fully compatible with the products produced by OpenBuilds.“WorkBee” is a registered trademark of Ooznest Ltd and released under the Creative Commons Licence Attribution-ShareAlike”.
Details Images
Application
Look how the WorkBee CNC is Cutting our Bulk Man 3D Logo!

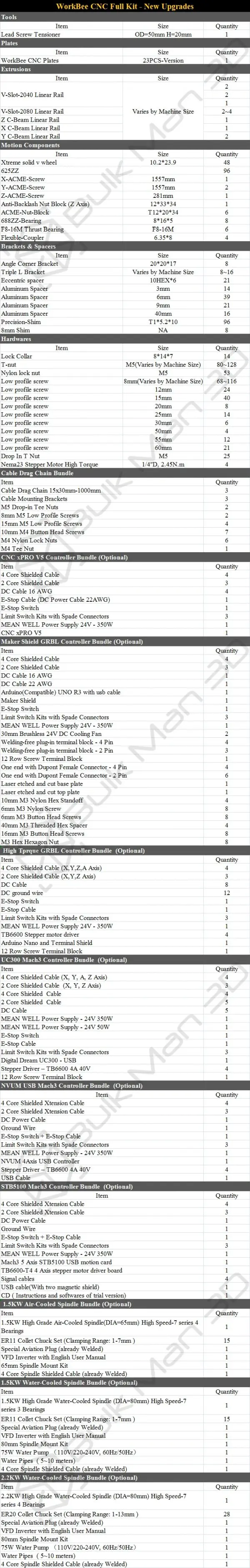

Part List
Related Add-Ons You May Like
Company Profile
We are a leading supplier of wholesale products ( high quality Open Source kits, machines and parts) to the world. If you see a similar product on a retail website, chances are that we supplied it to them!
