New Condition DPP High Speed Semi Automatic Small Alu Alu Capsule Tablet Blister Packing Machine Semi Auto Tablet Packaging
- Category: Packaging Machine >>>
- Supplier: Zhejiang CapsulCN Machinery Co. Ltd.
Share on (62495928450):
Product Overview
Description
Products Description

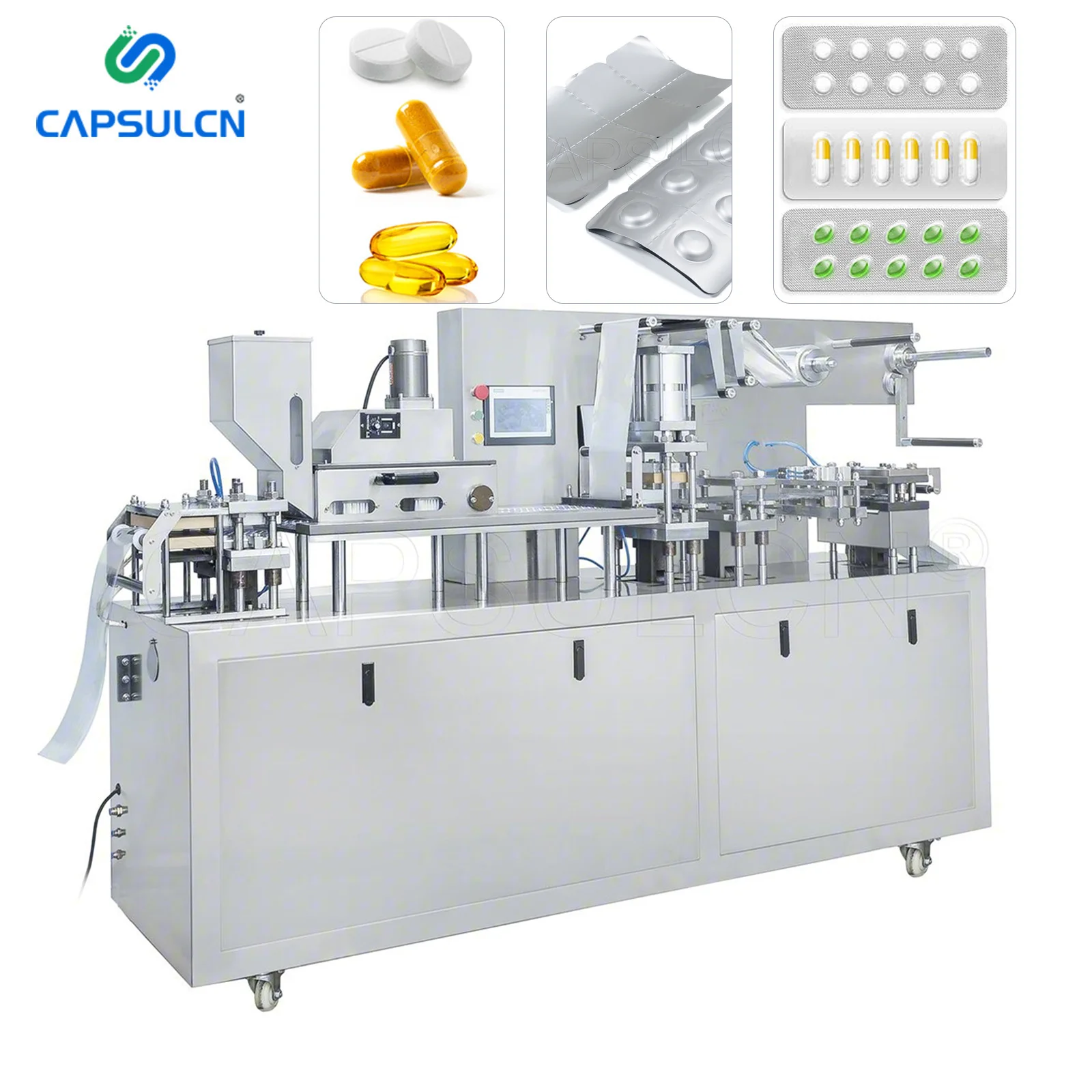

Automatic Aluminum-Plastic Blister Packaging Machine
DPP-140 is a flat-plate aluminum-plastic blister packaging machine which integrates many functions including PVC feeding, PVC heating, PVC forming, PTP feeding, sealing of PVC and PTP, batch number printing, indentation line making, etc. It is suitable for all kinds of capsules, tablets, sugar coated tablets, honey pills, injections, ampoules, etc. The products have the characteristics of long shelf life, good sealing performance, beautiful appearance, safety and hygiene, conforming to the GMP production standards.
Features:
1. It utilizes plate-type heating plate for heating. PVC sheets can be formed by positive pressure by heating to just about 105 ℃. It completes all actions of heat sealing, batch number printing, indentati
2. on line pressing, automatic conveying, sheet cutting off, automatic stop and alarm, etc.
3. It utilizes frequency conversion stepless speed regulation, with blanking frequency 10~55 times/min.
4. It adopts the screw rod drive device. The packaging size of various sheets can be adjusted on the guide rail of the machine base at will.
5. The pneumatic roller traction device is controlled by PLC, with simple structure and accurate operation. The traction stroke can be adjusted within the range of 10 to 500mm, which expands the application range of the machine.
6. The molds for positive gas forming, heat sealing and indentation are fixed by pressing plate, with reliable positioning and convenient replacement.
7. If it is equipped with a universal feeder, the filling rate can reach over 99.5%. A dust suction interface can be installed to clean away dust caused in the process of feeding tablets.
8. The machine base and the machine body are separable. The whole machine is small in size and it has advantages of light weight, compact structure, simple operation, convenient transportation and maintenance.
2. on line pressing, automatic conveying, sheet cutting off, automatic stop and alarm, etc.
3. It utilizes frequency conversion stepless speed regulation, with blanking frequency 10~55 times/min.
4. It adopts the screw rod drive device. The packaging size of various sheets can be adjusted on the guide rail of the machine base at will.
5. The pneumatic roller traction device is controlled by PLC, with simple structure and accurate operation. The traction stroke can be adjusted within the range of 10 to 500mm, which expands the application range of the machine.
6. The molds for positive gas forming, heat sealing and indentation are fixed by pressing plate, with reliable positioning and convenient replacement.
7. If it is equipped with a universal feeder, the filling rate can reach over 99.5%. A dust suction interface can be installed to clean away dust caused in the process of feeding tablets.
8. The machine base and the machine body are separable. The whole machine is small in size and it has advantages of light weight, compact structure, simple operation, convenient transportation and maintenance.

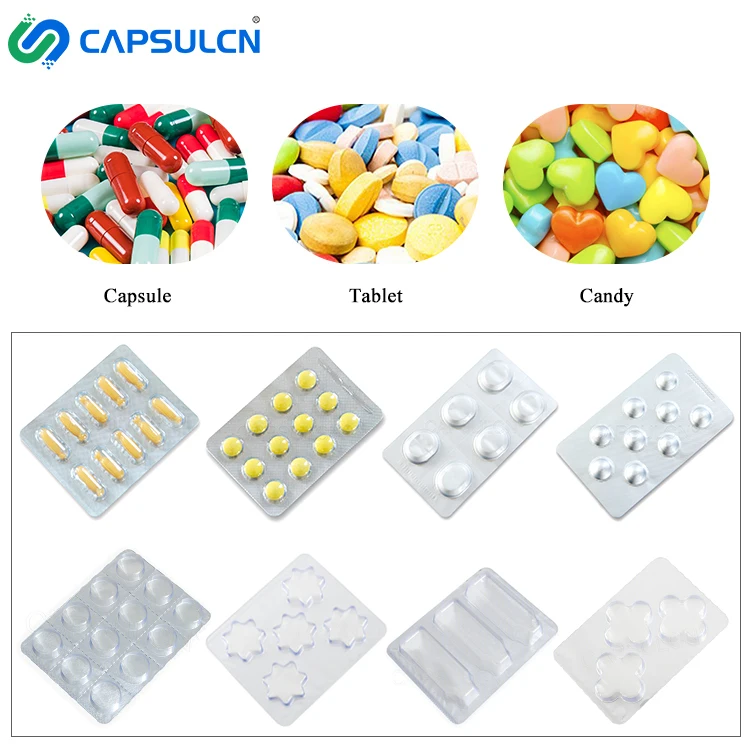

Main Application
Applicable to various specifications of capsules, plain tablets, sugar-coated tablets, large honeydew pills, injections, ampoules, etc. in the pharmaceutical industry.
Details Images
Material Feeding
Fills the cavities of the packaging materials using the appropriate products.
Touchscreen Operating Interface
It has a touchscreen human machine interface for intuitive and easy management of all the packaging processes.
Heat Sealing System
This is the part that seals the filled cavities in the process of blister packaging.
Foil Feeding System
This part of the machine is responsible for pushing material to the platform for blister packaging process.
Waste Material Winder
It is responsible for winding the waste materials from the forming material and the sealing machine.
Electric Motor
Controlling the speed of the parts to fit requirements of blister packaging.
Don't worry, if you have any questions please contact us, Contact
We will reply you as soon as possible!Product Paramenters
Item | Item | Technical data | |
Blanking frequency | Blanking frequency | 10~50 times/min, 1~3 sheet/time (Stroke length: >80; blister depth: >10) | |
Production capacity | Production capacity | Calculating with standard sheet: 4600sheet/hour (2 sheets/time; blanking frequency: 40times/min) | |
Adjustable scope of stroke length | Adjustable scope of stroke length | Standard:10~120mm; the max. stroke: 120mm | |
Sheet specification | Sheet specification | Standard: 80 mm×57mm Reference: 80×57, 95×65, 103×43, 120×43 Designed as the customers’ requirement. The max. size:140×120mm | |
The max. forming area and depth | The max. forming area and depth | 140mm×120mm×28mm | |
Wrapper | PVC | Length: 140mm; thickness: 0.15~0.5mm | |
PTP | Length: 140mm; thickness: 0.02~0.35mm | ||
Dialyzing paper | Length: 140mm; specification: 50~100 gram Diameter of scroll: 70~76mm | ||
Inside diameter of wrapper scroll | 70~76mm | 70~76mm | |
Power of heating | Forming heating | 1.5KW | |
Heat-sealing | 1.5KW | ||
Main motor power | 1.1KW | ||
Power supply | 380V, 50Hz, three phase five wire system | ||
Capacity of air compressor (Self-provided) | ≥0.2m3/min Pressure: 0.4～0.6MPa | ||
Mold cooling | Tap water or circulating water: 60L/h | ||
Overall dimension (L*W*H) | whole | 2050mm×526mm×1320mm | |
1025mm×526mm×1320mm 1025mm×526mm×1320mm | |||
Weight | 960Kg | ||
Recommend Products
Company Profile
COMPANY INFORMATION
As an expert in the phamaceutical and pharmaceutical packaging industry.
Zhejiang CapsulCN Machinery Co, Ltd is specialized in the research, production andrelevant service in the automatic packing machines of pharmaceutical, medical andfood industries.It is a member of National Equipment Association, High-tech Enterprise of Zhejiang Province, and the director unit of Wenzhou Private Management Economy Promotion Association.
In 2010, we had a new factory located in Wenzhou City, Zhejiang Province, with a covering area of more than 13,000 square meters. building area of 15,000 square meters, and workshops of 10 meters high. It greatly improved our production capacity.
In 2010, we had a new factory located in Wenzhou City, Zhejiang Province, with a covering area of more than 13,000 square meters. building area of 15,000 square meters, and workshops of 10 meters high. It greatly improved our production capacity.

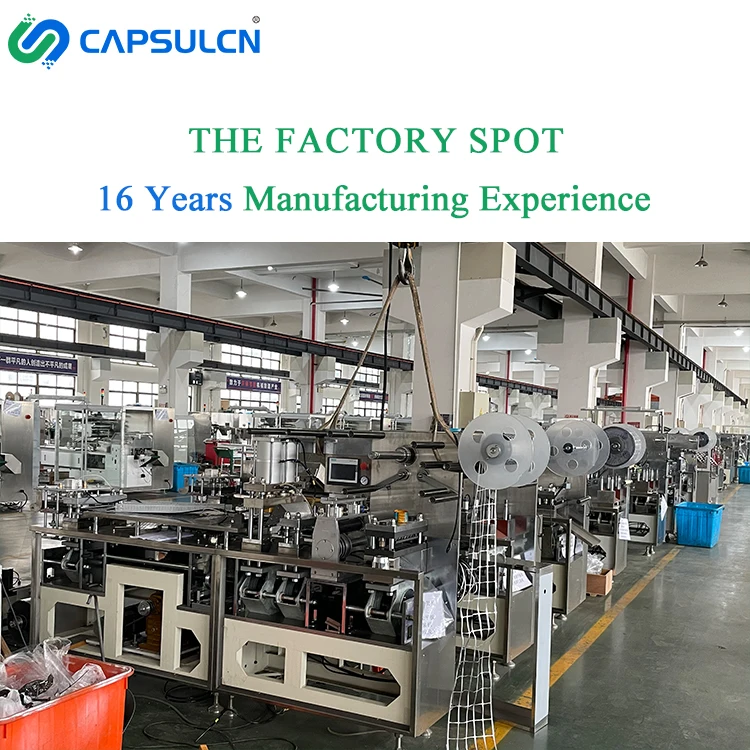

Manufacturing Workshop
