Amphibious drill buggy Jack up Swamp Marsh buggy for sale
- Category: >>>
- Supplier: Sinoway Industrial (Shanghai) Co. Ltd.
Share on (62496144656):
Product Overview
Description
Product Description
Dredging Equipment
Amphibious swamp transport vehicle is a special kind of vehicle used for transportation of people or equipment in soft terrain and marsh areas.
Sinoway amphibious swamp transporter is specifically designed to manoeuvre in marshy, swampy area and soft terrain, and it can also float on water as an added safety feature. It is completely self propelled and can virtually access all terrains.
Amphibious transporters consist of an undercarriage and an upper structure with cabin, engine and platform.It can be equipped with winches and cranes according to different working conditions. At the same time, it can be refitted into swamp drilling platforms according to the situation. The machine can be custom-made to suit your needs too.
Main Features
Equipped with engine with good performance and reliability.
Multi Synchronous Drive System
Proprietary multi-synchronous drive motor design.Motors are mounted on front and rear of each pontoon.It offers superior tracking power as compared to a single motor design. A similar concept that is applied to a full time 4x4 gear system of a land vehicle.
Amphibious Modular Design

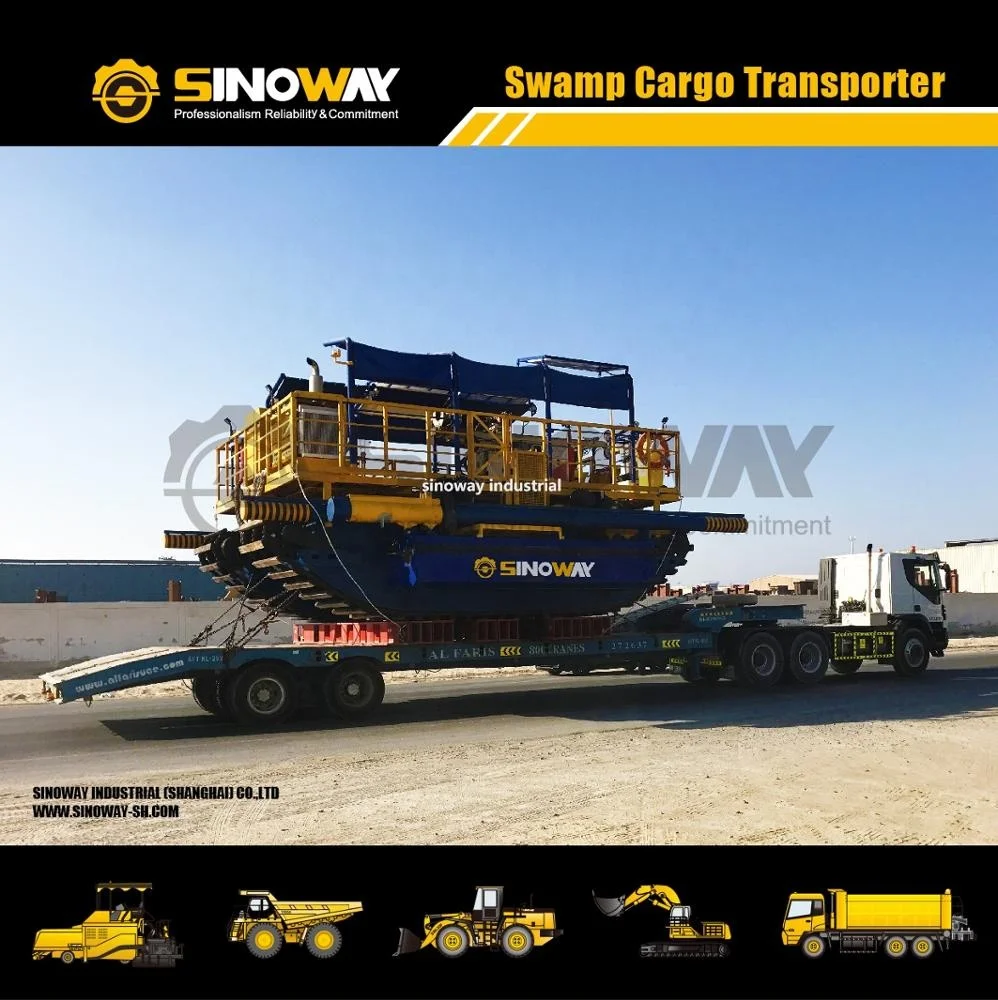

Designed to be easily transported by low bed trailer. Amphibious modules and attachments are designed to be able to fit into 40ft container. Both the assembly and disassembly processes can be achieved in under 3 hours if equipped with proper tools and crane. No special tooling is required for the assembly and disassembly process.
Each pontoon has 3 watertight compartments and manhole.The track system (shoe, chain, roller, pin and bushing) is extremely controlled tight tolerance. The track shoe supported by multiple stands of track chains provided the advantage of uniform pulling force and superior weight distribution across each track shoe. The shape of shoe is optimized to generate the powerful thrust force under water and driving force on the ground also.
Driver Cabin
Operater cabin is supported with innovative silicone rubber shock absorber, which minimize the shock brought by the rough terrain and engine or hydraulic vibration and impact transmitted to the cabin, increase the stability of cabin and improve the operators' sitting quality and operating comfort.
Amphibious swamp transport vehicle is a special kind of vehicle used for transportation of people or equipment in soft terrain and marsh areas.
Sinoway amphibious swamp transporter is specifically designed to manoeuvre in marshy, swampy area and soft terrain, and it can also float on water as an added safety feature. It is completely self propelled and can virtually access all terrains.
Amphibious transporters consist of an undercarriage and an upper structure with cabin, engine and platform.It can be equipped with winches and cranes according to different working conditions. At the same time, it can be refitted into swamp drilling platforms according to the situation. The machine can be custom-made to suit your needs too.
Main Features
Equipped with engine with good performance and reliability.
Multi Synchronous Drive System
Proprietary multi-synchronous drive motor design.Motors are mounted on front and rear of each pontoon.It offers superior tracking power as compared to a single motor design. A similar concept that is applied to a full time 4x4 gear system of a land vehicle.
Amphibious Modular Design
Designed to be easily transported by low bed trailer. Amphibious modules and attachments are designed to be able to fit into 40ft container. Both the assembly and disassembly processes can be achieved in under 3 hours if equipped with proper tools and crane. No special tooling is required for the assembly and disassembly process.
Each pontoon has 3 watertight compartments and manhole.The track system (shoe, chain, roller, pin and bushing) is extremely controlled tight tolerance. The track shoe supported by multiple stands of track chains provided the advantage of uniform pulling force and superior weight distribution across each track shoe. The shape of shoe is optimized to generate the powerful thrust force under water and driving force on the ground also.
Driver Cabin
Operater cabin is supported with innovative silicone rubber shock absorber, which minimize the shock brought by the rough terrain and engine or hydraulic vibration and impact transmitted to the cabin, increase the stability of cabin and improve the operators' sitting quality and operating comfort.

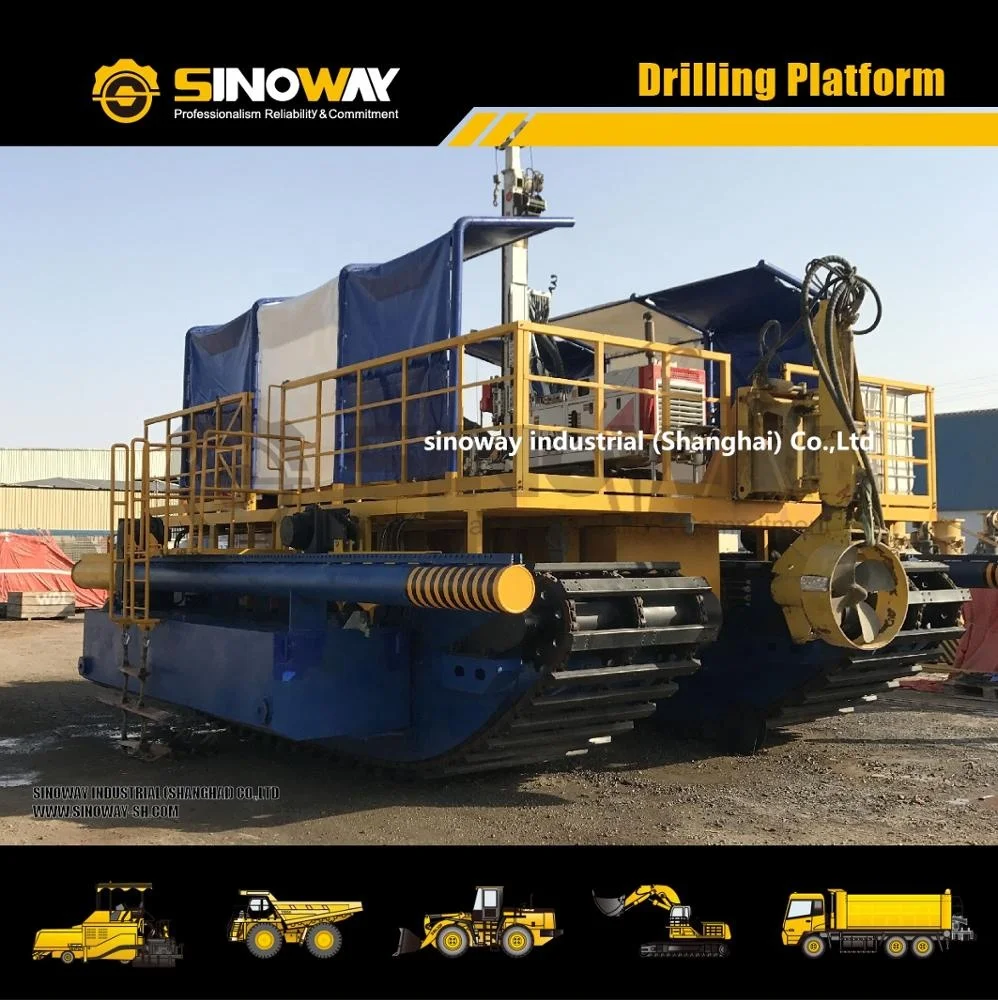

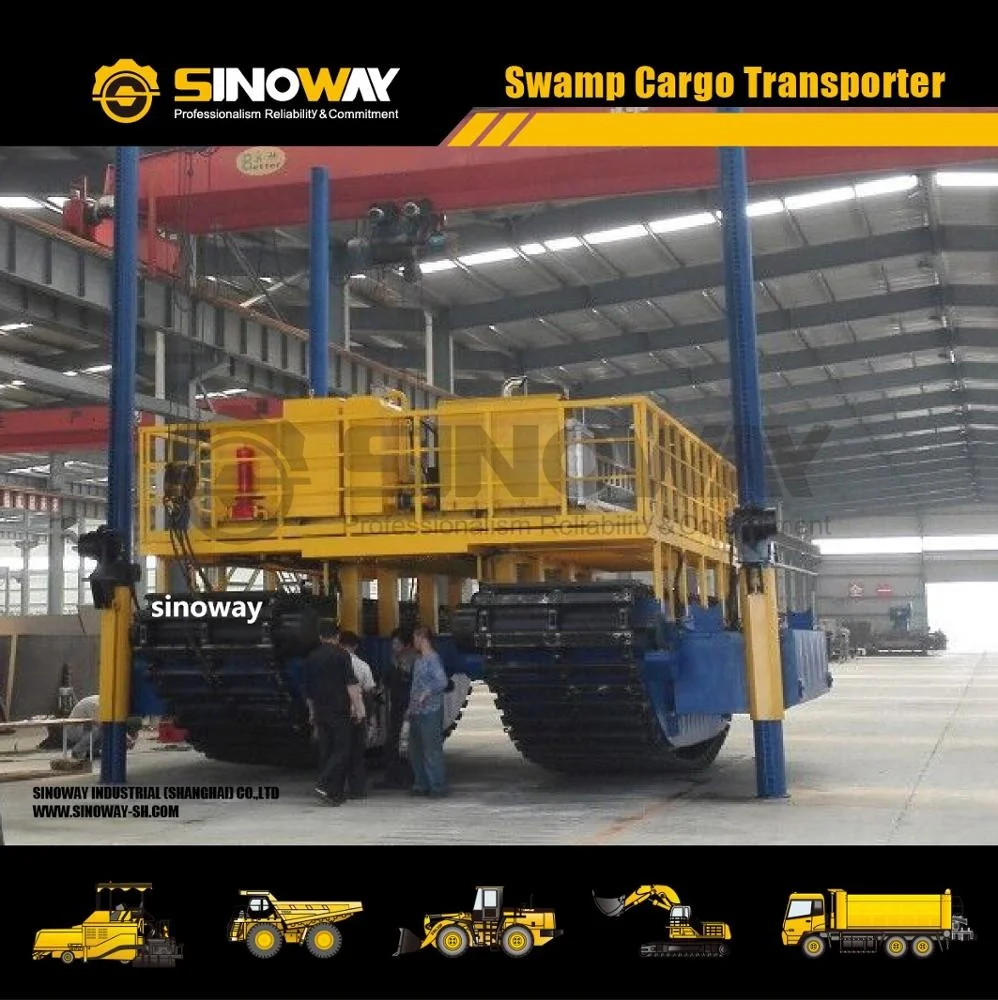

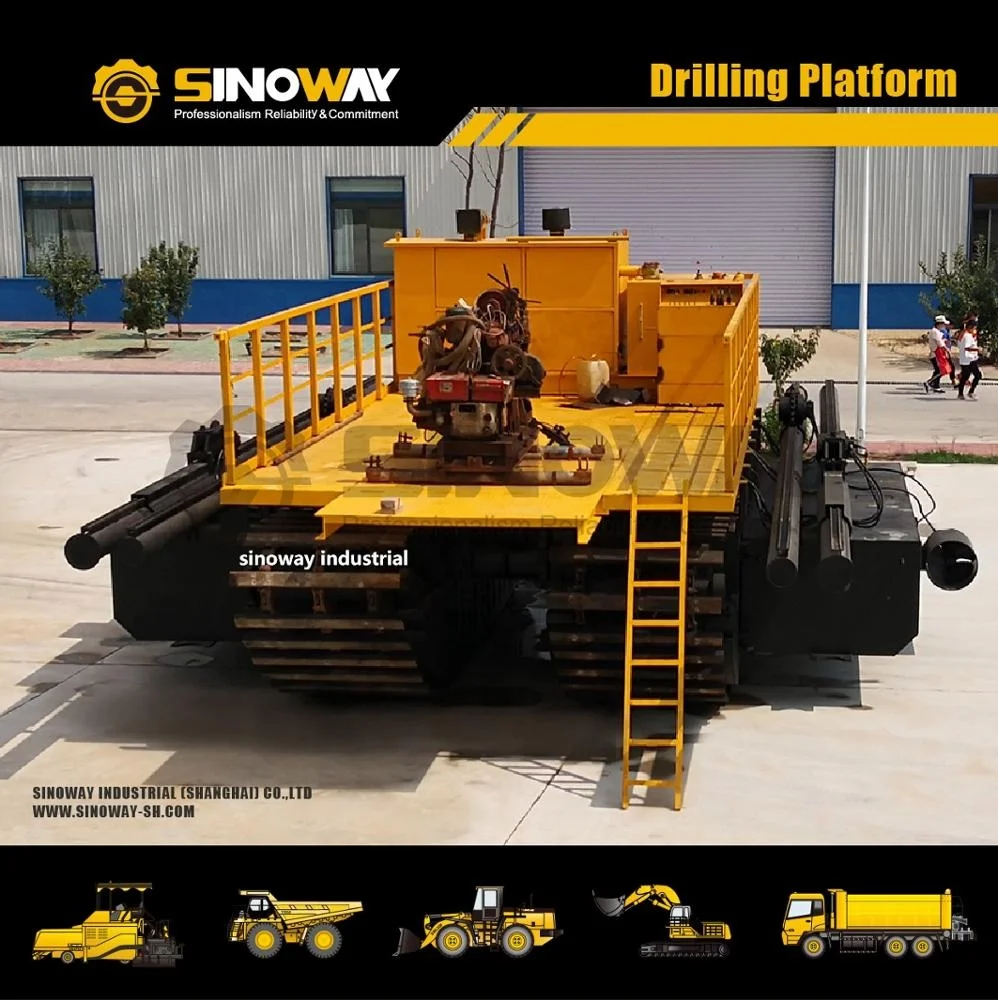

Product Show
Product Paramenters
Main technical Specification | |
Gross weight | 30 ton |
Max. payload | 8 ton |
Engine | |
Type | 4-cylinders, water cool, turbocharging |
Rated power | 186 kw (250 hp)/2200 rmp |
Max. pressure | 320 MPa |
Max. flow | 2 × 360 L/min |
Main pump | Doosan |
Multi-way valve | Doosan |
Control valve | Doosan |
Travel motor | Doosan |
Travel speed on land | 0~2.4 km/h |
Travel speed on water | 0~0.8 km/h |
Grade ability | 30° |
Ground pressure | 0.125 Kgf/cm2 |
Overall size (L × W × H) | 9500×6050×4100 mm |
Width of pontoon, length of pontoon | 2010 mm/1700 mm |
Platform size (L × W × H) | 8500×6000×2100 mm |
Cabin | All-steel broad cab, 360 visual angle, centralized control operator panel, ratating chair, air conditioner |
