Greenpedel KT 48V 30A Big Squarewave Sinewave 12 Mosfet 750W 1000W Motor Electric Bicycle Controller
Greenpedel KT 48V 30A Big Squarewave Sinewave 12 Mosfet 750W 1000W Motor Electric Bicycle Controller
Greenpedel KT 48V 30A Big Squarewave Sinewave 12 Mosfet 750W 1000W Motor Electric Bicycle Controller
Greenpedel KT 48V 30A Big Squarewave Sinewave 12 Mosfet 750W 1000W Motor Electric Bicycle Controller
Greenpedel KT 48V 30A Big Squarewave Sinewave 12 Mosfet 750W 1000W Motor Electric Bicycle Controller
Greenpedel KT 48V 30A Big Squarewave Sinewave 12 Mosfet 750W 1000W Motor Electric Bicycle Controller
Greenpedel KT 48V 30A Big Squarewave Sinewave 12 Mosfet 750W 1000W Motor Electric Bicycle Controller

Greenpedel KT 48V 30A Big Squarewave Sinewave 12 Mosfet 750W 1000W Motor Electric Bicycle Controller

Share on (62496413315):


Price:$30.00 - $39.00

Quantity:


Product Overview

Description





Related Production


If this product does not meet you needs , we have other models and hope to be able to help you.


36V/48V 14A controller

36V/48V 17A controller
36V/48V 22A controller


48V 30A controller(sinewave)

48V 35A controller
56-72V 60A controller


Products Description


ATTENTION

1,KT controller just only compatible with KT display(same communication protocol) . Please make sure that your system is KT
system.

2, There is 2 versions. Compare with sinewave and squarewave .Sinewave means less noise ,
more smooth when riding .The sinewave controller is 5$ more .

Motor(Julet waterproof)-Other(SM)

Brand : KT
Color : Silver
Dimension : 170*80*40mm
Mosfet : 12 Mosfet
​Maximum current : 30±1A
Rated current : 15A
Rated voltage : DC48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC40±0.5V
Cable Length : all about 13-15cm

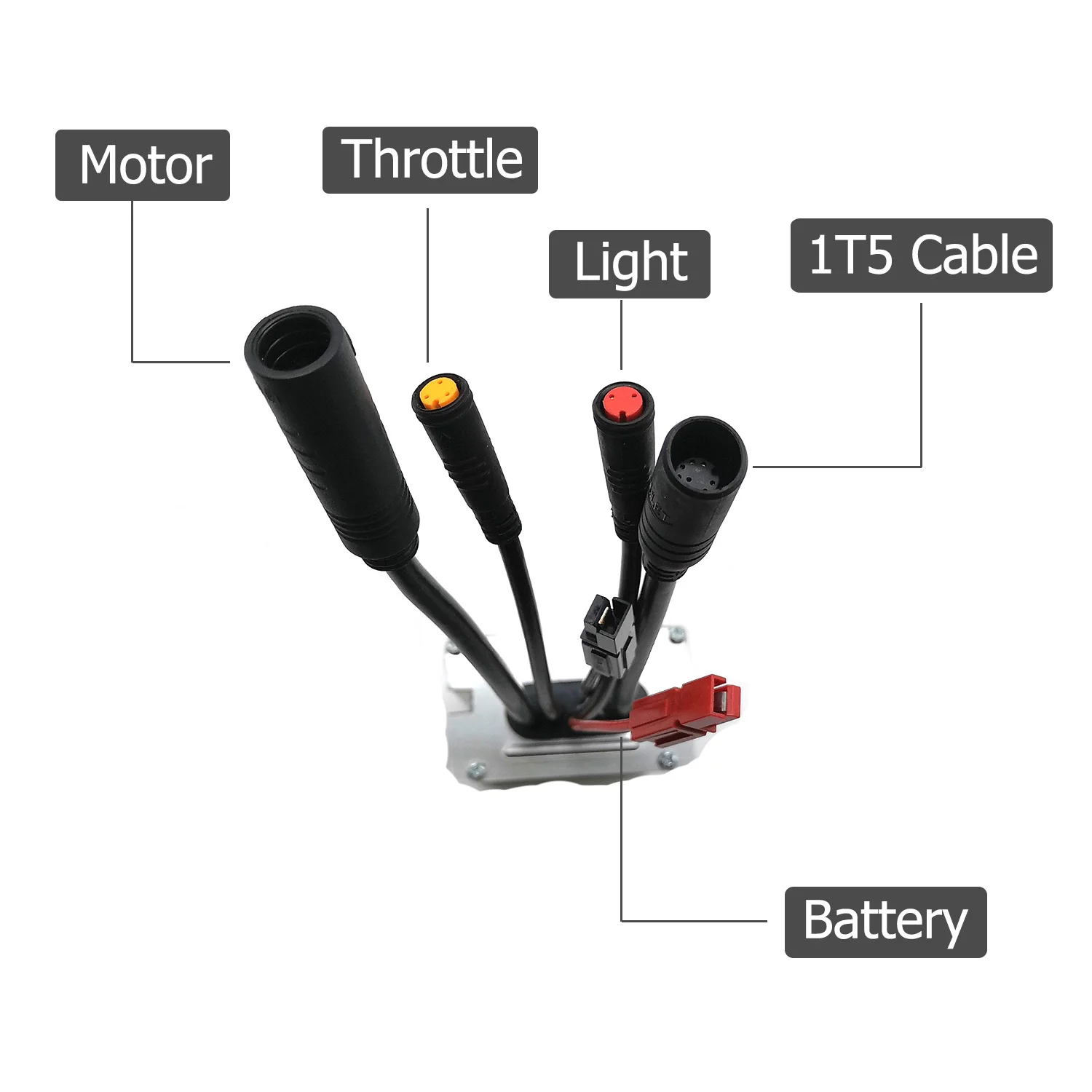

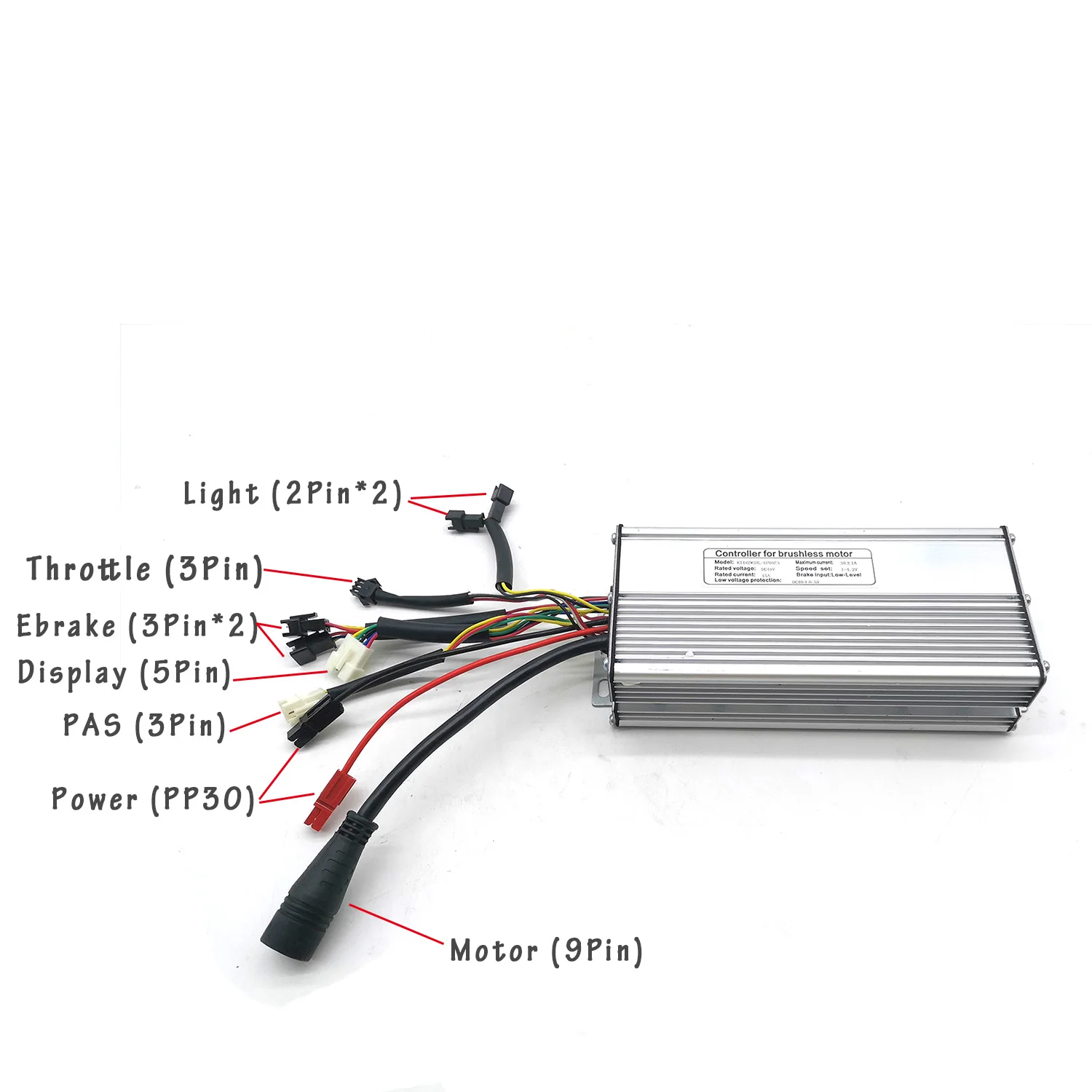

FUNCTION & PLUG

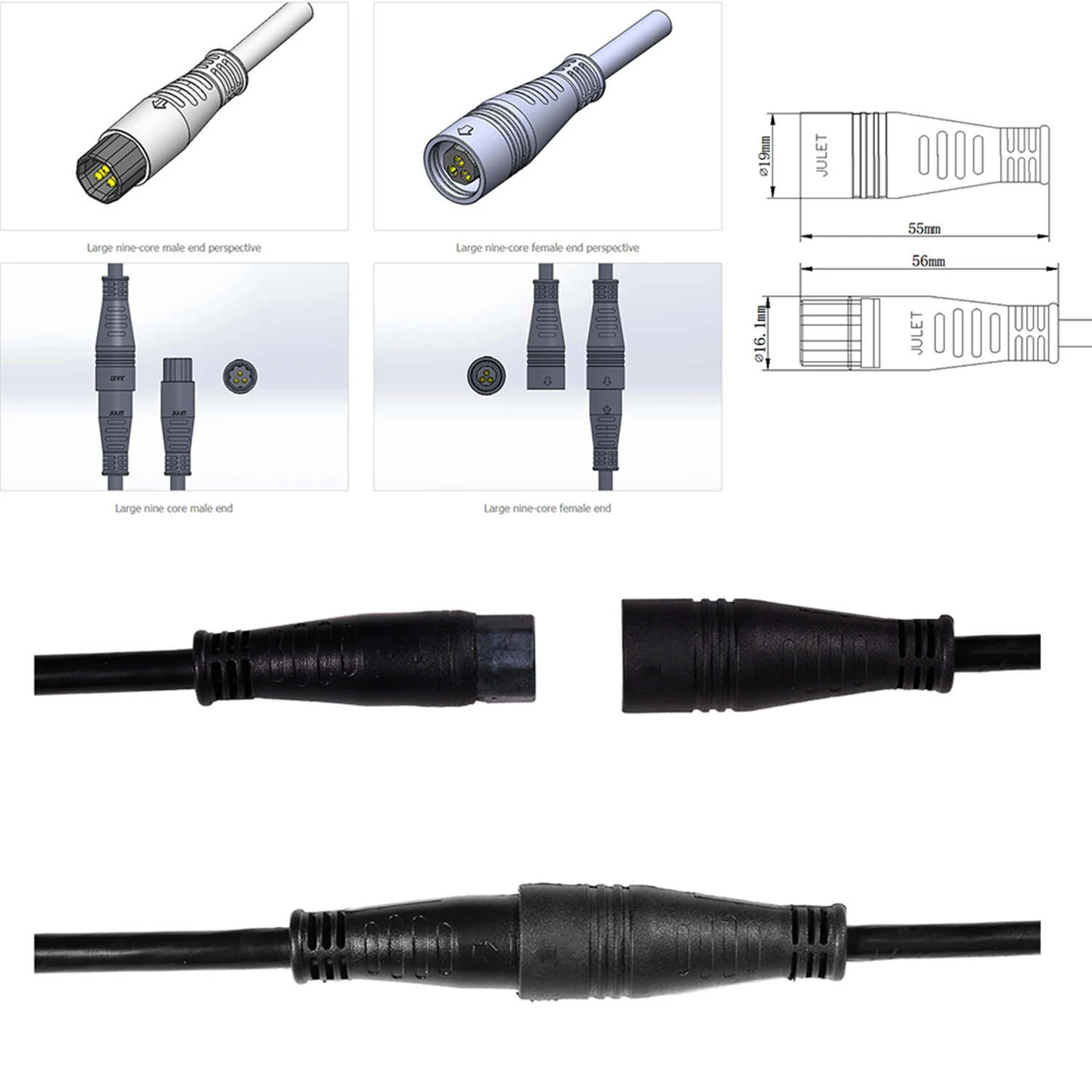

motor (Big 8pin Julet waterproof plug ,same as big 9pin but no speed measurement function )

Power (red-black Anderson PP30 plug)

Display (5 pin SM plug)

Throttle (3pin SM plug)

Ebrake (3pin SM plug ) *2

PAS (3pin SM plug)

Light (2pin SM plug)





All waterproof connector

Brand : KT
Color : Silver
Dimension : 170*80*40mm
Mosfet : 12 Mosfet
​Maximum current : 30±1A
Rated current : 15A
Rated voltage : DC48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC40±0.5V
Cable Length : all about 13-15cm

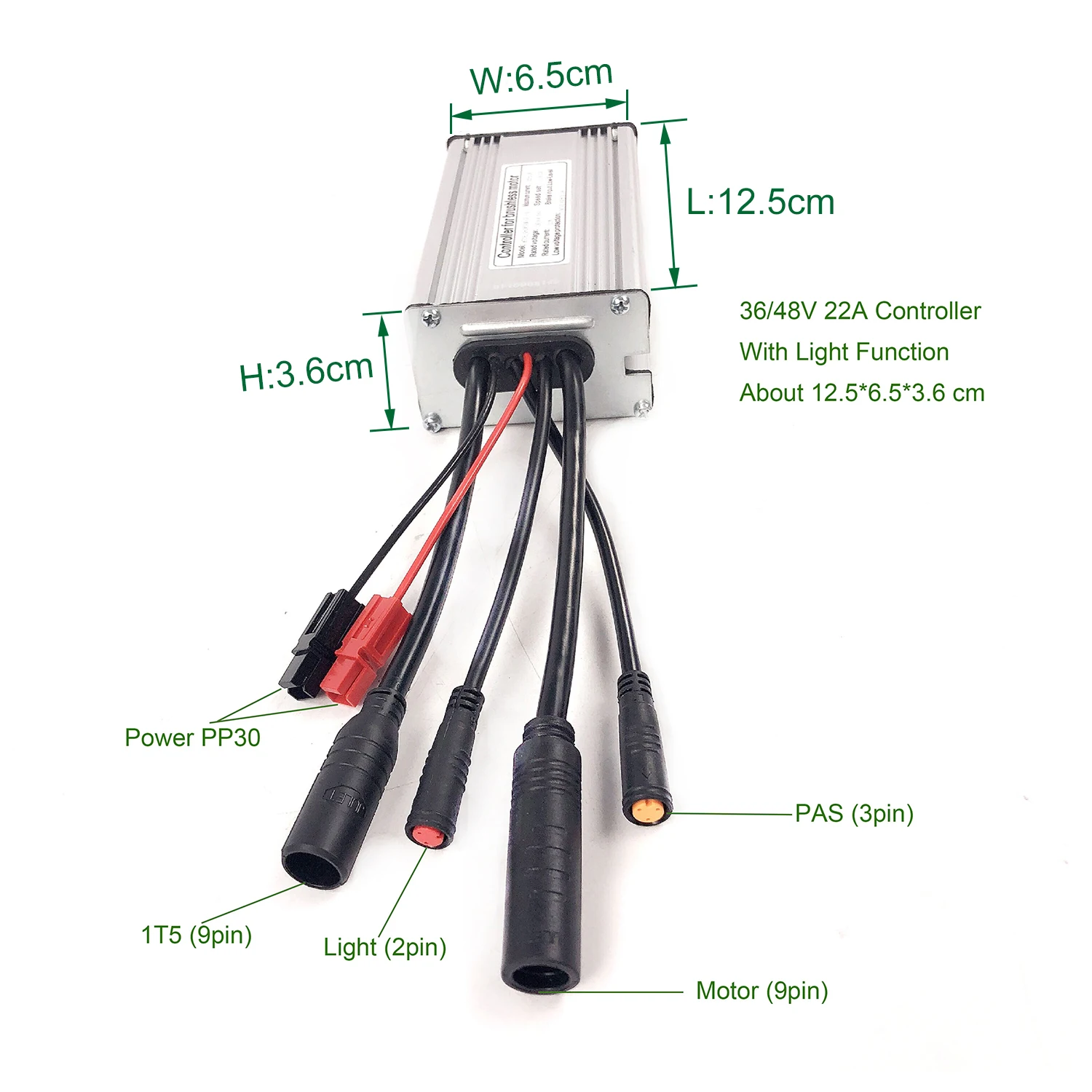

FUNCTION & PLUG

motor (Big 8pin Julet waterproof plug ,same as big 9pin but no speed measurement function )

power (red-black Anderson PP30 plug)

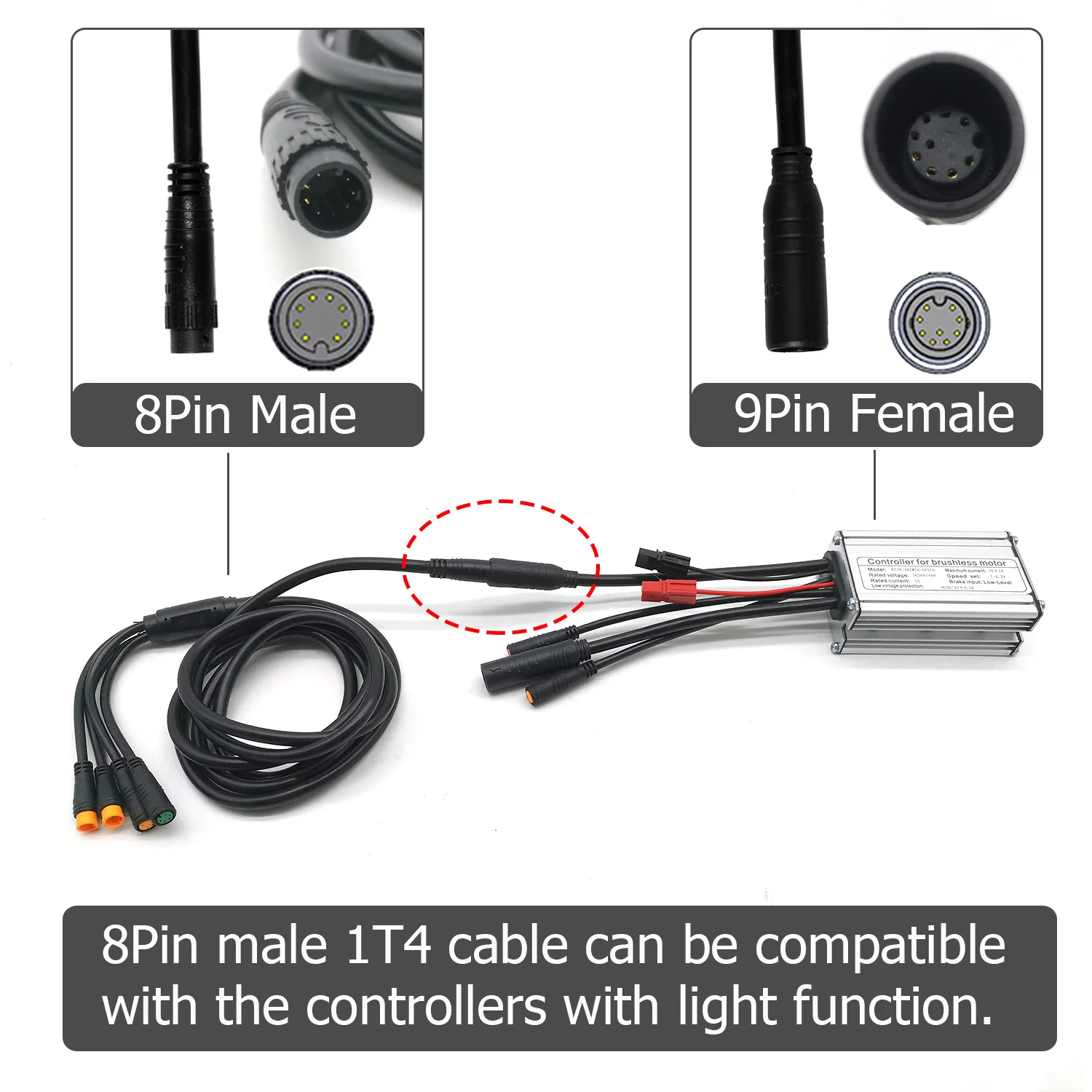

1T5 cable plug(9pin Julet waterproof plug-Throttle-Display-Ebrake*2-Light)

PAS (Yellow-3pin Julet waterproof plug)

Light (Red-2pin Julet waterproof plug)ht (2pin SM plug)
