USB 3.0 A-type, Female, Sinking Board Type, CH=1.54mm, I/O Connector
Current Rating
1.5AMP
Contact Resistance
30mΩ Max
Insulation Resistance
1000MΩ Min
Dielectric Withastanding Voltage
500V R.M.S
Operation Temperature
40℃ to +85℃
Mating Force
3.57kg. Min
Mating Force
1.02kg.min
Durability Mandatory
5000Cycles
Contact Material
Phosphor Bronze
Insulator Material
LCP+30%G.F UL94V-0
Shell
Brass(T=0.3mm)

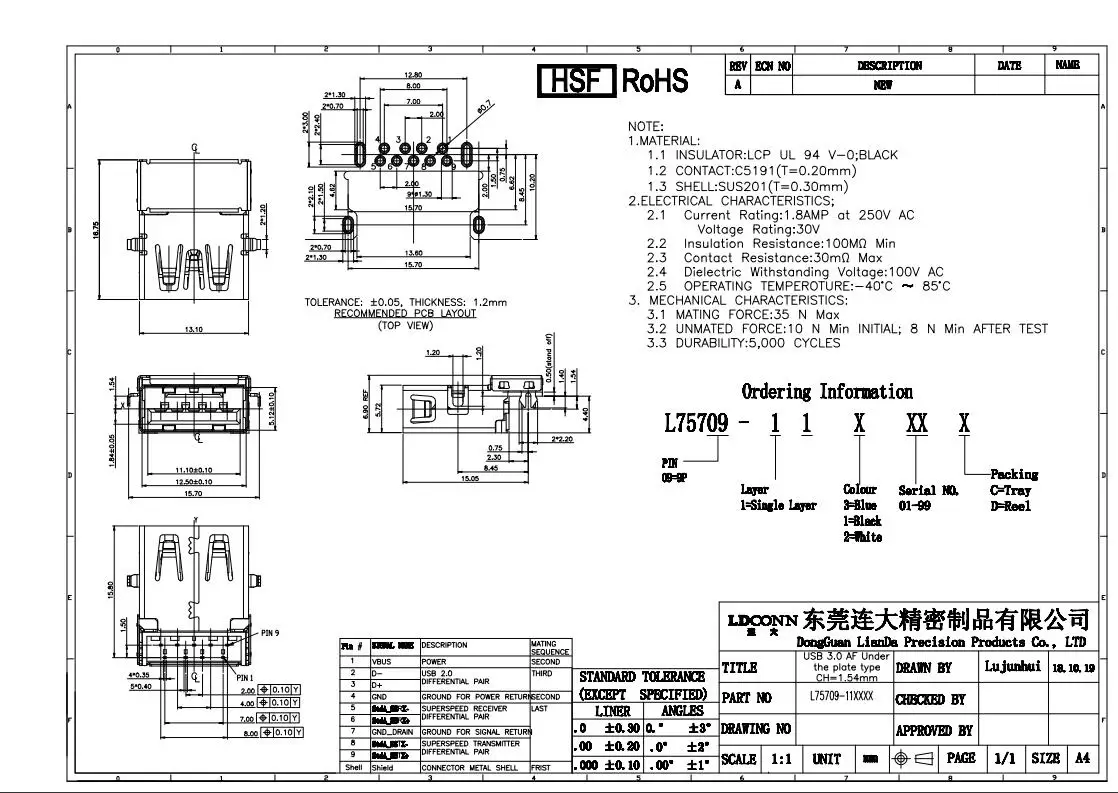

Products Drawing :
Other type connector :
Our customer :
Here below is our company short profile :
1.Manufacturing since 2002 , 90% automatic production , defective rate is less than 0.001%
2. 5-7 days delivery time and reasonable price for work further
3. Customized pin header & sockets solution
4. Main product :pin header , female header ,box header ,RJ 45 connector , USB connector, board to board connector ,D-sub connector ,terminal block , SIM connector and so on
5. Top 3 customers of BizLink , TP-link and Foxconn
6.Our components are manufactured to the ISO 9001 / ISO 14001 / IATF16469 / UL certifications and are RoHs 2.0 compliant as well as Halogen free.
7.You will enjoy the security of knowing that each product LDCONN is offering to you has been designed with high quality materials and engineered to
optimize the performance characteristics still providing low cost installations and an excellent reliability.
