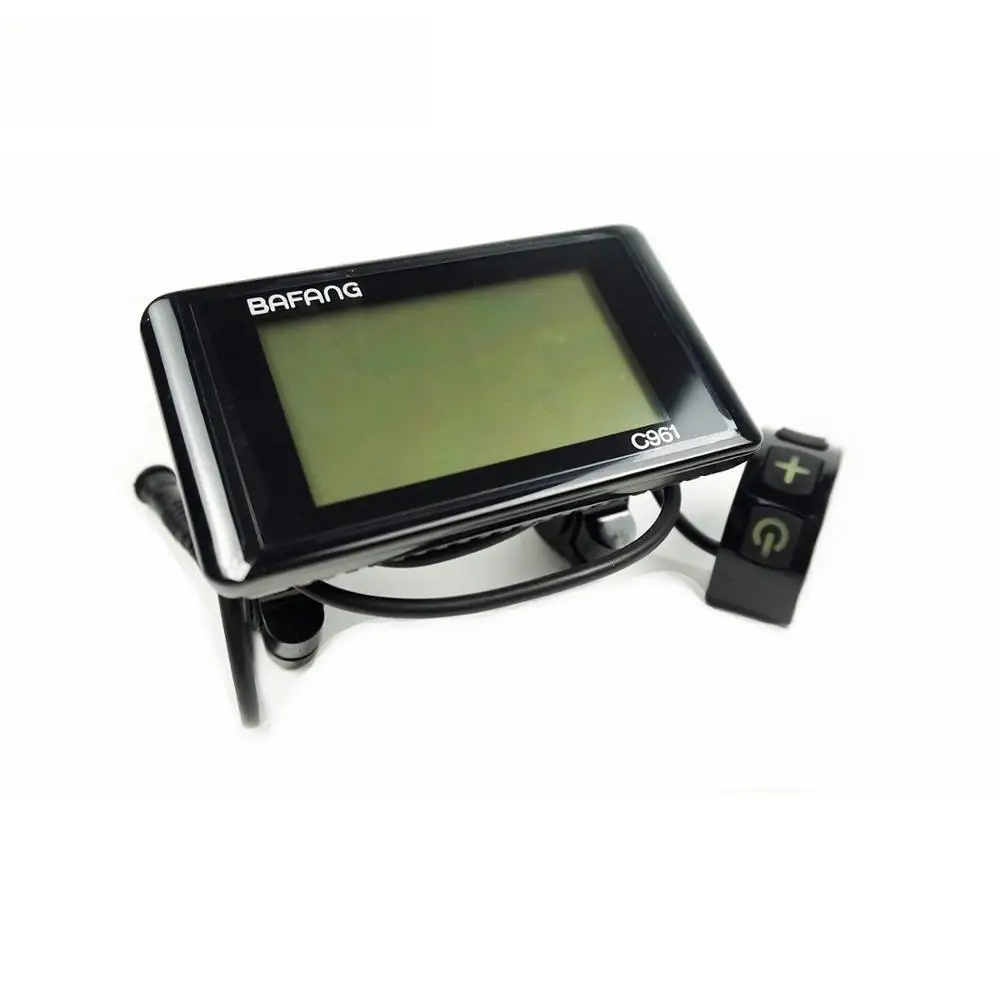

This display just for Bafang BBS01 BBS02 BBSHD midmotor

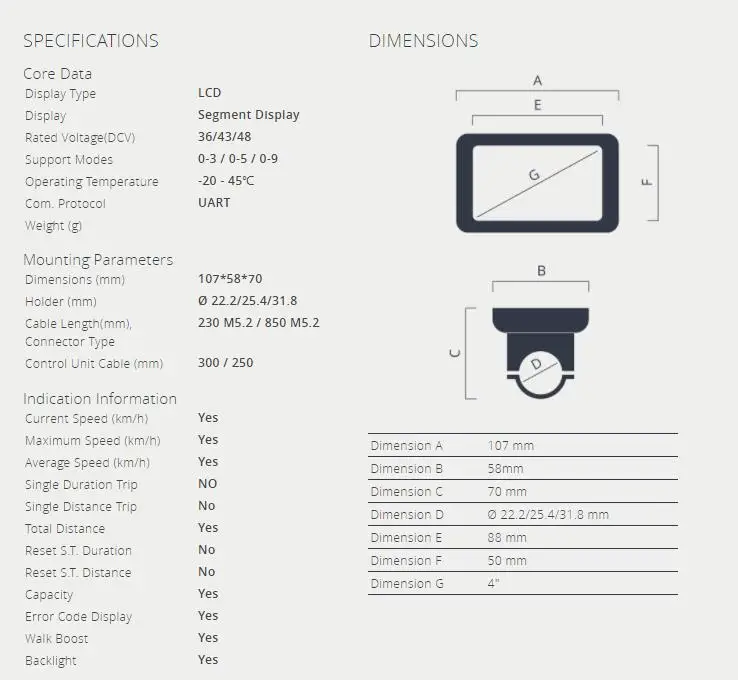

SIZE:

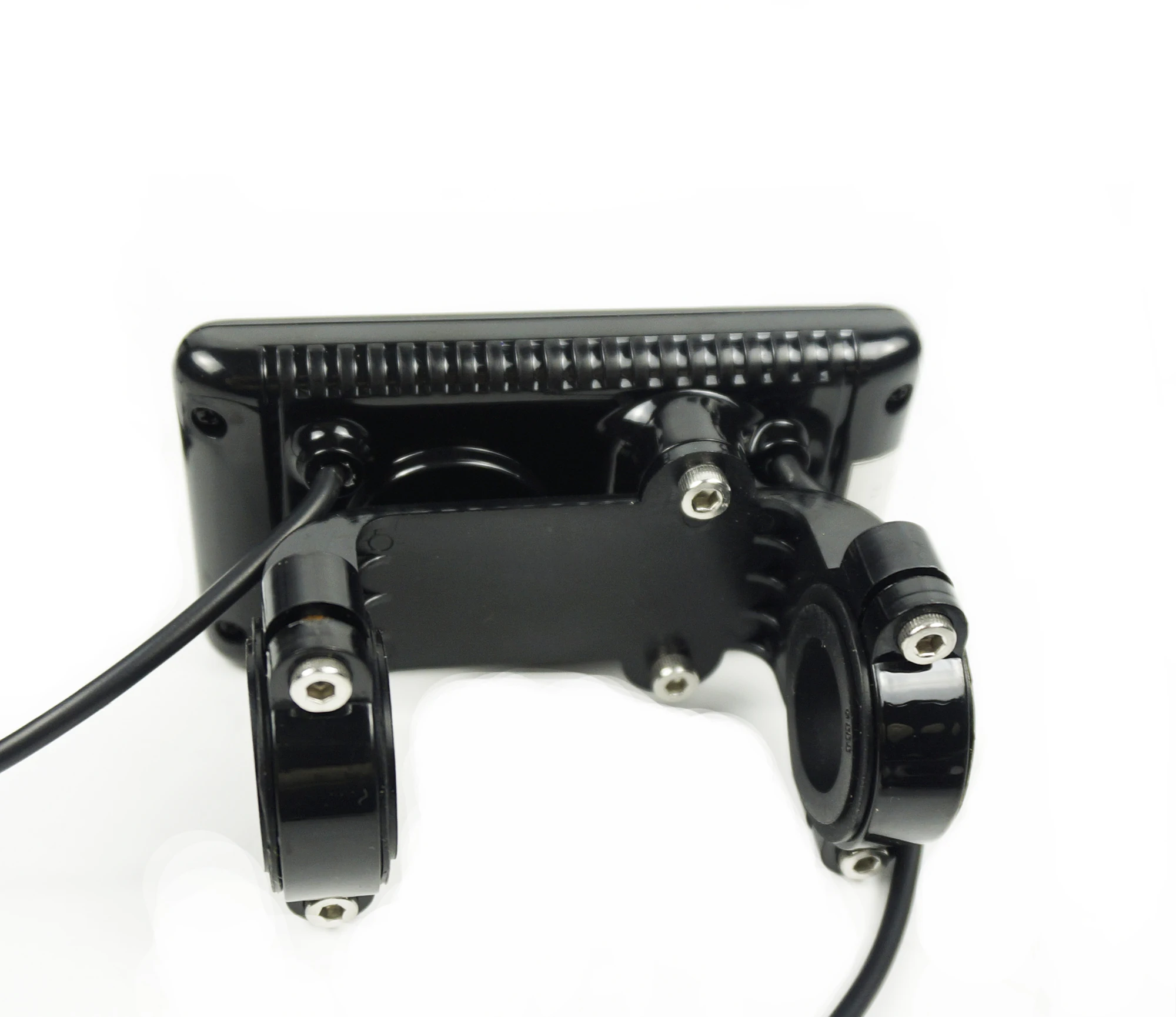

1.Handlebar for Holding:Ø 22.2/25.4/31.8 mm (With 2 version gaskets in the package for choose) 2.Display Cable Length:50cm including connector 3.Switch Cable Button Length : 22cm
CONNECTOR:

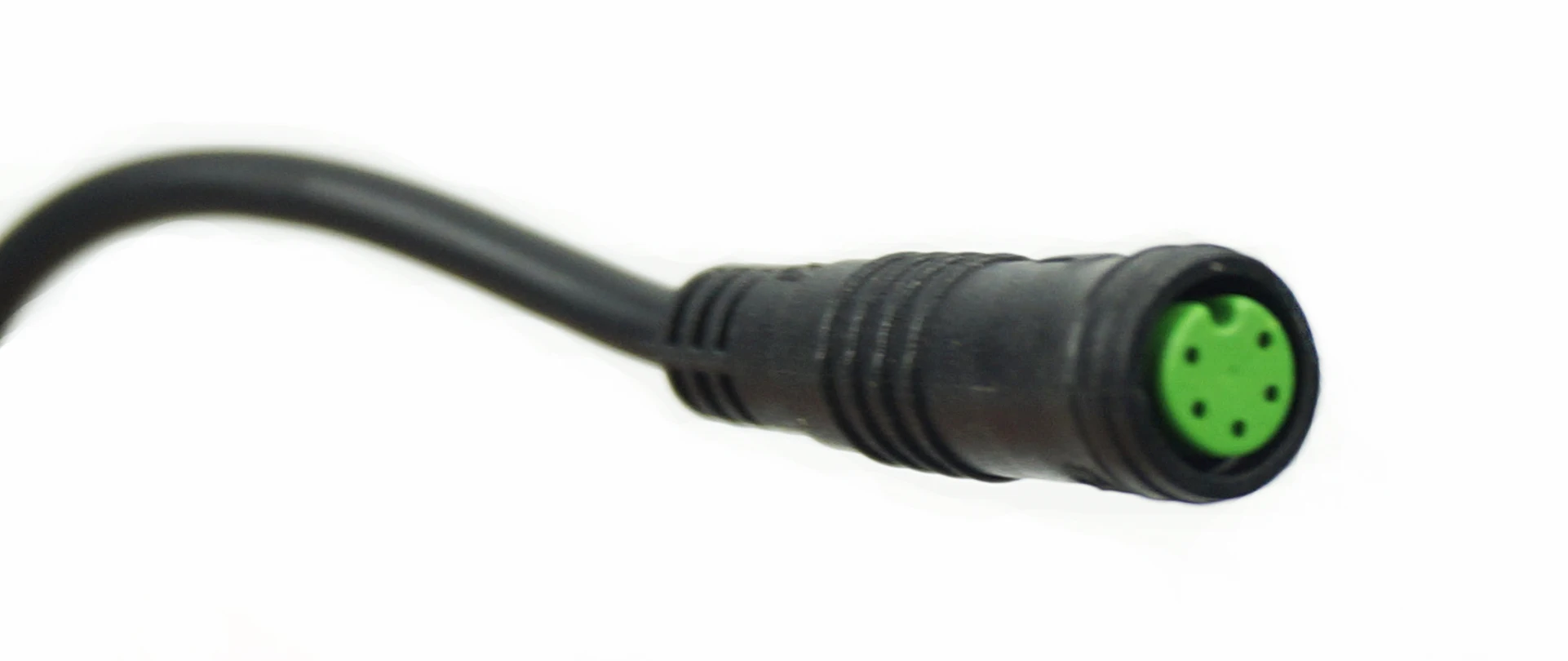

5 Pin Base connector (Green)
FUNCTION:

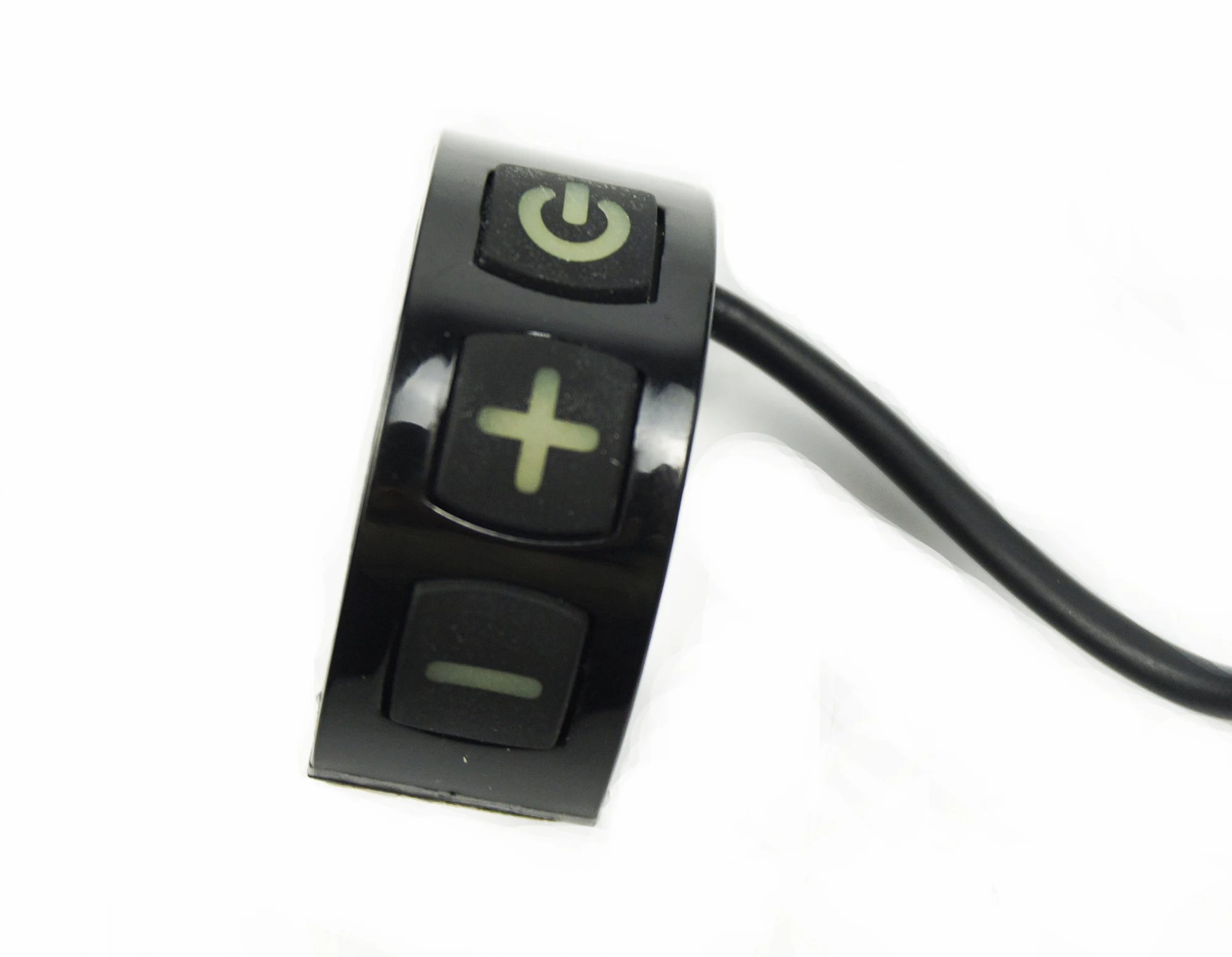

1. 5-way button, very easy to operate
2. Light sensation headlight automatic: Automatic turn on/off backlight or Headlight when outside light changing.
3. Temperature showing : Indicate outside ambient temperature
4. Buzzer reminding : Built-in buzzer, sound alert in multi-state, such as Key tone / Low temperature warning / Low battery indicator / Failure warning…
5.Speed showing : RT Speed, MAX SPEED, AVG SPEED.
6.KM / Mile : Setting up adjustable according to customers' habits..
7.Mileage : ODO,Trip,Time.Range
8.Error code indicator
9.Smart battery indicator
10.The brightness of the backlight adjustable : 5-sections
11.3-level PAS : 3-PAS
12.Brake indicator
13.24V/36V/48V compatible
PACKING LIST:

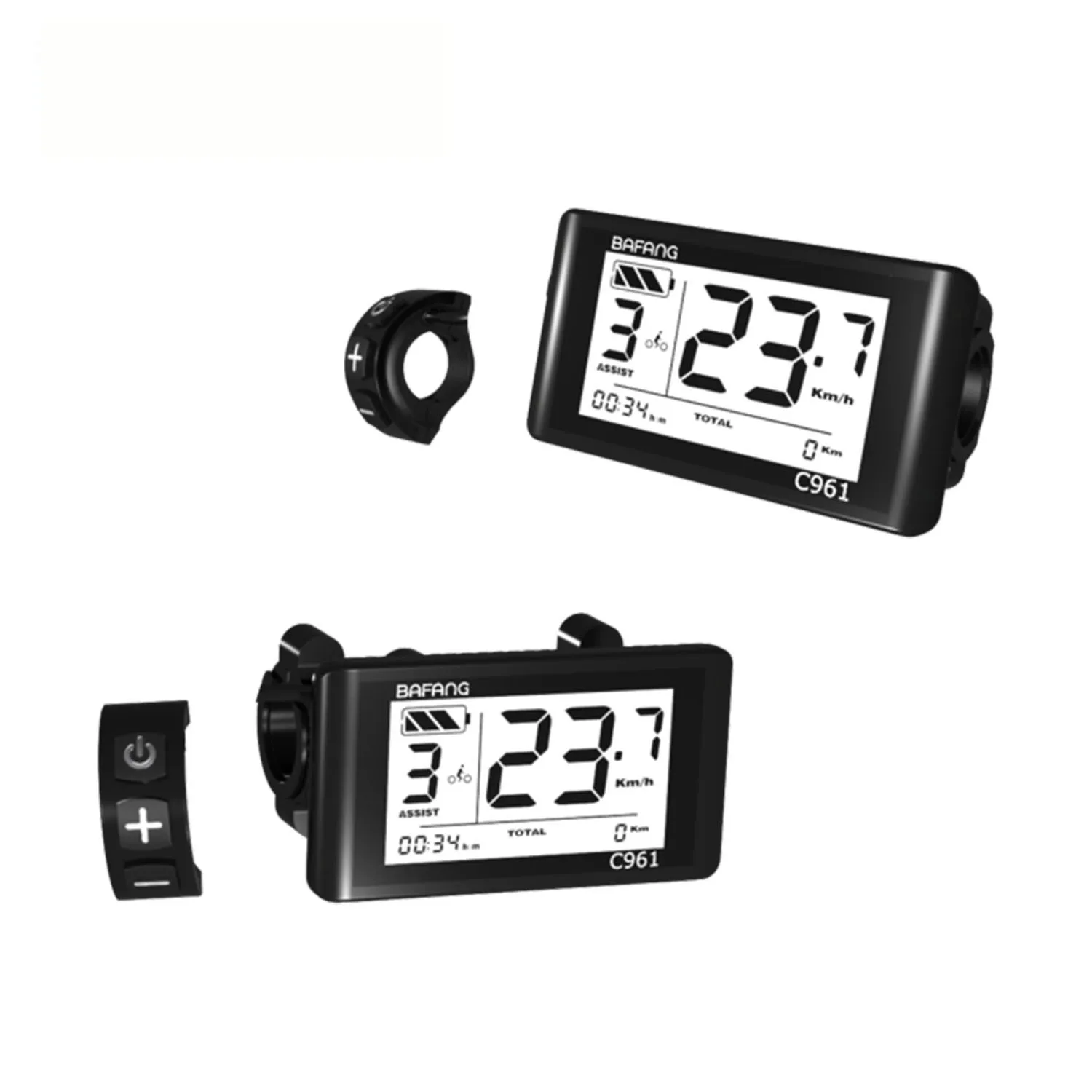

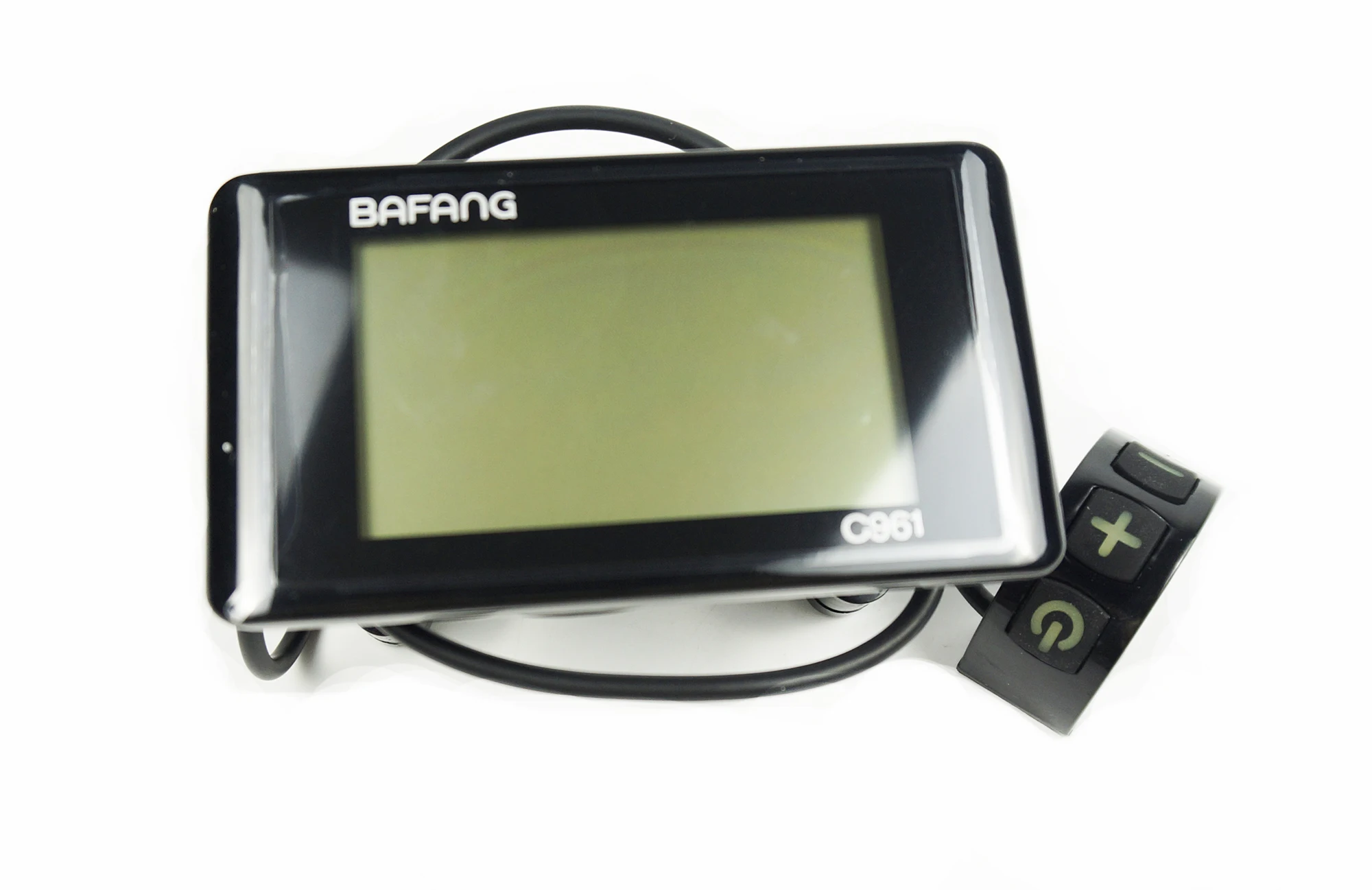

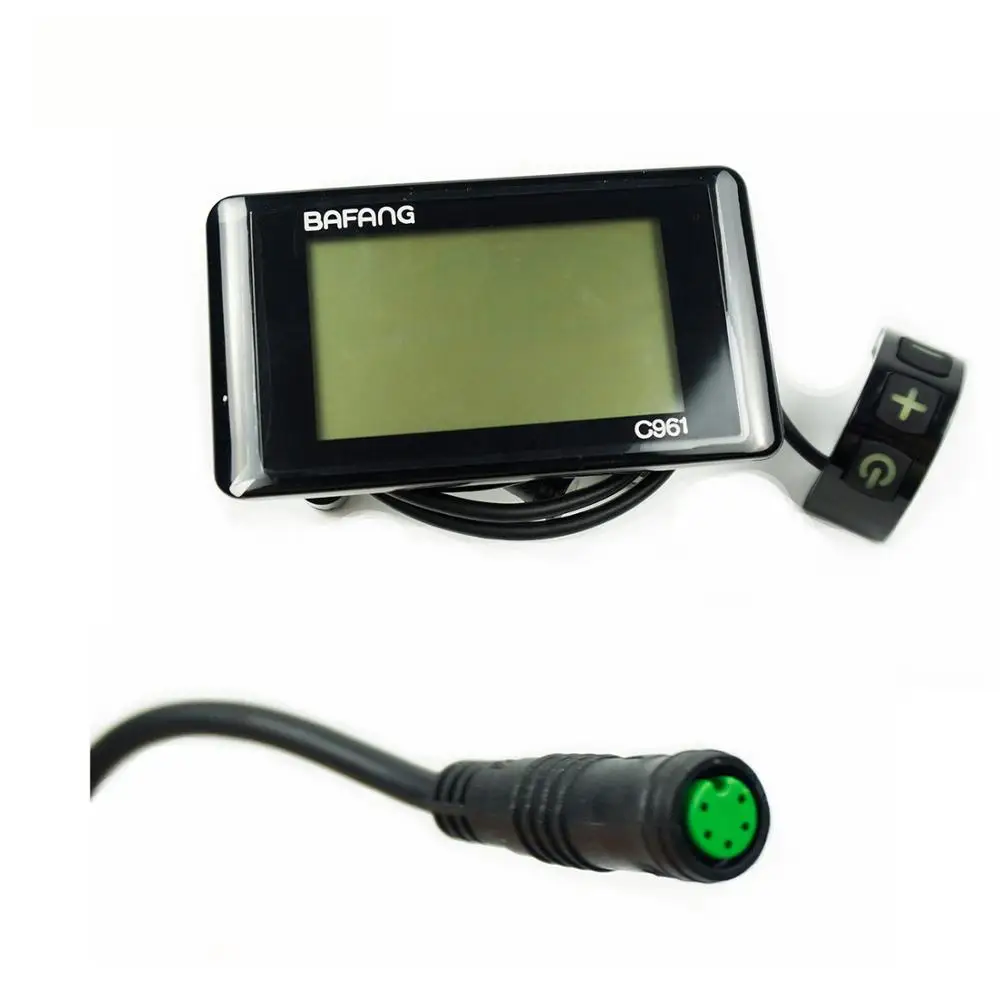

1.Bafang C961 LCD display 2.Display holder and gaskets
