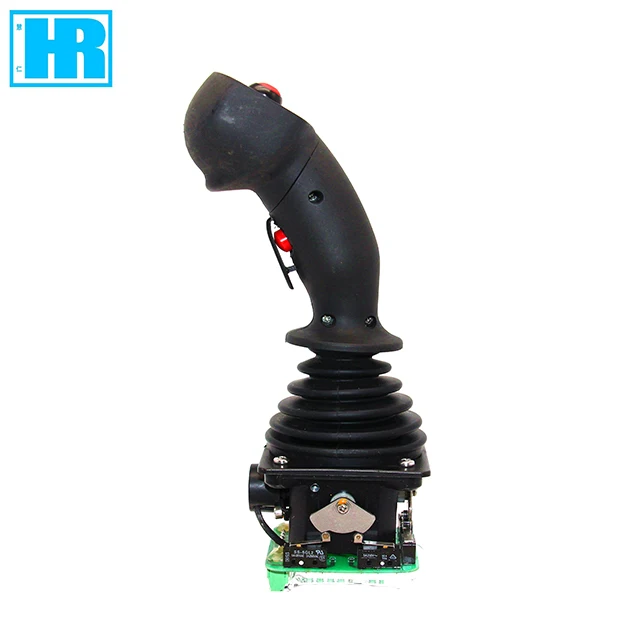

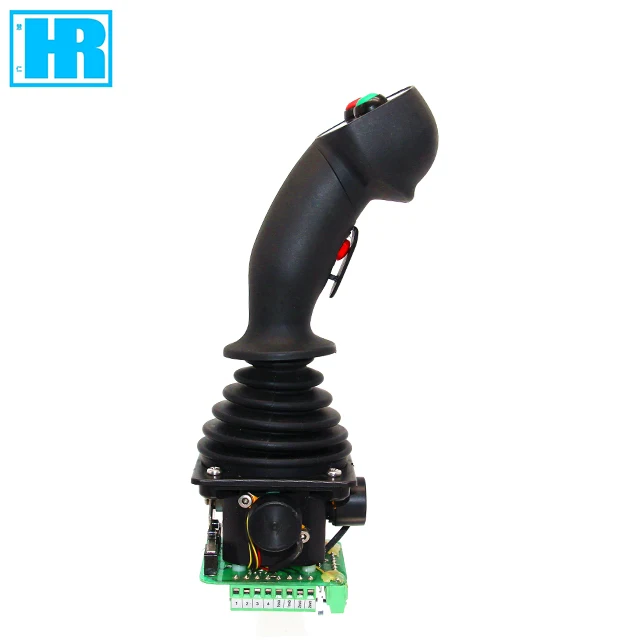

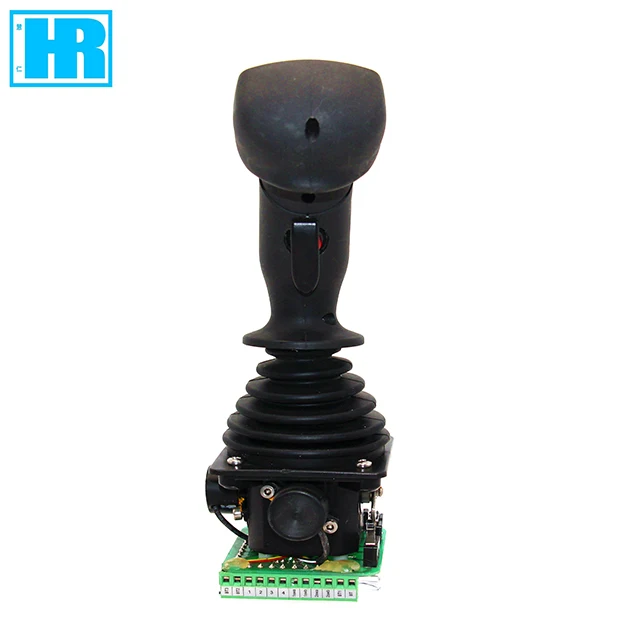

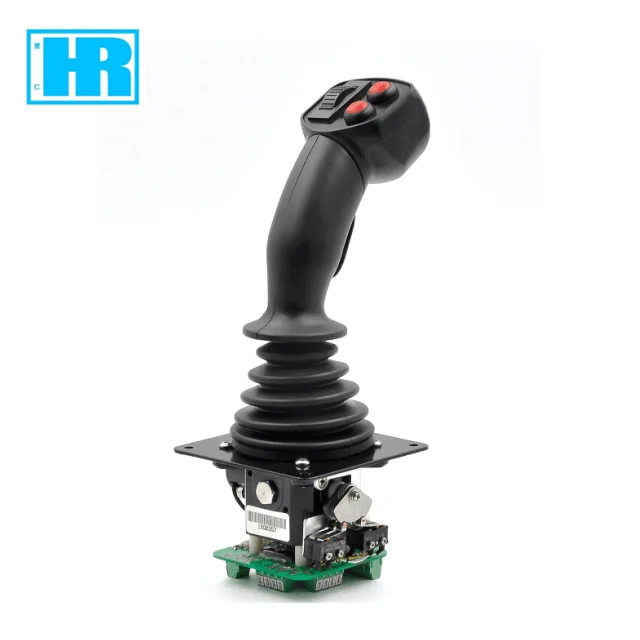

SJ100 joystick controller for operator controls on a wide range of off highway vehicles, including cranes, loaders, excavators,

Product Overview

Description

crane multi-axis type industrial Joystick

             1. Potentiometer type sensor or hall sensors

           2. Uniaxial or biaxial control

           3. High strength control lever and the proportion of excellent control or switch output

           4. Panel above protection grade IP56

           5. Easy installation, flexible operation, uniform hand feeling, long service life, maintenance free.



  Technical Specifications

Environment Specifications
Storage temperature	normal temperature
Operating temperature	—25℃~+80℃
Installation of flange protection grade	IP65
Vibration	amplitude of vibration ±3g, frequency 10HZ-200HZ
Shock	20g, 6ms, half sine type
EMC anti-interference grade	150KHZ-30MHZ, grade B, satisfy EN 50081-2 (1993) standards
ESD anti-interference grade	Level 4, 8 kv contact discharge, 15 kv air discharge, satisfy IEC 61000-4-2 standards
Mechanical Specifications
Mechanical rotation	±32° (potentiometer)   ±20° (hall sensor)
Operating torque	5N(50Nmax)
Mechanical life	5,000,000 cycle
Mechanical tolerance	±0.5°
Electrical Parameters
Hall type	Power supply voltage	5±0.5VDC
	The power consumption of current	6.5 mA/each hall chip
	Resolution	Infinition
	Maximum voltage	15 VDC continuous
	Reverse polarity maximum voltage	14.5VDC
	The median voltage (no-load)	48~52%Vs
	Load resistance	5KΩ
Potentiometer	Power supply voltage	DC24V
	Power supply current	<20mA
	Resolution	Infinition
	Resistance (10%)	2KΩ, 5KΩ, 10KΩ
	Electrical rotation	±32°
	Output voltage range (Relative voltage)	0~100%;10~90%
	Maximum voltage	48%~52%
	Potentiometer maximum load of voltage	32VDC
	Maximum power consumption (25 ℃)	0.25W
	The direction of the switch	Switch position ±3°















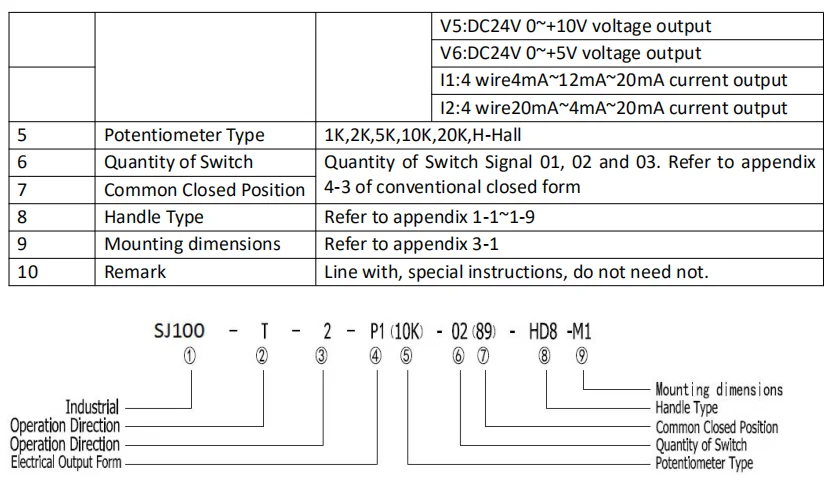

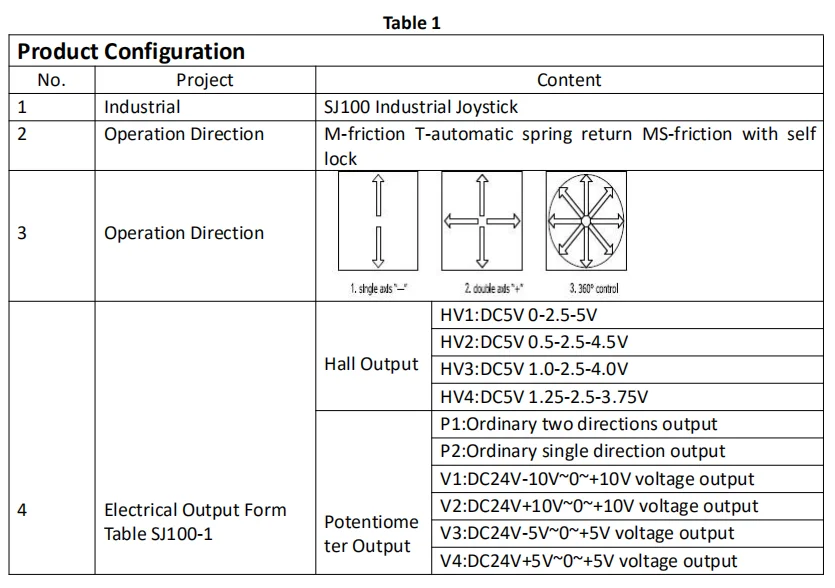

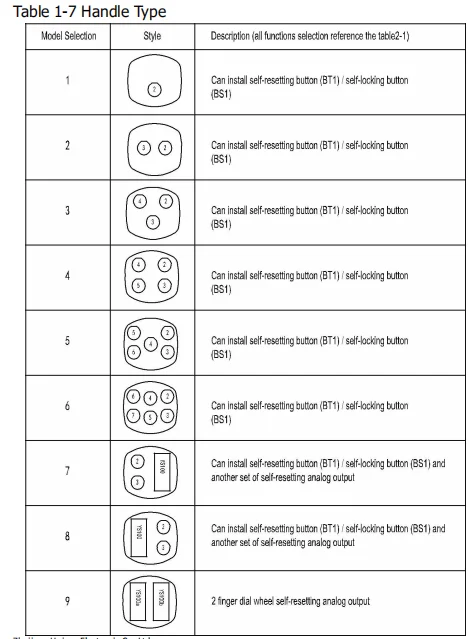

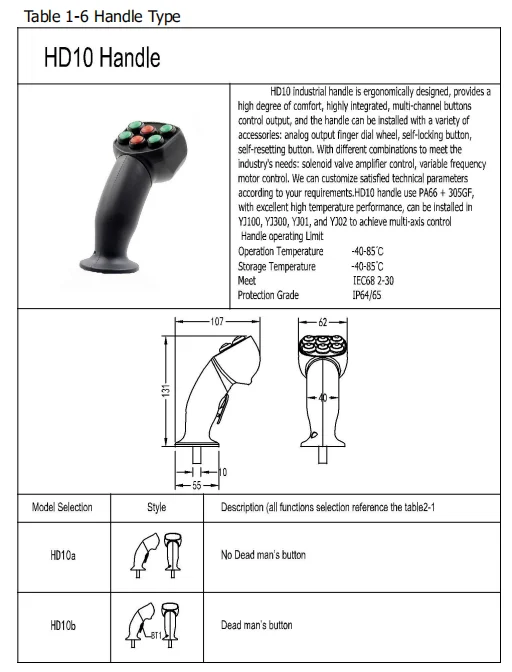

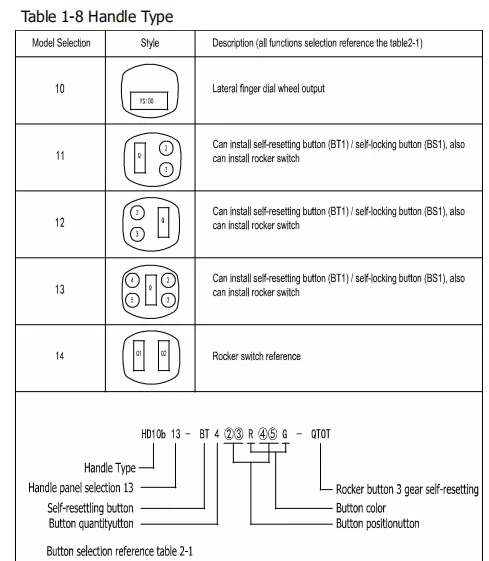

Product Installation
