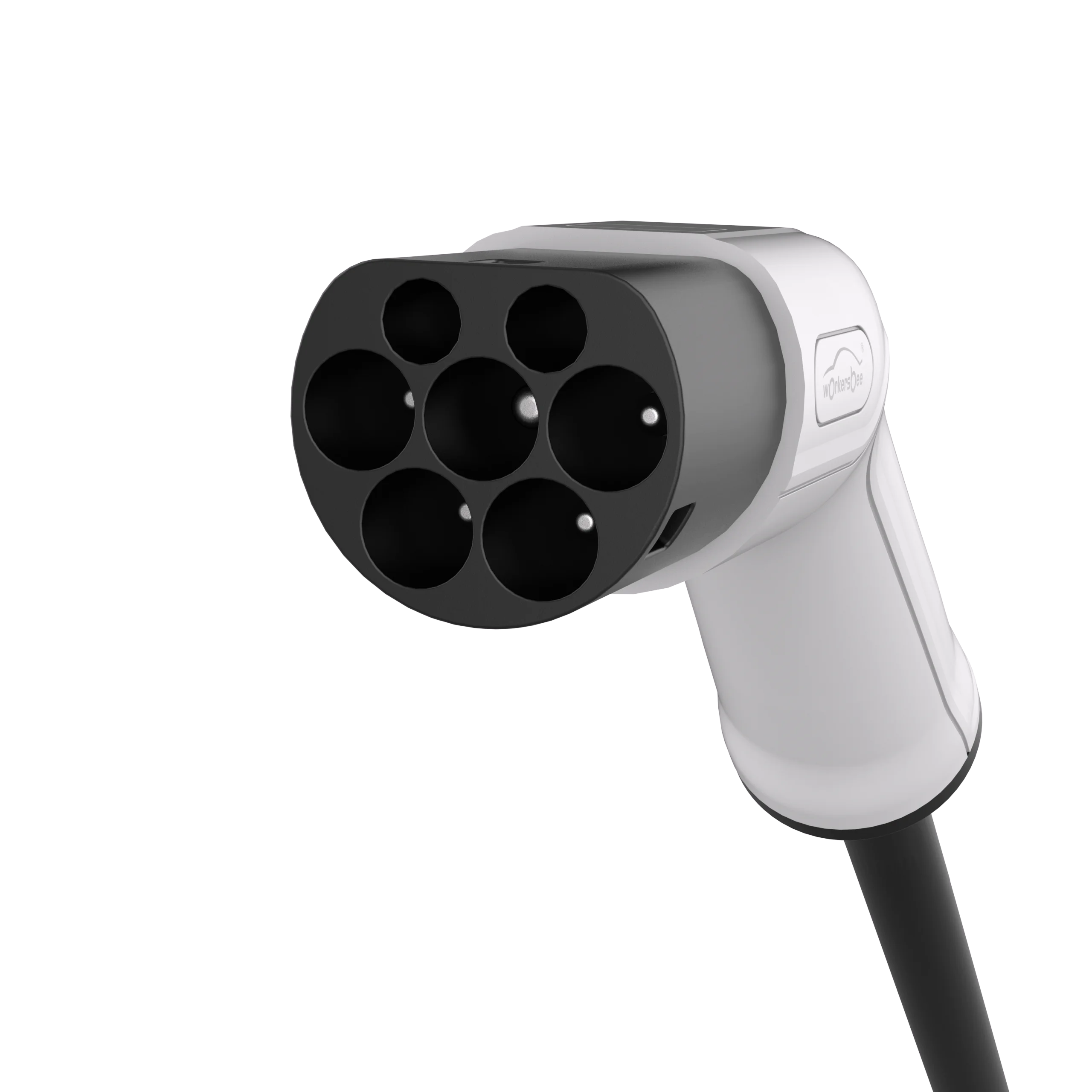

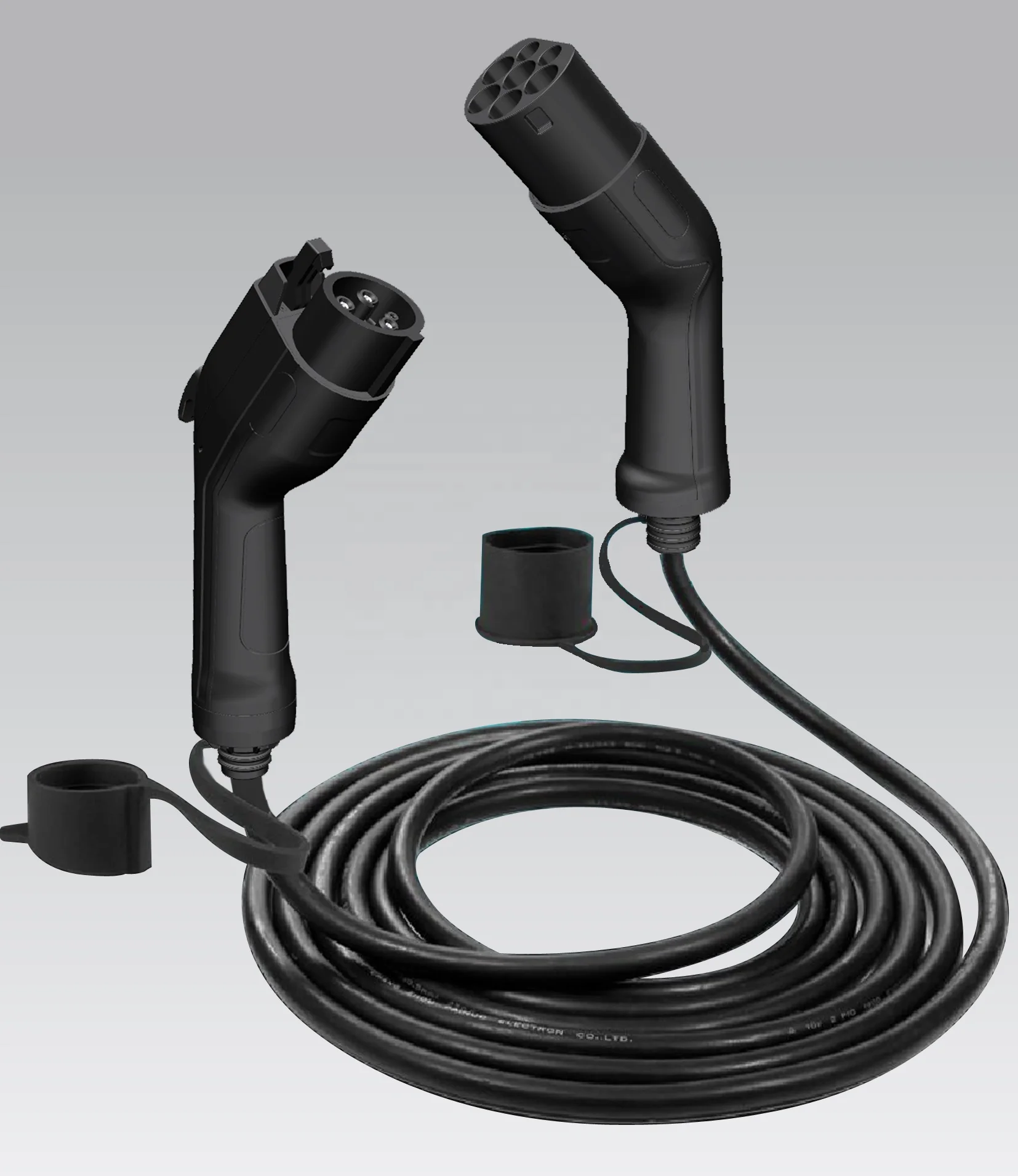

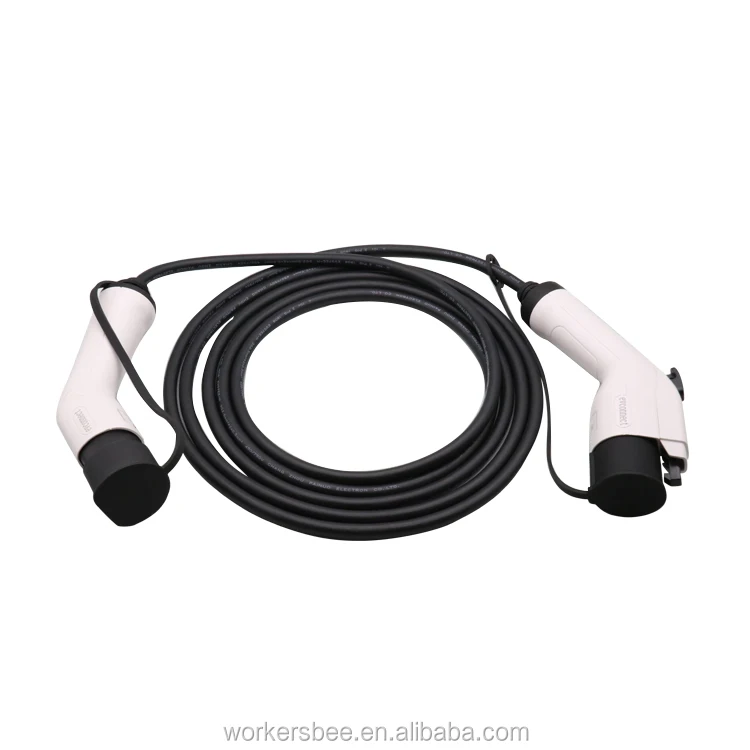

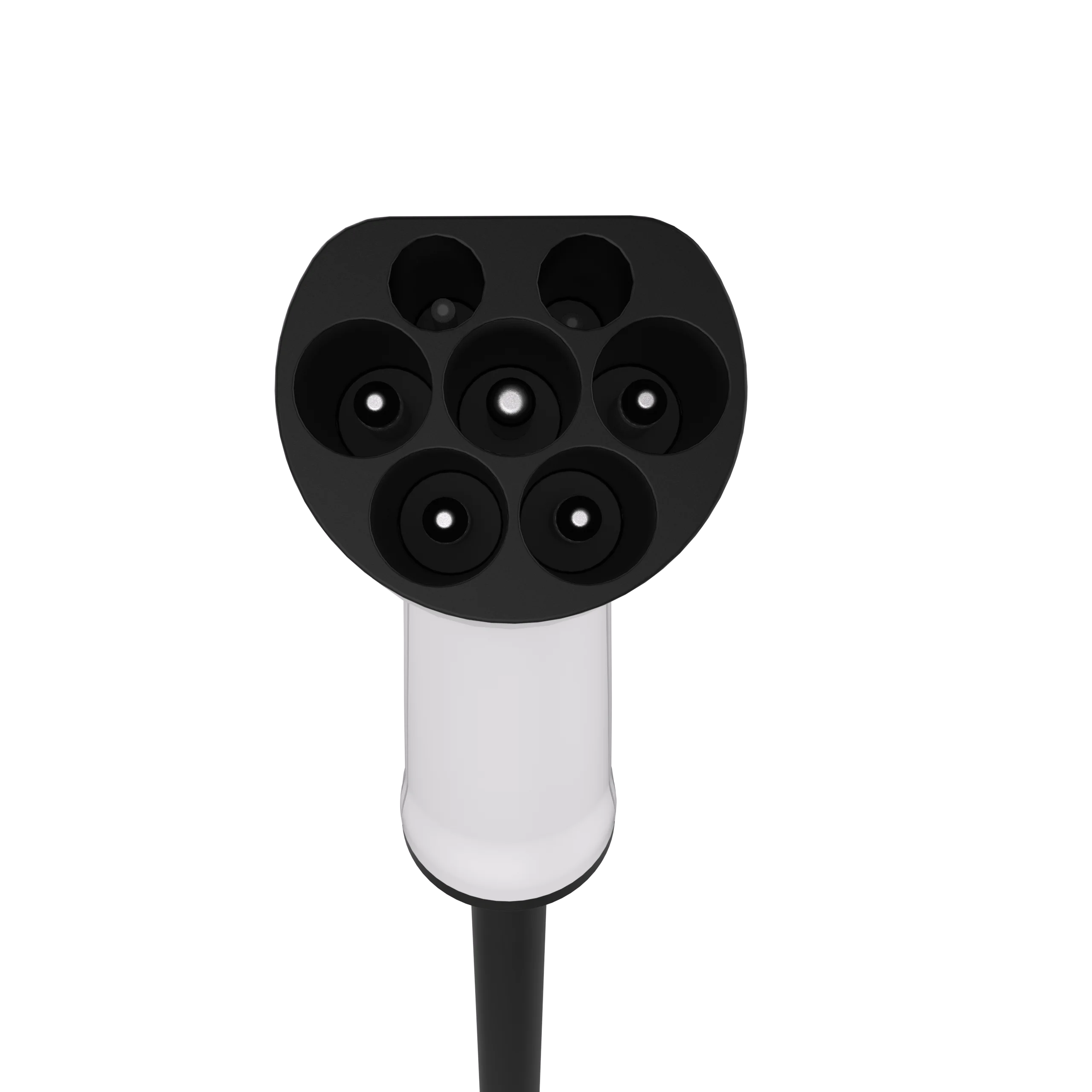

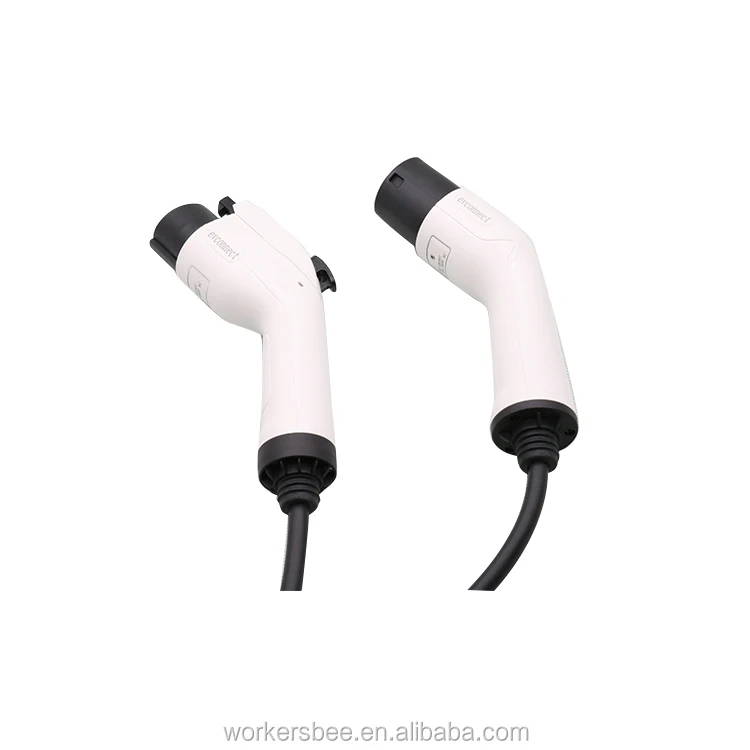

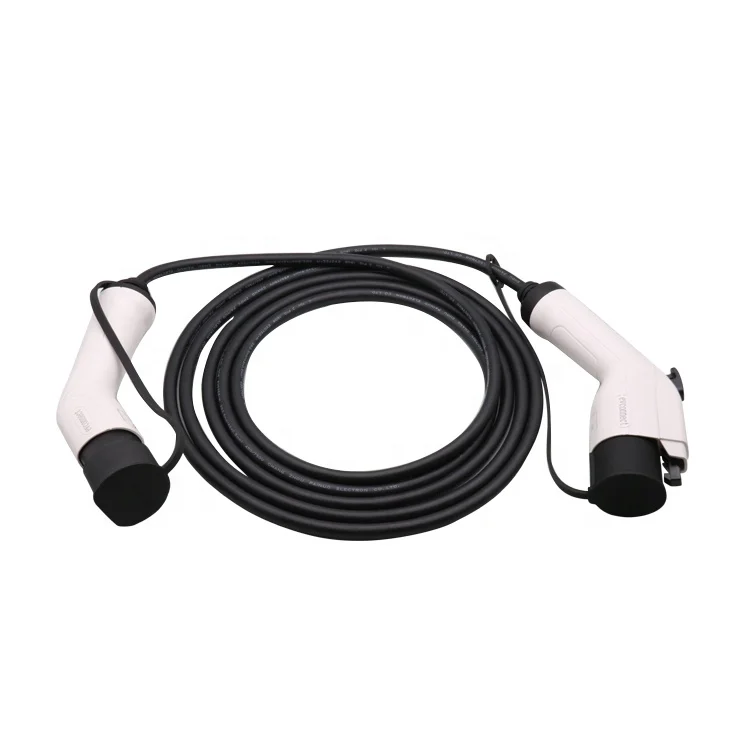

China Factory Workersbee EV charging cable Type 1 to Type 2 16A 1 Phase ev cable
- Category: EV Connectors >>>
- Supplier: Suzhou Yihang Electronic Science &technology Co. Ltd.
Share on (62501688681):
Product Overview
Description
Description
With this cable, you can charge your EV/PHEV that has Type 1 port with an EV charging station that has Type 2 socket. The cable is 16 Amp, single phase, can charge your EV up to 3,6 kW. The product has a nice appearance, hand-held ergonomic design and is easy to plug. The working length is 5 meters and is made from thermoplastic material. It has protection level IP44, is anti-flaming, pressure-resistant, abrasion-resistant and impact resistant.
Key Features:
Plug type | SAE J1772 Type1 |
Power supply plug | IEC 62196 Type2 |
Input power | 1 phase, 16A |
Output power | 3.6kW |
Operational voltage | 240 VAC |
Operational temperature | -30 °C to +50 °C |
SPEC | 3G2.5mm²+2×0.5mm² |
Vandalism-proof | No |
UV resistant | Yes |
Certificate | CE, TUV, UL |
Contacts | Copper alloy |
Cable Material | Thermoplastic |
Cable length | 5 m |
Weight | 2.5 kg |
Brutto Weight | 2.5 kg |
Brutto Dimensions ( Width x Height x Depth ) | 420 x 80 x 420 mm |
Manufacturer | Workersbee (China) |
Warranty | 12 months |
This Charging Cable is Suitable for:
Citroen | Ford | KIA | Mitsubishi |
Citroen C-Zero | Ford Focus Electric | Kia Soul EV | Mitsubishi i-MiEV |
|
|
| Mitsubishi Outlander PHEV |
Nissan | Peugeot | Renault | Vauxhall |
Nissan e-NV200 | Peugeot iOn | Renault Fluence Z.E | Ampera |
Nissan Leaf 2012-2017 |
|
| |
EV Charging Power and Time
Charger | AC/DC | Rated Power | 30kWh Battery | 60kWh Battery | 90kWh Battery |
Schuko 16A | AC | 3.6kW | 8hrs | 16hrs | 24hrs |
Schuko 32A | AC | 7.2kW | 4hrs | 8hrs | 12hrs |
1-phase 16A | AC | 3.6kW | 8hrs | 16hrs | 24hrs |
1-phase 32A | AC | 7.2kW | 4hrs | 8hrs | 12hrs |
3-phase 16A | AC | 11kW | 3hrs | 6hrs | 9hrs |
3-phase 32A | AC | 22kW | 1.5hrs | 3hrs | 4.5hrs |
DC Fast charge | DC | 50kW | 40mins | 80mins | 120mins |
Tesla Supercharger | DC | 120kW | 15mins | 30mins | 45mins |
Depends on the onboard charging capability the EV can charge at a specific maximum power. We provide both 16Amp and 32Amp rated EV charging cables.
