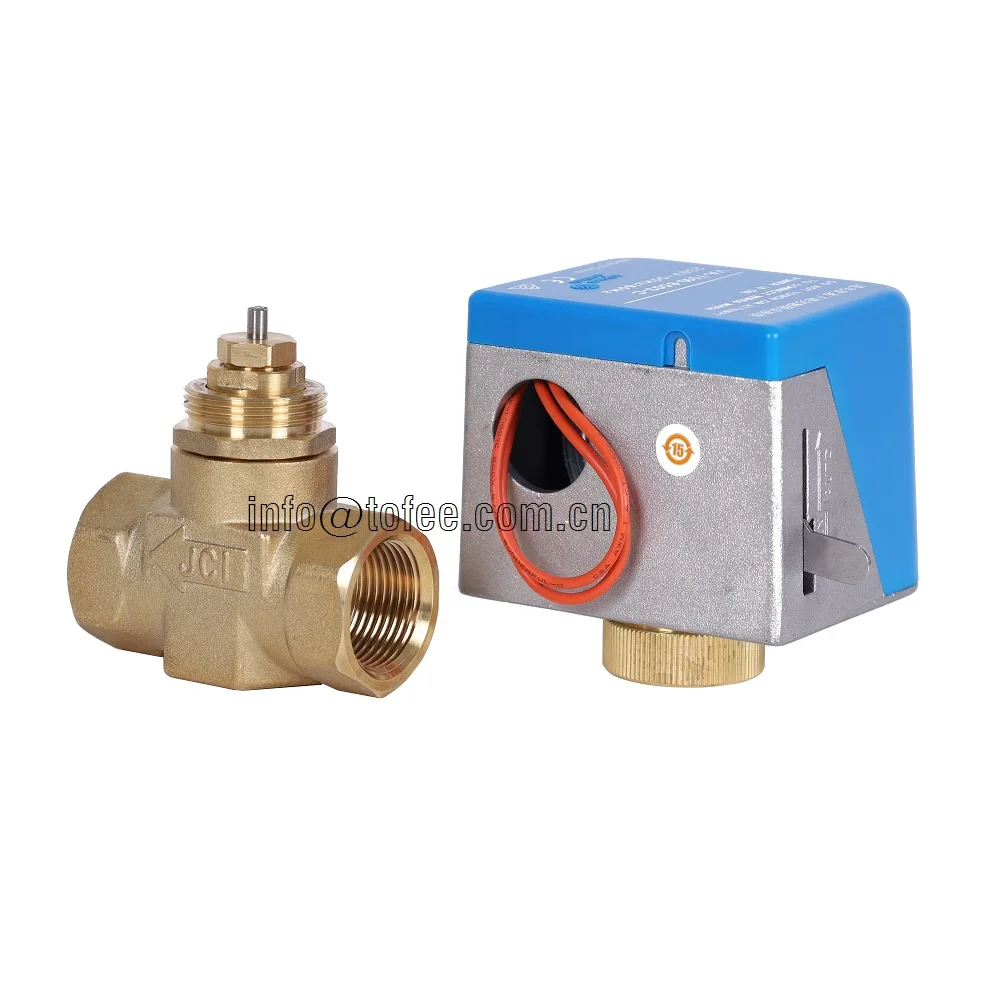

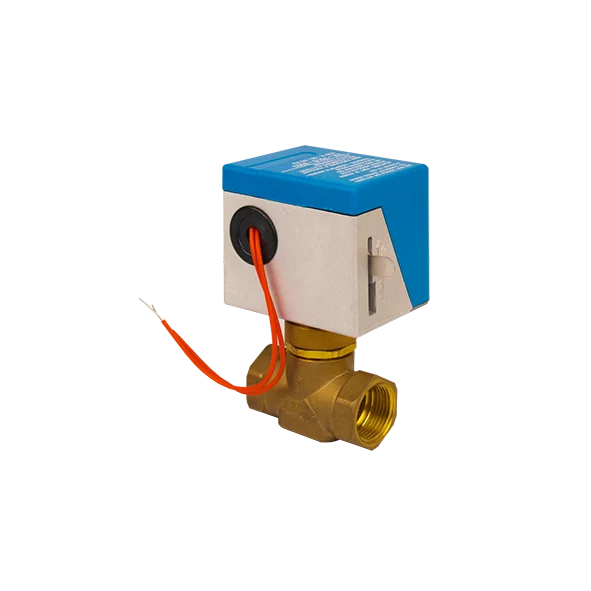

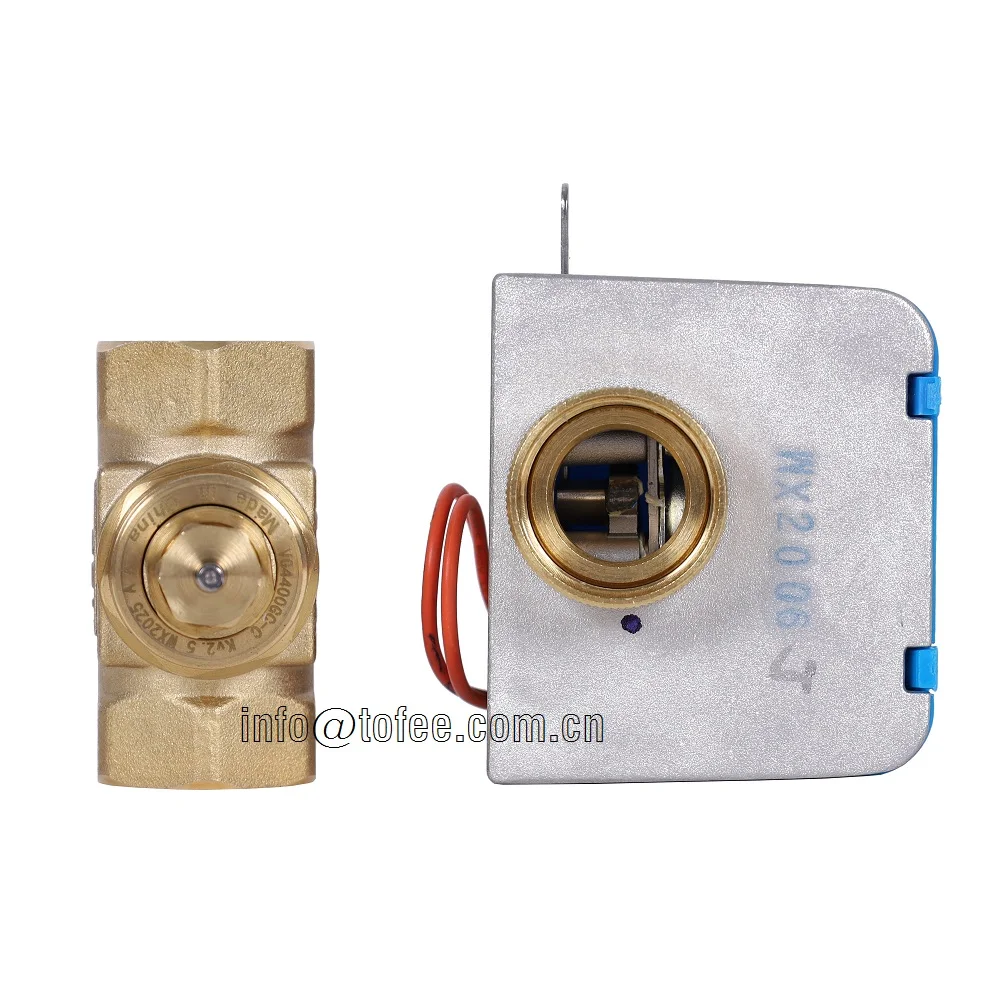

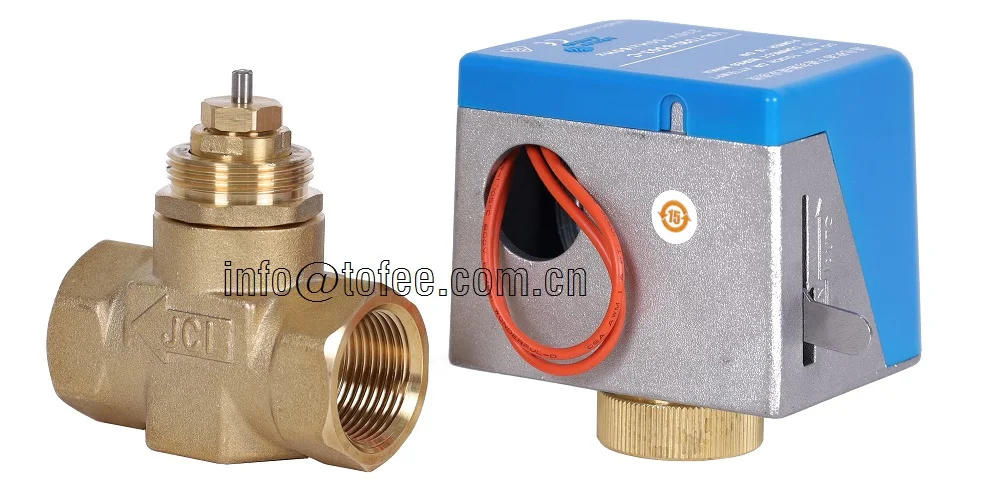

2 way FCU on off spring return electric motorized control valve (Johnson VA 7010)

Product Overview

Description

Description

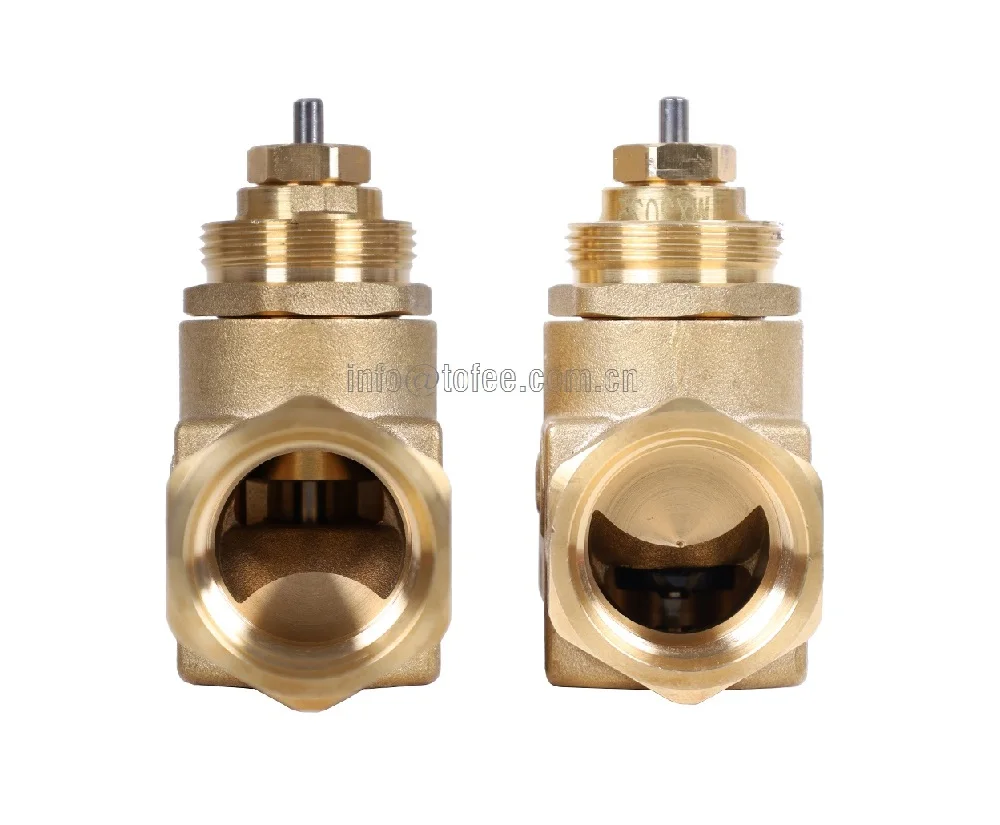

The VA-7010 Series Electric On/Off Actuators provide two-position (open/closed) control and can easily be field mounted with a threaded coupling onto VG4400 Series Forged Brass Valves. Refer to the VG4400 Series Forged Brass Valves 1/2 Through 1 in.,

A lever at the side of the actuator housing can be used to open the mounted valve manually for servicing.





Features

♦ Low or line voltage model available

- Provides application flexibility

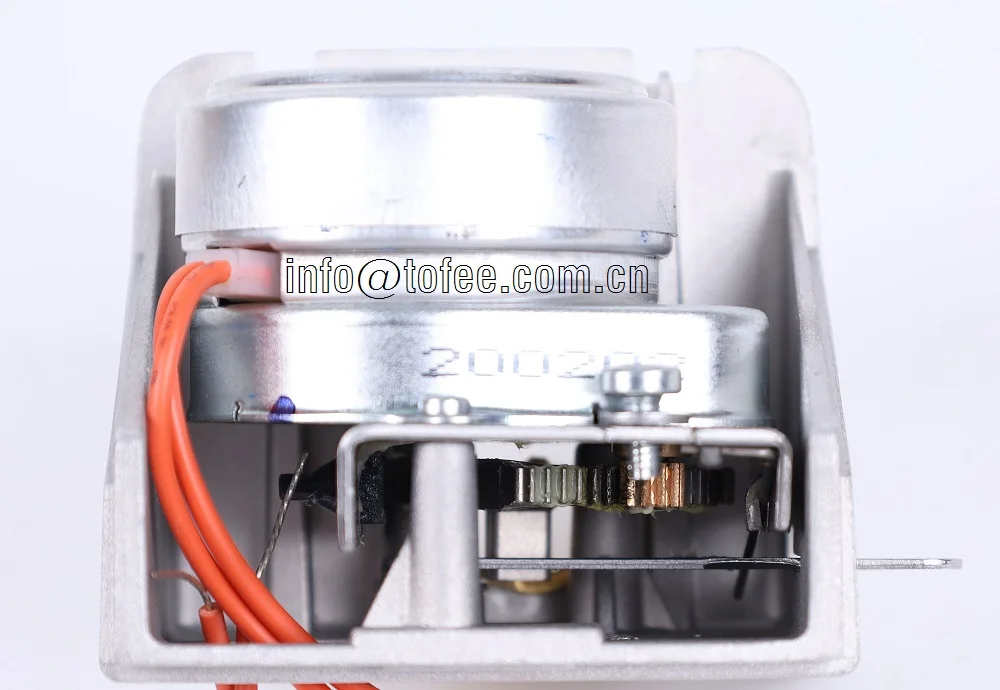

♦ AC stall type motor

- Ensures quiet operation

♦ Manual lever

- Allows manual position mode for servicing

♦ Flat profile design with small side clearance

- Provides mounting close to flat surfaces and saves space

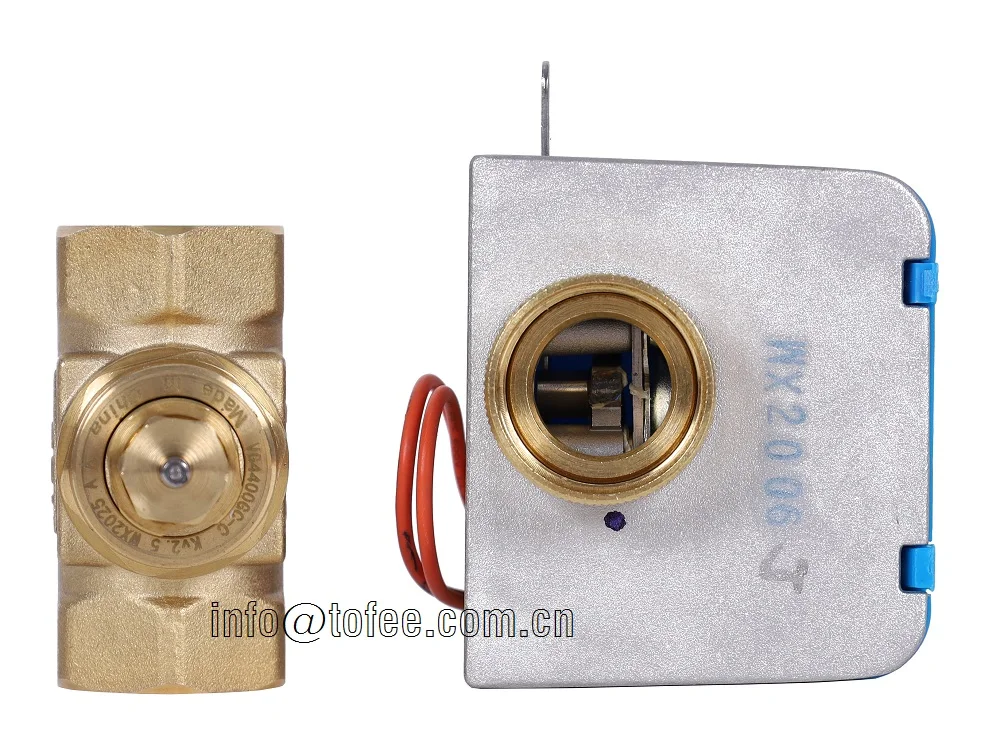

♦ Actuator can be mounted after valve body is installed

- Simplifies installation in confined spaces and allows application flexibility

♦ Actuator can be rotated after mounting

- Provides easier wiring by locating the wiring conduit entry in any direction





Specification

Product	VA-7010 Series Electric On/Off Actuator
Action	On/Off
Type of Motor	Synchronous Stall
Supply Voltage (50/60 Hz)	VA-7010-8001: 24 VAC, Class 2, ±10% VA-7010-8002: 120 VAC, ±10% VA-7010-8003: 230 VAC, ±10% VA-7010-8006: 208 VAC, ±10% VA-7010-8007: 277 VAC, ±10%
Power Consumption	7 VA
Minimum Force	20.2 lb (90 N)
Nominal Stroke	0.12 in. (3 mm), maximum 0.2 in. (5 mm)
Full Stroke Time On	Nominal 10 seconds
Full Stroke Time Off	Nominal 5 seconds
Enclosure	IP40, NEMA 1
Ambient Operating Condition	35~122 deg F (2~50 deg C), non-condensing
Ambient Storage Condition	-4~149 deg F (-20~65 deg C), non-condensing
Electrical Connections	18 AWG, 20 in. (508 mm) long wire leads
Dimensions (H x W x D)	2.9 x 2.9 x 2.6 in. (75 x 75 x 65 mm)
Shipping Weight	1.1 lb (0.5 kg)
Agency Compliance	UL 873 Listed, File E27734, Guide XAPX, Plenum Rated CSA C22.2 No. 139 Certified, File LR85083, Class 3221 01



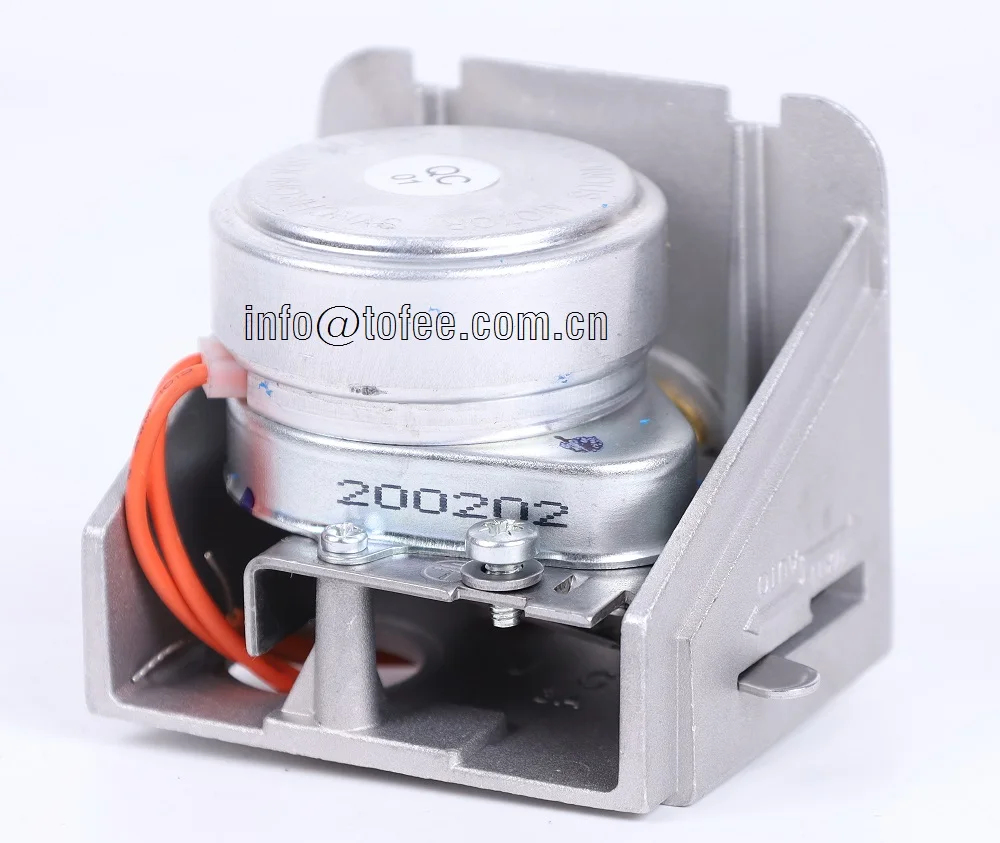

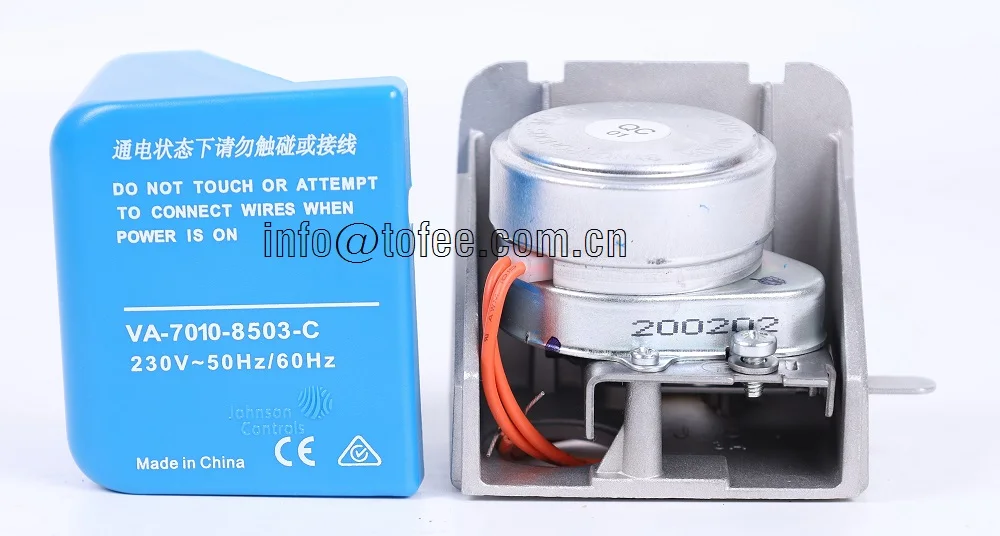

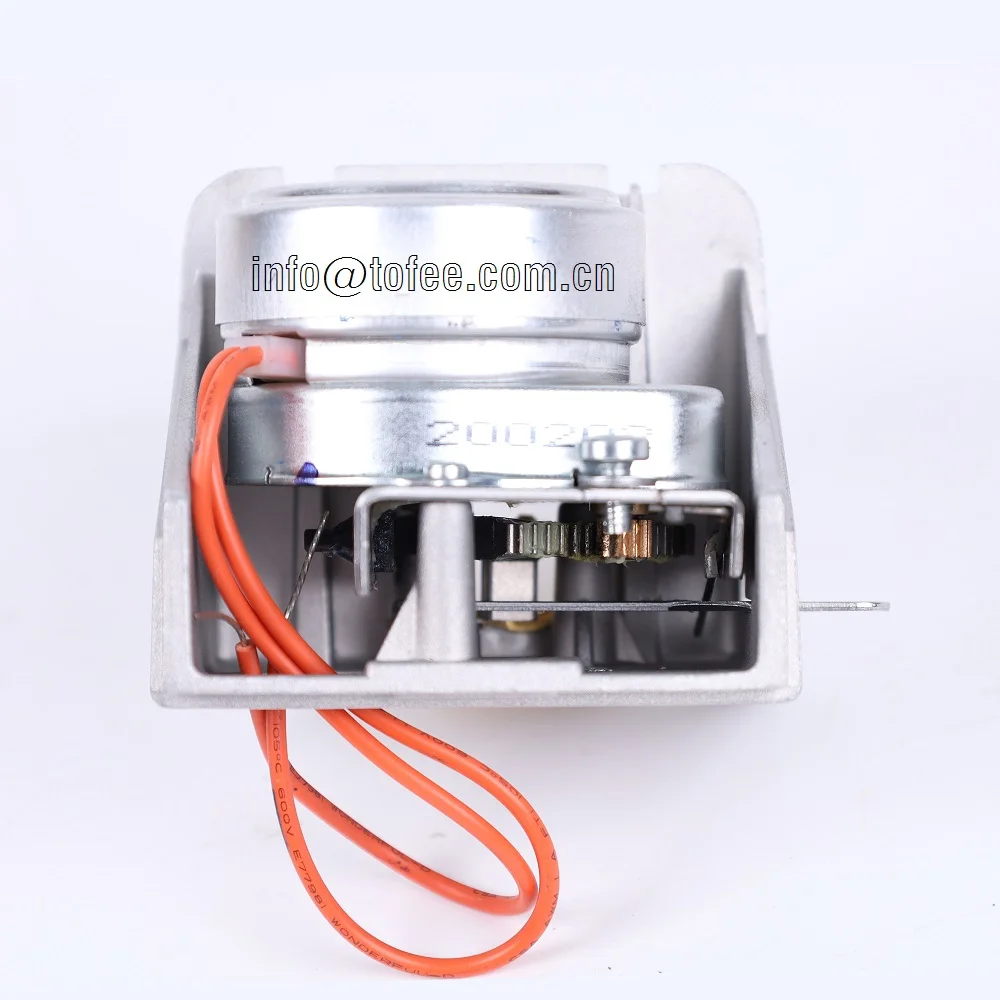

 ♦ Structure:







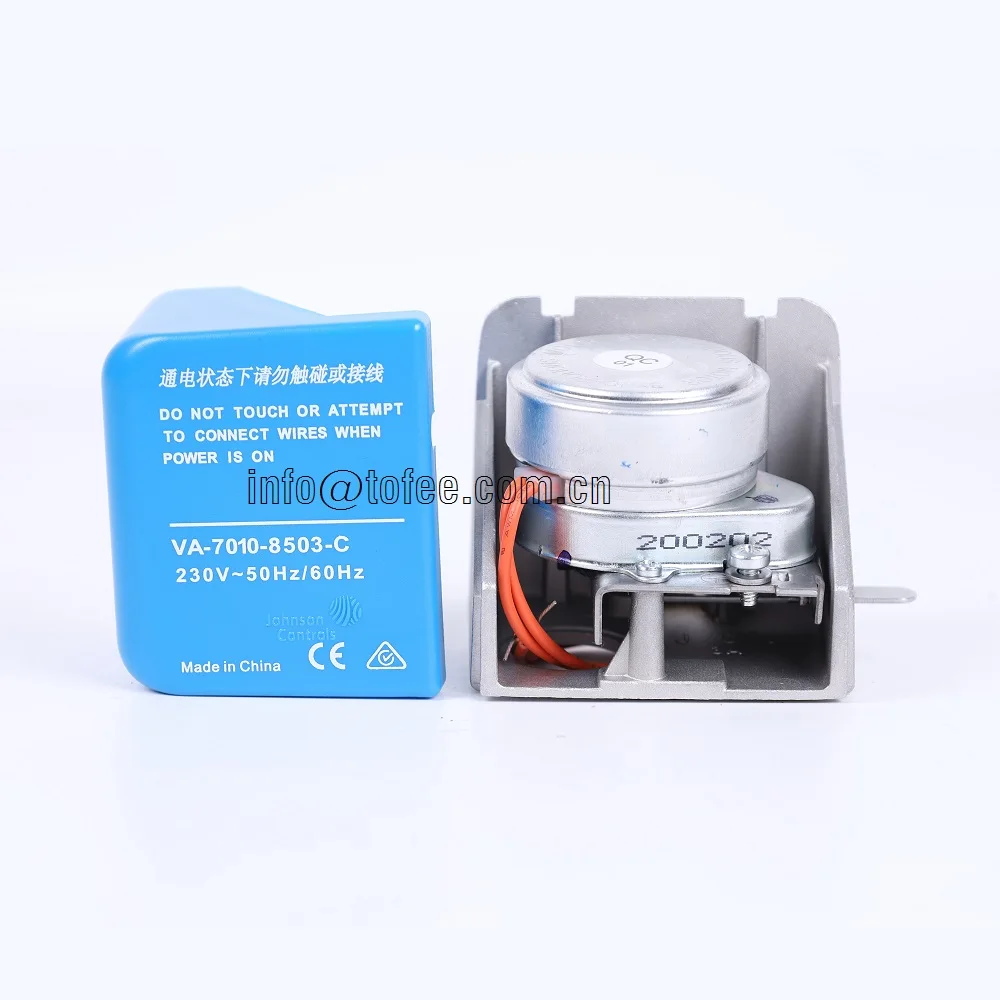

Detailed Images









♦ Packing Details
