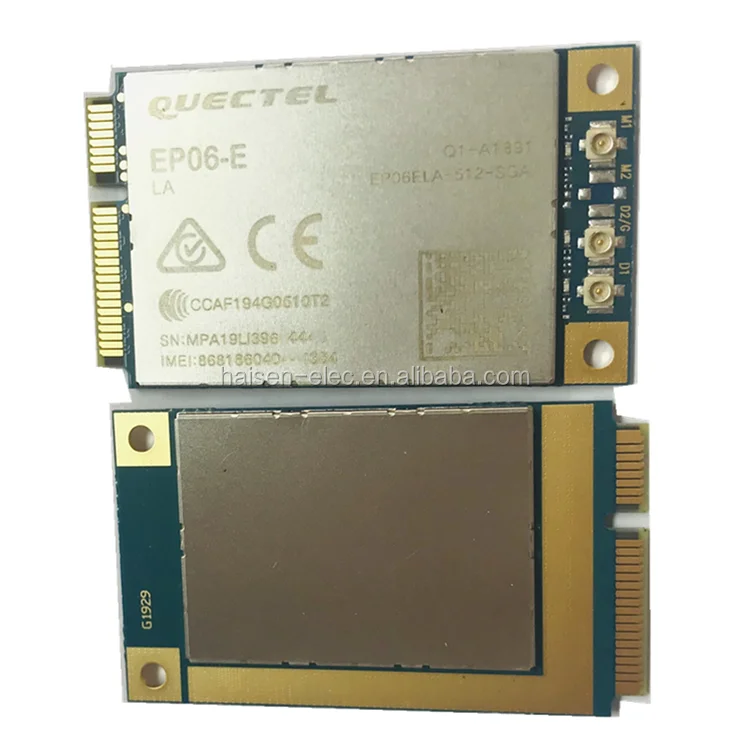

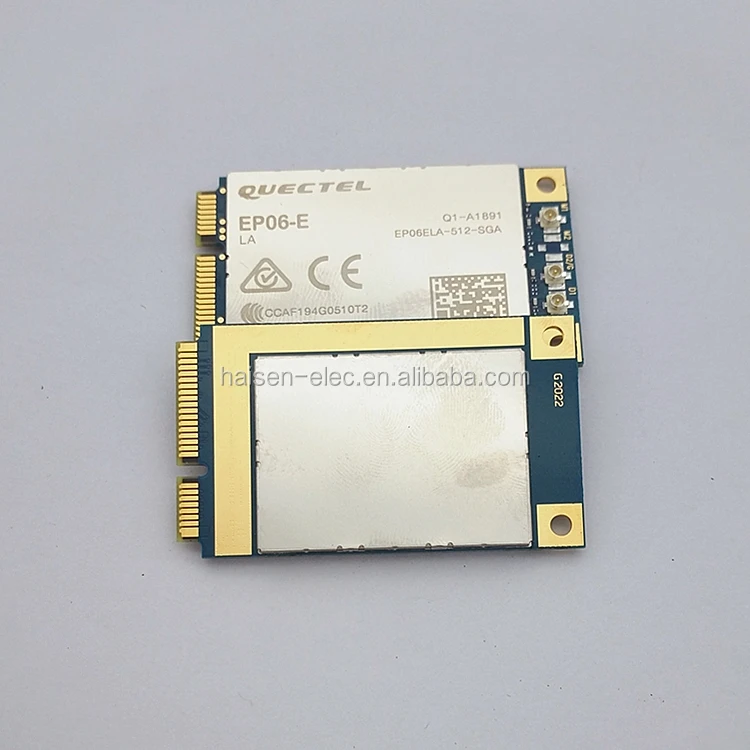

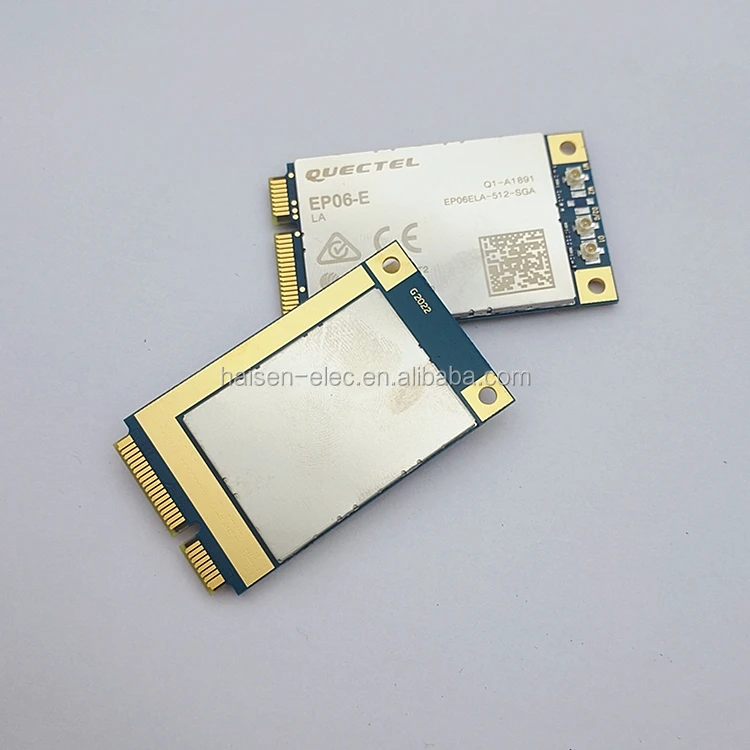

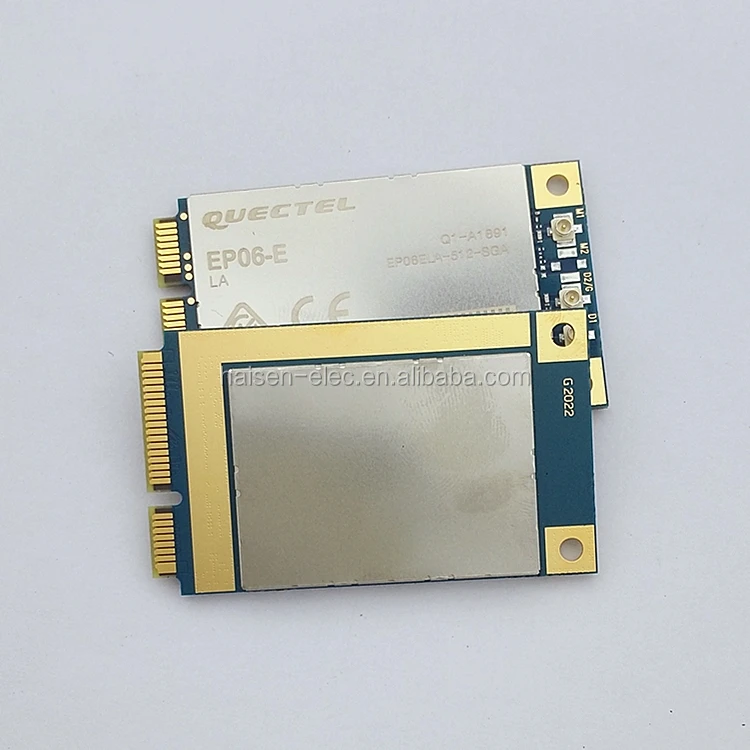

LTE Advanced category 6 module optimized specially for M2M and IoT applications CAT 6 4G MODULE MINI PCIE EP06 EP06 A EP06 E

Product Overview

Description



    LTE Advanced category 6 module optimized specially for M2M and IoT applications CAT 6 4G MODULE MINI PCIE EP06  EP06-A EP06-E



EP06 is a series of LTE Advanced category 6 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers maximum data rates of 300Mbps downlink and 50Mbps uplink.









Product details:

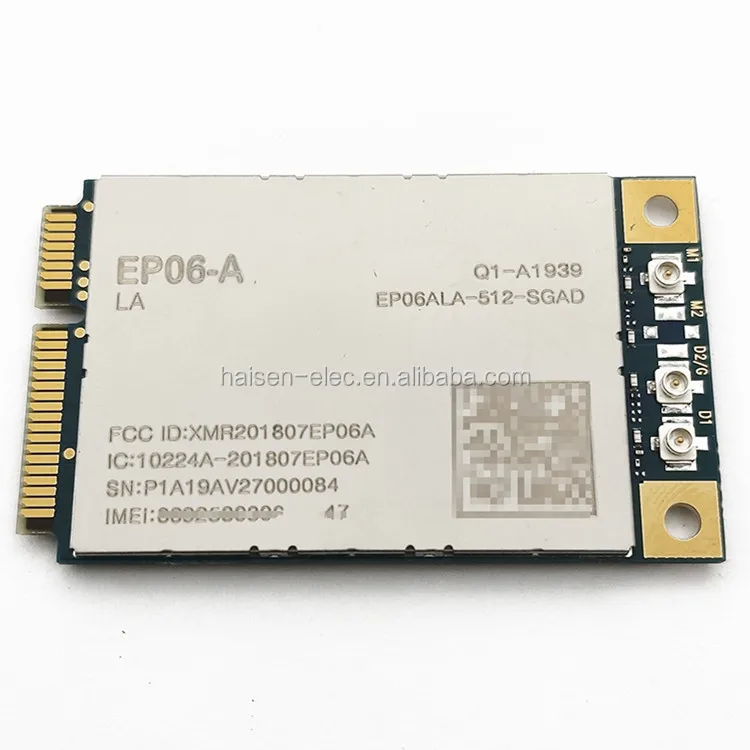

Designed in the Mini PCIe form factor, EP06 contains 2 variants (EP06-E, EP06-A) for different target regions and these variants nearly cover all the main stream carriers worldwide.

EP06 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7, Windows 8/8.1, Windows 10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, set top box, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.

Key Benefits

LTE-A Cat 6 module with Mini PCIe form factor, optimized for M2M and IoT applications
Support LTE-A carrier aggregation
Worldwide LTE-A and UMTS/HSPA+ coverage
Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
Feature refinements: supports DFOTA and DTMF
MIMO technology meets demands for data rate and link reliability in modem wireless communication systems





Frequency		EP06-E	EP06-A
LTE	LTE-FDD	B1/B3/B5/B7/B8/B20/B28/B32	B2/B4/B5/B7/B12/B13/B25/B26/B29/B30/B66
	LTE-TDD	B38/B40/B41	\\
	2×CA	B1+B1/B5/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B20+B32; B38+B38; B40+B40; B41+B41	B2+B2/B5/B12/B13/B29; B4+B4/B5/B12/B13/B29; B7+B5/B7/B12/B26; B25+B5/B12/B25/B26; B30+B5/B12/B29; B66+B5/B12/B13/B29/B66
UMTS	WCDMA	B1/B3/B5/B8	B2/B4/B5
Embedded GNSS		Y	Y
PCIe Interface		Optional	Optional
USB 3.0		Y	Y
Region		EMEA/APAC/Brazil	North America
Certification		Carrier: Deutsche Telekom*/ Telstra Regulatory: GCF/ CE/ NCC/ RCM	Carrier: Verizon/ AT&T/ Rogers/ Telus/ Sprint/ Bell (TBD) Regulatory: GCF/ FCC/ PTCRB/ IC
Notes: 1, Excluding Japan and CMCC. 2,LTE-FDD B29 and B32 support receiving only, and are only for secondary component carrier in 2×CA.                                                           * Under Development.
