Soft Cone Textile Hank to Cone Yarn Winding Machine China

Product Overview

Description

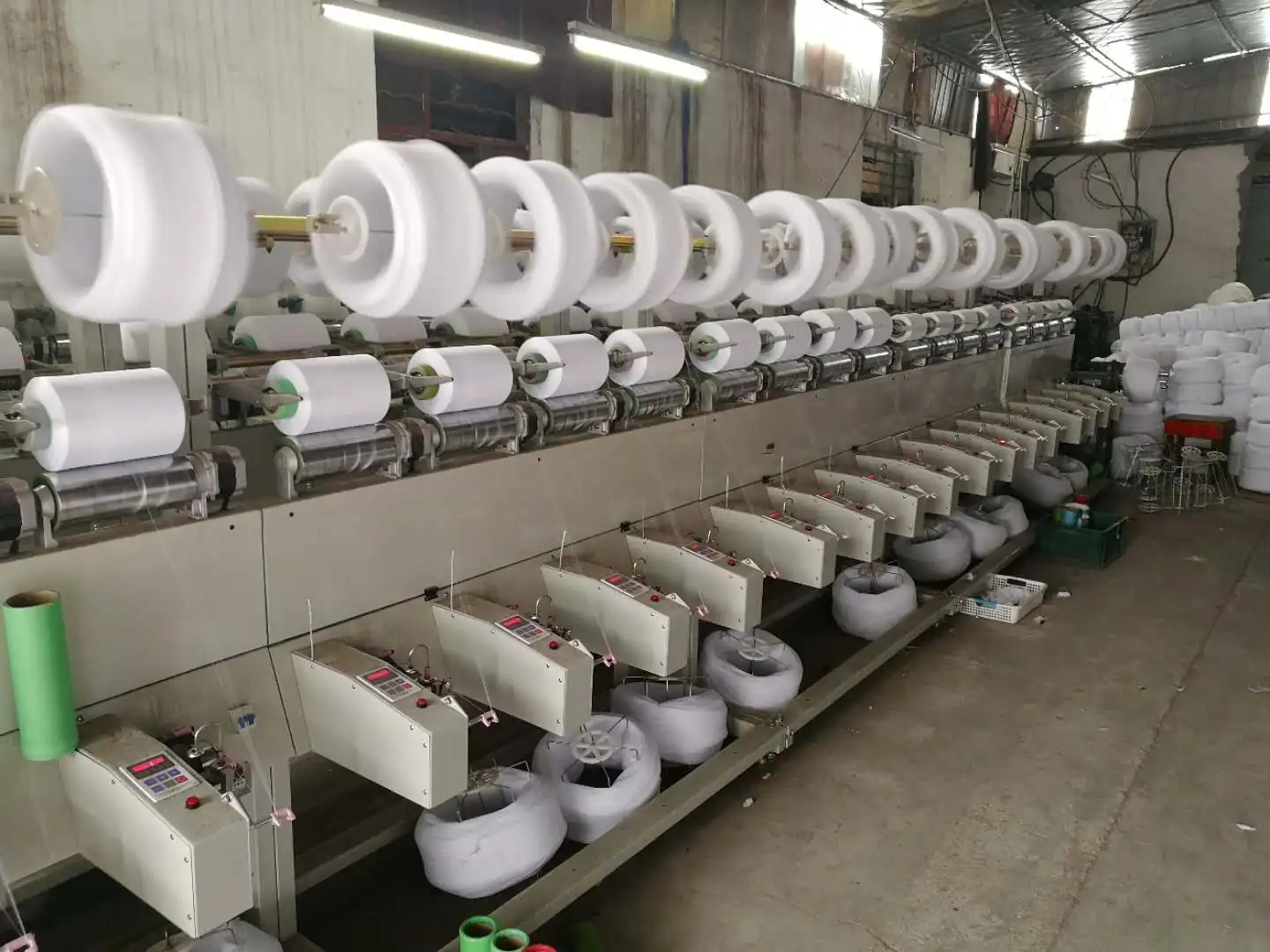

FHCT-S High Speed Soft winding machine

Machine Application:

FHCT-S High speed soft cone winding machine, it’s mainly for before dyeing preparing using, suit for winding like Cotton yarn, wool yarn, Acrylic yarn, Polyester yarns and etc, and it can take up with Conical Cone or Tube dyeing bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labor for next processing work.

Parameters:

 1.  Drive: every spindle per motor;

 2.  Winding speed:  Cotton: about 700M/min,  Fiber: about 600 M/min;

 3.  Has function of Anti-Hard-Edge and Electronic Anti-Stack;

 4.  Package Dia≤ 220mm;  Take-up length: 152mm;

 5.  Each spindle with length counter;

 6.  Advanced control panel;a



1. Direct drive by motor ,speed adjustable per section and side.
2. Tension adjustment via 2 pressure controllers with springs, they also have waxing function.

Bobbin type	6’(170mm) Optional
Layout	Double-side, can be 12-120 spindles
Power Supply	Three phases 380-400V 50/60HZ
Driving	Every spindle per motor
Power Consumption	0.09KW/spindle

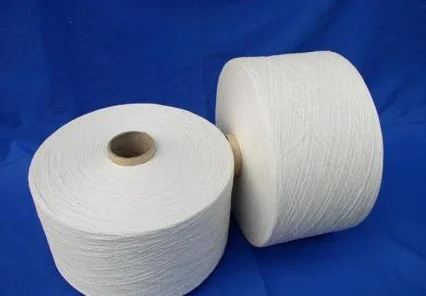

Take-up package	Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15
Yarn tension	Every spindle with disc tensioner
Auto Stop Device	Each spindle has yarn detector
Working speed	300-1000 Meter/min.
Cleaner device	Every spindle has a Mechanical Knife yarn cleaner
Length counter	Each spindle has length counter
Electronic Yarn Cleaner	Optional installed
Air Splicer	Optional installed
Blower cleaner	Optional installed
Lighting System	Optional installed
Dimensions	L 11500 x W 1050 x H 1550 mm (60 Spindles)
