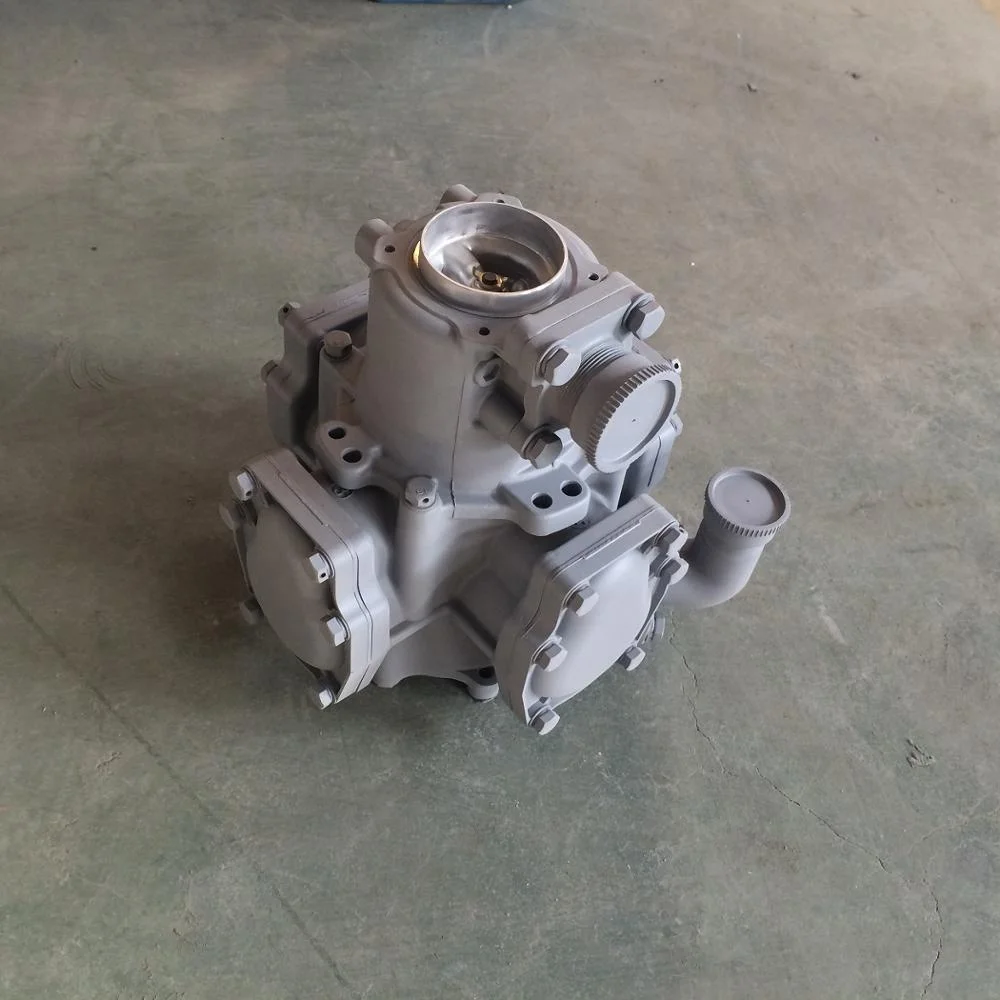

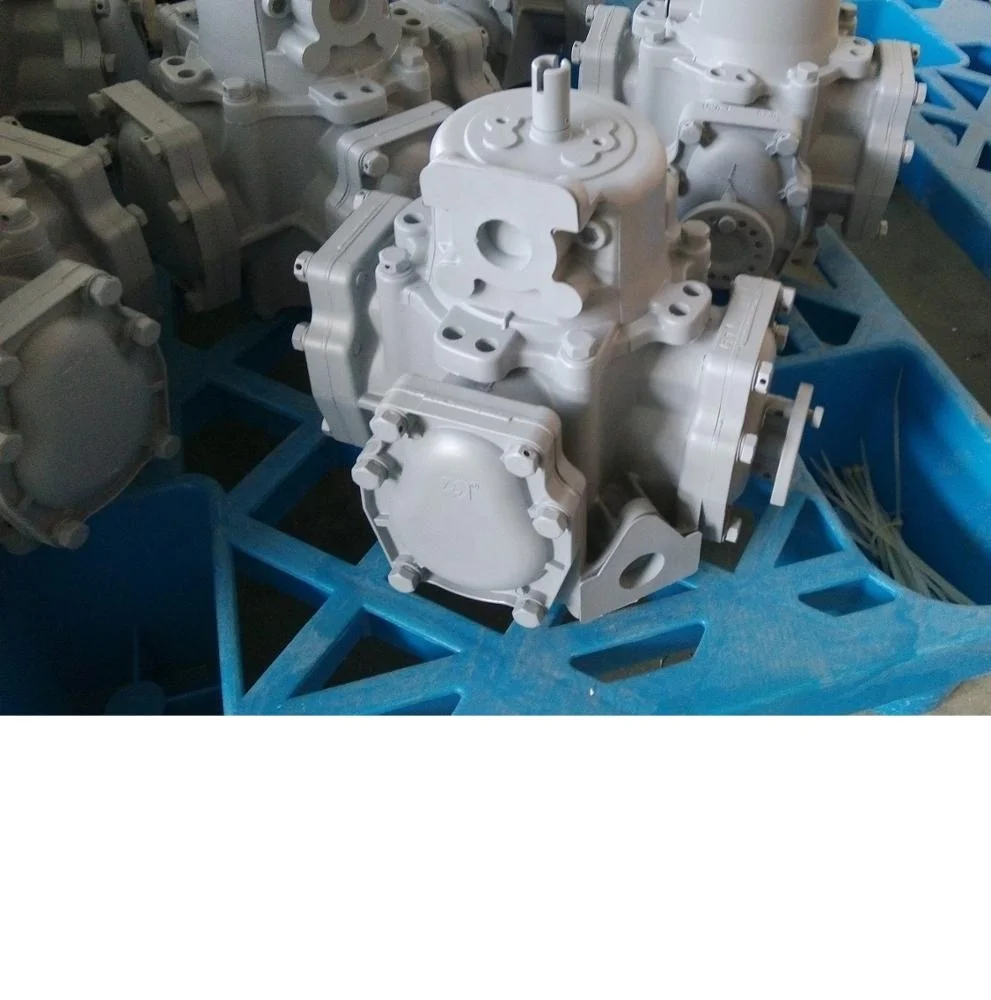

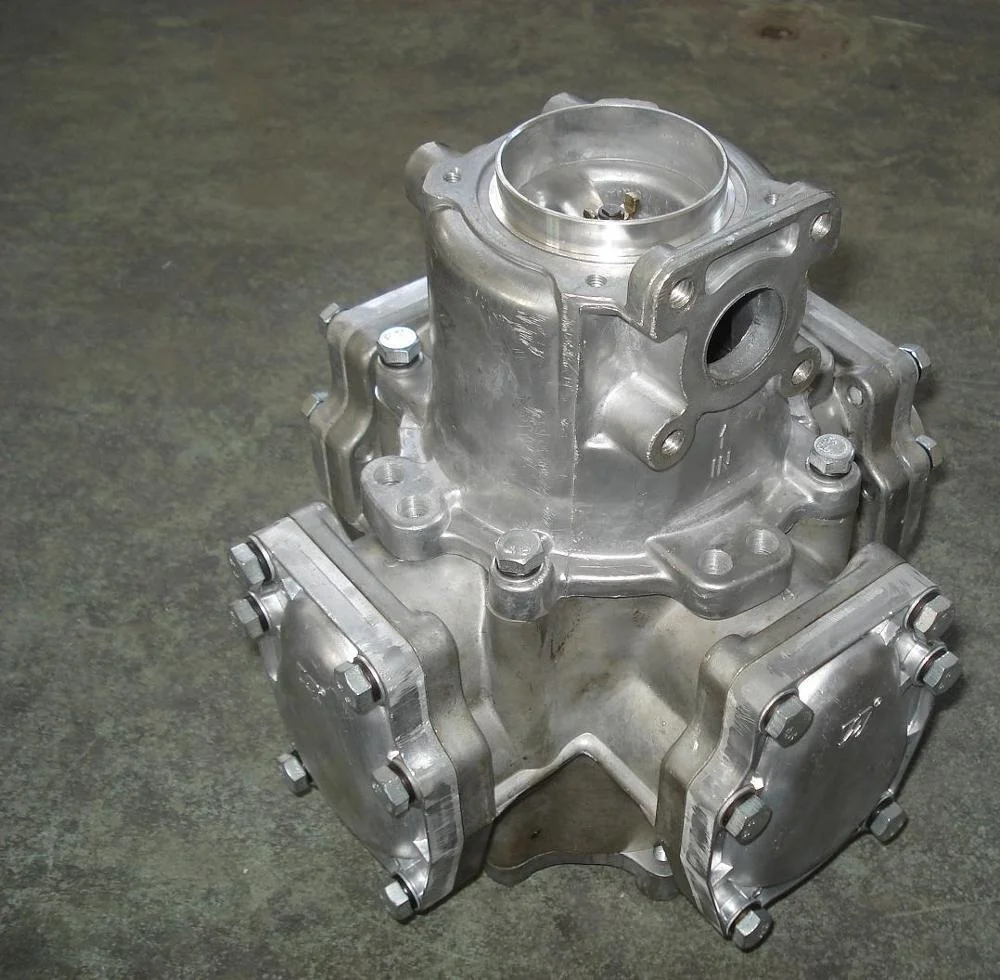

Flow meter for fuel dispenser

Product Overview

Description

Materials: Body: Aluminum (Spray-Painted) seals: Buna-N

Technical Specifications: Discharge rate of each revolution: 0.5L Diameter of rotary bar: 9mm Rotary direction of rotary bar: Clock wise Diameter of cylinder cover: 72.4mm Environmental condition:-40℃~+70℃ Off-setting of crankshaft: 14.93mm Travel of piston: 29.80-31.38mm Adjusting range of piston quantity: 29.86mm Minimum adjusting increasing quantity: 0.05% Working pressure: 0.12Mpa-0.3Mpa Repeat error: not exceed ±0.1%

Features : Micro-accurate 4-piston,positive displacement type meter  with rotary valve, exterior adjustment and double oil lip seal for long life. External structure achieved by single body design of components. Excellent accuracy: ±0.2% with high flow through-put 100% tested before Ex-Factory

Replacement Parts: Key Description Materials 1 Body Aluminum 2 Piston kits   3 Port Cap II Cast Iron 4 Stabilizer bar II Aluminum 5 Stabilizer bar I   6 Distribute valve PTFE 7 Up cap kits   8 Sealing Ring   9 Coupling   10 Rotary bar kits Cast Iron 11 Port cap I Buna-N 12 Sealing Ring Aluminum 13 Bushing   14 Bearing 1Cr18Ni9Ti 15 Adjusting disc Kits Brass with graphite

Package:  Product ID Net Weight Cross Weight Dimension U101-B 5.3kg/case of 1 5.5kg/case of 1 27x23x22cm/case of 1

Ordering Specifications: Product ID Product Name U101-A Flowmeter
