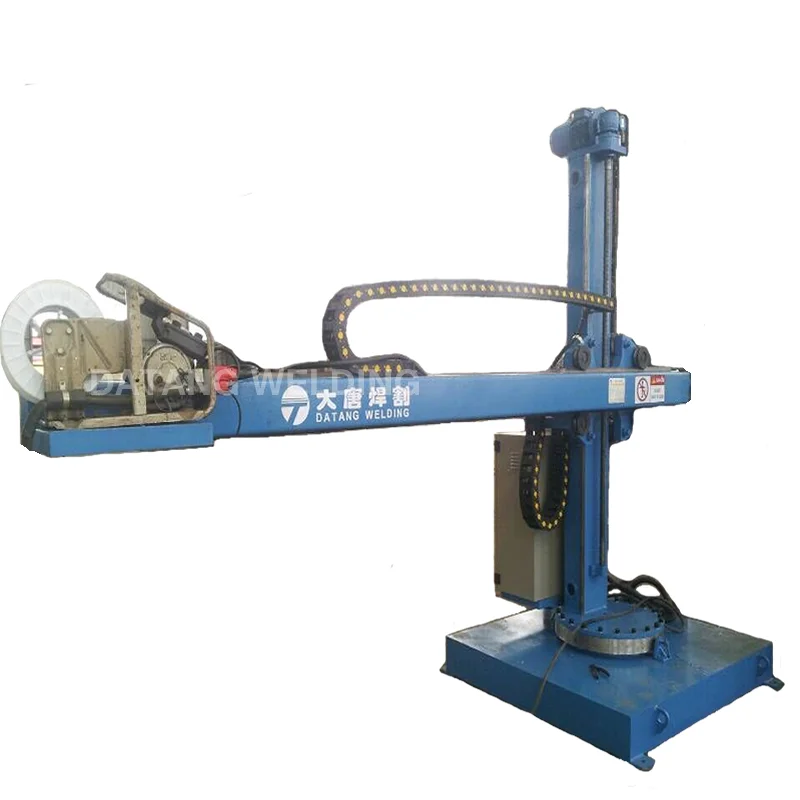

Medium Type Welding Manipulator Automatic Control Adjustable Pipe Welding Manipulator
- Category: >>>
- Supplier: Wuxi Datang Welding & Cutting Mechanical Equipment Co. Ltd.
Share on (62508418260):
Product Overview
Description

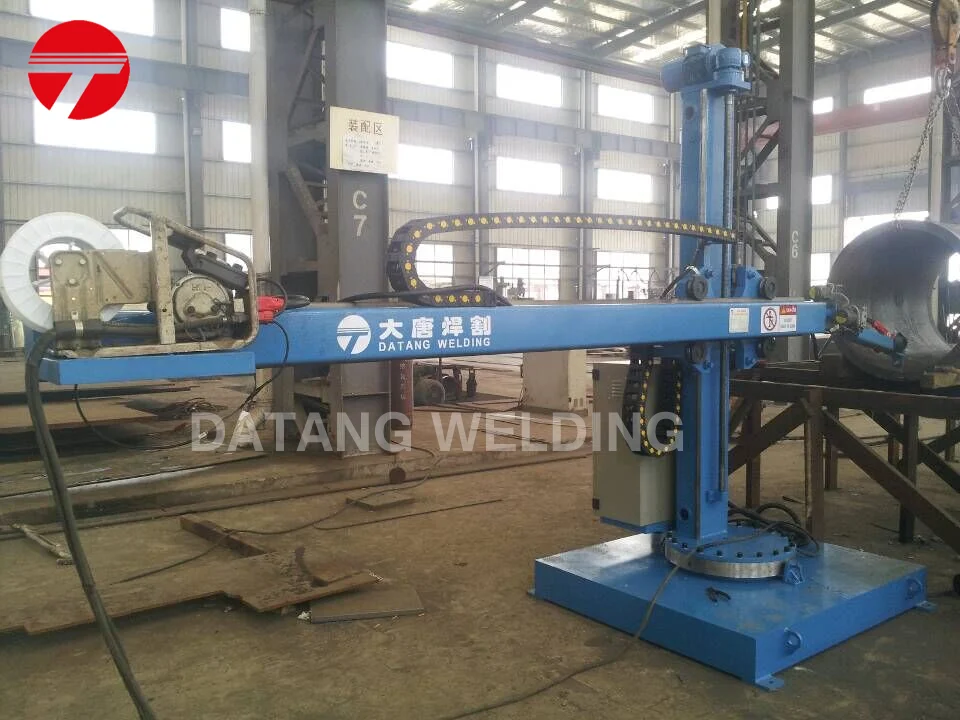

Welding manipulator includes fixed type,fixed with rotation type and traveling with rotation type.

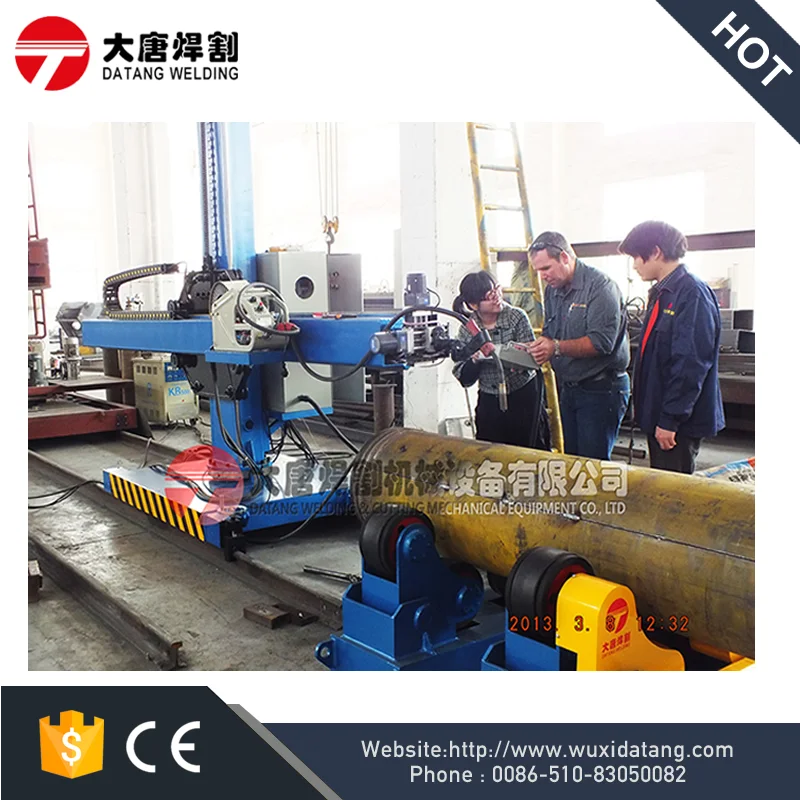

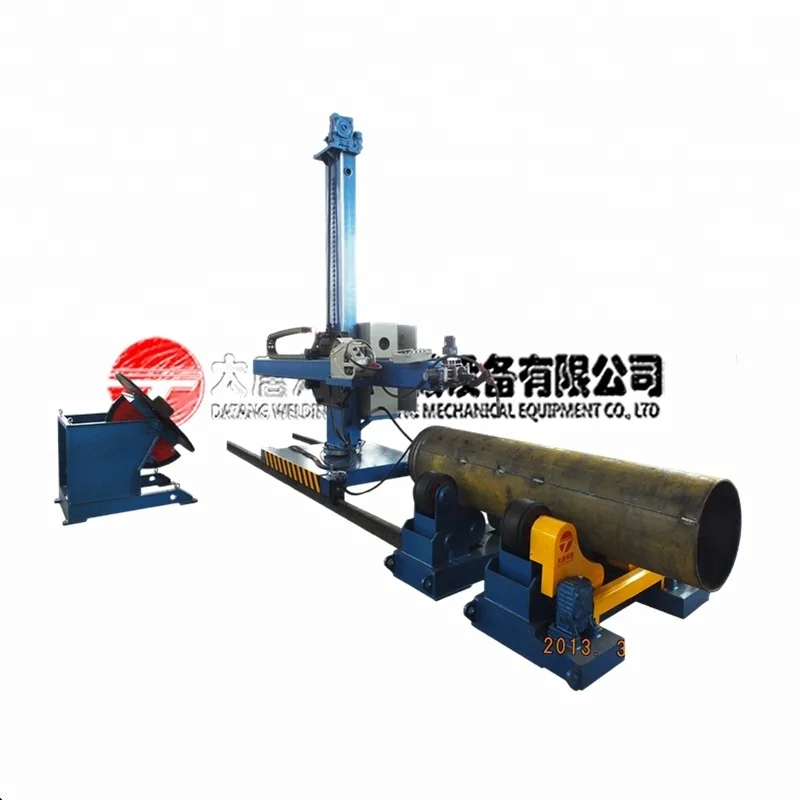

The boom of machine can weld inside and outside seams of small tanks,also can weld longitudinal and transverse seams of big tanks.
It has some optional functions,such as Auto-tracking of welding arc.TV monitor,The flux recovering and conveying system etc.
The boom of machine can weld inside and outside seams of small tanks,also can weld longitudinal and transverse seams of big tanks.
It has some optional functions,such as Auto-tracking of welding arc.TV monitor,The flux recovering and conveying system etc.
Model | DLH0810 | DLH1015 | DLH1520 | DLH2020 | |||
Column vertical stroke (mm) | 800 | 1000 | 1500 | 2000 | |||
Boom horizontal stroke (mm) | 1000 | 1500 | 2000 | 2000 | |||
Column rotation angle (°) | ±180 | ||||||
Column rotation speed (rpm) | Manual | ||||||
Boom vertical speed (mm/min) | 1000 | ||||||
Boom horizontal speed (mm/min) | 120~1200 VFD (inverter) | ||||||
Boom horizontal power (kw) | 0.18 | 0.25 | 0.25 | 0.37 | |||
Column vertical power (kw) | 0.55 | ||||||
Boom end max loading (kg) | 50 | ||||||
Trolley feeding speed (mm/min) | Manual | ||||||
Trolley rail span (mm) | 1000 | ||||||
Voltage | 380V-3PH-50HZ | ||||||
Easy Operate
DATANG Welding manipulator includes fixed type,fixed with rotation type and traveling with rotation type.
Precise Positioning
![]()
The boom of machine can weld inside and outside seams of small tanks,also can weld longitudinal and transverse seams of big tanks.
It has some optional functions,such as Auto-tracking of welding arc.TV monitor,The flux recovering and conveying system etc.
OPTIONS:

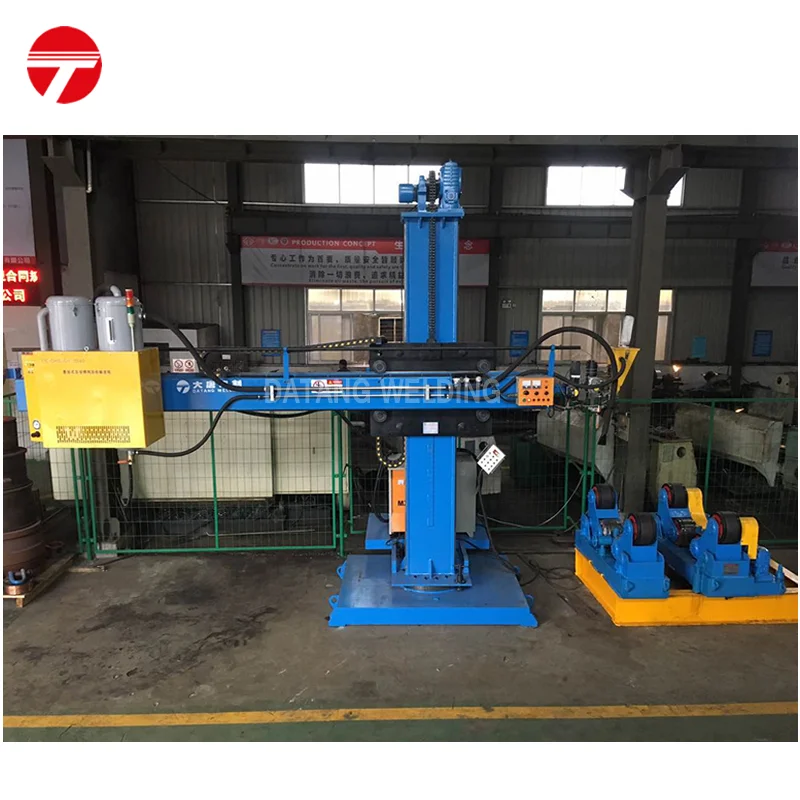

Motorized cross slide Flux recovery system Auto Tracker system Welding oscillator
Welding machine TV monitoring system ARC hight controller Wireless controller
Company Profile
Wuxi DATANG Welding&Cutting Mechanical Equipment Co.,Ltd is located in the shore of Taihu lake, which is a richness and beautiful place——Wuxi Luqu Industrial zone.
Our company is a high-tech company, which specialize in auto welding equipment and H-beam production line. The products are applied to construction industry, such as pressure vessel, oil and chemical, power station, heavy duty mechanical equipment, ship, steel structure equipment and we also can design special equipment according to clients’ requirement. The products are sold at home and abroad, like southeastern Asia, Middle East, Europe and America etc.
The company’s principle, honesty, study and keeping faith and quality best and customers superior, we offer every old and new customer service wholeheartedly. Willing to cooperate with friends from all over the world, to have mutual development and benefits.
Our company is a high-tech company, which specialize in auto welding equipment and H-beam production line. The products are applied to construction industry, such as pressure vessel, oil and chemical, power station, heavy duty mechanical equipment, ship, steel structure equipment and we also can design special equipment according to clients’ requirement. The products are sold at home and abroad, like southeastern Asia, Middle East, Europe and America etc.
The company’s principle, honesty, study and keeping faith and quality best and customers superior, we offer every old and new customer service wholeheartedly. Willing to cooperate with friends from all over the world, to have mutual development and benefits.
FAQ
1,Customer:Can your machines be customized?
We: Yes,we have a professional design team.If you have any special requirements,we can customize for you.
2,Customer:How does your factory do regarding quality control?
We:Quality is priority,we always attach great importance to quality controlling from the very beginning to the very end.
3,Customer:What about the packing ?
We:Usually we use wooden case,container or as per customers' requirements.
4,Customer:What about the transportation?
We:We usually take seaway because it is convenient and cheap.Also we can take train,it is up to the destination.
5,Customer:What about the warranty?
We:Our company's machines are all of high-quality.And our products' warranty is 1 year.
We: Yes,we have a professional design team.If you have any special requirements,we can customize for you.
2,Customer:How does your factory do regarding quality control?
We:Quality is priority,we always attach great importance to quality controlling from the very beginning to the very end.
3,Customer:What about the packing ?
We:Usually we use wooden case,container or as per customers' requirements.
4,Customer:What about the transportation?
We:We usually take seaway because it is convenient and cheap.Also we can take train,it is up to the destination.
5,Customer:What about the warranty?
We:Our company's machines are all of high-quality.And our products' warranty is 1 year.
