Rehabilitation Therapy Supplies 16 inch handbike attachable electric handcycle

Share on (62509128775):


Price:$556.60 - $580.80

Quantity:


Product Overview

Description



Product Description




It can be connected with most of the manual wheelchairs very quickly and easily.Just need a simple operation to connect the trailer with your wheelchair so as to make your manual wheelchair electriced.
When you needn't use it or once battery run out, it's easy to separate the trailer from your wheelchair in a few minutes and remain the manual wheelchair's function. The trailer make the connection of manual wheelchair and electric one to become realization .



Model
WH16A
Voltage
DC 36V
Color
Black
Brand
cnebikes
Motor power
350w
Certification
CE
Max speed
20km/h
Warranty
1 year
Battery capacity
36v 11.6Ah
Display
LCD005 display
Display function
Reverse/forward
MOQ
1 Piece
Horn/headlight
Yes
Safety switch
yes
Running range
20km~40km
Port
Ningbo/Shanghai

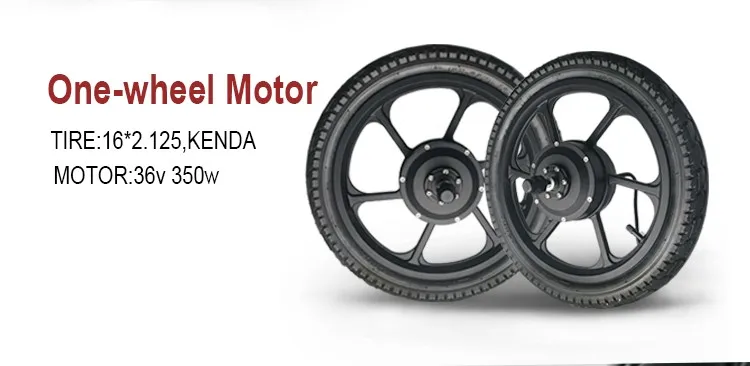

Motor

36v 350w brushless geared hub motor (waterproof cables )


Tire

Kenda 16*2.125

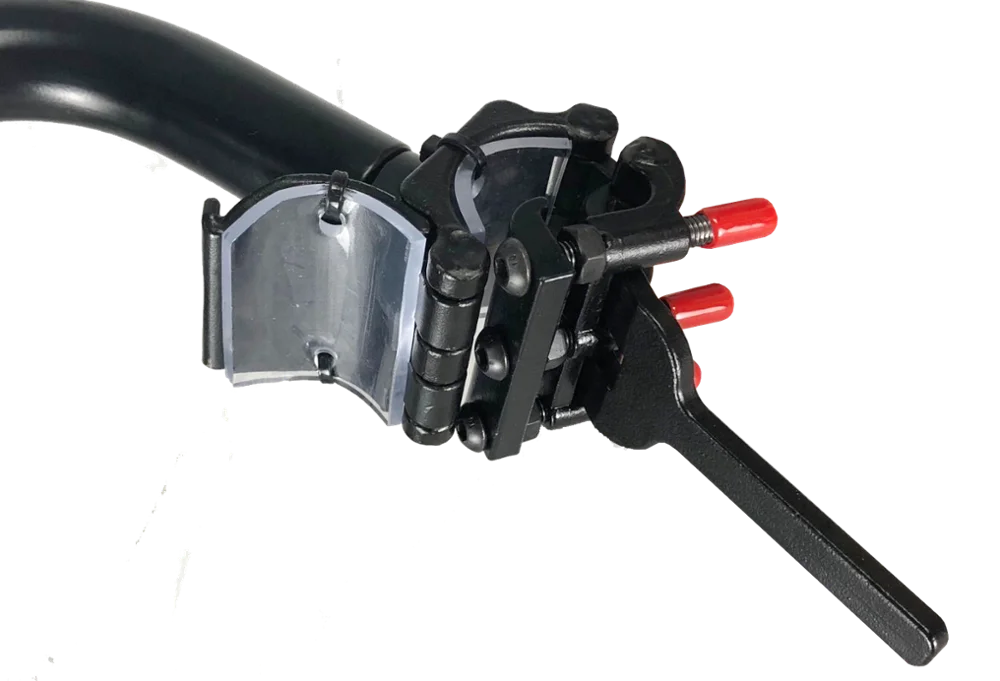

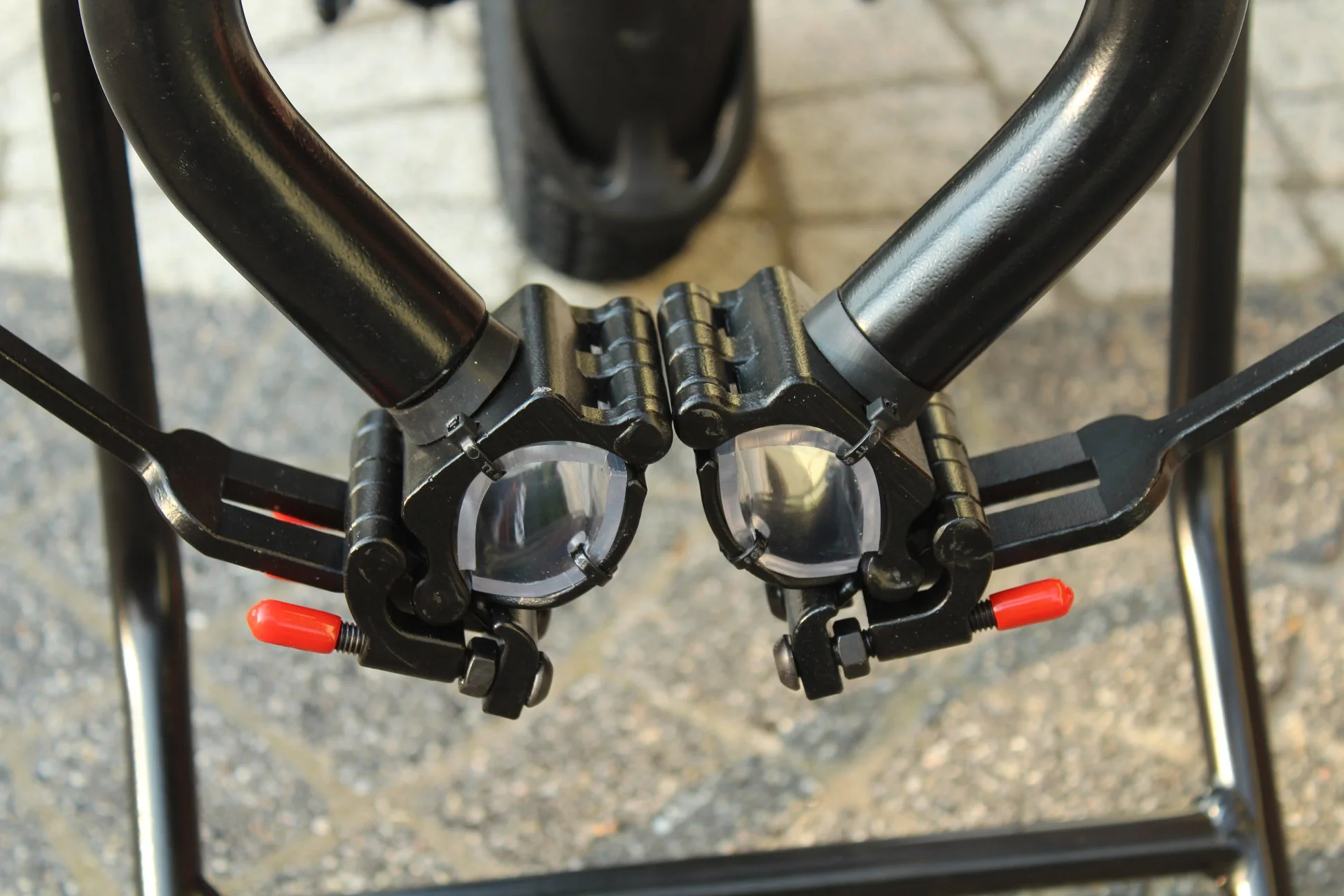

Clamp

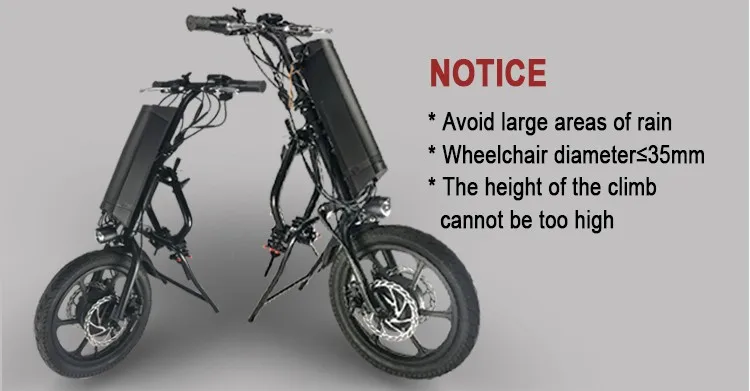

Before ordering, we just need to confirm : Tube diameter of your wheelchair

wheelchair tube diameter it's better between 18-38cm





Lithim battery

battery options
36v 8ah
36v 10.4ah
36v 11.6ah- default
36v 14ah

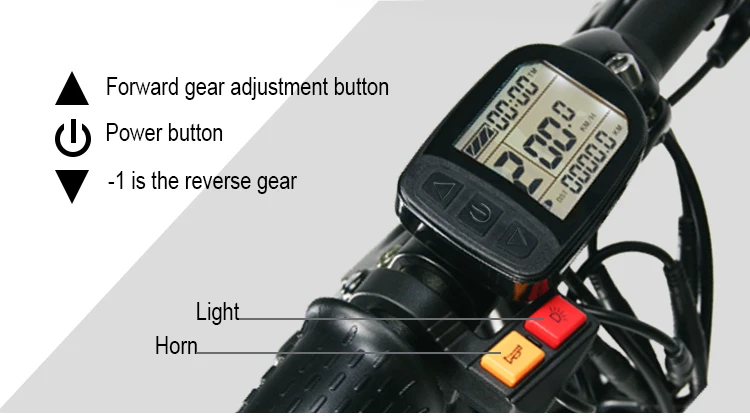

LCD005 Display
level 1-3 is advanced level
-1 is reverse

Level 1 - 12km/h
Level 2 - 16km/h
Level 3 - 20km/h
Level-1 is Reverse-- 6km/h

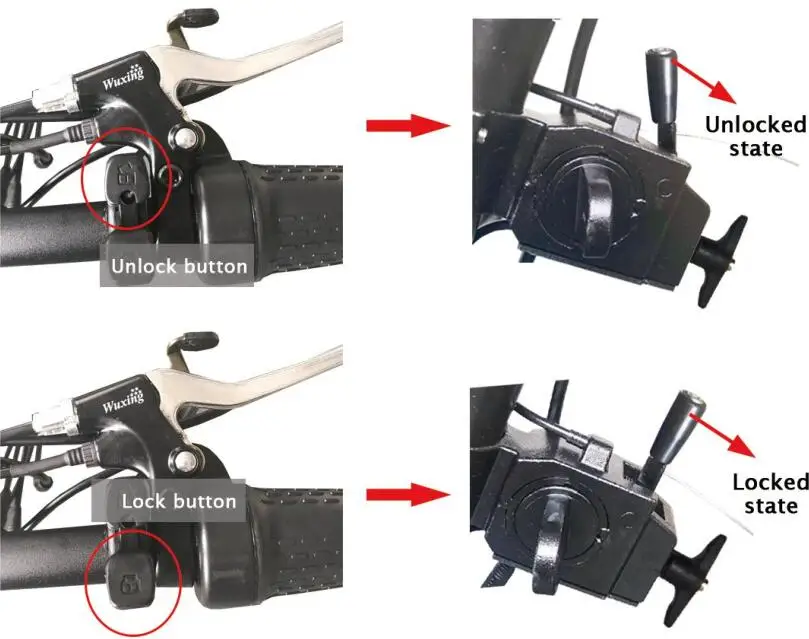

Safety switch

Need to screw down the safety switch for the handcycle, then operate.

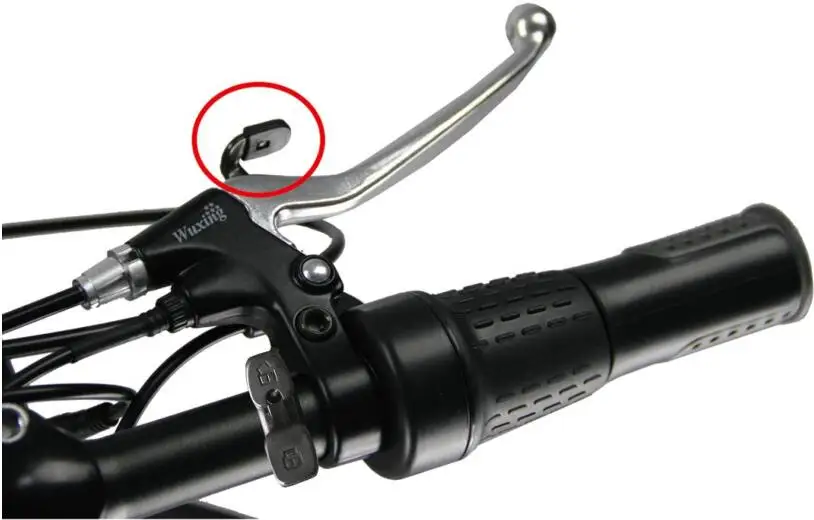

Hand brake
When you parked on a slope,the hand brake lock
will stop wheelchair From reversing.
Double disc brake
Safe driving

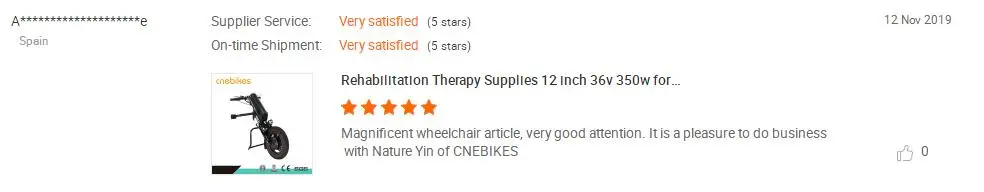

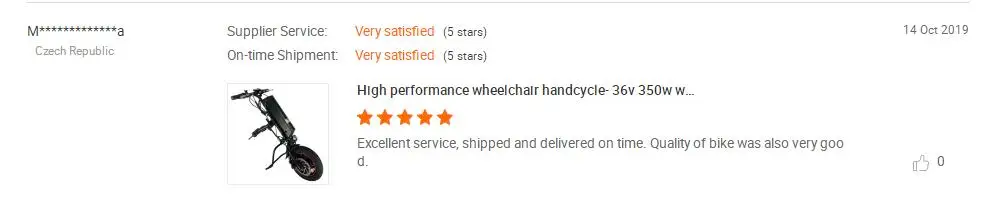

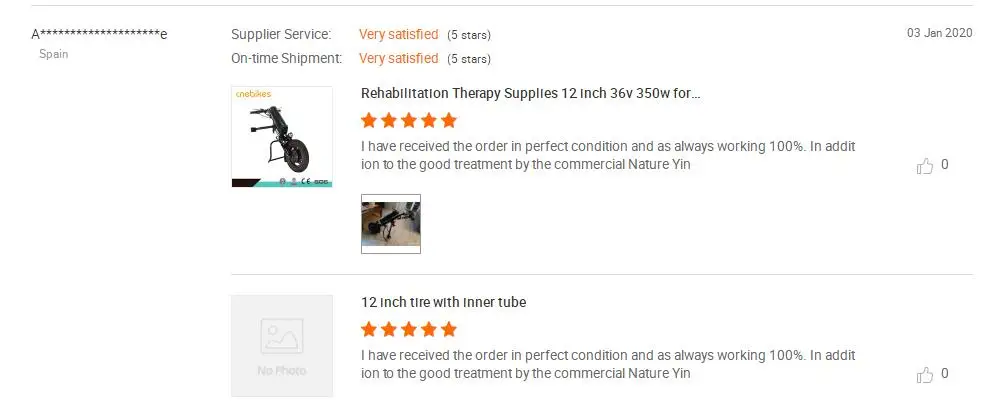

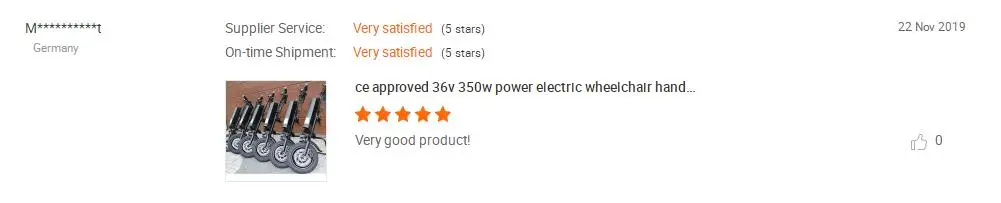

Customer Photos




Installation Instructions




Comments










Series related models


WH12A-350W
WH12A-500W


WH12AS-350W
WH12B-350W
